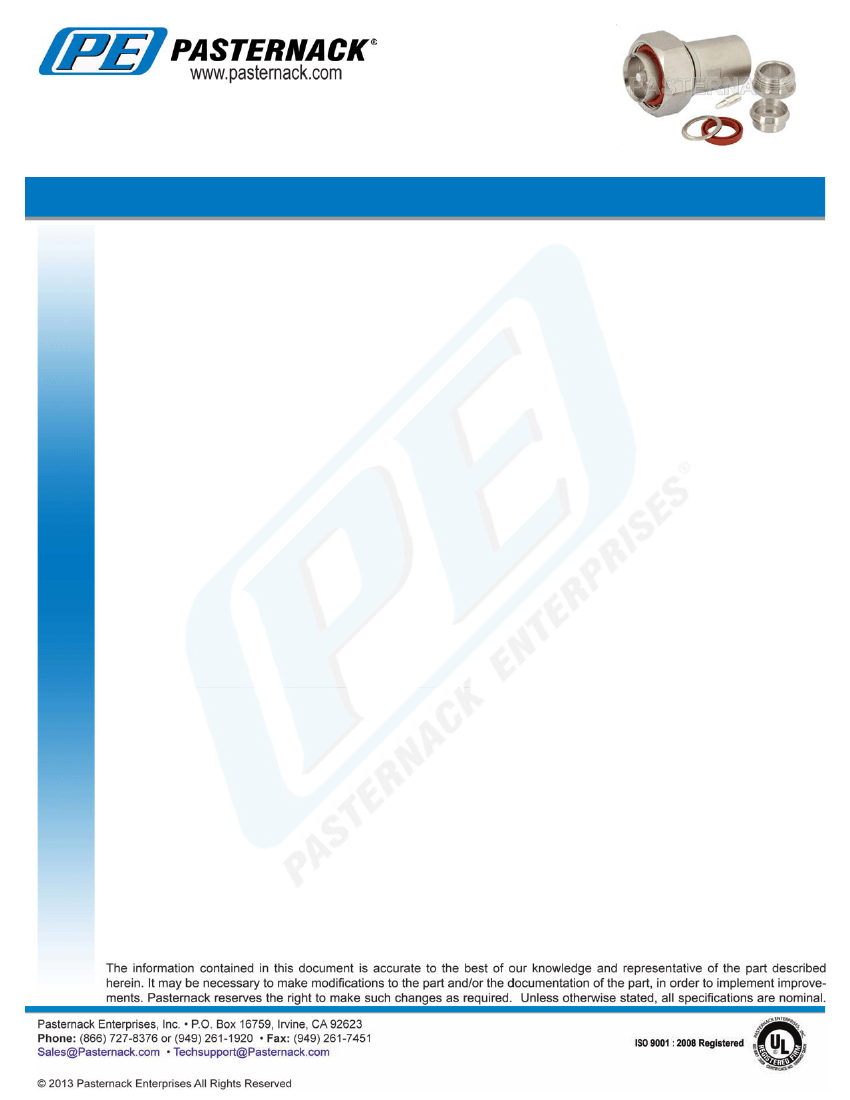

7/16 DIN Male Connector Clamp/Solder
Attachment For RG14, RG217
TECHNICAL DATA SHEET
7/16 DIN Male Connector Clamp/Solder Attachment For RG14, RG217
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
7/16 DIN Male
RG14,RG217
Clamp/Solder
Straight
PE44276
Electrical Specifications
Impedance, Ohms
50
Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
2.35 [59.69]
1.25 [31.75]
0.371 [168.28]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Coupling Nut Material and Plating
Hex Size, in
Torque, ft-lbs [Nm]
Body Material and Plating
Dielectric Type
7/16 DIN Male
Silver
Brass, Nickel
1 1/4
18.417 [24.97]
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
7/16 DIN Male Connector Clamp/Solder Attachment For RG14, RG217 from Pasternack Enterprises has same day ship-
ment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99% availability and are
part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
7/16 DIN Male Connector Clamp/Solder Attachment For RG14, RG217 PE44276
URL:
http://www.pasternack.com/7-16-male-standard-rg14-rg217-connector-pe44276-p.aspx
PE44276 REV
1
ASSEMBLY PROCEDURES
© 2013 Pasternack Enterprises All Rights Reserved
DWG TITLE
1.
2.
PE44276

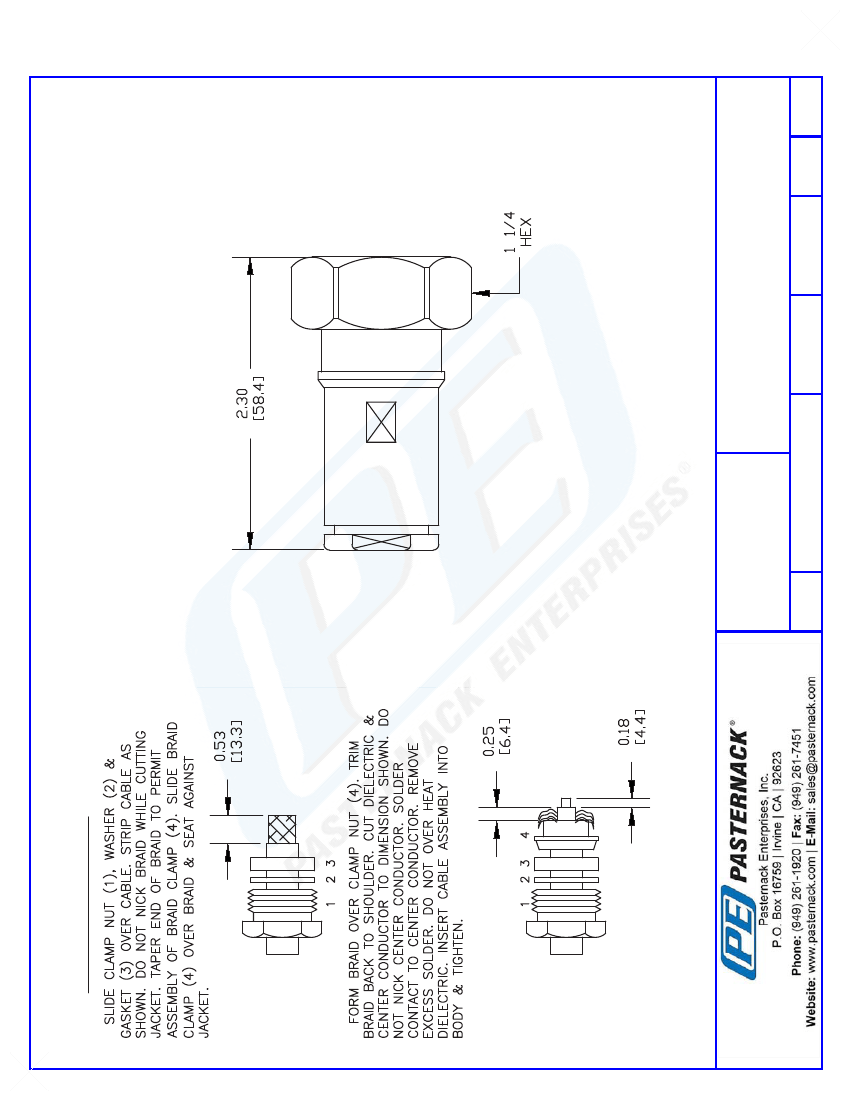

CAD Drawing
7/16 DIN Male Connector Clamp/Solder Attachment For RG14, RG217
PE44276 REV
PE44276
REV. A
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
4. FITS MIL-C-17 AND EQUIVALENT CABLES.
FSCM NO. 53919
CAD FILE
020909
SCALE N/A
SIZE A
147
2
