MICRF033BM Overview

SPECIALTY CONSUMER CIRCUIT, PDSO8, SOIC-8

MICRF033BM Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Rochester Electronics
Parts packaging code	SOIC
package instruction	SOIC-8
Contacts	8
Reach Compliance Code	unknown
Commercial integrated circuit types	CONSUMER CIRCUIT
JESD-30 code	R-PDSO-G8
JESD-609 code	e0
length	4.9 mm
Humidity sensitivity level	1
Number of functions	1
Number of terminals	8
Maximum operating temperature	105 °C
Minimum operating temperature	-40 °C
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	240
Certification status	COMMERCIAL
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.75 V
surface mount	YES
Temperature level	INDUSTRIAL
Terminal surface	TIN LEAD
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	30
width	3.9 mm

Preview

Download Datasheet

View All

D ts e t

aa h e

R c e t r lc r nc

o h se Ee to is

Ma u a t r dCo o e t

n fc u e

mp n n s

R c e tr b a d d c mp n ns ae

o h se rn e

o oet r

ma ua trd u ig ete dewaes

n fcue sn i r i/ fr

p rh s d f m te oiia s p l r

uc a e r

o h r n l u pi s

o R c e tr waes rce td f m

r o h se

fr e rae r

te oiia I. Al rce t n ae

r nl P

l e rai s r

d n wi tea p o a o teOC

o e t h p rv l f h

P r aetse u igoiia fcoy

at r e td sn r n la tr

ts p o rmso R c e tr e eo e

e t rga

r o h se d v lp d

ts s lt n t g aa te p o u t

e t oui s o u rne

rd c

me t o e c e teOC d t s e t

es r x e d h

M aa h e.

Qu l yOv riw

e ve

• IO- 0 1

S 90

•A 92 cr ct n

S 1 0 et ai

• Qu l e Ma ua trr Ls (

ai d

n fcues it QML MI- R -

) LP F

385

•C a sQ Mitr

lay

•C a sVS a eL v l

p c ee

• Qu l e S p l r Ls o D sr uos( L )

ai d u pi s it f it b tr QS D

•R c e trsacic l u pir oD A a d

o h se i

r ia s p l t L n

me t aln u t a dD A sa d r s

es lid sr n L tn ad .

R c e tr lcrnc , L i c mmi e t

o h se Ee t is L C s o

tdo

s p ligp o u t ta s t f c so r x e t-

u pyn rd cs h t ai y u tme e p ca

t n fr u lya daee u loto eoiial

i s o q ai n r q a t h s r n l

s p l db id sr ma ua trr.

u pi

e yn ut

y n fcues

T eoiia ma ua trr d ts e t c o a yn ti d c me t e e t tep r r n e

h r n l n fcue’ aa h e a c mp n ig hs o u n r cs h ef ma c

a ds e ic t n o teR c e tr n fcue v rino ti d vc . o h se Ee t n

n p c ai s f h o h se ma ua trd eso f hs e ie R c e tr lcr -

isg aa te tep r r n eo i s mio d co p o u t t teoiia OE s e ic -

c u rne s h ef ma c ft e c n u tr rd cs o h r n l M p c a

t n .T pc lv le aefr eee c p r o e o l. eti mii m o ma i m rt g

i s ‘y ia’ au s r o rfrn e up s s ny C r n nmu

r xmu ai s

ma b b s do p o u t h rceiain d sg , i lt n o s mpetsig

y e a e n rd c c aa tr t , e in smuai , r a l e t .

z o

0 3 ohs E cr i , L . lRg s eevd 7 1 0 3

e e oc

T l r m r, l s v iw wrcl . m

o e n oe p ae it w . e c o

o ec

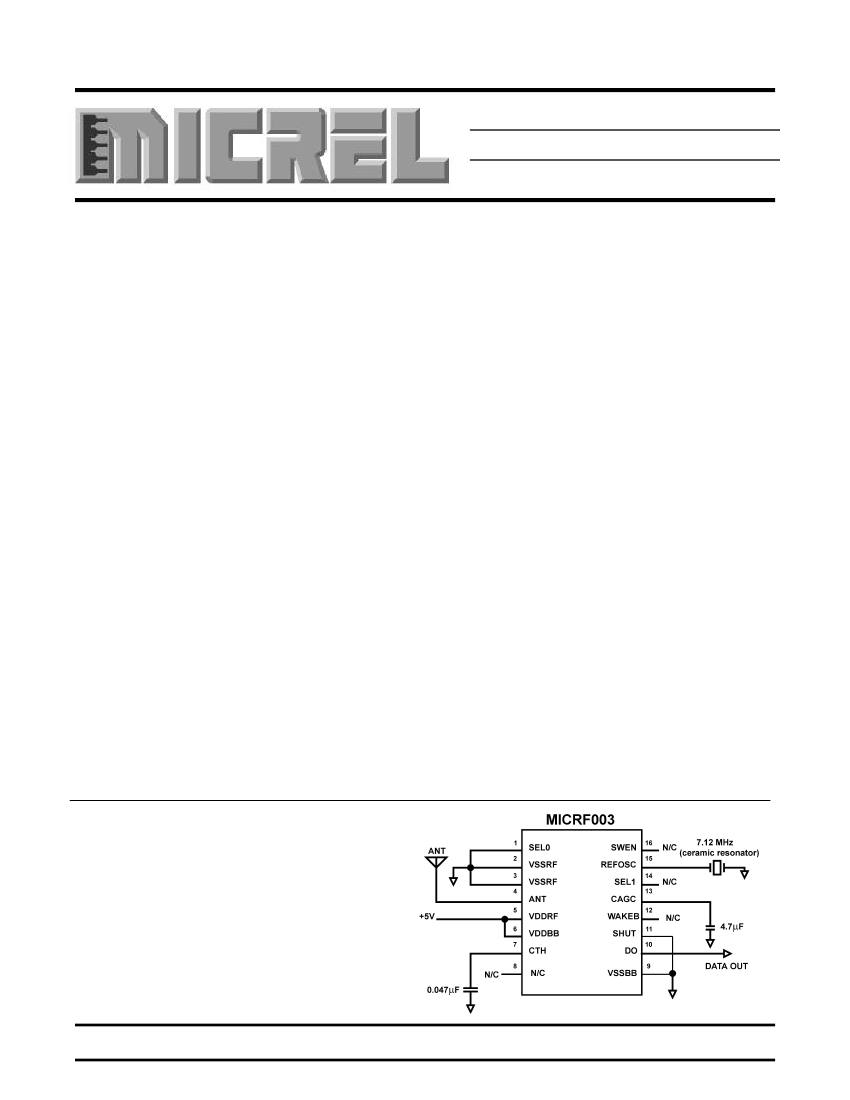

MICRF003

QwikRadio

Micrel

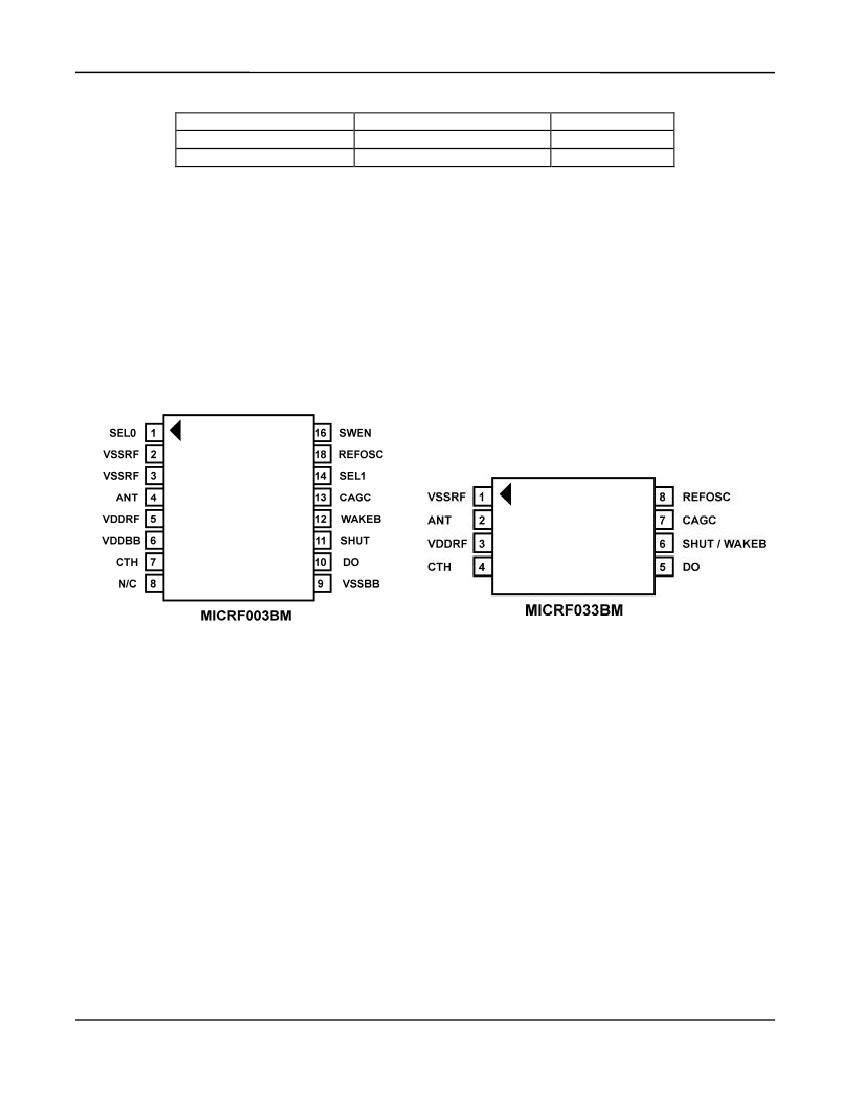

Pin Description

(Pin numbers for the 8-pin version are identified in parentheses)

Pin Number

2/3

Pin Name

SEL0

VSSRF

Pin Function

This pin, in conjunction with SEL1, programs the desired Demodulator Filter Bandwidth. This pin is internally

pulled-up to VDDRF. See Table 1.

This pin is the ground return for the RF section of the IC. The bypass capacitor connected from VDDRF to

VSSRF should have the shortest possible lead length. For best performance, connect VSSRF to VSSBB at the

power supply only (i.e., keep VSSBB currents from flowing through VSSRF return path).

This pin is the ground return for the IC. The bypass capacitor connected from VDDRF to VSSRF should have

the shortest possible lead length.

This is the receive RF input, internally ac-coupled. Connect this pin to the receive antenna. Input impedance is

high (FET gate) with approximately 2pF of shunt (parasitic) capacitance. For applications located in high

ambient noise environments, a fixed value band-pass network may be connected between the ANT pin and

VSSRF to provide additional receive selectivity and input overload protection. (See

“Application Note TBD”.)

This pin is the positive supply input for the RF section of the IC. VDDBB and VDDRF should be connected

directly at the IC pins. Connect a low ESL, low ESR decoupling capacitor from this pin to VSSRF, as short as

possible.

This pin is the positive supply input for the baseband section of the IC. VDDBB and VDDRF should be

connected directly at the IC pins.

This pin is the positive supply input for the IC. Connect a low ESL, low ESR decoupling capacitor from this pin

to VSSRF, as short as possible.

This capacitor extracts the (DC) average value from the demodulated waveform, which becomes the reference

for the internal data slicing comparator. Treat this as a low-pass RC filter with source impedance of nominally

90kohms ( for REFOSC frequency Ft = 6.75MHz, see

“Application Note TBD”).

A standard

20% X7R

ceramic capacitor is generally sufficient.

Unused Pin

This is the ground return for the baseband section of the IC. The bypass and output capacitors connected to

VSSBB should have the shortest possible lead lengths. For best performance, connect VSSRF to VSSBB at

the power supply only (i.e., keep VSSBB currents from flowing through VSSRF return path).

The output data signal. CMOS level compatible.

A logic input for Shutdown Mode control. Pull this pin low to place the IC into operation. This pin in internally

pulled-up to VDDRF.

An output signal, active low when the IC detects an incoming RF signal, determined by monitoring for data

preamble. CMOS level compatible.

Integrating capacitor for on-chip AGC (Automatic Gain Control). The Decay/Attack time-constant (TC) ratio is

nominally set as 10:1. Use of 0.47uF or greater is strongly recommended for best range performance. Use

low-leakage type capacitors for duty-cycle operation (Dip Tantalum, Ceramic, Polyester). (See

“Application Note

TBD.)

This pin, in conjunction with SEL0, programs the desired Demodulator Filter Bandwidth. This pin in internally

pulled-up to VDDRF. See Table 1.

This is the timing reference for on-chip tuning and alignment. Connect either a ceramic resonator or crystal

(mode dependent) between this pin and VSSBB, or drive the input with an AC coupled 0.5Vpp input clock. Use

ceramic resonators without integral capacitors. Note that if operating in FIXED mode, a crystal must be used;

however in SWP mode, one may use either a crystal or ceramic resonator. See

“Application Note TBD”

for

details on frequency selection and accuracy.

This logic pin controls the operating mode of the MICRF003. When SWEN = HIGH, the MICRF003 is in SWP

mode. When SWEN = LOW, the device operates as a conventional single-conversion superheterodyne

receiver. (See

“Application Note TBD”

for details.) This pin is internally pulled-up to VDDRF.

(1)

(2)

VSSRF

ANT

VDDRF

(3)

(4)

VDDBB

VDDRF

CTH

N/C

VSSBB

(5)

(6)

(7)

SHUT

WAKEB

CAGC

(8)

SEL1

REFOSC

SWEN

SEL0

SEL1

SWP Mode

6000

3000

1500

750

Demodulator Bandwidth (Hz)

FIXED Mode

22400

11200

5600

2800

Table 1

Nominal Demodulator (Baseband) Filter Bandwidth

vs. SEL0, SEL1 and Mode

October 1999

MICRF003
