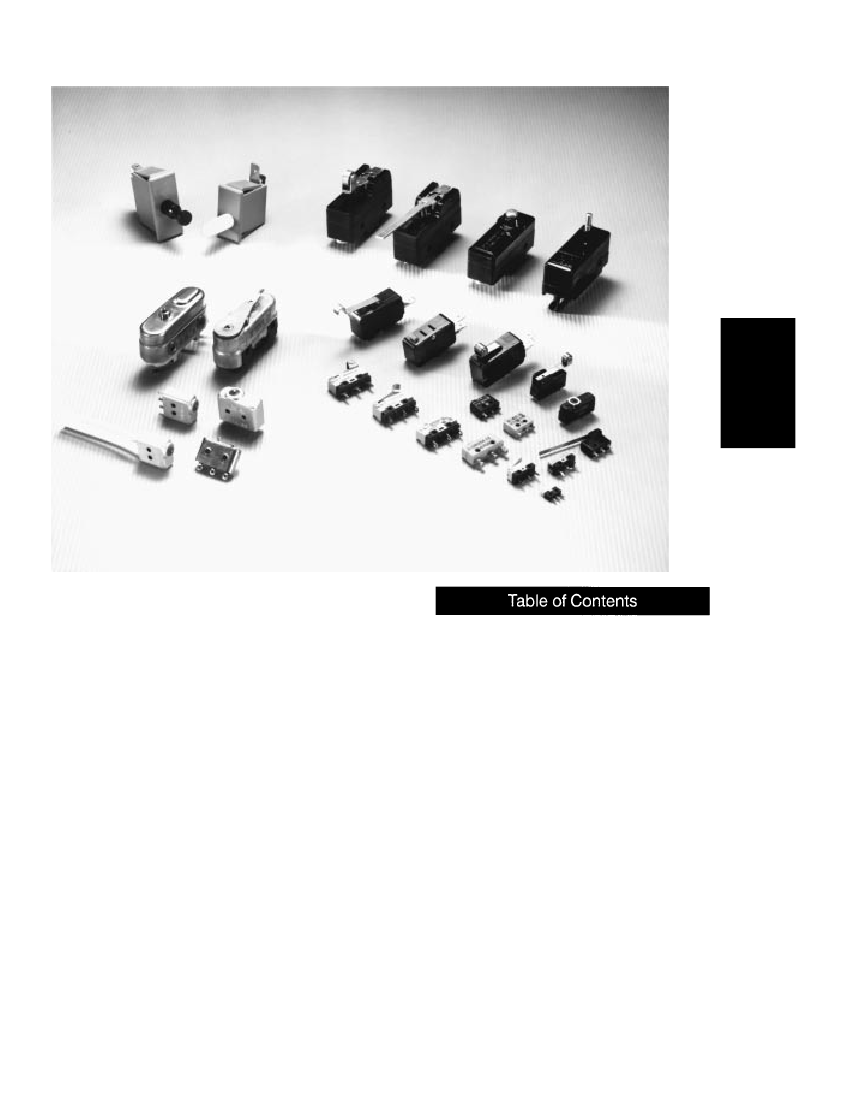

SUBMINIATURE/MINIATURE BASIC SWITCHES
The U Series of subminiature basic switches are our newest line. The US is the
smallest snap-action switch available. The UX and UM are versatile, low cost,
full featured products with ample electrical capacity in a compact package.
SM subminiature basic switches are a versatile collection of small size and
ample electrical capacities, including 11 amp power load handling and
1
⁄
4
hp
motor load. SX subminiature basic switches are smaller than SM switches,
yet are big in performance and selection. They provide up to 7 amp power
load capacity. V3 miniature basic switches put a 25 amp power load capacity
and a choice of 11 other electrical ratings into a relatively small package with
many choices of actuators, contact materials, and terminal designs. V7 minia-
ture basic switches have electrical ratings up to 15 amps. Both commercial
and European versions are UL recognized and CSA certified. The latter is also
designed to meet all leading European approval agency requirements. TB
miniature basic small double-break units can control 2, 3 or 4 isolated circuits.
STANDARD BASIC SWITCHES
Power load switching and motor handling capacity are among the attractions
of thumb-size BZ/BA standard basic switches. Double-pole double-throw
switching is added by DT switches. Where there’s a need for reliable switch-
ing of high capacity systems involving DC motors and solenoids, MT magnet-
ic blow-out switches do the job. The 3MN has double-break switching. 6AS
assemblies have two tandem mounted standard basic switches under a com-
mon actuator.
SEALED AND HIGH TEMPERATURE BASIC SWITCHES
Specially adapted basic switches include: SE/XE environment-proof switch-
es which protect subminiature SM/SX basic switches within a sealed hous-
ing; HM hermetically sealed switches are interchangeable in operating point
with the SM switches; HS hermetically sealed switches which parallel the size
and mounting scheme of the standard basic switches; and HT high temper-
ature switches for use up to
+1000°F.
DOOR SWITCHES
AC, WW and DM switches automatically cut power when a service door or
drawer is opened.
For application help: call 1-800-537-6945.
Typical Applications . . . . . . . . . . . . . . . . . . . . . . . p. 2
Index by Product Type . . . . . . . . . . . . . . . . . . . . . p. 3
Selection Guides. . . . . . . . . . . . . . . . . . . . . . p. 4 to 7
Catalog Listings/Order Guides . . . . . . . . . p. 8 to 93
Reference Data . . . . . . . . . . . . . . . . . . . . . . . . . . p. 94
Catalog Listing/Page Number Index . . . . . . . p. 102
Honeywell Sensing and Control
1
Basic Switches
Subminiature/Miniature
ELECTRICAL DATA AND UL CODES
MINIATURE/SUBMINIATURE BASIC SWITCHES
Most of the switches in this section are UL recognized and CSA
certified. The current and voltage values shown are based on
test conditions specified by these agencies. Electrical life of the
switch is influenced by each application condition as well as by
voltage and current.
Circuitry
Single-pole
double-throw
Electrical Data
A
5 amps res., 3 amps ind., (sea level),
4 amps res., 2 amps ind., (50,000
feet), 28 vdc
5 amps res. or ind. 115 vac, 60 Hz.
UL/CSA rating: 5 amps, 250 vac.
B
7 amps res., 4 amps ind., (sea level),
7 amps res., 2.5 amps ind., (50,000
feet), 28 vdc.
UL/CSA rating: 7 amps, 250 vac.
C
3.5 amps res., 2 amps ind., (sea level),
3.5 amps res., 1.5 amps ind., (50,000
feet), 28 vdc.
UL rating: 7 amps, 250 vac.
D
1 amp res., 0.5 amp ind., (sea level
and 50,000 feet), 28 vdc.
UL/CSA rating: 1 amp, 125 vac.
E
3 amps res., 2 amps ind., (sea level),
28 vdc.
UL rating: 3 amps, 250 vac.
F
7 amps res., 4 amps ind., 2.5 amps
lamp load, (sea level),
4 amps res., 2.5 amps ind., 2.5 amps
lamp load, (50,000 feet), 28 vdc.
7 amps res., 7 amps ind., 2 amps lamp
load, 115 vac, 60 Hz (sea level).
G
2 amps res., lamp ind., (sea level)
28 vdc.
H
.010 amp res. and ind., (sea level).
28 vdc.
UL/CSA rating: 1 amp, 125 vac.
I
7 amps res., 4 amps ind., (sea level),
28 vdc.
J
5 amps res., 3 amps ind., (sea level),
5 amps res., 2.5 amps ind.,
(50,000 feet), 28 vdc.
UL rating: 5 amps, 250 vac.
K
UL rating:
5 amps, 125 or 250 vac.
L
1 amp res., 1/2 amp ind.,
(sea level) 28 vdc.
M
UL rating:
11 amps and 1/4 hp, 125 or 250 vac.
N
1 amp res., 0.5 amp ind., 30 vdc.
UL rating: 1 amp, 125 vac.
P
1 amp res., 30 vdc.
UL rating: .1 amp, 125 vac.
R
5 amps res., 3 amps ind., 2.4 amps
lamp load (sea level),
5 amps res., 2.5 amps ind., 2.4 amps
lamp load, (50,000 feet), 28 vdc.
5 amps res., 5 amps ind., 1.5 amps
lamp load, 115 vac. 60 Hz (sea level)
Single-pole
double-throw
unless
otherwise
noted in
order guide
Circuitry
Single-pole
double-throw
Single-pole
double-throw
Electrical Data
S
UL rating:
4 amps, 250 vac.
T
UL/CSA rating:
11 amps and 1/3 hp, 125, 250, or 277
vac;
1/2 amp, 125 vdc; 1/4 amp, 250 vdc;
4 amps, 125 vac ‘‘L’’ (lamp load).
TT
UL/CSA rating:
10 amps and 1/3 hp, 125 or 250 vac;
1/2 amp, 125 vdc; 1/4 amp, 250 vdc;
4 amps, 125 vac ‘‘L’’ (lamp load).
UU
10 amps res., 10 amps ind., (sea
level),
6 amps ind. (50,000 feet), 6 amps
motor load, 30 vdc.
U
UL/CSA rating:
15.1 amps and 1/2 hp, 125 or 250 vac.
1/2 amp, 125 vdc; 1/4 amp, 250 vdc;
5 amps, 120 vac ‘‘L’’ (lamp load).
VV
UL/CSA rating:
3 amps-125, 250, 277 vac;
1/10 hp-250 vac
V
UL/CSA rating:
10 amps and 1/4 hp, 125 or 250 vac;
1/2 amp, 125 vdc; 1/4 amp, 250 vdc;
3 amps, 125 vac ‘‘L’’ (lamp load).
W
10 amps, 250 vac or 28 vdc;
1/2 amp, 125 vdc; 1/4 amp, 250 vdc.
X
UL rating:
1 amp, 125 vac.
Y
10 amps and 1/3 hp, 125 or 250 vac;
4 amps, 125 vac ‘‘L’’ (lamp load).
YY
UL/CSA rating:
5 amps-125, 250, 277 vac
1/10 hp-250 vac
Z
10 amps, 125 or 250 vac, or 30 vdc.
UL/CSA rating:
10 amps, 125 or 250 vac; 1/2 hp, 125
vac.
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
Two-circuit
double-break
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
Four-circuit
double-break
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
ZZ
UL rating:
5 amps and 1/10 hp.
125 or 250 vac.
AA
UL rating:
20 amps, 277 vac.
1 hp, 125 vac; 2 hp, 250 vac.
BB
UL rating:
25 amps, 277 vac.
1 hp, 125 vac; 2 hp, 250 vac.
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
Single-pole
double-throw
20
