THIS DRAWING CONTAINS INFORMATION
PROPRIETARY TO POSITRONIC IND. S.A.S.
ANY REPRODUCTION, DISCLOSURE OR
USE OF THIS DRAWING IS EXPRESSLY
PROHIBITED, EXCEPT AS POSITRONIC IND.
S.A.S. MAY OTHERWISE AGREE IN WRITING.
DATE
REV
REVISION RECORD
ECO/CH 1156
ECO/CH 1162
APP DR CK
Y.P
Y.P
16/05/05 A
25/05/05 B
C
B
A
F
STEP
NORMAL AND HIGH DENSITY
1
XAVAC
2
15
3
M/F
4
G
5
.0
_
6
STEP 6 - SPECIAL OPTIONS
STEP 1- BASIC SERIES
XAVAC SERIES
Consult Sales Department
E
D
STEP 5 - TYPE OF CONTACTS
STEP 2- CONNECTOR VARIANTS
Number of contacts, Normal density
9-15-25-37-50
Number of contacts, High density
15-26-44-62-78-104
5* : Thermocouple contact (only normal density)
*
0 : Normal density
1 : High density
4 x M3
4 x R4,50 0,177
STEP 4 - TYPE OF APPLICATIONS
STEP 3- CONNECTOR GENDER
M/F : Male/Female
M/M : Male/Male
Not available for high density/mixed combinations
F/F : Female/Female
G : Gold for Space version
D : Gold and Dimpled for Space version
S : Stainless-steel for Space version
Residual magnetism from 20 to 2000 Gamma
I : Stainless-steel for Industrial version
NOTES :
1. Materials and Finishes :
INSULATOR : - Glass-filled DAP per ASTM-D-5948 for normal density.
- Polyester glass-filled per MIL-M-1124 for high density and mixed combinations.
CONTACTS : 1,25 gold over copper plate.
SHELLS :
Bras with 1,25 microns gold over copper plate or stainless steel.
HOUSING :
Aluminium alloy , gold iridite.
O-RING :
Viton (fluoro carbone) Other material per request.
2. Connector size 15 normal density shown for reference only.
3. Dimensions are in millimetres [inches].
4. For performance characteristics refer to hermetic catalog.
F
A
24,99
[0,9838]
33,32
[1,3118]
47,04
[1,8519]
63,50
[2,500]
61,11
[2,4059]
63,50
[2,500]
B
34,29
[1,350]
43,64
[1,7181]
56,36
[2,2188]
73,46
[2,8921]
71,28
[2,8062]
73,26
[2,8842]
C
46,37
[1,8255]
55,79
[2,1964]
67,42
[2,6543]
85,38
[3,3614]
82,99
[3,2673]
84,38
[3,322]
D
16,00
[0,6299]
16,76
[0,6598]
16,02
[0,6307]
16,90
[0,6653]
19,68
[0,7748]
20,88
[0,822]
E
28,08
[1,1055]
28,92
[1,1385]
27,08
[1,0661]
28,82
[1,1346]
31,40
[1,2362]
32,00
[1,2598]
Not available for high density/mixed combinations
*
. See consult sales department for thermocouple materials
N orm al
dens ity
CO NNEC T O R
S IZE 1
CO NNEC T O R
S IZE 2
CO NNEC T O R
S IZE 3
CO NNEC T O R
S IZE 4
CO NNEC T O R
S IZE 5
CO NNEC T O R
S IZE 6
9
15
25
37
50
High
dens ity
15
26
44
62
78
104
(Ty pe o f c otac ts )
T yp e 0-1
18,00
[0,7086]
18,00
[0,7086]
18,00
[0,7086]
18,00
[0,7086]
18,00
[0,7086]
18,00
[0,7086]
POSITRONIC
INDUSTRIES S.A.S.
SCALE
DECIMAL TOL.
DRAWN BY
APPROVED BY
N.T.S.
TITLE
Y . PEZZO
±
0,38
/
GENERAL ROUGHNESS

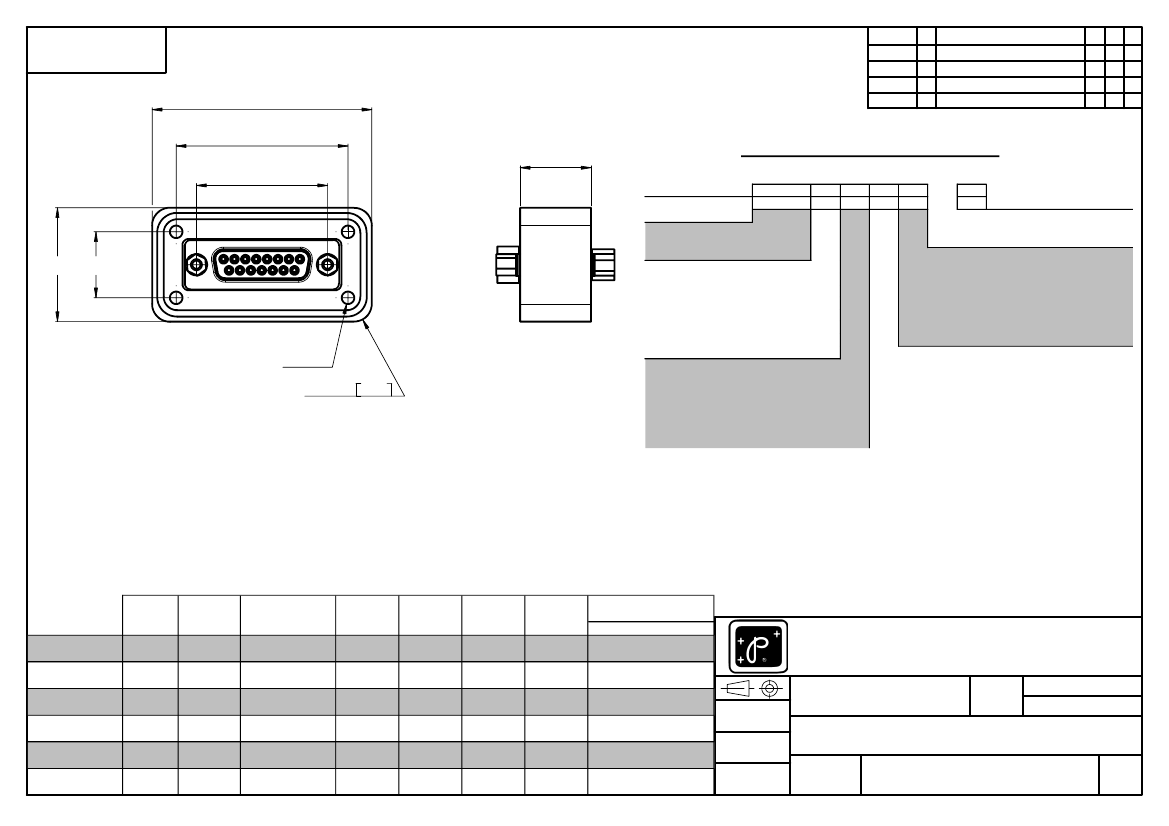

XAVAC SERIES
DRAWING NUMBER
REV.
ANGULAR TOL.
DATE
±
/
29/03/05
PSK 1299
1 of 2
B
THIS DRAWING CONTAINS INFORMATION
PROPRIETARY TO POSITRONIC IND. S.A.S.
ANY REPRODUCTION, DISCLOSURE OR
USE OF THIS DRAWING IS EXPRESSLY
PROHIBITED, EXCEPT AS POSITRONIC IND.
S.A.S. MAY OTHERWISE AGREE IN WRITING.
MIXED COMBINATIONS
SIZE 20 SIGNAL CONTACTS AND SIZE 8 POWER OR COAX OR HIGH VOLTAGE CONTACTS
STEP
1
XAVAC
2
3W3
3
M/F
4
G
5
.3
_
6
STEP 6 - SPECIAL OPTIONS
STEP 1- BASIC SERIES
XAVAC SERIES
Consult Sales Department
STEP 5 - TYPE OF CONTACTS
STEP 2- CONNECTOR VARIANTS
Num ber of contacts, Mixed com binations
5W1
3W3; 3WK3; 7W2; 11W1;
5W5; 9W4; 13W3; 17W2; 21W1;
8W8; 13W6; 17W5; 21WA4; 25W3; 27W2;
24W7; 36W4; 43W2; 47W1;
46W4
2 : Pow er and/or signal contacts
3 : Coax. and/or signal contacts
4 : High voltage and/or signal contacts
STEP 4 - TYPE OF APPLICATIONS
G : Gold for Space version
D : Gold and Dimpled for Space version
S : Stainless-steel for Space version
Residual magnetism from 20 to 2000 Gamma
I : Stainless-steel for Industrial version
STEP 3- CONNECTOR GENDER
M/F : Male/Female
Mixed
combinations
CONNECTOR
SIZE 1
CONNECTOR
SIZE 2
CONNECTOR
SIZE 3
CONNECTOR
SIZE 4
CONNECTOR
SIZE 5
CONNECTOR
SIZE 6
5W1
3W3 ;3WK3;
7W2 ;11W1
5W5 ;9W4 ;13W3 ;
17W2 ; 21W1
8W8; 13W6; 17W5;
21WA4;25W3;27W2
24W7 ; 36W4 ;
43W2 ; 47W1
46W4
F
A
24,99
[0,9838]
33,32
[1,3118]
47,04
[1,8519]
63,50
[2,500]
61,11
[2,4059]
63,50
[2,500]
B
34,29
[1,350]
43,64
[1,7181]
56,36
[2,2188]
73,46
[2,8921]
71,28
[2,8062]
73,26
[2,8842]
C
46,37
[1,8255]
55,79
[2,1964]
67,42
[2,6543]
85,38
[3,3614]
82,99
[3,2673]
84,38
[3,322]
D
16,00
[0,6299]
16,76
[0,6598]
16,02
[0,6307]
16,90
[0,6653]
19,68
[0,7748]
20,88
[0,822]
E
28,08
[1,1055]
28,92
[1,1385]
27,08
[1,0661]
28,82
[1,1346]
31,40
[1,2362]
32,00
[1,2598]
(Type of cotacts)
Type 2-3-4
24,00
[0,9448]
24,00
[0,9448]
24,00
[0,9448]
24,00
[0,9448]
24,00
[0,9448]
24,00
[0,9448]
DRAWING NUMBER
REV.
PSK 1299
2 of 2
