UPD482445G5-60-7JG: DescriptionVideo DRAM, 256KX16, 60ns, CMOS, PDSO68, 0.400 INCH, PLASTIC, TSOP2-70/68; Categorystorage storage; File Size2MB，104 Pages; ManufacturerELPIDA; Websitehttp://www.elpida.com/en

Download Datasheet Parametric Compare View All

UPD482445G5-60-7JG Overview

Video DRAM, 256KX16, 60ns, CMOS, PDSO68, 0.400 INCH, PLASTIC, TSOP2-70/68

UPD482445G5-60-7JG Parametric

Parameter Name	Attribute value
Maker	ELPIDA
Parts packaging code	TSOP2
package instruction	TSOP2,
Contacts	70/68
Reach Compliance Code	unknown
ECCN code	EAR99
access mode	FAST PAGE WITH EDO
Maximum access time	60 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G68
length	23.49 mm
memory density	4194304 bit
Memory IC Type	VIDEO DRAM
memory width	16
Number of functions	1
Number of ports	2
Number of terminals	68
word count	262144 words
character code	256000
Operating mode	ASYNCHRONOUS
Maximum operating temperature	70 °C
Minimum operating temperature
organize	256KX16
Package body material	PLASTIC/EPOXY
encapsulated code	TSOP2
Package shape	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified
Maximum seat height	1.2 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	CMOS
Temperature level	COMMERCIAL
Terminal form	GULL WING
Terminal pitch	0.65 mm
Terminal location	DUAL
width	10.16 mm

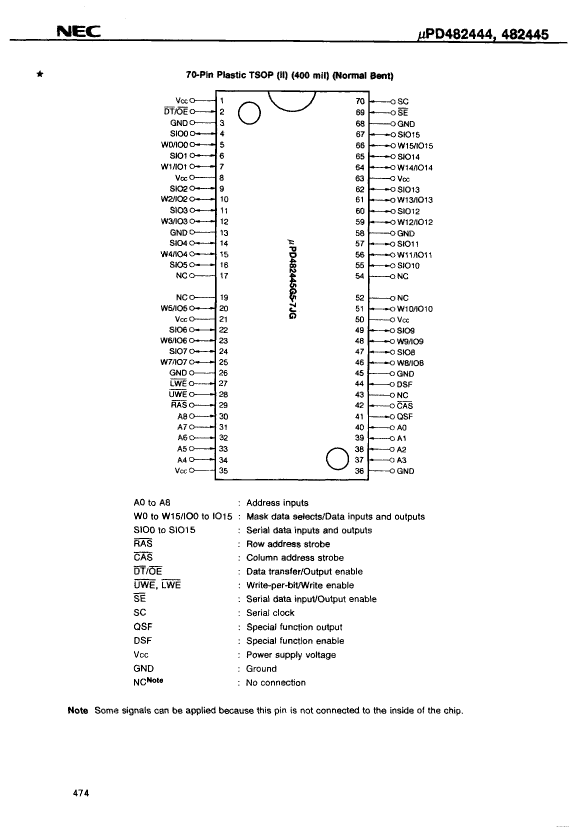

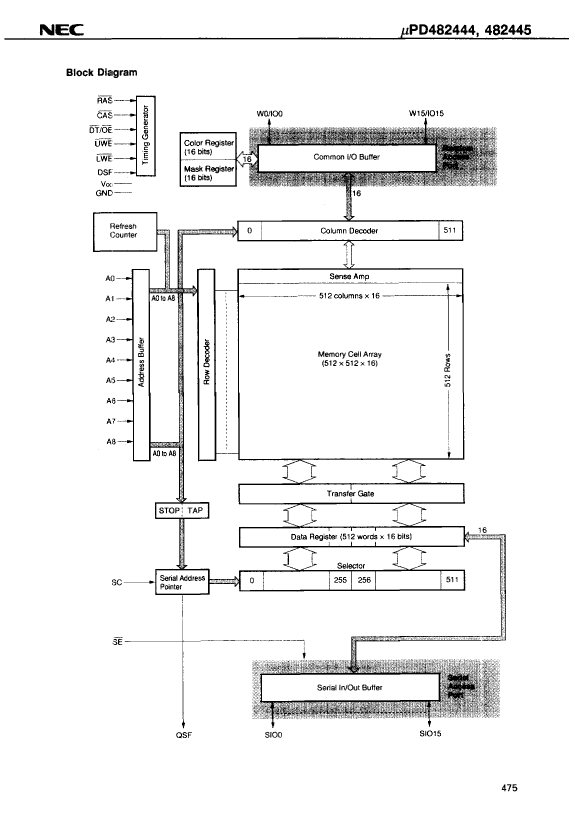

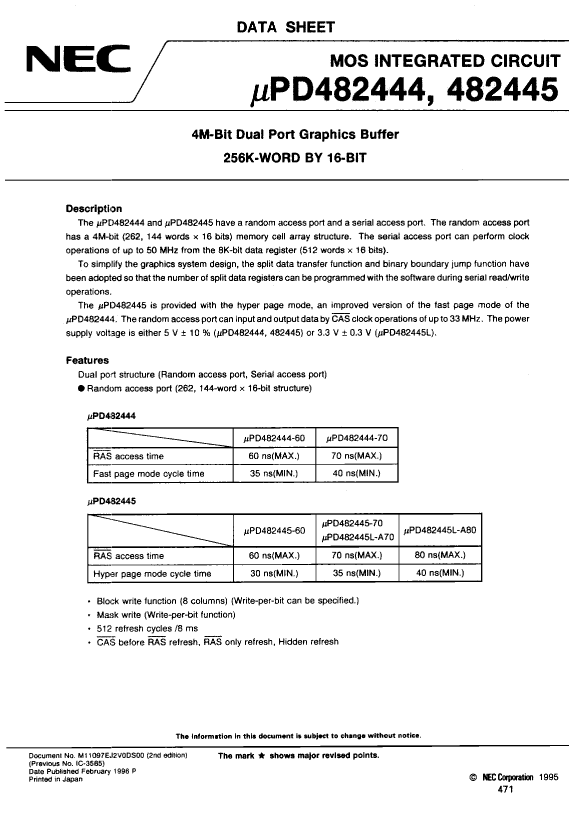

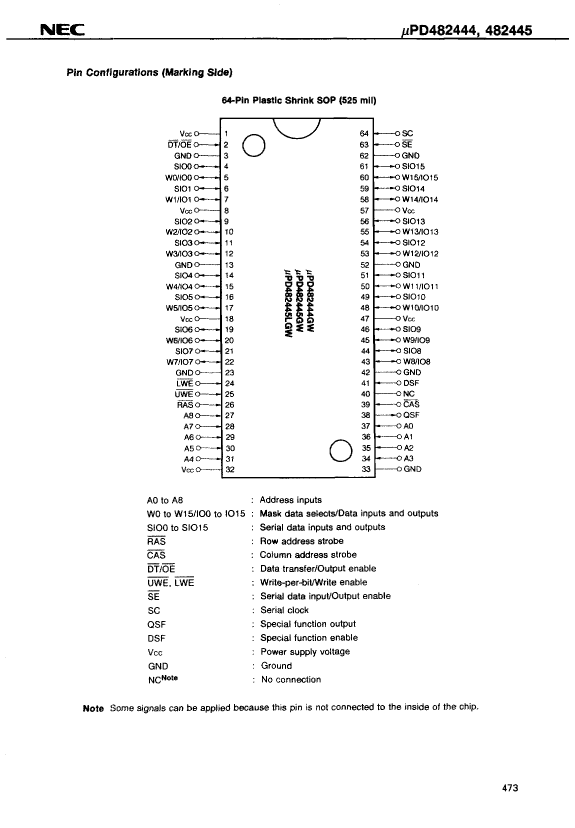

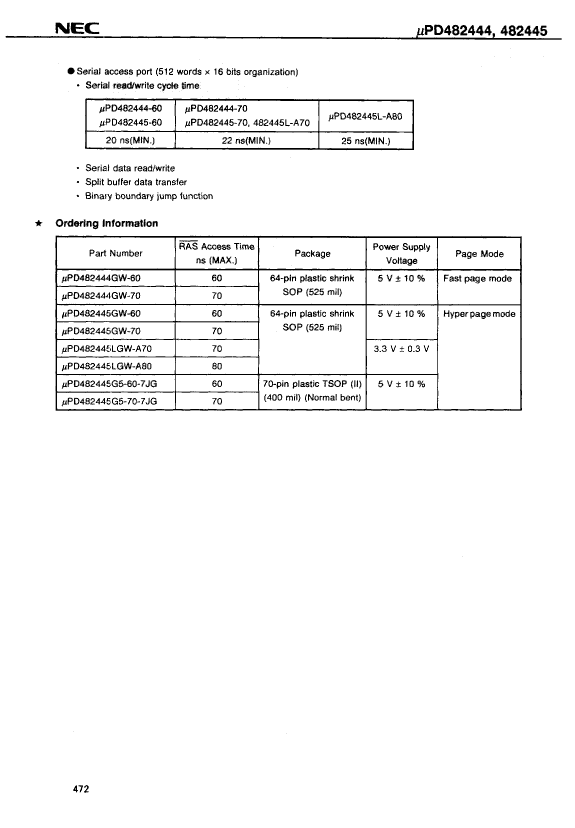

UPD482445G5-60-7JG Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

UPD482445G5-60-7JG Related Products

	UPD482445G5-60-7JG	UPD482445LGW-A80	UPD482445G5-70-7JG
Description	Video DRAM, 256KX16, 60ns, CMOS, PDSO68, 0.400 INCH, PLASTIC, TSOP2-70/68	Video DRAM, 256KX16, 80ns, CMOS, PDSO64, 0.525 INCH, SHRINK, PLASTIC, SOP-64	Video DRAM, 256KX16, 70ns, CMOS, PDSO68, 0.400 INCH, PLASTIC, TSOP2-70/68
Maker	ELPIDA	ELPIDA	ELPIDA
Parts packaging code	TSOP2	SOIC	TSOP2
package instruction	TSOP2,	0.525 INCH, SHRINK, PLASTIC, SOP-64	TSOP2,
Contacts	70/68	64	70/68
Reach Compliance Code	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99
access mode	FAST PAGE WITH EDO	FAST PAGE WITH EDO	FAST PAGE WITH EDO
Maximum access time	60 ns	80 ns	70 ns
Other features	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH	RAS ONLY/CAS BEFORE RAS/HIDDEN REFRESH
JESD-30 code	R-PDSO-G68	R-PDSO-G64	R-PDSO-G68
memory density	4194304 bit	4194304 bit	4194304 bit
Memory IC Type	VIDEO DRAM	VIDEO DRAM	VIDEO DRAM
memory width	16	16	16
Number of functions	1	1	1
Number of ports	2	2	2
Number of terminals	68	64	68
word count	262144 words	262144 words	262144 words
character code	256000	256000	256000
Operating mode	ASYNCHRONOUS	ASYNCHRONOUS	ASYNCHRONOUS
Maximum operating temperature	70 °C	70 °C	70 °C
organize	256KX16	256KX16	256KX16
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
encapsulated code	TSOP2	SSOP	TSOP2
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE, THIN PROFILE	SMALL OUTLINE, SHRINK PITCH	SMALL OUTLINE, THIN PROFILE
Certification status	Not Qualified	Not Qualified	Not Qualified
Maximum seat height	1.2 mm	2.3 mm	1.2 mm
Maximum supply voltage (Vsup)	5.5 V	3.6 V	5.5 V
Minimum supply voltage (Vsup)	4.5 V	3 V	4.5 V
Nominal supply voltage (Vsup)	5 V	3.3 V	5 V
surface mount	YES	YES	YES
technology	CMOS	CMOS	CMOS
Temperature level	COMMERCIAL	COMMERCIAL	COMMERCIAL
Terminal form	GULL WING	GULL WING	GULL WING
Terminal pitch	0.65 mm	0.8 mm	0.65 mm
Terminal location	DUAL	DUAL	DUAL
width	10.16 mm	11.8 mm	10.16 mm
length	23.49 mm	-	23.49 mm
