Marvell Alaska X 88X2222/M and 88X2242/M
Integrated Dual-port and Quad-port Multi-speed Ethernet Transceiver
with MACSec and Electronic Dispersion Compensation Technology
PRODUCT OVERVIEW
The Marvell® Alaska® X 88X2222/M and 88X2242/M transceiver family is a fully integrated single-chip solution providing end-to-
end data transmission over fiber-optic networks as well as Twinax copper links. It offers 2- or 4-port devices that perform all
physical layer functions associated with 10GBASE-R, 2000BASE-X, 1000BASE-X and 10GBASE-W. In addition, the device
supports one port of 10GBASE-X4, 40GBASE-R4 and 10GBASE-X2.
The electronic dispersion compensation (EDC) engine delivers high-speed bidirectional point-to-point full duplex data transmis-
sion at 10.3 Gbps per port over a variety of media. The performance of the engine can be reduced to save power in fiber-optic
applications that do not require EDC.
The host-side interface supports two or four ports of 10GBASE-R, 10GBASE-X2, 2000BASE-X or 1000BASE-X with two ports
of 40GBASE-R4 or 10GBASE-X4, and one port of 40GBASE-R8. Any port from the host side can be attached to any port on
the line side as long as the speeds match. The device outputs a recovered clock for use in synchronous Ethernet applications.
The 88X2242M supports the Marvell LinkCrypt® feature, which is based on the IEEE802.1ae MACSec protocol. The 88X2242M
device also supports the features above those required by the IEEE802.1ae MACSec protocol. These include the ability to select
and filter uncontrolled port traffic; support of packet redirection by addition of a new MAC DA, SA and Ethertype; support of
latency minimization for flow control packets; and support for diagnostics, MACSec header retention and additional statistics
counters. The device also supports the ability to select a secure channel by means other than the SCI, FIPS compliance testing,
adaptive rate control to compensate for packet expansion and Ethertype matching for the uncontrolled path.
PART NUMBER
88X2222
88X2222M
88X2242
88X2242M
DESCRIPTION
•
2-port
•
2-port with MACSec
•
4-port
•
4-port with MACSec
Quad XFI / Quad RXAUI / Dual XAUI
Dual 40GBASE-R4 / Single 40GBASE-R8
Host Interface
MACSec (88X2242M Only)
Config.
JTAG
SynchE
EDC
SR / LR / DAC / LRM – 10G / 40G
Frame to Reg.
MDIO
LED
I2C
Quad SFP+ / Single QSFP+

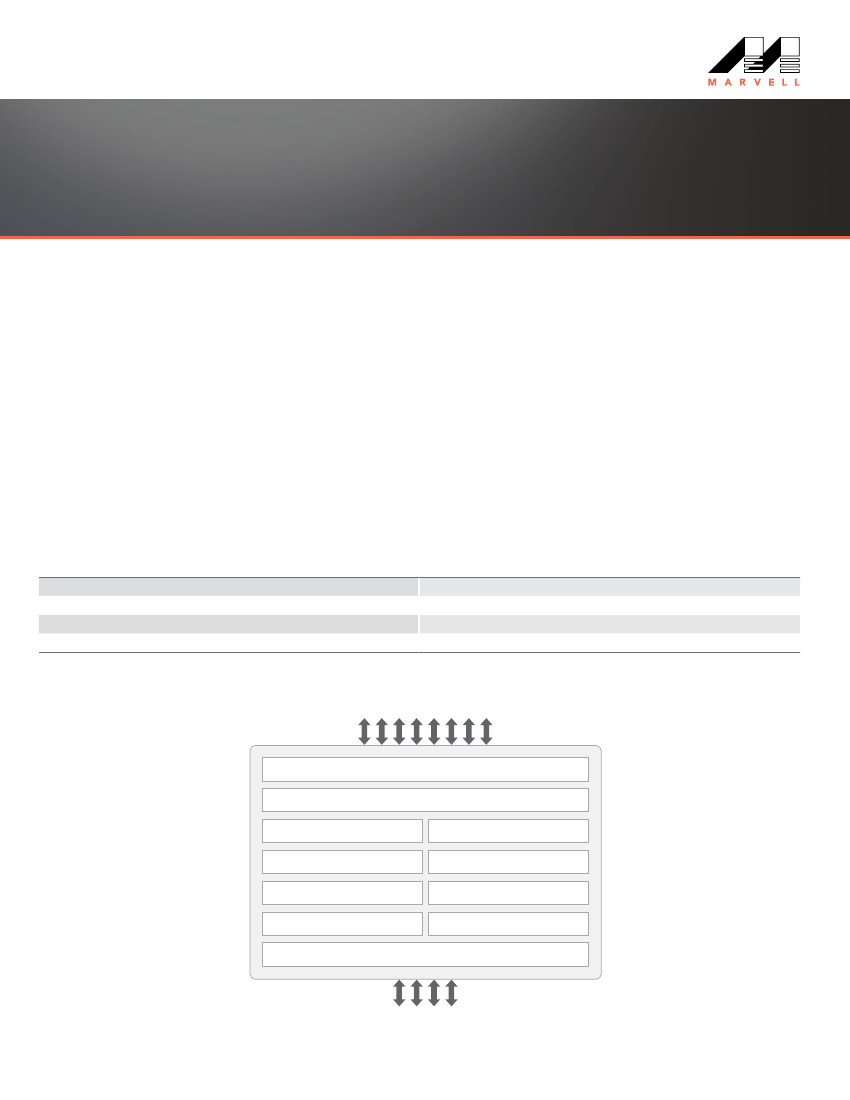

Fig 1. 88X2242/M System Block Diagram
Marvell Alaska 88X2222/M and 88X2242/M
KEY FEATURES
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
•
40GBASE-R4, 10GBASE-W, 10GBASE-R, 10GBASE-X2, 10GBASE-X4, 2000BASE-X, 1000BASE-X
support on the line interface
EDC meets SFF-8431 requirements (SFP+MSA)
MMF compensation exceeding 220 m of OM1, OM2, OM3 fibers
Twinax compensation up to 15 m
SMF CD/PMD compensation exceeding 80 km
40GBASE-R4, 40GBASE-R8, 10GBASE-R, 10GBASE-X2, 10GBASE-X4, 2000BASE-X, 1000BASE-X
supports on the host interface
Transmitter adjustable signal level and pre-emphasis
Re-timer mode supported for transparent data passing
Synchronous Ethernet support
MACSec function – Full 802.1ae compliance supporting default cipher suite GCM-AES-128
MACSec features include encryption, decryption authentication, MACSec tag insertion and removal
and bypass capability
Integral FIFOs to absorb MACSec processing overhead which can operate in both cut-through
and store-forward modes
Integral MACs ensure IEEE-compliant statistics collection and timely response to pause frames
Complete IEEE MAC and MACSec statistics collected for all ports
IEEE 802.3 local/remote fault monitoring at SFP/SFP+ interface
Built-in generators and checkers
ECC memory protection
Programmable inversion on all differential signals
Power-saving modes
Global multi-status interrupt pin
MDIO/MDC and frame to register access
Per-port in-band frame to register access
Near- and far-end loopbacks
Ingress and egress eye monitors
Supports IEEE-1149.1 and 1149.6 JTAG
Typical power – 1.5 W per port
19mm x 19mm FCBGA package
APPLICATIONS
•
•
•
•
•
High-density line card SFP+ interfacing
SFP+ modules, 10GSFP+Cu direct attach cables
1G SFP modules
Re-timer
Switch to switch bridging
THE MARVELL ADVANTAGE:
Marvell chipsets come with complete reference designs which include board layout designs,
software, manufacturing diagnostic tools, documentation and other items to assist customers with product evaluation and
production. Marvell’s worldwide field application engineers collaborate closely with end customers to develop and deliver
new leading-edge products for quick time-to-market. Marvell utilizes world-leading semiconductor foundry and packaging
services to reliably deliver high-volume and low-cost total solutions.
ABOUT MARVELL:
Marvell (NASDAQ: MRVL) is a global leader in providing complete silicon solutions enabling the digital
connected lifestyle. From mobile communications to storage, cloud infrastructure, digital entertainment and in-home
content delivery, Marvell’s diverse product portfolio aligns complete platform designs with industry-leading performance,
security, reliability and efficiency. At the core of the world’s most powerful consumer, network and enterprise systems,
Marvell empowers partners and their customers to always stand at the forefront of innovation, performance and mass
appeal. By providing people around the world with mobility and ease of access to services adding value to their social,
private and work lives, Marvell is committed to enhancing the human experience. As used in this release, the term “Marvell”
refers to Marvell Technology Group Ltd. and its subsidiaries. For more information, please visit
www.Marvell.com.
