MEH30-10243-635 datasheet, PDF

Datasheet> All Categories > LED optoelectronic/LED> photoelectric> MEH30-10243-635

MEH30-10243-635: DescriptionOptical Position Encoder, ROTARY OPTICAL POSITION ENCODER; CategoryLED optoelectronic/LED photoelectric; File Size31KB，1 Pages; ManufacturerCUI; Websitehttp://www.cui.com

Download Datasheet Parametric View All

MEH30-10243-635 Overview

Optical Position Encoder, ROTARY OPTICAL POSITION ENCODER

MEH30-10243-635 Parametric

Parameter Name	Attribute value
Maker	CUI
Reach Compliance Code	compliant
Optoelectronic device types	ROTARY POSITION ENCODER

Preview

Download Datasheet

View All

C U I Stack, Inc.,

1997

F1 Type

Ø15

120˚

3-M3

120˚

Ø44

3-M3

Ø44

2-M2

Ø14

Ø8

Ø10

30˚

PCD36

5.5

PCD36

0.5

5.5

*Ø8, 9.525 (0.375"), &

12 optional bore sizes

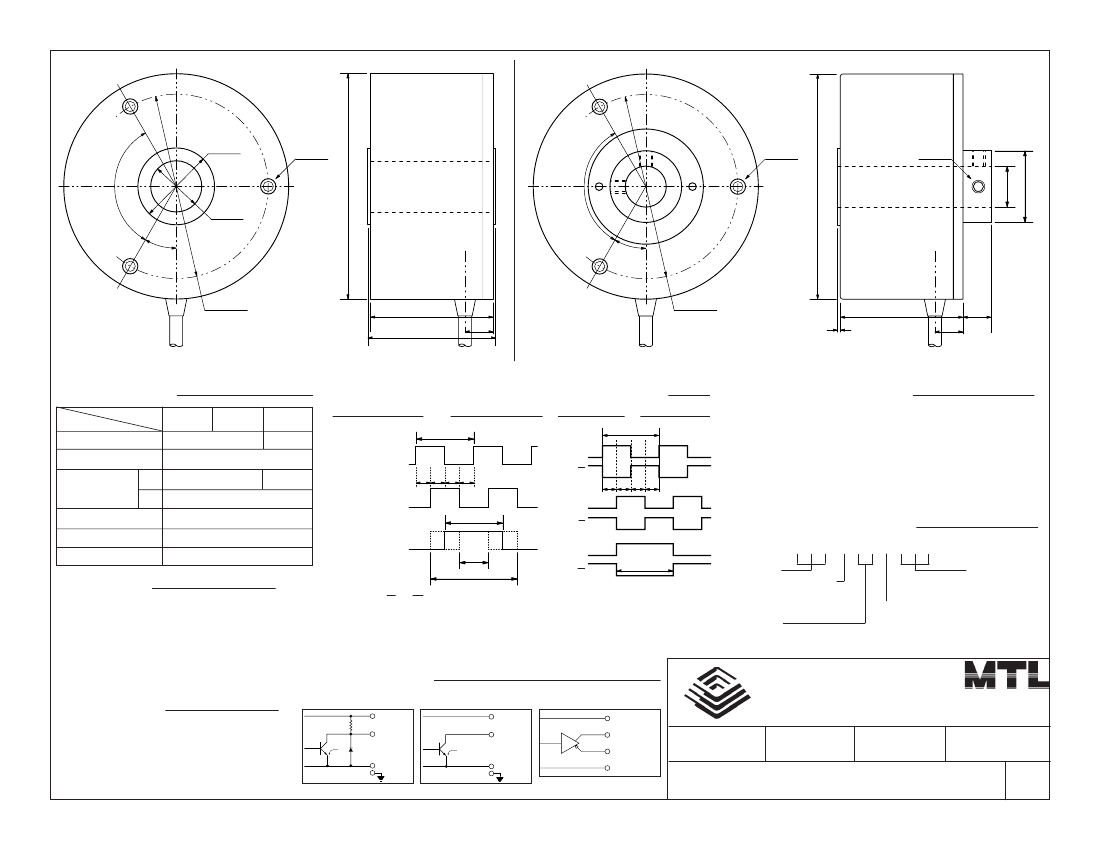

SPECIFICATIONS

OUTPUT WAVEFORM

(Clockwise

rotation viewed from front)

STANDARD RESOLUTIONS

100

200

250

300

360

400

40 P/R

100 P/R

200 P/R

250 P/R

300 P/R

360 P/R

400 P/R

†

TYPE

Supply Voltage

Current

Output

Voltage

Sink Current

Signal Risetime

Freq. Response

R, C

5 ~ 12 VDC

24 VDC ±10%

5VDC

60mA max.

≥

2.5V

Vcc - 1V

≤

0.5V

20mA max.

≤

2µS

50 - 100kHz

Sig A

Sig B

Sig Z

Signal A

ab cd

Signal B

Signal Z

h min

a b c d

MEH30-XXX

500

500 P/R

600

600 P/R

720

720 P/R

800

800 P/R

1000 1000 P/R

1024 1024 P/R

1200 1200 P/R

Type "E" not available

1500

1800

2000

2048

†

2500

†

3600

†

4500

†

9000

1500 P/R

1800 P/R

2000 P/R

2048 P/R

2500 P/R

3600 P/R

4500 P/R

9000 P/R

ORDERING INSTRUCTIONS

MEH30-_ _ _- _ _ _ _-_ _ _

P ± 0.75P

Resolution

Output Format:

= Voltage

C = Open Coll

E = Line Driver

Bore/Hub:

= Through/No Hub

F1 = Through/Hub

F2 = 14mm/Hub

Bore Size:

6 = 6mm

635 = 0.25"

8 = 8mm

Input Voltage:

9525 = 0.375"

1 = 5VDC

±10%

10 = 10mm

3 = 5~12VDC

±10%

4 = 24VDC

±10%

P = 1/PPR

a,b,c,d =

h max

MECHANICAL

1. Max Shaft Load; radial: 2.0 kgf

axial: 1.0 kg

2. Moment of Inertia: 4 g•cm

3. Angular Acceleration: 1x10

rad/S

4. Max Slewing Speed: 6000 RPM

5. Starting Torque: 30 gf•cm max.

6. Rotational Life: 1 x 10

rpm•hrs

P P

h = P ± 0.75P Wave Duty Ratio: 50% ± 25%

4 8

OUTPUT CIRCUITS

TYPE R (Voltage)

2kΩ

ENVIRONMENTAL

1. Operating Temp: 0° to +60° C

2. Storage Temp: -20° to +80° C

3. Humidity: 90% RH, no condensation

4. Vibration: 10~ 55 Hz, 1.5 mm, 2 hrs

5. Shock: 50G, 11ms, 3 axes, 3 reps

TYPE C (Open Coll) TYPE E (Line-Driver)

Vcc

Signal

30mA

max

C U I Stack, Inc.

9615 SW Allen Blvd. #103

Beaverton, OR 97005

Tel: 503/643-4899 FAX: 503/643-6129

DRAWN BY

UPDATED

CHECKED

RELEASED

Vcc

Signal

Vcc

Signal

Inv. Signal

20mA

max

CABLE SHIELD

PART NO.

REV.

MEH30-XXX-XXXX-XXX
