SDMX-3-X

Description
Slide Dip Switch, 3 Switches, SPST, Latched, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT
CategoryMechanical and electronic products    switch
File Size238KB,1 Pages
ManufacturerBourns
Websitehttp://www.bourns.com
Environmental Compliance
Download Datasheet Parametric View All

SDMX-3-X Online Shopping

Suppliers Part Number Price MOQ In stock
SDMX-3-X - - View Buy Now

SDMX-3-X Overview

Slide Dip Switch, 3 Switches, SPST, Latched, 0.025A, 24VDC, Solder Terminal, Surface Mount-straight, ROHS COMPLIANT

SDMX-3-X Parametric

Parameter NameAttribute value
Is it Rohs certified?conform to
MakerBourns
package instructionROHS COMPLIANT
Reach Compliance Codeunknown
ECCN codeEAR99
body width6.2 mm
body height3 mm
Maximum contact current (DC)0.025 A
Contact (DC) maximum rated R load.025A@24VDC
Maximum contact voltage (DC)24 V
Electrical life2000 Cycle(s)
JESD-609 codee4
Manufacturer's serial numberSDM
Installation featuresSURFACE MOUNT-STRAIGHT
Number of switching segments3
Maximum operating temperature70 °C
Minimum operating temperature-20 °C
method of packingTUBE
surface mountNO
Switch actionLATCHED
switch functionSPST
Switch typeSLIDE DIP SWITCH
Terminal surfaceGold (Au) - with Nickel (Ni) barrier
Termination typeSOLDER

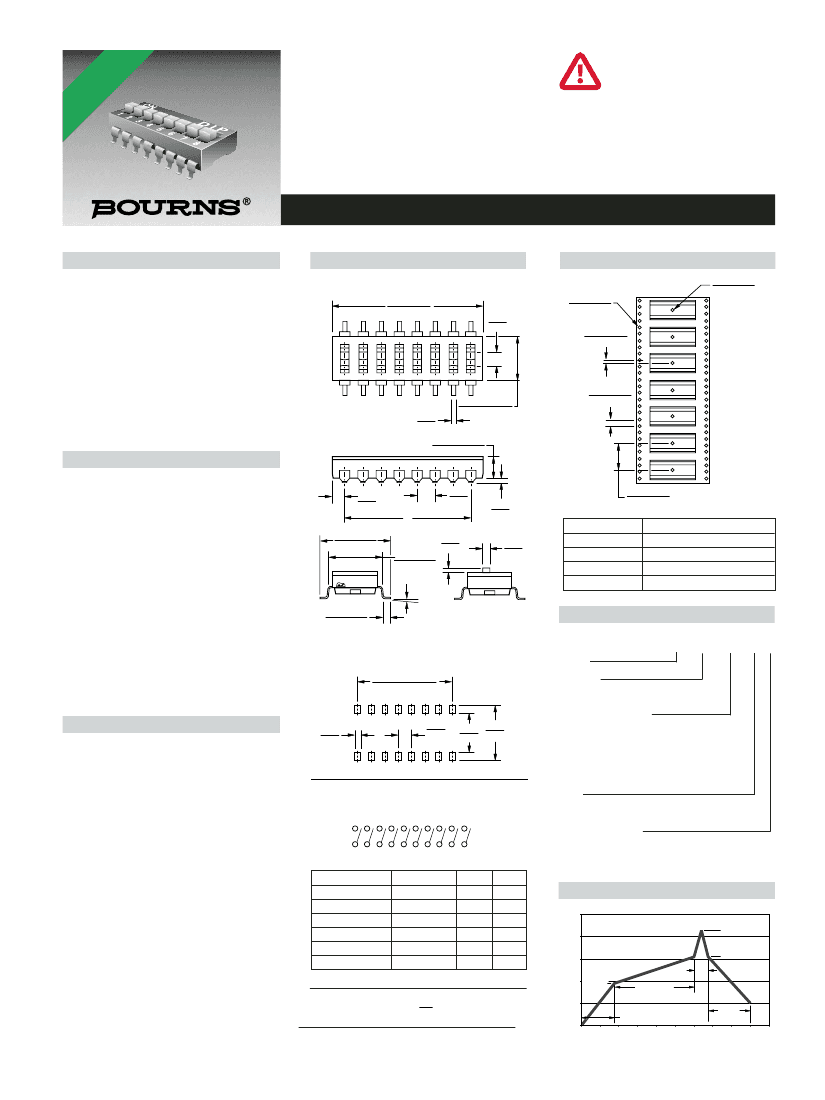

SDMX-3-X Preview

IA
NT
Features
Double contacts
Low contact resistance
Self-clean on contact area
Vapor phase solderable, IR-reflow solderable
Terminal plating by gold gives excellent
results when soldering
RoHS compliant*
*R
oH
S
CO
The SDM Series is currently available,
although not recommended for new
designs.
M
PL
SDM Series Surface Mount DIP Switch
Electrical Characteristics
Electrical Life ............2,000 operations min.
per switch, 24 VDC, 25 mA
Non-Switching Rating ......100 mA, 50 VDC
Switching Rating ................25 mA, 24 VDC
Contact Resistance (@ current 100mA)
........................50 milliohms max. at initial
100 milliohms max. after life test
Insulation Resistance
........100 megohms min. at 500 ±15 VDC
Dielectric Strength ............500 VDC/minute
Capacitance ..................5 pF max. between
adjacent closed switch
Circuit ....................Single pole single throw
Environmental Characteristics
Mechanical Life..2,000 operations per switch
Operation Force ......................1000 gf max.
Stroke ..............................................1.0 mm
Operating Temp. Range ....-20 °C to +70 °C
Storage Temperature ........-40 °C to +85 °C
Vibration Test ......................MIL-STD-202F,
Method 201A
Frequency ..............10-55-10 Hz/1 minute
Directions ................X,Y,Z, three mutually
perpendicular directions
Time......................2 hours each direction.
High reliability
Shock Test ..........................MIL-STD-202F,
Method 213B, Condition A
Gravity ..........50 G (peak value), 11 msec
Direction & Times....................6 sides and
3 times in each direction.
High reliability
Physical Characteristics
Base and Cover Materials
..UL94V-0 PPS plus glass fiber reinforced
Color ................................................Black
Actuator Materials ..............................Nylon
plus glass fiber reinforced
Color ................................................White
Contact Materials ....................Alloy copper
Terminal Materials ..............................Brass
Contact Plating Materials ....3 micro inches
gold plating over 40 micro inches nickel
Terminal Plating Materials ....................Gold
Soldering Process ............Vapor phase and
IR-reflow soldering can be applied
Standard Packaging
......IC tubes/all poles in the “off” position
Product Dimensions
SDM Series
A + 0.2 / - 0
(A + .008/-0)
2.0
(.079)
Packaging Specifications
1.55
±
0.05
(.061
±
.002)
DIA.
2.00
±
0.15
(.079
±
.006)
2.00
±
0.25
DIA.
(.079
±
.010)
0.50
(.020)
6.20 + 0.2 / -0
(.244 = .008/-0)
4.00
±
0.1
(.157
±
.004)
3.0 + 0.10 / -0
(.118 + .004/-0)
1.74
(.069)
B
9.80
±
0.3
(.386
±
.012)
7.62
±
0.25
(.300
±
.010)
0°~4°
2.54
(.100)
TYP.
0.70
(.028)
0.70
MIN.
(.028)
1.0
(.039)
16.00
±
0.1
(.630
±
.004)
POLE
2,3
4,5,6
7,8
9,10,12
TAPE SIZE (W)
16 mm
24 mm
32 mm
44 mm
0.7
±
0.2
(.028
±
.088)
SDMR SERIES
SDMX SERIES
How to Order
SDM R - 2 - T R
Model
Actuator
• X = Raised Actuator
• R = Recessed Actuator
7.40 10.4
(.291) (.409)
RECOMMENDED PCB LAYOUT
B±0.10=2.54X(P-1)
(B±.004=.10X(P-1))
1.1
(.043)
2.54
(.100)
TYP.
Number of Positions
• 1 = 1 Position
• 2 = 2 Positions
• 3 = 3 Positions
• 4 = 4 Positions
• 5 = 5 Positions
• 6 = 6 Positions
• 7 = 7 Positions
• 8 = 8 Positions
• 9 = 9 Positions
• 10 = 10 Positions
• 12 = 12 Positions
SCHEMATIC (TYP.)
SCHEMATIC (TYP.)
1,2,3,4,5,6,7,8,9,10,12 POSITIONS
AVAILABLE
1,2,3,4,5,6,7,8,9,10 POSITIONS
AVAILABLE
Seal
• X = Standard (Not Sealed)
• T = Top Tape Sealed (“R” Actuator only)
Packaging Option
(Top Sealed, Recessed only)
• R = Tape and Reel Packaging
(900 pcs./reel)
Temperature (°C)
MODEL NO.
SDM-12
SDM-10
SDM-8
SDM-6
SDM-4
SDM-2
POSITIONS
12
10
8
6
4
2
DIM. A DIM. B
31.42 27.94
26.34 22.86
21.26 17.78
16.18 12.70
11.10
7.62
6.02
2.54
Reflow Soldering Profile
275
225
175
125 120
°C
75
30-40 Sec.
25
0
20
40
60
10-15
Sec.
80-90 Sec.
35-60
Sec.
240
°C
180
°C
DIMENSIONS:
MM
(IN)
REV. 02/06
*RoHS Directive 2002/95/EC Jan 27 2003 including Annex.
Specifications are subject to change without notice.
Customers should verify actual device performance in their specific applications.
80 100 120 140 160 180 200
Time (Seconds)
