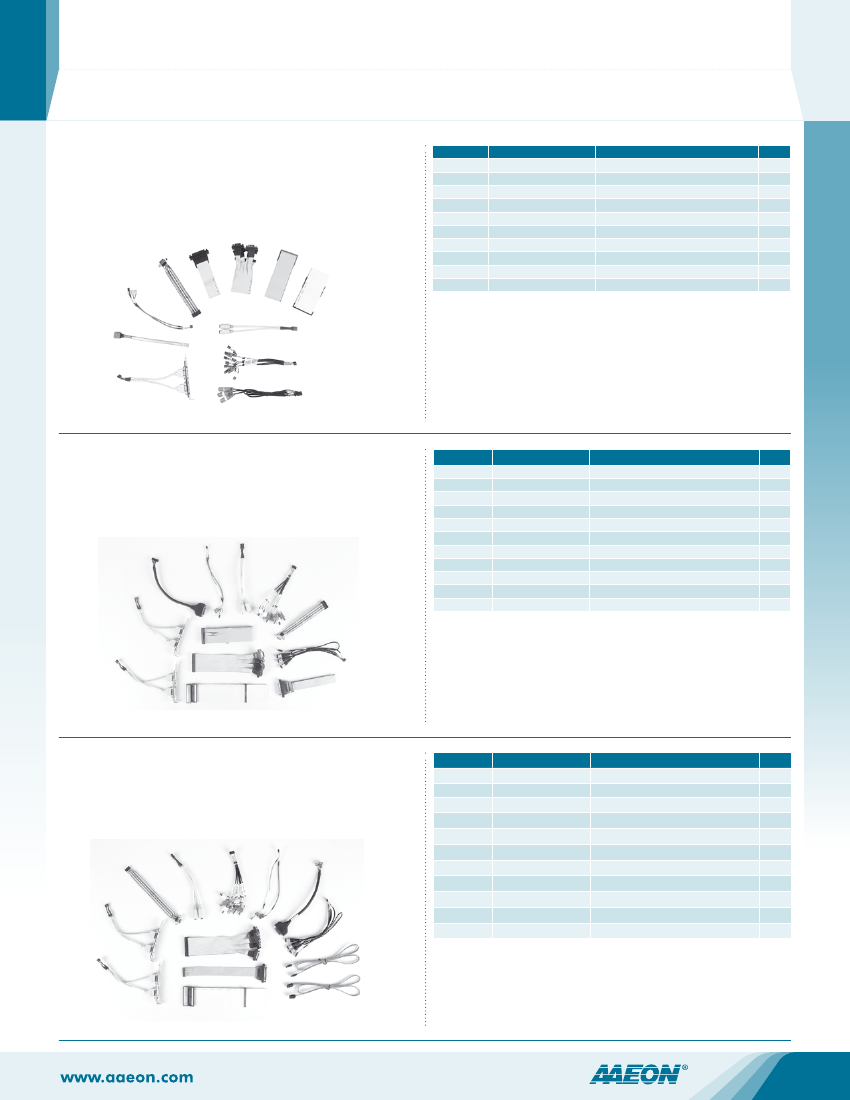

TF-PER-0101

Description
Wiring Kit for PCM-8500
File Size235KB,1 Pages
ManufacturerAAEON
Websitehttp://www.aaeon.com
Download Datasheet Compare View All

TF-PER-0101 Overview

Wiring Kit for PCM-8500

Accessories
TF-PER-0101
Wiring Kit for PCM-8500
P/N
1701400453
1701340601
1701400180
1701260301
1701150150
1700080180
1709100201
1700140510
1700140164
1700080204
Cable Function
IDE Cable 3.5” UDMA-100
Floppy Disk Drive Cable
Serial Port Cable
Parallel Port Cable
CRT Cable
TV-out Cable
USB Cable
Audio Cable
6 Channel Audio Cable
Keyboard & Mouse Cable
Cable Description
40-pin, 2.54mm, Female (45cm)
34-pin, 2.54mm, Female (60cm)
40-pin, 2.54mm, Female (18cm)
26-pin, 2.54mm, Female (30cm)
15-pin, 2.54mm, DSUB (15cm)
RCA + S Terminal Connector
10-pin, 2.00mm, Female
CD-in, Line-in/out, MIC-in
RCA Jack
8-pin, 2.54mm, Female (20cm)
Qty
1
1
1
1
1
1
3
1
1
1
TF-PER-0103
Wiring Kit for PCM-8150
P/N
1701400453
1701340600
1701400180
1701260308
1701160152
1700080180
1709100201
1700140510
1700140164
1700080204
1700200200
Cable Function
Floppy Disk Drive Cable
Serial Port Cable
Parallel Port Cable
CRT Cable
TV-out Cable
USB Cable
Audio Cable
6 channel Audio Cable
DVI Cable
Cable Description
34-pin, 2.00mm, female (60cm)
26-pin, 2.00mm, Female (30cm)
16-pin, 2.54mm, Female (15cm)
RCA + S Terminal Connector
10-pin, 2.00mm, Female
14-pin, 2.00mm, Female, Line-in/out, MIC-in
14-pin, 2.00mm, Female, RCA Jack
20-pin, 2.00mm, Female (20cm)
Qty
1
1
1
1
1
2
1
1
1
1
IDE Cable 3.5” UDMA-100 40-pin, 2.54mm, Female (45cm)
40-pin, 2.54mm Pitch, Female, Housing (18cm) 1
Keyboard & Mouse Cable 8-pin, 2.54mm, Female (20cm)
TF-PER-A008
Wiring Kit for PCM-9150
P/N
1701400453
1701400180
1701260200
1701160201
1700080180
1709100201
1700140510
1700140164
1700080204
1700200200
1709070780
Cable Function
IDE Cable 3.5” UDMA-100
Serial Port Cable
Parallel Port Cable
CRT Cable
TV-out Cable
USB Cable
Audio Cable
6 Channel Audio Cable
Keyboard & Mouse Cable
DVI Cable
SATA Cable
Cable Description
40-pin, 2.54mm, Female (45cm)
40-pin, 2.54mm, Female (18cm)
26-pin, 2.00mm, Female (20cm)
15-pin, 2. 00mm (20cm)
RCA + S-Terminal
10-pin, 2.00mm, Female
CD-in, Line-in/out, MIC-in
RCA JACK
8-pin, 2.54mm, Female (20cm)
20-pin, 2.00mm, Female (20cm)
7-pin, 1.27mm, Female (78cm)
Qty
1
1
1
1
1
2
1
1
1
1
2
02-6
