BOXER Series - Fanless Embedded Controller Solutions

AEC-6820B

■

Fanless Embedded Controller With VIA Eden™ 667 MHz/ C3™ 1 GHz Processor

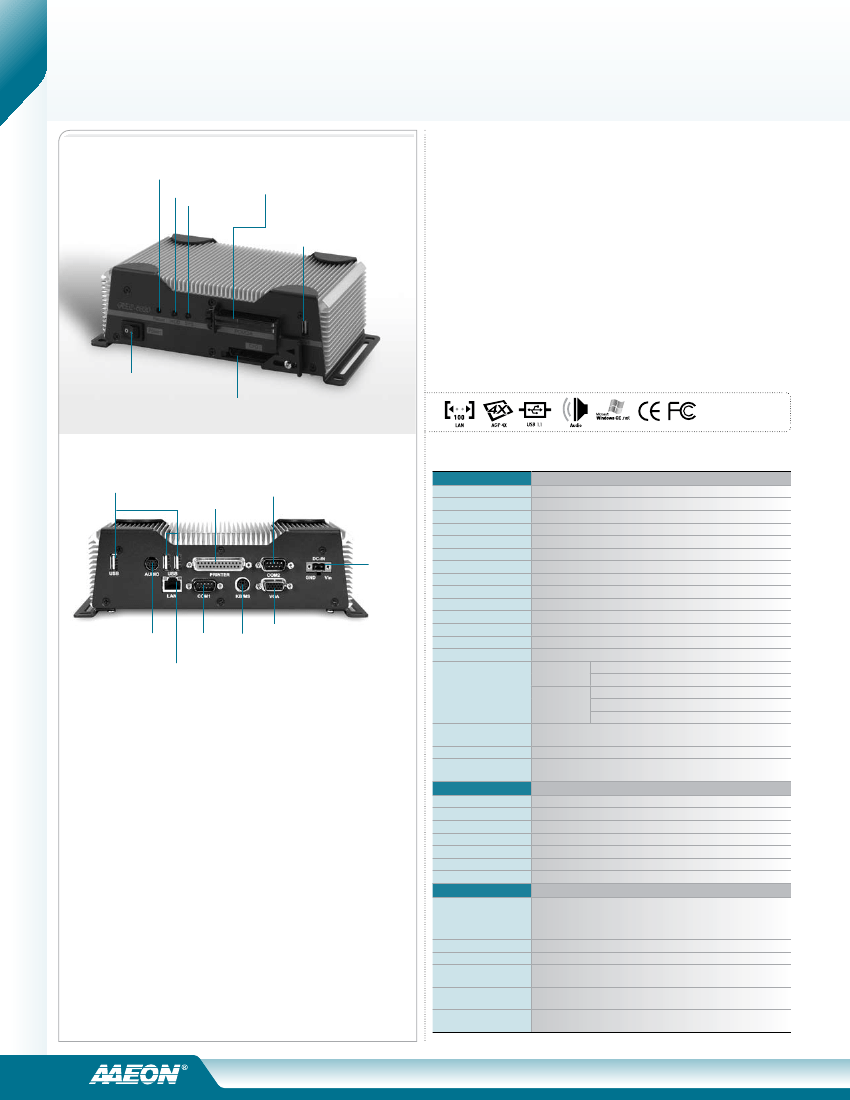

Features

Reset

Hard Disk Drive LED

System LED

PCMCIA x 2

USB

■ Fanless

Design With VIA Eden™ 667 MHz/ C3™ 1 GHz

Processor

■ 2

PCMCIA Slots For Expansion

■ Embedded

OS Windows® CE.Net Porting Ready For

Application

■ Ethernet

x 1/ COM x 2, USB1.1 x 4/ Audio x 1

■ Supports

CompactFlash™ Memory And Optional Hard Disk

Drive Kit

■ DIN

Rail Or Wallmount Design For Easy Installation

■ AT

Power Function

Power Switch

CompactFlash™

Specifications

USB

Parallel

System

COM

Processor

Memory (Optional)

Expansion

VGA/ Keyboard/ Mouse

Ethernet

DC Power

Input

SSD

Hard Disk Storage

COM

Audio

USB

VGA

Keyboard/ Mouse

Parallel

System Control

LED Indicator

Watchdog Timer

100Base-TX Ethernet RJ-45

Power Supply

2. AC Input

Power Consumption

MTBF (Hours)

OS Support

Mechanical

Construction

Color

Mounting

Dimension

Carton Dimension

Net Weight

Gross Weight

Environmental

Operating Temperature

Storage Temperature

Storage Humidity

Vibration

Shock

EMC

5°F ~ 149°F (-15°C ~ 65°C) — 667 MHz (CompactFlash™)

32°F ~ 122°F (0°C ~ 50°C) — 667 MHz (Hard Disk Drive)

5°F ~ 113°F (-15°C ~ 45°C) — 1 GHz (CompactFlash™)

32°F ~ 104°F (0°C ~ 40°C) — 1 GHz (Hard Disk Drive)

-4°F ~ 158°F (-20°C ~ 70°C) — CompactFlash™

5~95%@40°C, non-condensing

6 g rms/ 5 ~ 500Hz/ random operation (CompactFlash™)

1 g/ 5 ~ 500Hz/ random operation (Hard Disk Drive)

100g peak acceleration (11 msec. duration) (CompactFlash™)

15g peak acceleration (11 msec. duration) (Hard Disk Drive)

CE/ FCC class B,

UL (Supports 9~18V DC input Only)

Rugged Aluminum Alloy chassis

Dark Blue

DIN Rail, Wallmount

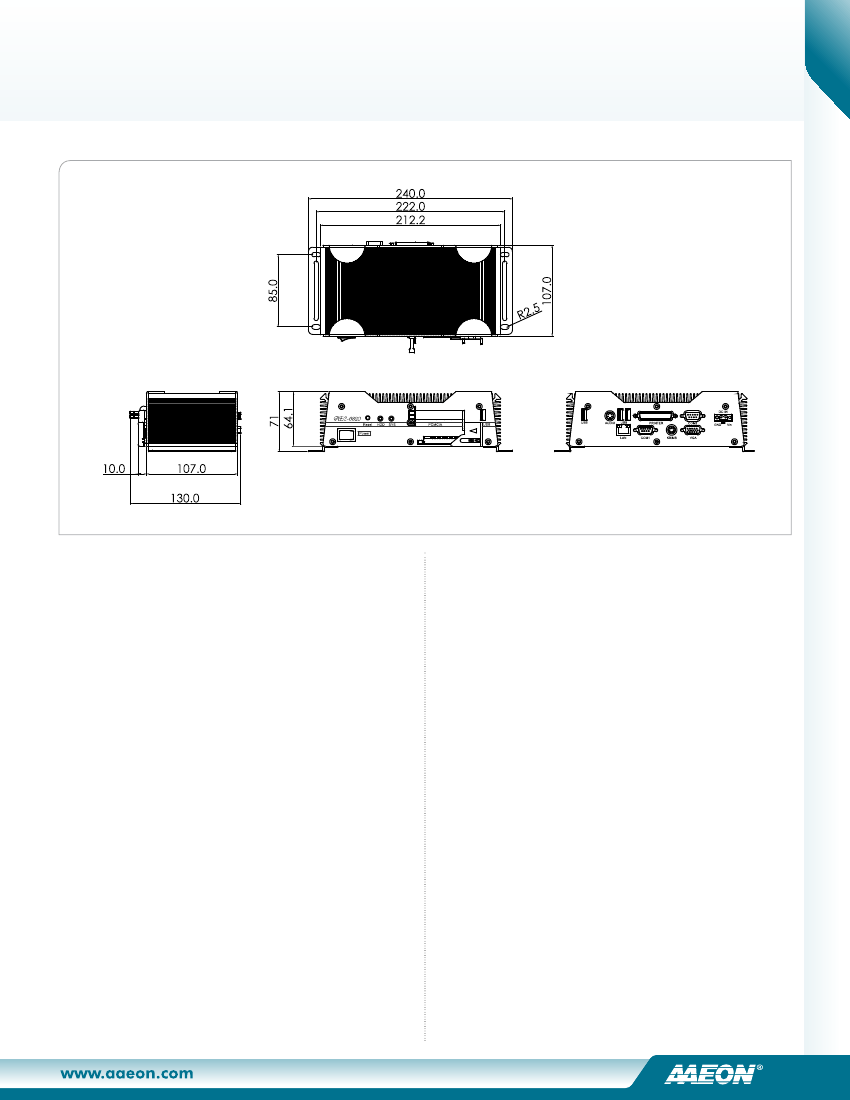

8.4” (W) x 2.5” (H) x 4.2” (D) (212mm x 64mm x 107mm)

12” (W) x 7.87” (H) x 9.4” (D) (305mm x 200mm x 240mm)

4.75 lb (2.16 Kg)

8.36 lb (3.8 Kg)

VIA Eden™ 667 MHz/ C3™ 1 GHz Processor

144-pin SDRAM SODIMM x 1, Max. 512 MB (Optional)

PCMCIA x 2

DB-15 VGA x 1, PS/2 Keyboard & Mouse x 1

100Base-TX Ethernet, RJ-45 x 1

Type II CompactFlash™ x 1

Optional 2.5” Slim Hard Disk Drive Module

RS-232 x 1, RS-232/422/485 x 1

Mic-in/ Line-in/ Line-out, by an extension cable

USB1.1 x 4

Printer x 1

Power on/ off switch x 1, Reset button x 1

Power LED x 1 , Hard Disk Drive active LED x 1

Generates a time-out system reset, setting via software

1. DC Input

Internal DC-DC Converter (Standard)

Input voltage: 9V DC ~ 30V DC

External Power Adapter (Optional)

Output voltage: 36W (+12V@3A)

Input voltage: 100V AC ~ 240V AC @ 50 ~ 60Hz

VIA Eden™ 667 MHz

1.23A @12V

70,000

Windows® CE .NET 4.2, Windows® XP Embedded,

Windows® XP, Windows® 2000, Windows® 7

Audio

COM

06-35

Note: All specifications are subject to change without notice.
