T6C23
TOSHIBA CMOS DIGITAL INTEGRATED CIRCUIT SILICON MONOLITHIC
T6C23
COLUMN DRIVER LSI FOR A DOT MATRIX LCD
The TOSHIBA T6C23 is a column (segment) driver for a small or
medium−scale dot matrix LCD. The T6C23 offers low power
consumption, due to the CMOS Si−Gate process. It is designed to
directly with a microprocessor unit (MPU). A program running on
the MPU can drive the T6C23 asynchronously. The T6C23 stores
data transferred from the MPU in its built−in RAM. The data
stored in the built−in display RAM corresponds to the image on
the LCD screen; the data is converted into the LCD drive signal.
A configuration of two T6C23s and one T6C24 can be used to
drive a 320 × 240−dot LCD.

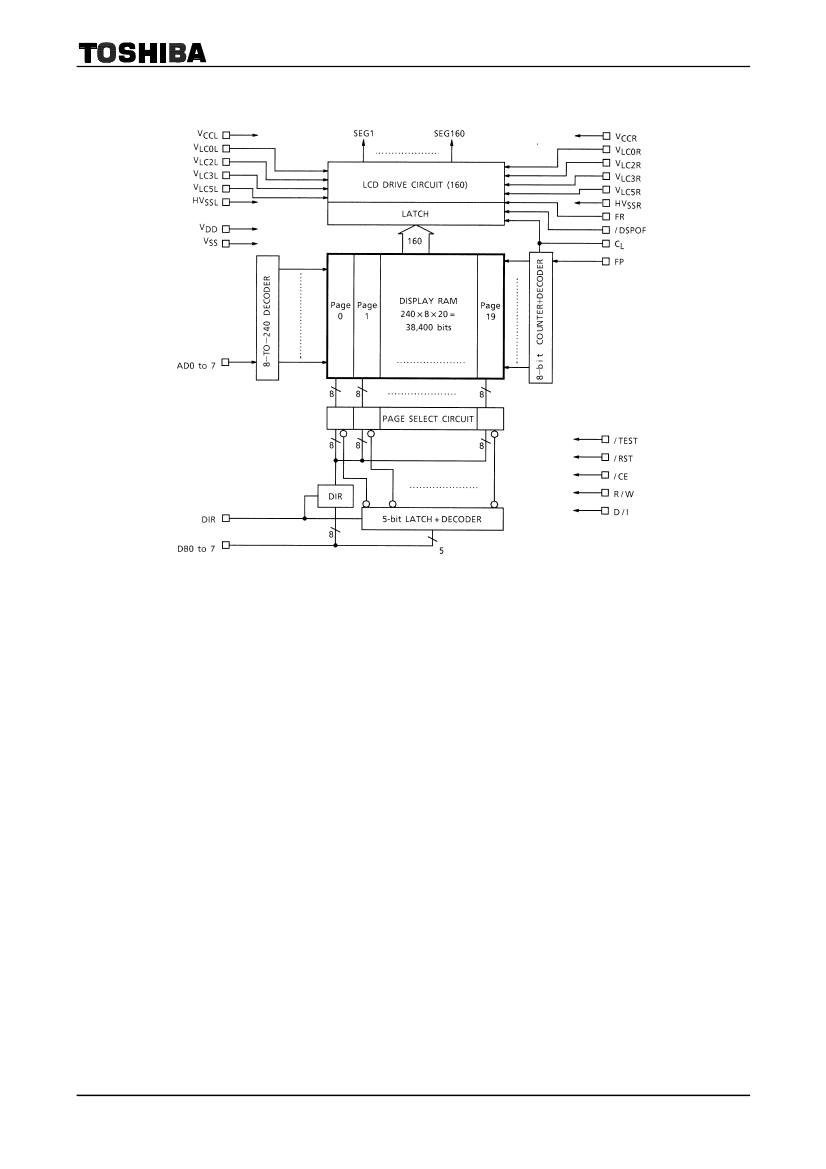

Features
Dot matrix graphic LCD column driver with display RAM
Display RAM capacity: 240 lines × 20 pages × 8 bits = 38400
bits
LCD drive output:
160
Interface: 8−bit MPU
Relation between RAM data and display
RAM bit data =
1 →
display ON
RAM bit data = 0
→
display OFF
Duty: Can be controlled by a T6C24 (row driver).
Low power consumption
Logic power supply: 2.7 to 5.5 V
LCD power supply: 8.0 to 30.0 V

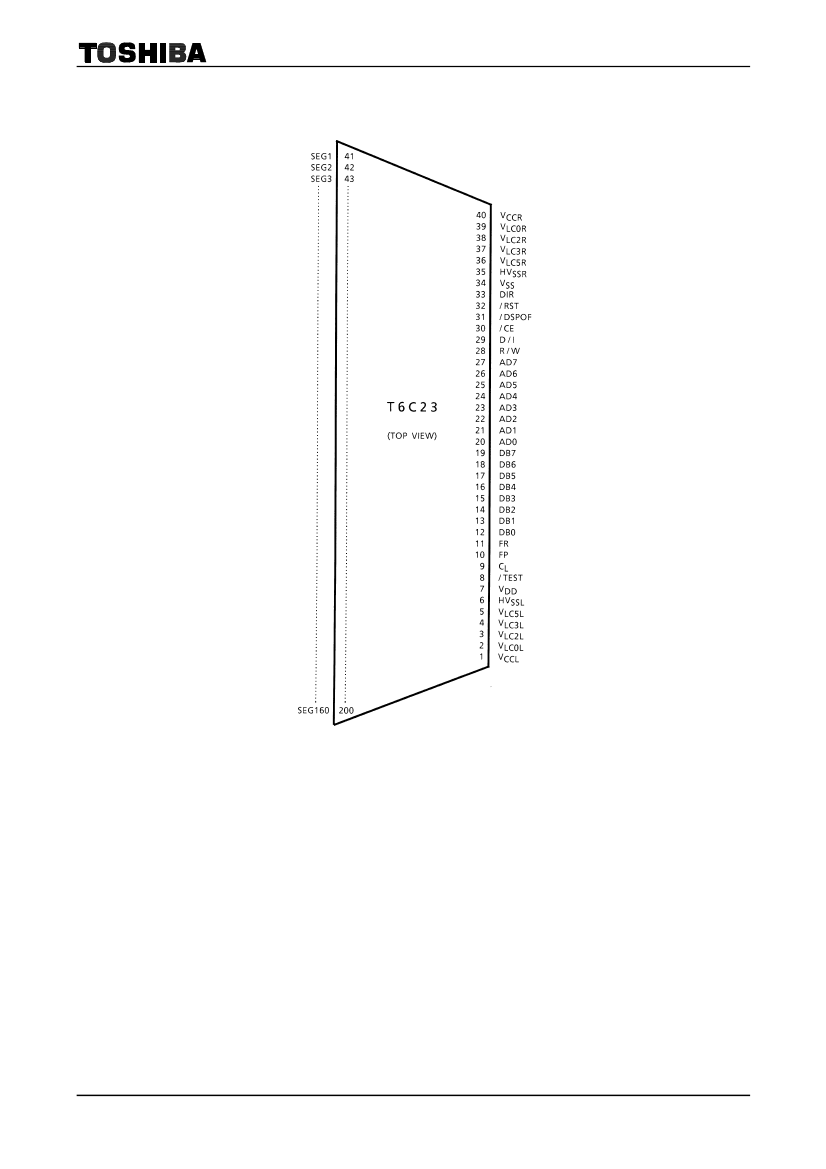

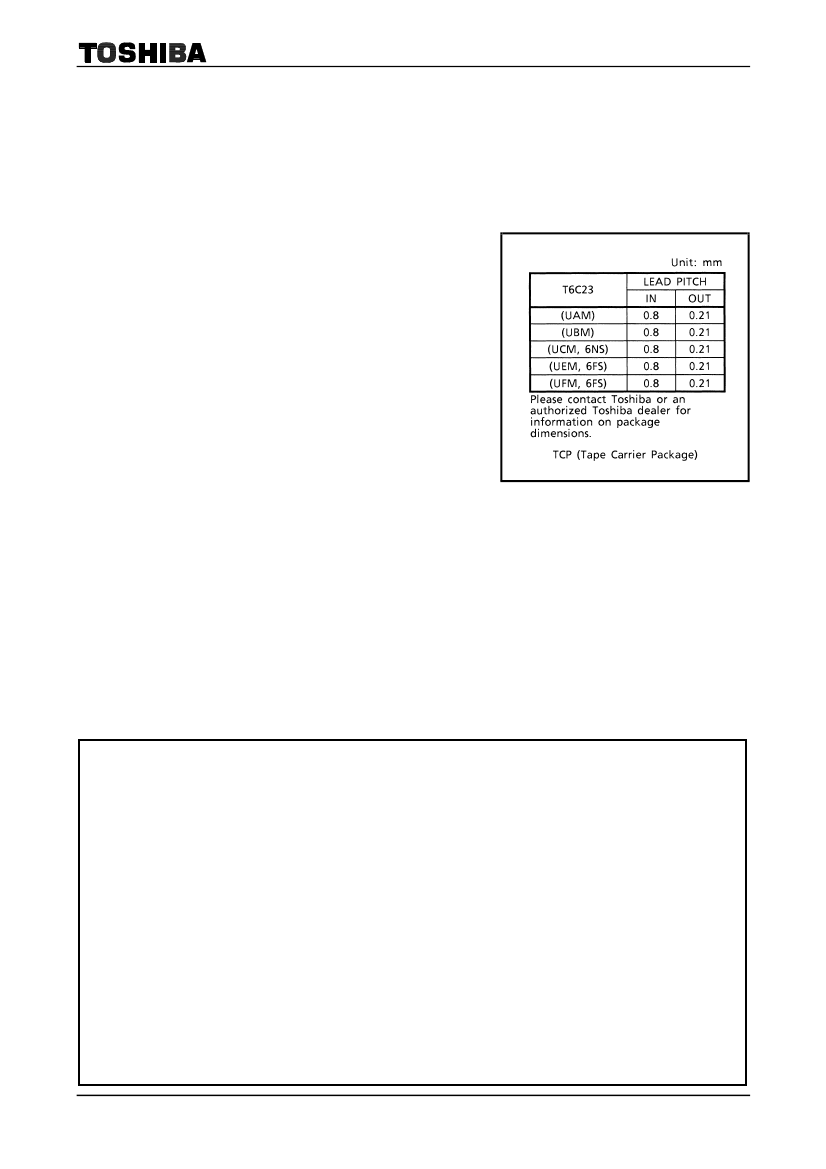

Package: TCP (Tape Carrier Package)
