WS-A-2-1-19 datasheet, PDF - EEWORLD Datasheet

WS-A-2-1-19: DescriptionWIRE SADDLE W/ ARROWHEAD; File Size134KB，1 Pages; ManufacturerRICHCO

Download Datasheet View All

WS-A-2-1-19 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	WS-A-2-1-19	-	-	View	Buy Now

WS-A-2-1-19 Overview

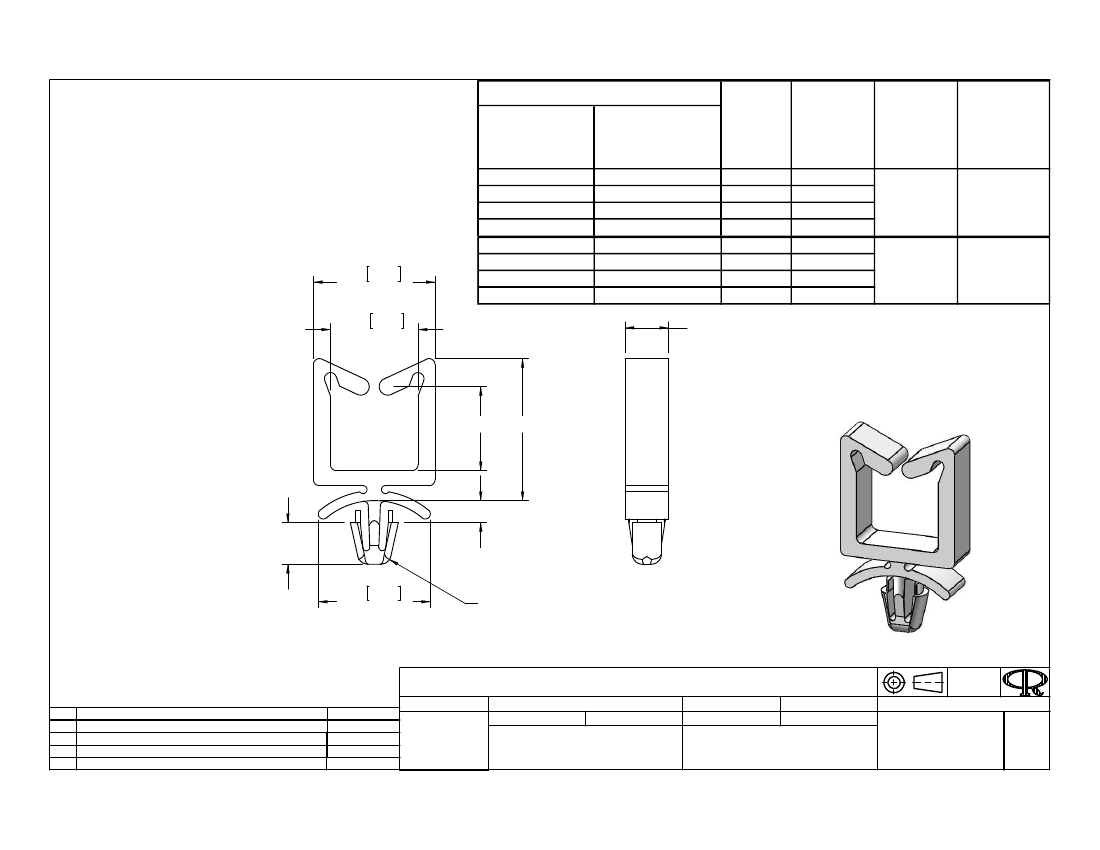

WIRE SADDLE W/ ARROWHEAD

Preview

Download Datasheet

View All

PART NO.

NYLON 6/6 UL 94 NYLON 6/6 UL 94

V-2 (RMS-01)

V-0 (RMS-19)

WS-A-1-01

WS-A-2-01

WS-A-3-01

WS-A-4-01

WS-A-2-1-01

WS-A-2-2-01

WS-A-2-3-01

WS-A-2-4-01

WS-A-1-19

WS-A-2-19

WS-A-3-19

WS-A-4-19

WS-A-2-1-19

WS-A-2-2-19

WS-A-2-3-19

WS-A-2-4-19

DIM. "A"

REF

DIM. "B"

REF

DIM. "C"

REF

PANEL

THICKNESS

.61 15.4

REF

7/16 11.1

REF

.52 [13.2]

.19 [4.8]

.71 [18]

.38 [9.7]

1.07 [27.2] .74 [18.8]

1.38 [35] 1.05 [26.7]

.52 [13.2]

.19 [4.8]

.71 [18]

.38 [9.7]

1.07 [27.2] .74 [18.8]

1.38 [35] 1.05 [26.7]

.11 [2.8]

1/16 [1.6]

.15 [3.8]

1/8 [3.2]

7/32 [5.6]

"B"

"A"

"C"

7/32 [5.6]

.56 14.2

NOTES:

REF

1. COLOR: NATURAL.

2. ALTERNATE UNITS FOR REFERENCE ONLY.

3. MATERIAL: NYLON 6/6 UVB (RMS-46).

COLOR BLACK. AVAILABLE BY SPECIAL ORDER ONLY.

TO ORDER REPLACE "-01" WITH -UVB".

TITLE:

REV.

SEE CO 200341 FOR CHANGES

SEE CO 200033 FOR CHANGES

REDRAWN, SEE ECN #1333 FOR CHANGES

SEE ENGINEERING FOR REV A-C

DESCRIPTION

03/17/09

09/25/07

06/13/07

------

ENGR. DATE

CREATED USING

SOLIDWORKS

TO SNAP-LOCK IN A .187±.003

[4.75±0.08] DIA. HOLE, IN A

PANEL THICKNESS INDICATED

WIRE SADDLE W/ ARROWHEAD

FILE #: WS-A

SHEET: 1 OF 1

RE:

SHEET SIZE: A

DWN: SK

DT: 06/13/07

TOLERANCES

UNLESS NOTED

.XX=±.010

.XXX=±.005

FRAC.=±1/64

ANG.=±1°

RICHCO, INC.

ENG@RICHCO-INC.COM

APP: RT

CHKD: RG

PART #

DWG IN

IN [MM]

FINAL

TYPE

(773) 539-4060

SEE TABLE
