PFM-HDS
04
PC/104 Modules
System
Form Factor
Processor
System Memory
Chipset
I/O Chipset
Ethernet
BIOS
Wake on LAN
Watchdog Timer
H/W Status Monitoring
Expansion Interface
Battery
Power Requirement
Power Consumption
(Typical)
Board Size
Gross Weight
Operating Temperature
Storage Temperature
Operating Humidity
MTBF (Hours)
PC/104
AMD G-Series T16R processor
SODIMM DDR3 1066 up to 4GB
AMD A55E
Fintek F81886DG
Realtek 8111E for 10/100/1000Base-TX x 1
AMI Plug & Play SPI BIOS - 4MB Flash
Yes
Generates a time-out system reset
Supports power supply voltages and temperature monitoring
PC/104+
Lithium battery
+5V, AT/ATX
AMD G-Series T16R, 615MHz, DDR3 1066 4GB
2.03A@+5V
3.77" x 4.05" (96mm x 103mm)
0.35lb (0.16kg)
32°F ~ 140°F (0°C ~ 60°C)
-40°F ~ 176°F (-40°C ~ 80°C)
0% ~ 90% relative humidity, non-condensing
94,000
Supports CRT/LCD simultaneous/ dual view display
AMD T16R processor
CRT: Up to 1920 x 1200
LVDS: 18-bit up to 1366 x 768
18-bit LVDS Single Channel x 1
SATA 3.0Gb/s x 1, CFast™ x 1
RS-232 x 3, RS-232/422/485 (auto flow) x 1
USB2.0 x 4
PS/2 Keyboard and Mouse x 1
8-bit Digital I/O (Programmable, 4-in/4-out)
Line-in, Line-out, Mic-in

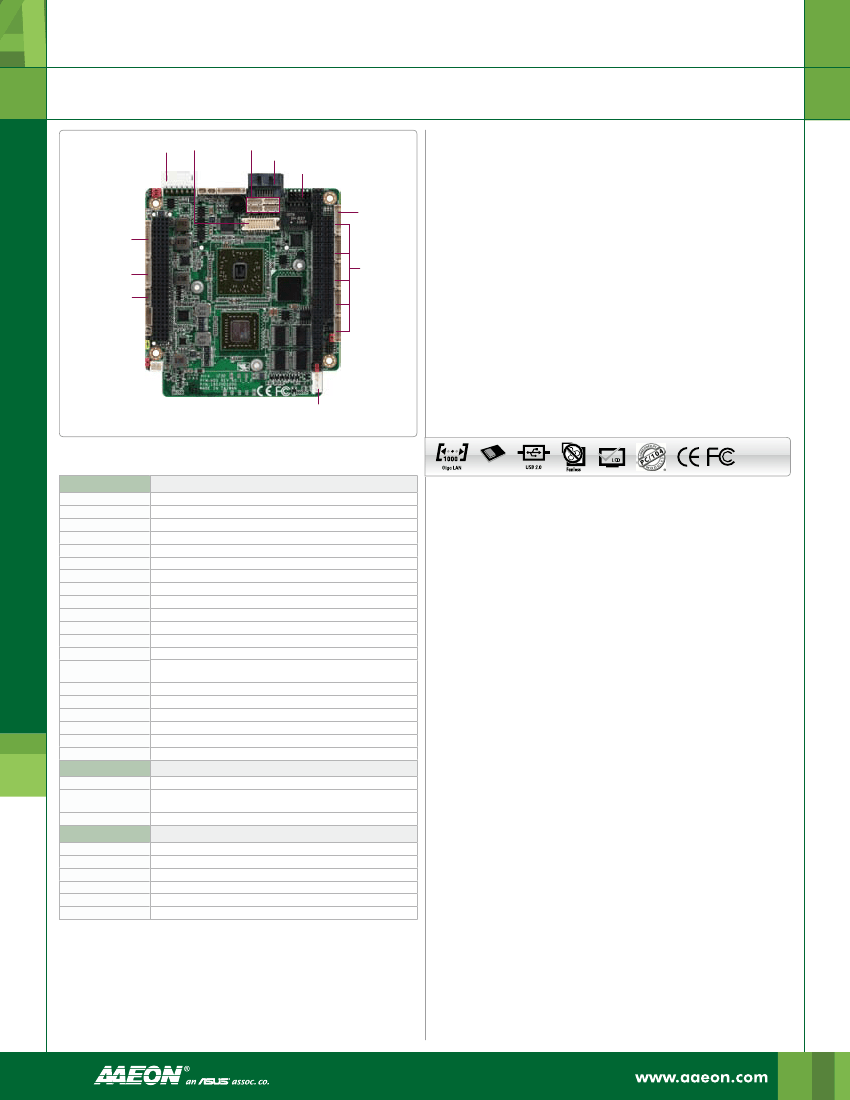

PC/104+ Module with AMD G-Series T16R Processor
Power
LVDS
USB x 4
SATA
LAN
Features
■
■
Onboard AMD®
■
■
AMD A55E
Front Panel
G-Series ™ T16R Processor
■
■
SODIMM DDR3
VGA
COM x 4
DIO
Keyboard &
Mouse
1066 up to 4GB
■
■
10/100/1000Base-TX Ethernet x 1
■
■
CRT, 18-bit LVDS
■
■
2CH HD Audio
■
■
SATA 3.0Gb/s x 1, CFast™ x 1
■
■
USB2.0 x 4, COM x 4, 8-bit Digital I/O
■
■
PC/104+ Expansion
■
■
+5V Only Operation
■
■
AAEON Hi-Safe SDK/Utility Supported
FAN
Specifications
DDR
3
Packing List
•
1702060105
Power Cable for PFM-HDS
•
9657666600
Jumper Cap
•
Product DVD
•
PFM-HDS with Heatsink
Display
Chipset
Resolutions
LCD Interface
I/O
Storage
Serial Port
USB
PS/2 Port
Digital I/O
Audio
04-1
PFM-HDS

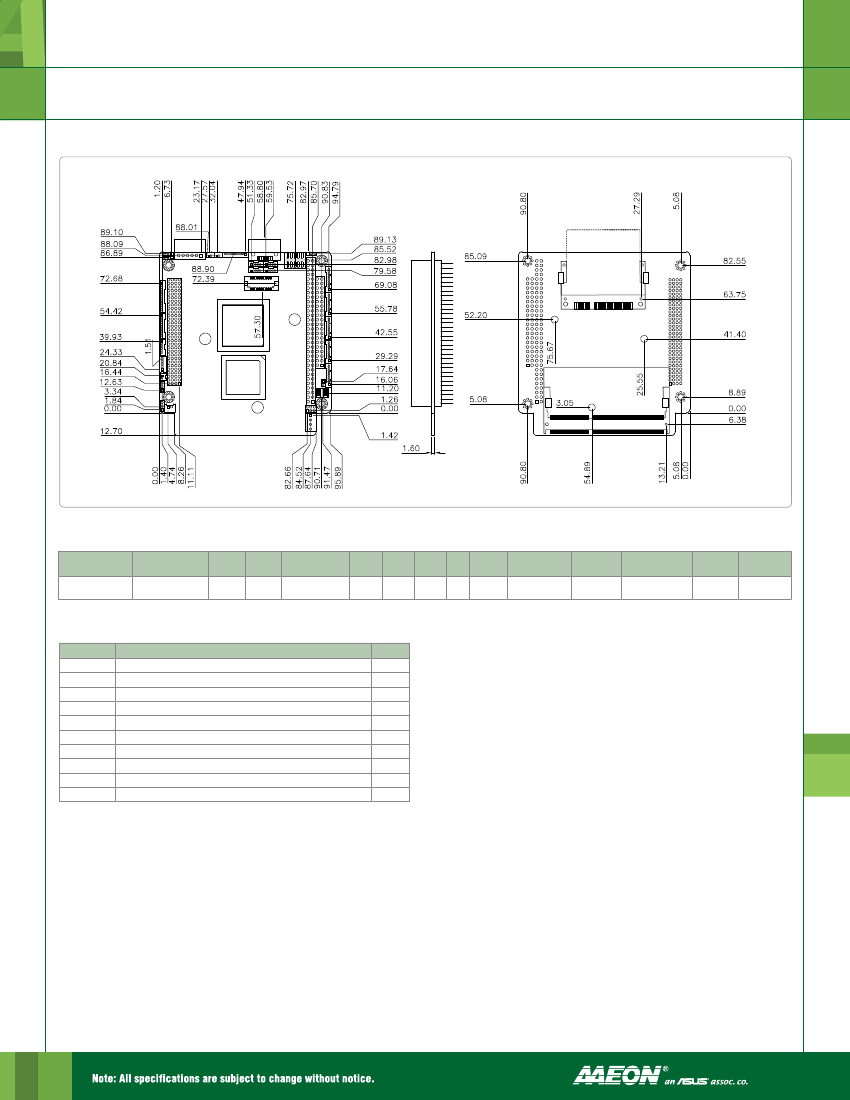

Dimension
Unit: mm
Ordering Information
Part Number
PFM-HDS-A10
CPU
AMD G-series T-16R
RAM
SODIMM
Fan/
Fanless
Fanless
Storage
SATA x 1
Display
CRT +
LVDS
LVDS
18-bit,
1CH
LAN
GbE x 1
USB
4
3
RS-232
RS-232/422/485
1
—
Parallel
Expansion Slot
PC/104+
Power
+5V, AT/ATX
Temp.
0°C ~ 60°C
Optional Accessories
Part Number
1709150151
1700100201
1705050153
1700050207
1701090150
1709070500
1702150155
1701100155
1709100254
1700060155
(TF)CRT Cable, 1 x 13P Pitch=1.25mm Housing,15cm
(TF)LAN Cable, RJ45 10P 2.0mm Housing, 20cm
(TF)Inverter Cable, 1 x 5P Pitch=1.5mm Housing, 15cm
(TF)USB Cable, 1 x 5P Pitch=1.25mm Housing, 20cm
(TF)Flat Cable, D-Sub 9(M), 9P Housing, 9P 1.25mm pitch Housing, 15cm
(TF)SATA Cable, 7P Pitch 1.27mm, 50cm
(TF)Power Cable, 15P SATA (F), 2P 2.0mm Housing (PH), 15cm
(TF)Flat Cable, Front Panel 10P, Pitch=1.25mm Housing, 15cm
Audio Cable, Length 25cm
PS/2 Keyboard & Mouse Cable
Quantity
1
1
1
4
4
1
1
1
1
1
04-2
