MBRB2545CTPBF datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> MBRB2545CTPBF

MBRB2545CTPBF: DescriptionRectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, PLASTIC, SMD-220, D2PAK-3; CategoryDiscrete semiconductor diode; File Size111KB，7 Pages; ManufacturerInternational Rectifier （ Infineon ）; Websitehttp://www.irf.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

MBRB2545CTPBF Overview

Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, PLASTIC, SMD-220, D2PAK-3

MBRB2545CTPBF Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	International Rectifier （ Infineon ）
Parts packaging code	TO-263
package instruction	R-PSSO-G2
Contacts	3
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREEWHEELING DIODE, HIGH RELIABILITY
application	GENERAL PURPOSE
Shell connection	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
Maximum forward voltage (VF)	0.73 V
JESD-30 code	R-PSSO-G2
JESD-609 code	e3
Humidity sensitivity level	1
Maximum non-repetitive peak forward current	1060 A
Number of components	2
Phase	1
Number of terminals	2
Maximum operating temperature	150 °C
Maximum output current	15 A
Package body material	PLASTIC/EPOXY
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	260
Certification status	Not Qualified
Maximum repetitive peak reverse voltage	45 V
surface mount	YES
technology	SCHOTTKY
Terminal surface	MATTE TIN OVER NICKEL
Terminal form	GULL WING
Terminal location	SINGLE
Maximum time at peak reflow temperature	30

Preview

Download Datasheet

View All

Bulletin PD-2.322 rev. C 01/03

MBR2545CT

MBRB2545CT

MBR2545CT-1

SCHOTTKY RECTIFIER

30 Amp

Major Ratings and Characteristics

Characteristics

F(AV)

Rectangular waveform

(Per Device)

FRM

@ T

= 130°C

(Per Leg)

RRM

FSM

@ tp = 5 µs sine

@ 30 Apk, T

= 125°C

range

35/45

1060

0.73

- 65 to 150

°C

Description/ Features

Units

This center tap Schottky rectifier has been optimized for low

reverse leakage at high temperature. The proprietary barrier

technology allows for reliable operation up to 150° C junction

temperature. Typical applications are in switching power

supplies, converters, free-wheeling diodes, and reverse

battery protection.

150° C T

operation

Center tap TO-220 and D

Pak packages

Low forward voltage drop

High purity, high temperature epoxy encapsulation for

enhanced mechanical strength and moisture resistance

High frequency operation

Guard ring for enhanced ruggedness and long term

reliability

Values

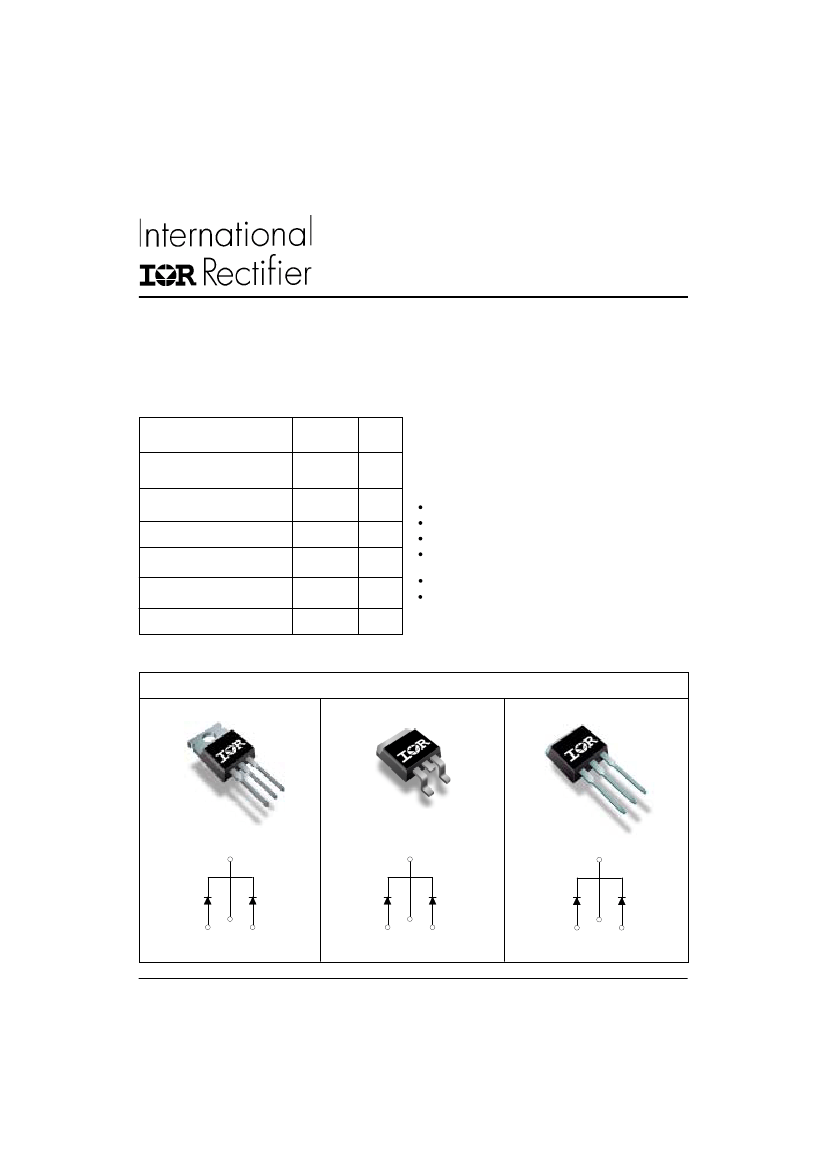

Case Styles

MBR25..CT

MBRB25.. CT

MBR25..CT -1

Base

Common

Cathode

Base

Common

Cathode

Base

Common

Cathode

Anode

Common

Cathode

Anode

Common

Cathode

Anode

Common

Cathode

Anode

TO-220

www.irf.com

PAK

TO-262

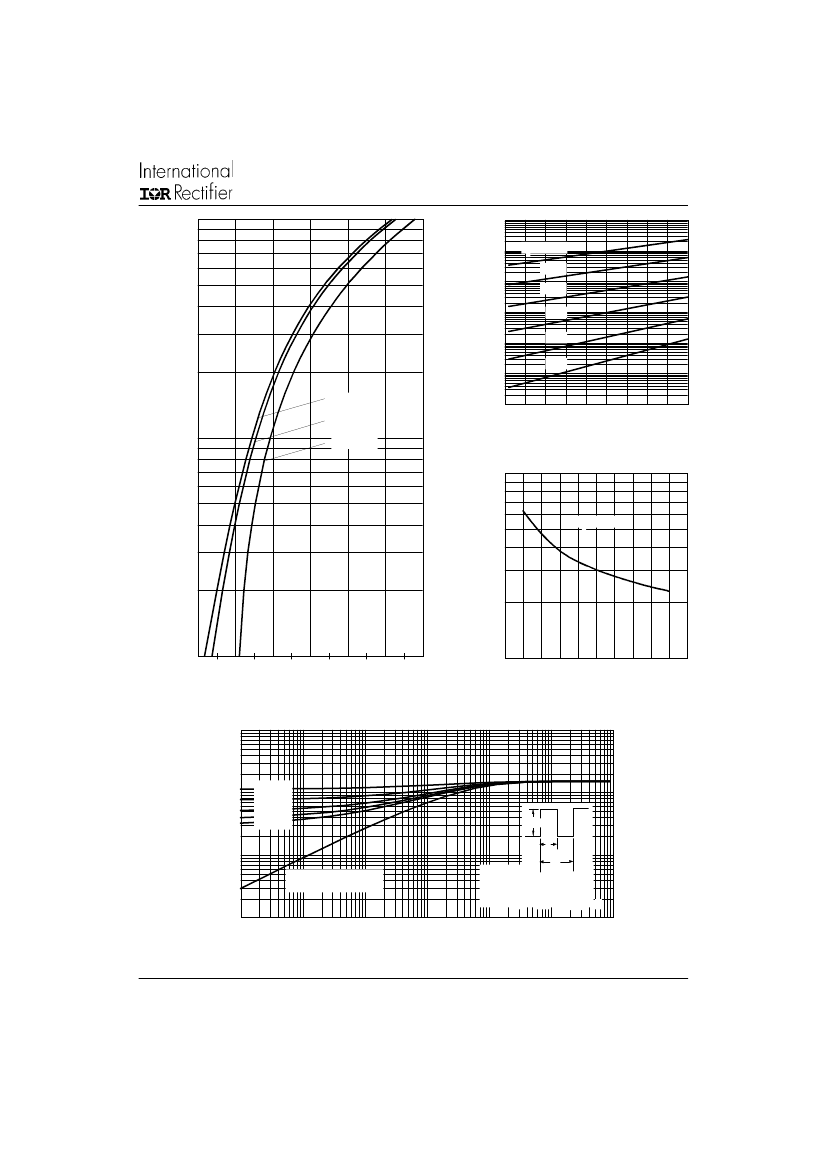

MBRB2545CTPBF Related Products

	MBRB2545CTPBF	MBRB2545CTTRR	MBRB2535CTTRLPBF	MBRB2535CTTRL	MBRB2535CTTRRPBF	MBRB2545CTTRLPBF	MBR2545CT-1PBF	MBR2535CT-1PBF	MBRB2535CTTRR	MBRB2545CTTRL
Description	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, PLASTIC, SMD-220, D2PAK-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, PLASTIC, SMD-220, D2PAK-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon, PLASTIC, SMD-220, D2PAK-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon, PLASTIC, SMD-220, D2PAK-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon, PLASTIC, SMD-220, D2PAK-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, PLASTIC, SMD-220, D2PAK-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, TO-262AA, PLASTIC, MODIFIED TO-262, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon, TO-262AA, PLASTIC, MODIFIED TO-262, 3 PIN	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 35V V(RRM), Silicon, PLASTIC, SMD-220, D2PAK-3	Rectifier Diode, Schottky, 1 Phase, 2 Element, 15A, 45V V(RRM), Silicon, PLASTIC, SMD-220, D2PAK-3
Is it Rohs certified?	conform to	incompatible	conform to	incompatible	conform to	conform to	conform to	conform to	incompatible	incompatible
Parts packaging code	TO-263	TO-263	TO-263	TO-263	TO-263	TO-263	TO-262AA	TO-262AA	TO-263	TO-263
package instruction	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	PLASTIC, MODIFIED TO-262, 3 PIN	R-PSIP-T3	R-PSSO-G2	R-PSSO-G2
Contacts	3	3	3	3	3	3	3	3	3	3
Reach Compliance Code	compliant	unknown	compliant	compliant	compliant	compliant	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99	EAR99
Other features	FREEWHEELING DIODE, HIGH RELIABILITY	FREEWHEELING DIODE, HIGH RELIABILITY	FREEWHEELING DIODE, HIGH RELIABILITY	FREEWHEELING DIODE, HIGH RELIABILITY	FREEWHEELING DIODE, HIGH RELIABILITY	FREEWHEELING DIODE, HIGH RELIABILITY	FREEWHEELING DIODE, HIGH RELIABILITY	FREEWHEELING DIODE, HIGH RELIABILITY	FREEWHEELING DIODE, HIGH RELIABILITY	FREEWHEELING DIODE, HIGH RELIABILITY
application	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE	GENERAL PURPOSE
Shell connection	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE	CATHODE
Configuration	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS	COMMON CATHODE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
Maximum forward voltage (VF)	0.73 V	0.73 V	0.73 V	0.73 V	0.73 V	0.73 V	0.73 V	0.73 V	0.73 V	0.73 V
JESD-30 code	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSSO-G2	R-PSIP-T3	R-PSIP-T3	R-PSSO-G2	R-PSSO-G2
JESD-609 code	e3	e0	e3	e0	e3	e3	e3	e3	e0	e0
Humidity sensitivity level	1	1	1	1	1	1	1	1	1	1
Maximum non-repetitive peak forward current	1060 A	1060 A	1060 A	1060 A	1060 A	1060 A	1060 A	1060 A	1060 A	1060 A
Number of components	2	2	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1	1	1
Number of terminals	2	2	2	2	2	2	3	3	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C	150 °C
Maximum output current	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A
Package body material	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY	PLASTIC/EPOXY
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	SMALL OUTLINE	IN-LINE	IN-LINE	SMALL OUTLINE	SMALL OUTLINE
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum repetitive peak reverse voltage	45 V	45 V	35 V	35 V	35 V	45 V	45 V	35 V	35 V	45 V
surface mount	YES	YES	YES	YES	YES	YES	NO	NO	YES	YES
technology	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY	SCHOTTKY
Terminal surface	MATTE TIN OVER NICKEL	Tin/Lead (Sn/Pb)	MATTE TIN OVER NICKEL	Tin/Lead (Sn/Pb)	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	MATTE TIN OVER NICKEL	Tin/Lead (Sn/Pb)	Tin/Lead (Sn/Pb)
Terminal form	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	GULL WING	THROUGH-HOLE	THROUGH-HOLE	GULL WING	GULL WING
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
Maker	International Rectifier （ Infineon ）	-	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）	International Rectifier （ Infineon ）
Peak Reflow Temperature (Celsius)	260	-	260	225	260	260	260	260	225	225
Maximum time at peak reflow temperature	30	-	30	30	30	30	40	40	30	30
