AM2D-40 datasheet, PDF - EEWORLD Datasheet

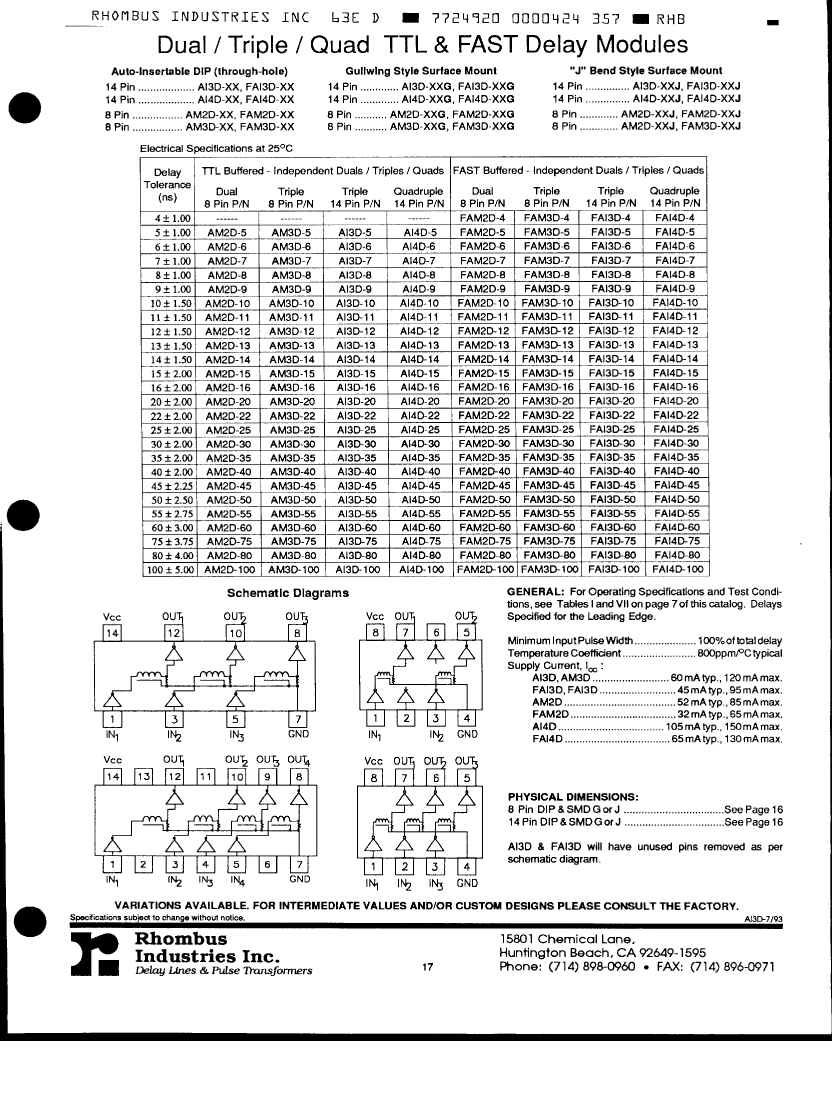

AM2D-40: DescriptionActive Delay Line, 2-Func, 1-Tap, True Output, TTL, PDIP8, PLASTIC, DIP-8; Categorylogic logic; File Size82KB，1 Pages; ManufacturerRhombus Industries, Inc.; Websitehttp://www.rhombus-ind.com/

Download Datasheet Parametric View All

AM2D-40 Overview

Active Delay Line, 2-Func, 1-Tap, True Output, TTL, PDIP8, PLASTIC, DIP-8

Parameter Name	Attribute value
Maker	Rhombus Industries, Inc.
Parts packaging code	DIP
package instruction	PLASTIC, DIP-8
Contacts	8
Reach Compliance Code	unknown
Other features	MAX RISE TIME CAPTURED
series	TTL
JESD-30 code	R-PDIP-T8
Load capacitance (CL)	10 pF
Logic integrated circuit type	ACTIVE DELAY LINE
Number of functions	2
Number of taps/steps	1
Number of terminals	8
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	DIP
Package shape	RECTANGULAR
Package form	IN-LINE
Maximum supply current (ICC)	85 mA
programmable delay line	NO
Certification status	Not Qualified
Maximum seat height	6.35 mm
Maximum supply voltage (Vsup)	5.25 V
Minimum supply voltage (Vsup)	4.75 V
Nominal supply voltage (Vsup)	5 V
surface mount	NO
technology	TTL
Temperature level	COMMERCIAL
Terminal form	THROUGH-HOLE
Terminal pitch	2.54 mm
Terminal location	DUAL
Total delay nominal (td)	40 ns
width	7.62 mm
