800-10-054-10-004000: DescriptionBoard Connector, 54 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT; CategoryThe connector The connector; File Size409KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

800-10-054-10-004000 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	800-10-054-10-004000	-	-	View	Buy Now

800-10-054-10-004000 Overview

Board Connector, 54 Contact(s), 1 Row(s), Male, Straight, Solder Terminal, ROHS COMPLIANT

800-10-054-10-004000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Connector type	BOARD CONNECTOR
Contact to complete cooperation	GOLD (10) OVER NICKEL (150)
Contact completed and terminated	GOLD (10) OVER NICKEL (150)
Contact point gender	MALE
Contact material	BRASS
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	800-10-054-10-004000
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	1
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SOLDER
Total number of contacts	54

Preview

Download Datasheet

View All

INTERCONNECTS

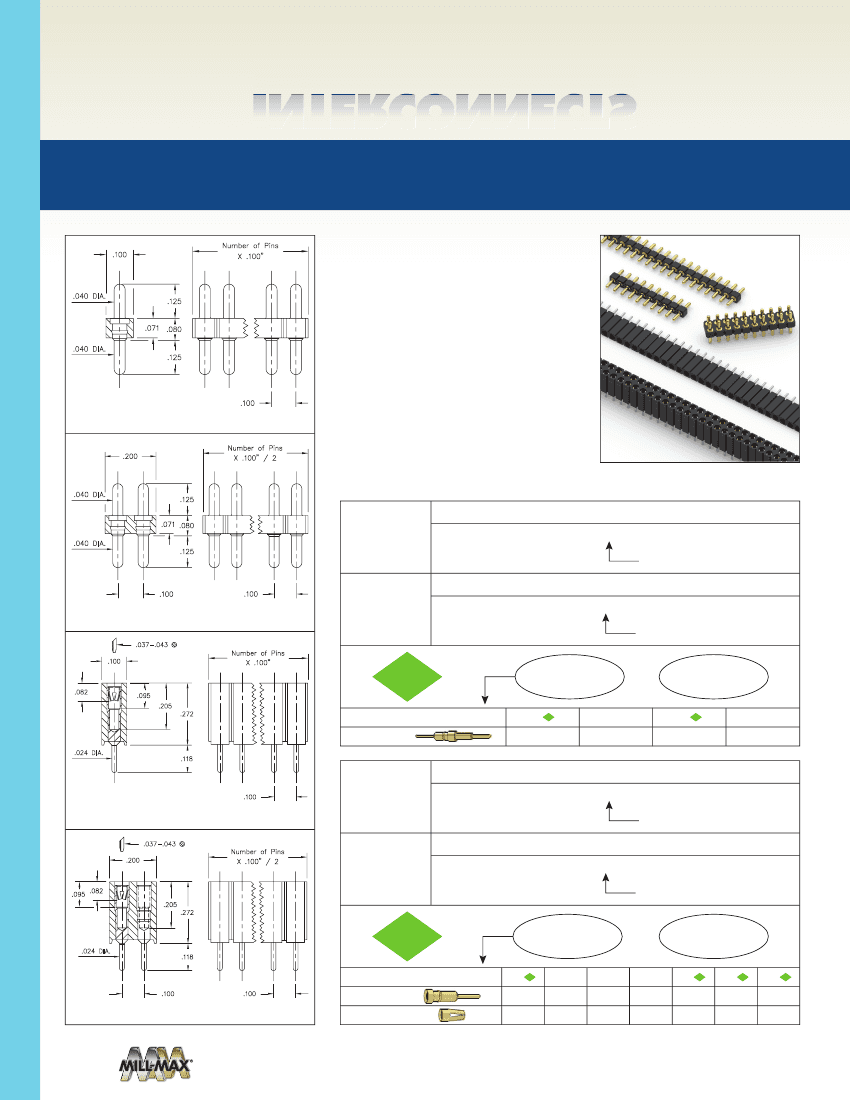

SERIES 800, 801, 802, 803 • .100” GRID (.040” DIA. PINS),

HEADERS AND SOCKETS • SINGLE AND DOUBLE ROW STRIPS

Number of Pins

.100

X .100"

•

Series 800 and 802 single and double row

.040 DIA.

interconnects feature sturdy .040” dia. leads

(MM #3077) and low pro le (.071” thick)

insulator. See page 215 for details

sockets use MM #1313 receptacles. See page

181 for details

6- nger BeCu #18 contact rated at 8 amps.

Receptacles accept .037”-.043” diameter pins.

See page 257 for details

suitable for all soldering operations

.125

•

Series 801 and 803 single and double row

•

Series 801 and 803 receptacles use Hi-Rel,

.100

.071

.040 DIA.

.080

.125

FIG. 1

.200

•

Insulators are high temperature thermoplastic,

Number of Pins

X .100" / 2

.040 DIA.

.125

.071 .080

ORDERING INFORMATION

Series 800...10-004

Single Row Pin Header

01-50

.040 DIA.

.125

FIG. 1

.100

800 XX 0_ _ 10 004000

Specify number of pins

.100

Series 802...10-004

Double Row Pin Header

004-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

FIG. 2

.037-.043

FIG. 2

RoHS - 2

802 XX _ _ _ 10 004000

Specify number of pins

Number of Pins

.100

X .100"

2011/65/EU

.082

.095

.205

.272

XX=Plating Code

See Below

µ”

SPECIFY PLATING CODE XX=

Pin Plating

200

µ”

Sn/Pb

200

µ”

.024 DIA.

.118

Series 801...10-004

.100

Single Row Socket

01-50

FIG. 3

.037-.043

.200

FIG. 3

801 XX 0_ _ 10 004000

Specify number of pins

Number of Pins

X .100" / 2

Series 803...10-004

Double Row Socket

004-100

For

Electrical, Mechanical

& Enviromental Data,

See page 264

PAGE 62 | INTERCONNECTS

FIG. 4

RoHS - 2

803 XX _ _ _ 10 004000

Specify number of pins

.095

.082

.205

.272

2011/65/EU

.024 DIA.

.118

XX=Plating Code

See Below

µ”

SPECIFY PLATING CODE XX=

.100

µ”

200

µ”

200

µ”

100

µ”

FIG. 4

Sleeve (Pin)

Contact (Clip)

µ”

200

µ”

Sn/Pb 200

µ”

Sn/Pb 200

µ”

Sn/Pb

200

µ”

100

µ”

Sn/Pb

µ”
