803-99-096-30-001000 datasheet, PDF

Datasheet> All Categories > The connector> The connector> 803-99-096-30-001000

803-99-096-30-001000: DescriptionBoard Connector, 96 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,; CategoryThe connector The connector; File Size88KB，2 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com

Download Datasheet Parametric View All

803-99-096-30-001000 Overview

Board Connector, 96 Contact(s), 2 Row(s), Female, Straight, Surface Mount Terminal, Socket,

803-99-096-30-001000 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Mill-Max
Reach Compliance Code	compliant
ECCN code	EAR99
Body/casing type	SOCKET
Connector type	BOARD CONNECTOR
Contact to complete cooperation	TIN LEAD (100) OVER NICKEL (50)
Contact completed and terminated	TIN LEAD (100) OVER NICKEL (50)
Contact point gender	FEMALE
Contact material	BERYLLIUM COPPER
DIN compliance	NO
Filter function	NO
IEC compliance	NO
JESD-609 code	e0
MIL compliance	NO
Manufacturer's serial number	803-99-096-30-001000
Mixed contacts	NO
Installation method	STRAIGHT
Installation type	BOARD
Number of rows loaded	2
Options	GENERAL PURPOSE
Terminal pitch	2.54 mm
Termination type	SURFACE MOUNT
Total number of contacts	96

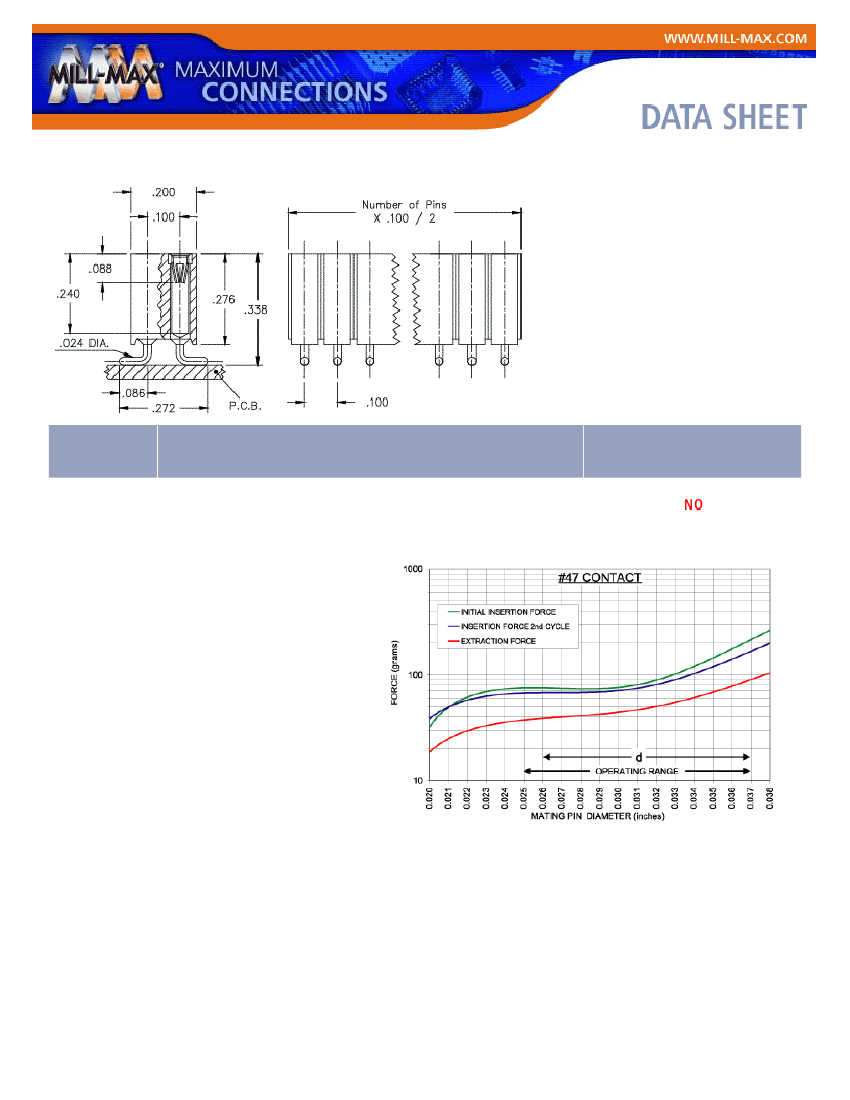

Preview

Download Datasheet

View All

Product Number: 803-99-096-30-001000

Description:

Interconnect Socket

.100 Grid; Surface Mount Socket

Double Row Gull Wing

Double Row

Surface Mount

Plating Code:

Shell Plating:

200 " Tin/Lead(93/7) over 100 "

Nickel

Inner Contact Plating:

100 " Tin/Lead(93/7) over 50 "

Nickel

Pins

Mill-Max

Part

Number

803-99-096-30-001000

RoHS

Compliant

CONTACT:

Contact Used: #47, Standard 6 Finger Contact

Current Rating =

4.5 Amps

BERYLLIUM COPPER ALLOY

172 (UNS C17200) per

ASTM B 194

Properties of BERYLLIUM COPPER:

Chemical composition: Cu 98.1%, Be 1.9%

Temper as stamped: TD01

Properties after heat treatment (TH01):

Hardness: 36-43 Rockwell C

Mechanical Life: 100 Cycles Min.

Density: .298 lbs/in3

Electrical Conductivity: 22% IACS*

Resistance: 10 miliohms Max

Operating Temperature: -55°C/+125°C

Melting point: 980°C/865°C (liquidus/solidus)

Stress Relaxation†: 96% of stress remains after 1,000 hours @ 100 ºC ; 70% of stress remains after 1,000 hours @ 200

ºC

*International Annealed Copper Standard, i.e. as a % of pure copper.

†Since BeCu loses its spring properties over time at high temperatures; it is rated for continuous use up to 150°C. For

applications up to 300°C, Mill-Max offers many contacts in Beryllium Nickel. Contact Tech Support for more info.

INSULATOR INFORMATION:

PCT

Polyester, (Thermx CG933, black)

High Temperature

Mill-Max Mfg. Corp. Datasheet – Last Modified 1/19/2008

Page 1 of 2
