Datasheet> All Categories > Mechanical and electronic products> switch> UM50E60C01

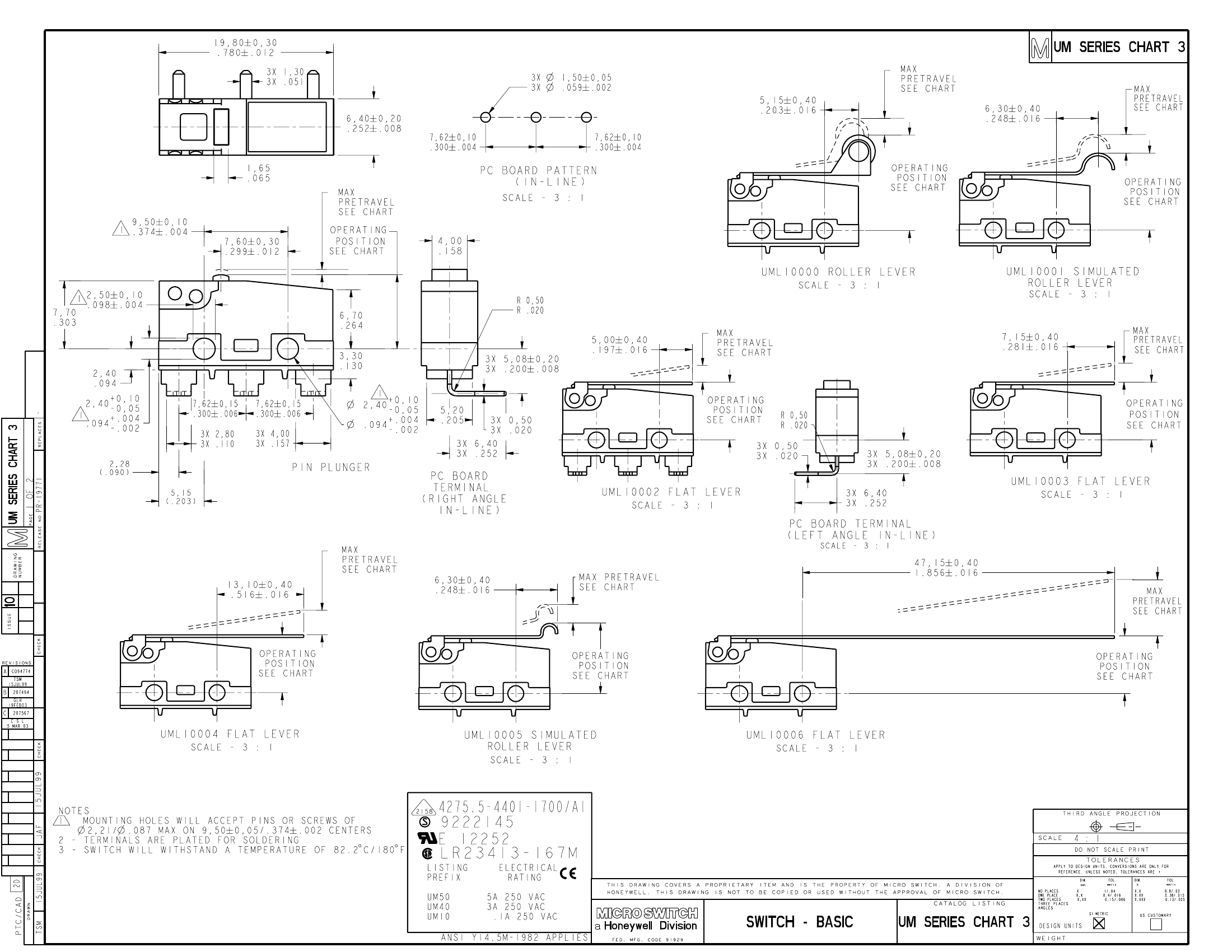

Preview

UM50E60C01: DescriptionSnap Acting/Limit Switch, Momentary, 3.6mm, Solder Terminal, Flat Lever Actuator, Through Hole-straight; CategoryMechanical and electronic products switch; File Size309KB，2 Pages; ManufacturerHoneywell; Websitehttp://www.ssec.honeywell.com/; Environmental Compliance

Download Datasheet Parametric Compare View All

UM50E60C01 Overview

Snap Acting/Limit Switch, Momentary, 3.6mm, Solder Terminal, Flat Lever Actuator, Through Hole-straight

UM50E60C01 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Honeywell
Reach Compliance Code	unknown
ECCN code	EAR99
Actuator stroke	3.6 mm
Actuator type	FLAT LEVER
body width	6.4 mm
body height	7.7 mm
Body length or diameter	19.8 mm
Contact (AC) maximum rated R load	5A@250VAC
Maximum contact current (AC)	5 A
Maximum contact voltage (AC)	250 V
Manufacturer's serial number	UM
Installation features	THROUGH HOLE-STRAIGHT
Maximum operating force	0.53 N
Maximum operating temperature	82 °C
Maximum pre-travel	2.8 mm
surface mount	NO
Switch action	MOMENTARY
Switch type	SNAP ACTING/LIMIT SWITCH
Termination type	SOLDER

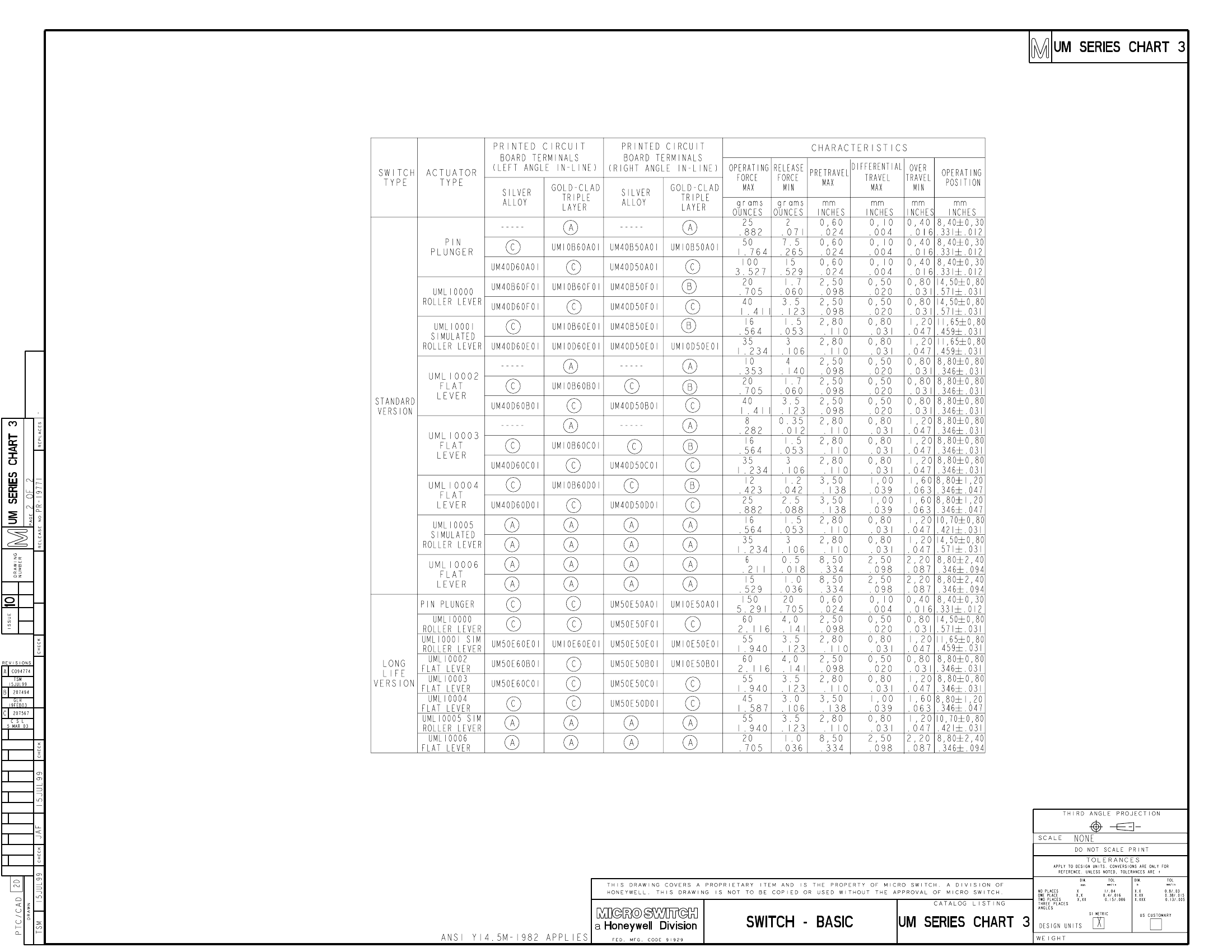

Preview

Download Datasheet

View All

UM50E60C01 Related Products

	UM50E60C01	UM10B60F01	UM10E60E01	UM50E50A01
Description	Snap Acting/Limit Switch, Momentary, 3.6mm, Solder Terminal, Flat Lever Actuator, Through Hole-straight	Snap Acting/Limit Switch, Momentary, 3mm, Solder Terminal, Roller Lever Actuator, Through Hole-straight	Snap Acting/Limit Switch, Momentary, 3.6mm, Solder Terminal, Roller Lever Actuator, Through Hole-straight	Snap Acting/Limit Switch, Momentary, 0.7mm, Solder Terminal, Plunger Actuator, Through Hole-straight
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Reach Compliance Code	unknown	unknown	unknown	unknown
ECCN code	EAR99	EAR99	EAR99	EAR99
Actuator stroke	3.6 mm	3 mm	3.6 mm	0.7 mm
Actuator type	FLAT LEVER	ROLLER LEVER	ROLLER LEVER	PLUNGER
body width	6.4 mm	6.4 mm	6.4 mm	6.4 mm
body height	7.7 mm	7.7 mm	7.7 mm	7.7 mm
Body length or diameter	19.8 mm	19.8 mm	19.8 mm	19.8 mm
Contact (AC) maximum rated R load	5A@250VAC	5A@250VAC	5A@250VAC	5A@250VAC
Maximum contact current (AC)	5 A	5 A	5 A	5 A
Maximum contact voltage (AC)	250 V	250 V	250 V	250 V
Manufacturer's serial number	UM	UM	UM	UM
Installation features	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT	THROUGH HOLE-STRAIGHT
Maximum operating force	0.53 N	0.19 N	0.54 N	1.47 N
Maximum operating temperature	82 °C	82 °C	82 °C	82 °C
Maximum pre-travel	2.8 mm	2.5 mm	2.8 mm	0.6 mm
surface mount	NO	NO	NO	NO
Switch action	MOMENTARY	MOMENTARY	MOMENTARY	MOMENTARY
Switch type	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH	SNAP ACTING/LIMIT SWITCH
Termination type	SOLDER	SOLDER	SOLDER	SOLDER
Maker	Honeywell	-	Honeywell	Honeywell
