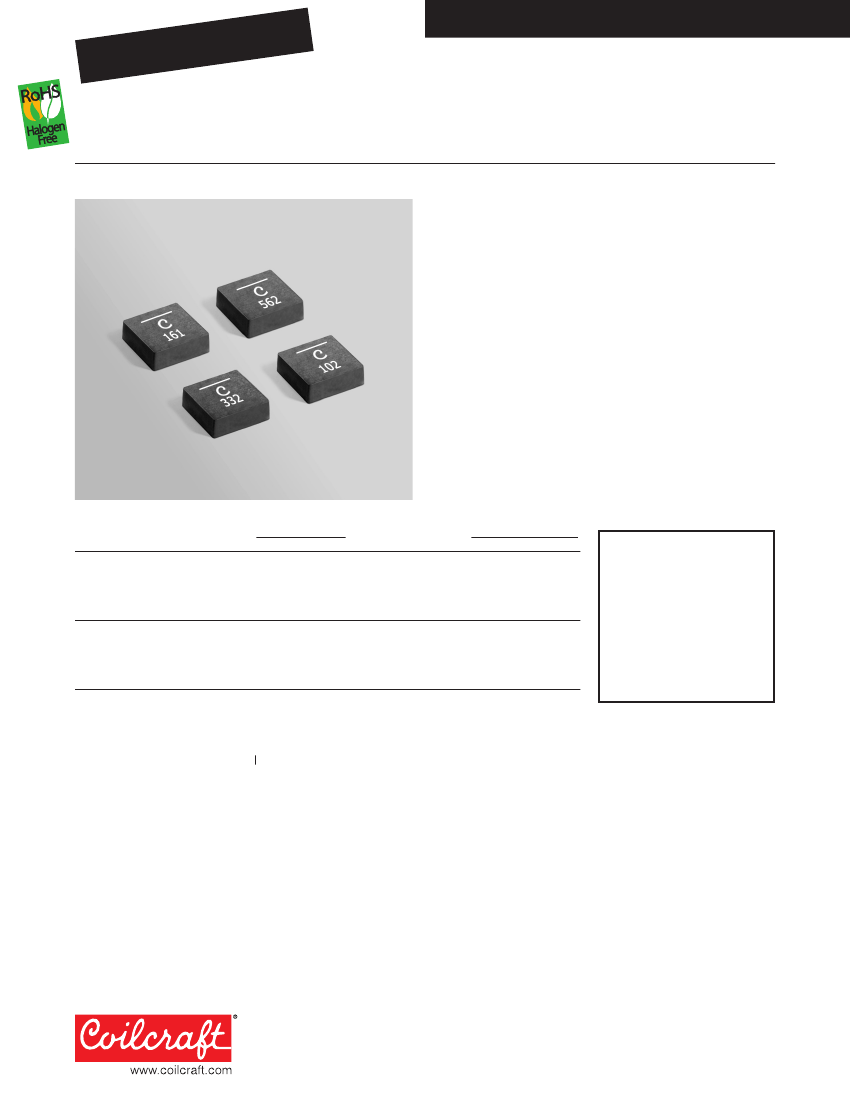

Shielded Power Inductors – XAL7030
• High current and very low DCR
• AEC-200 Grade 1 qualified (–40°C to +125°C ambient)
• Soft saturation makes them ideal for VRM/VRD applications.
Designer’s Kit C441
contains 3 each of all values
Core material
Composite
Environmental
RoHS compliant, halogen free
Terminations
RoHS compliant tin-silver (96.5/3.5) over copper. Other
terminations available at additional cost.
Weight
0.83 – 0.86 g

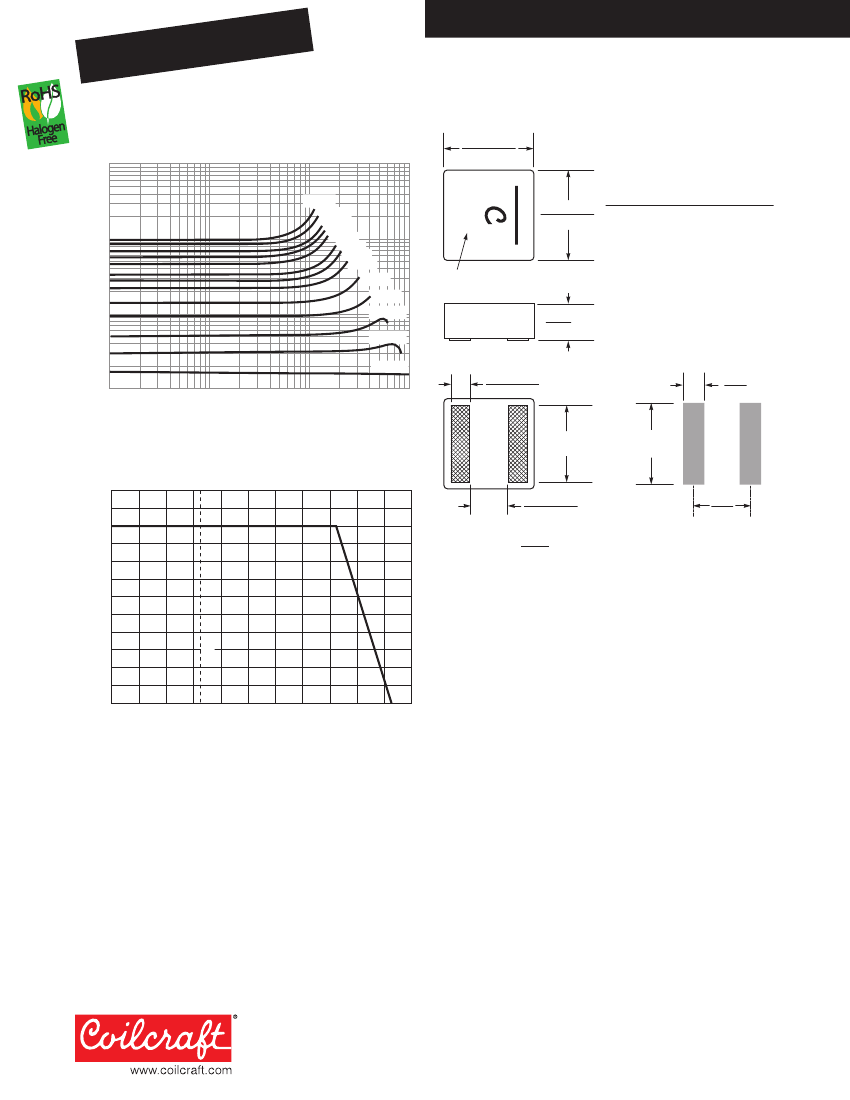

Ambient temperature
–40°C to +125°C with
Irms
current, +125°C to
+165°C with derated current.
Storage temperature
Component: –40°C to +165°C.
Tape and reel packaging: –40°C to +80°C
Resistance to soldering heat
Max three 40 second reflows at
+260°C, parts cooled to room temperature between cycles
Moisture Sensitivity Level (MSL)
1 (unlimited floor life at <30°C /
85% relative humidity)
Failures in Time (FIT) / Mean Time Between Failures (MTBF)
38 per billion hours / 26,315,789 hours, calculated per Telcordia SR-332
Packaging
400/7″ reel; 1500/13″ reel Plastic tape: 16 mm wide,
0.35 mm thick, 12 mm pocket spacing, 3.0 mm pocket depth
PCB washing
Only pure water or alcohol recommended

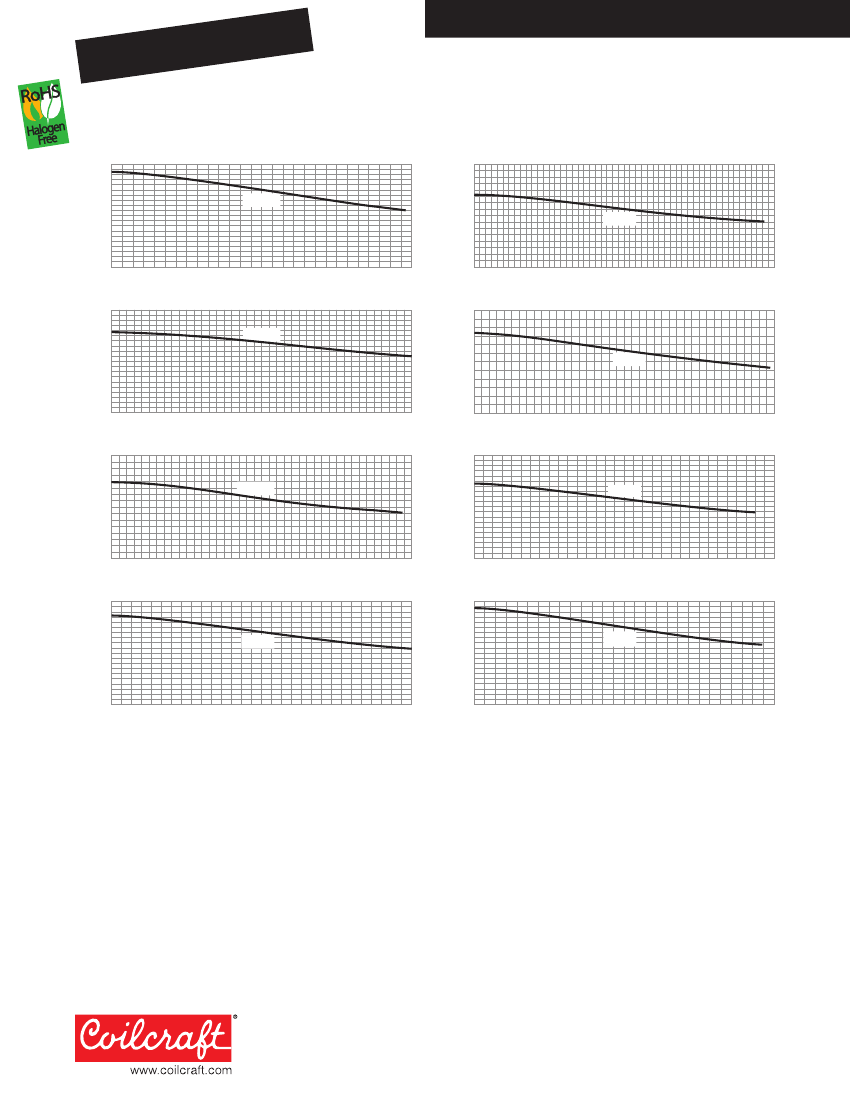

Inductance
2
±20% (µH)
0.16
0.30
0.60
1.0
1.5
2.2
2.7
3.3
4.7
5.6
6.8
8.2
10
DCR (mOhms)
3
typ
max
1.15
1.26
1.75
1.92
3.00
3.30
4.55
5.00
7.60
8.36
13.70
15.07
15.70
17.30
19.50
21.45
25.20
27.72
30.25
33.30
38.70
42.57
44.30
48.73
57.00
62.70
SRF typ
4
(MHz)
158
101
72
63
51
40
36
29
21
17
15
13
12
Isat
5
(A)
60.0
41.0
36.0
28.0
23.5
18.0
12.8
12.3
12.0
11.5
10.7
10.2
7.0
Irms
(A)
6
20°C rise 40°C rise
24.9
32.5
21.0
27.6
18.0
23.0
16.1
21.8
11.9
15.0
10.0
12.9
9.2
11.4
8.0
10.0
6.9
9.0
5.3
7.3
4.4
6.8
2.9
5.9
2.6
5.3
PERATURE
HIGH TEM
Document 863-1
Part number
1
XAL7030-161ME_
XAL7030-301ME_
XAL7030-601ME_
XAL7030-102ME_
XAL7030-152ME_
XAL7030-222ME_
XAL7030-272ME_
XAL7030-332ME_
XAL7030-472ME_
XAL7030-562ME_
XAL7030-682ME_
XAL7030-822ME_
XAL7030-103ME_
Irms
Testing
Irms
testing was performed on
0.75 inch wide × 0.25 inch thick
copper traces in still air.
Temperature rise is highly
dependent on many factors
including pcb land pattern,
trace size, and proximity to
other components. Therefore
temperature rise should be
verified in application conditions.
1. When ordering, please specify
packaging
code:
XAL7030-562MEC
Packaging: C
= 7″ machine-ready reel. EIA-481 embossed plastic tape (400 parts per full reel).
B
= Less than full reel. In tape, but not machine ready. To have a leader and trailer added
($25 charge), use code letter C instead.
D
= 13″ machine-ready reel. EIA-481 embossed plastic tape. Factory order only, not stocked
(1500 parts per full reel).
2. Inductance tested at 100 kHz, 0.1 Vrms, 0 Adc.
3. DCR measured on a micro-ohmmeter.
4. SRF measured using Agilent/HP 4395A or equivalent.
5. DC current at which the inductance drops 30% (typ) from its value without current.
6. Current that causes the specified temperature rise from 25°C ambient.
7. Electrical specifications at 25°C.
Refer to Doc 362 “Soldering Surface Mount Components” before soldering.
US
+1-847-639-6400 sales@coilcraft.com
UK
+44-1236-730595 sales@coilcraft-europe.com
Taiwan
+886-2-2264 3646 sales@coilcraft.com.tw
China
+86-21-6218 8074 sales@coilcraft.com.cn
Singapore
+ 65-6484 8412 sales@coilcraft.com.sg
Document 863-1
Revised 08/09/12
© Coilcraft Inc. 2012
This product may not be used in medical or high
risk applications without prior Coilcraft approval.
Specification subject to change without notice.
Please check out web site for latest information.
