LTO030FR6800JTE3 datasheet, PDF

Datasheet> All Categories > Passive components> The resistor> LTO030FR6800JTE3

LTO030FR6800JTE3: DescriptionRESISTOR, METAL GLAZE/THICK FILM, 2.25 W, 5 %, 150 ppm, 0.68 ohm, THROUGH HOLE MOUNT, TO-220, ROHS COMPLIANT; CategoryPassive components The resistor; File Size71KB，4 Pages; ManufacturerVishay; Websitehttp://www.vishay.com; Environmental Compliance

Download Datasheet Parametric Compare View All

LTO030FR6800JTE3 Overview

RESISTOR, METAL GLAZE/THICK FILM, 2.25 W, 5 %, 150 ppm, 0.68 ohm, THROUGH HOLE MOUNT, TO-220, ROHS COMPLIANT

LTO030FR6800JTE3 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Vishay
package instruction	Radial,
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	FREE AIR POWER: 2.25W, NON INDUCTIVE
structure	RECTANGULAR PACKAGE
JESD-609 code	e3
Lead length	12.7 mm
lead spacing	5.08 mm
Installation features	THROUGH HOLE MOUNT
Number of terminals	2
Maximum operating temperature	150 °C
Minimum operating temperature	-55 °C
Package height	16.2 mm
Package length	10.4 mm
Package shape	RECTANGULAR PACKAGE
Package form	Radial
Package width	3.2 mm
method of packing	TUBE
Rated power dissipation(P)	30 W
Rated temperature	25 °C
resistance	0.68 Ω
Resistor type	FIXED RESISTOR
surface mount	NO
technology	METAL GLAZE/THICK FILM
Temperature Coefficient	150 ppm/°C
Terminal surface	Matte Tin (Sn)
Terminal shape	FLAT
Tolerance	5%
Operating Voltage	500 V

Preview

Download Datasheet

View All

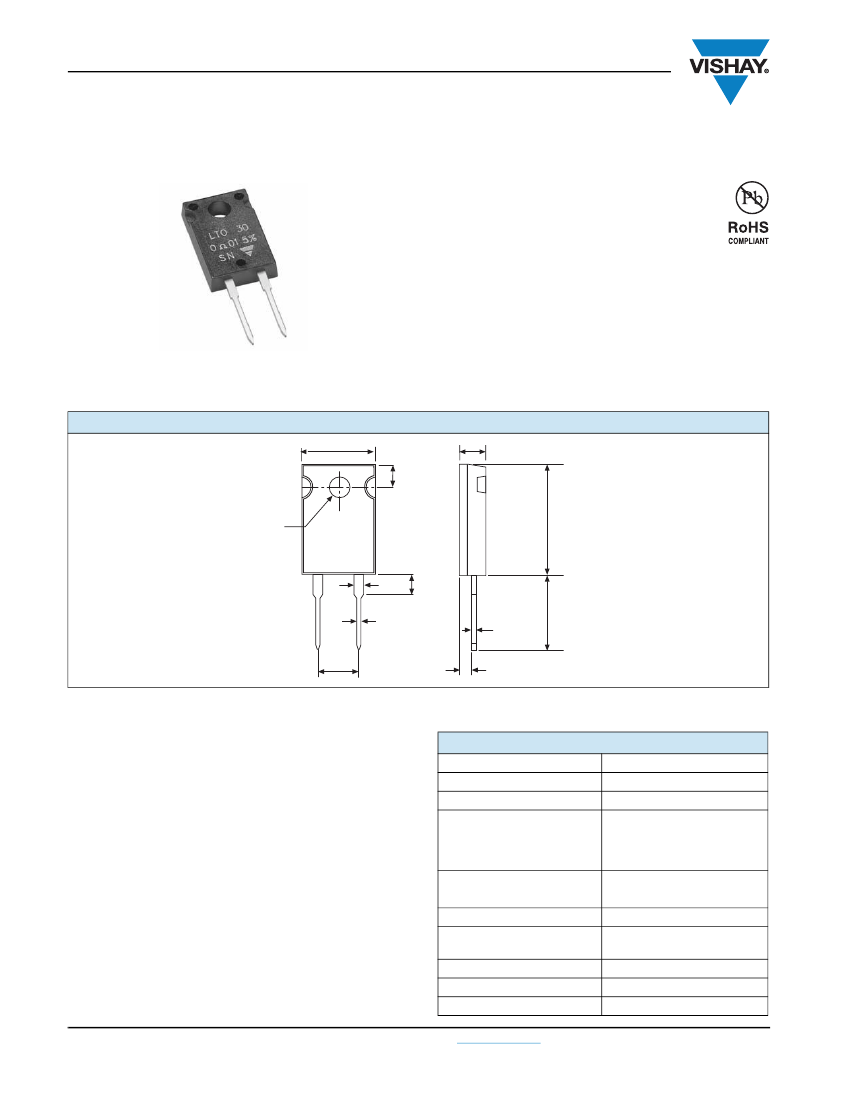

LTO 30

Vishay Sfernice

30 W Power Resistor Thick Film Technology

FEATURE



30 W at 25 °C case temperature heatsink

mounted



Direct mounting ceramic on heatsink



Broad resistance range: 0.010



to 550 k



Non inductive



TO-220 package: Compact and easy to mount

LTO series are the extension of RTO types. We used the

direct ceramic mounting design (no metal tab) of our RCH

power resistors applied to semiconductor packages.



Compliant to RoHS directive 2002/95/EC

DIMENSIONS

in millimeter

10.4

3.2

Ø 3.2

16.2

1.3

0.8

3.5

12.7

0.6

5.08

1.8

Note

• Tolerances unless stated: ± 0.3 mm

MECHANICAL SPECIFICATIONS

Mechanical Protection

Resistive Element

Substrate

Connections

Weight

Mounting Torqure

Molded

Thick film

Alumina

Tinned copper

2 g max.

1 Nm

ELECTRICAL SPECIFICATIONS

Resistance Range

Tolerances (Standard)

Dissipation and Associated

Power Rating and

Thermal Resistance

of the Component

Temperature Coefficient

Standard

Limiting Element Voltage U

Dielectric Strength

MIL STD 202

Insulation Resistance

Inductance

Critical Resistance

0.010



to 550 k

± 1 % to ± 10 %

Onto a heatsink

30 W at + 25 °C (case temp.)

TH (j - c)

: 4.2 °C/W

Free air:

2.25 W at + 25 °C

See Performance table

± 150 ppm/°C

250 V

1500 V

RMS

- 1 min

10 mA max.



M





0.1 µH

2.08 k

Document Number: 50049

Revision: 21-Jan-11

DIMENSIONS

Standard Package

TO220 package

ENVIRONMENTAL SPECIFICATIONS

Temperature Range

Climatic Category

Flammability

- 55 °C to + 155 °C

55/155/56

IEC 60695-11-5

2 applications 30 s

separated by 60 s

www.vishay.com

For technical questions, contact:

sfer@vishay.com

Legal Disclaimer Notice

Vishay

Disclaimer

ALL PRODUCT, PRODUCT SPECIFICATIONS AND DATA ARE SUBJECT TO CHANGE WITHOUT NOTICE TO IMPROVE

RELIABILITY, FUNCTION OR DESIGN OR OTHERWISE.

Vishay Intertechnology, Inc., its affiliates, agents, and employees, and all persons acting on its or their behalf (collectively,

“Vishay”), disclaim any and all liability for any errors, inaccuracies or incompleteness contained in any datasheet or in any other

disclosure relating to any product.

Vishay makes no warranty, representation or guarantee regarding the suitability of the products for any particular purpose or

the continuing production of any product. To the maximum extent permitted by applicable law, Vishay disclaims (i) any and all

liability arising out of the application or use of any product, (ii) any and all liability, including without limitation special,

consequential or incidental damages, and (iii) any and all implied warranties, including warranties of fitness for particular

purpose, non-infringement and merchantability.

Statements regarding the suitability of products for certain types of applications are based on Vishay’s knowledge of typical

requirements that are often placed on Vishay products in generic applications. Such statements are not binding statements

about the suitability of products for a particular application. It is the customer’s responsibility to validate that a particular

product with the properties described in the product specification is suitable for use in a particular application. Parameters

provided in datasheets and/or specifications may vary in different applications and performance may vary over time. All

operating parameters, including typical parameters, must be validated for each customer application by the customer’s

technical experts. Product specifications do not expand or otherwise modify Vishay’s terms and conditions of purchase,

including but not limited to the warranty expressed therein.

Except as expressly indicated in writing, Vishay products are not designed for use in medical, life-saving, or life-sustaining

applications or for any other application in which the failure of the Vishay product could result in personal injury or death.

Customers using or selling Vishay products not expressly indicated for use in such applications do so at their own risk and agree

to fully indemnify and hold Vishay and its distributors harmless from and against any and all claims, liabilities, expenses and

damages arising or resulting in connection with such use or sale, including attorneys fees, even if such claim alleges that Vishay

or its distributor was negligent regarding the design or manufacture of the part. Please contact authorized Vishay personnel to

obtain written terms and conditions regarding products designed for such applications.

No license, express or implied, by estoppel or otherwise, to any intellectual property rights is granted by this document or by

any conduct of Vishay. Product names and markings noted herein may be trademarks of their respective owners.

Document Number: 91000

Revision: 11-Mar-11

www.vishay.com

LTO030FR6800JTE3 Related Products

	LTO030FR6800JTE3	LTO030FR3600JTE3	LTO030FR6200JTE3	LTO030F24002JTE3
Description	RESISTOR, METAL GLAZE/THICK FILM, 2.25 W, 5 %, 150 ppm, 0.68 ohm, THROUGH HOLE MOUNT, TO-220, ROHS COMPLIANT	RESISTOR, METAL GLAZE/THICK FILM, 2.25 W, 5 %, 250 ppm, 0.36 ohm, THROUGH HOLE MOUNT, TO-220, ROHS COMPLIANT	RESISTOR, METAL GLAZE/THICK FILM, 2.25 W, 5 %, 150 ppm, 0.62 ohm, THROUGH HOLE MOUNT, TO-220, ROHS COMPLIANT	RESISTOR, METAL GLAZE/THICK FILM, 2.25 W, 5 %, 150 ppm, 240000 ohm, THROUGH HOLE MOUNT, TO-220, ROHS COMPLIANT
Is it lead-free?	Lead free	Lead free	Lead free	Lead free
Is it Rohs certified?	conform to	conform to	conform to	conform to
Maker	Vishay	Vishay	Vishay	Vishay
package instruction	Radial,	Radial,	Radial,	Radial,
Reach Compliance Code	compliant	compliant	compliant	compliant
ECCN code	EAR99	EAR99	EAR99	EAR99
Other features	FREE AIR POWER: 2.25W, NON INDUCTIVE	FREE AIR POWER: 2.25W, NON INDUCTIVE	FREE AIR POWER: 2.25W, NON INDUCTIVE	FREE AIR POWER: 2.25W, NON INDUCTIVE
structure	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
JESD-609 code	e3	e3	e3	e3
Lead length	12.7 mm	12.7 mm	12.7 mm	12.7 mm
lead spacing	5.08 mm	5.08 mm	5.08 mm	5.08 mm
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Number of terminals	2	2	2	2
Maximum operating temperature	150 °C	150 °C	150 °C	150 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C
Package height	16.2 mm	16.2 mm	16.2 mm	16.2 mm
Package length	10.4 mm	10.4 mm	10.4 mm	10.4 mm
Package shape	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE	RECTANGULAR PACKAGE
Package form	Radial	Radial	Radial	Radial
Package width	3.2 mm	3.2 mm	3.2 mm	3.2 mm
method of packing	TUBE	TUBE	TUBE	TUBE
Rated power dissipation(P)	30 W	30 W	30 W	30 W
Rated temperature	25 °C	25 °C	25 °C	25 °C
resistance	0.68 Ω	0.36 Ω	0.62 Ω	240000 Ω
Resistor type	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR	FIXED RESISTOR
surface mount	NO	NO	NO	NO
technology	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM	METAL GLAZE/THICK FILM
Temperature Coefficient	150 ppm/°C	250 ppm/°C	150 ppm/°C	150 ppm/°C
Terminal surface	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)	Matte Tin (Sn)
Terminal shape	FLAT	FLAT	FLAT	FLAT
Tolerance	5%	5%	5%	5%
Operating Voltage	500 V	500 V	500 V	500 V
