Reliant'22 Series

Pushbutton Switches, 22mm, Oil-Tight, Round

FEATURES

• Fits 7/8" (22mm) diameter holes

• Full size buttons

• Meets NEMA 1, 12 and 13

• Rugged heavy-duty metal bushing, or thermoplastic bushings

for full installation

• Matte black beveled frame finish

• IP65 protection level

2

1/8" Drill

[3.17]

7/8" Drill

[22.22]

Panel Hole

• Snap-block contacts

• 6A @ 600VAC, 6A @ 125VDC V40, V50, F40, F50

6A @ 600VAC, 4A @ 125VDC VAO, VRO, FAO, FRO

• Easy "no tool" mounting

• Choice of screw terminals or dual .110/.250 quick connects

• Double-break silver contacts standard, gold plated optional

• Stackable

4

QT/RT

Models

3

QM/RM

Models

1

3

1

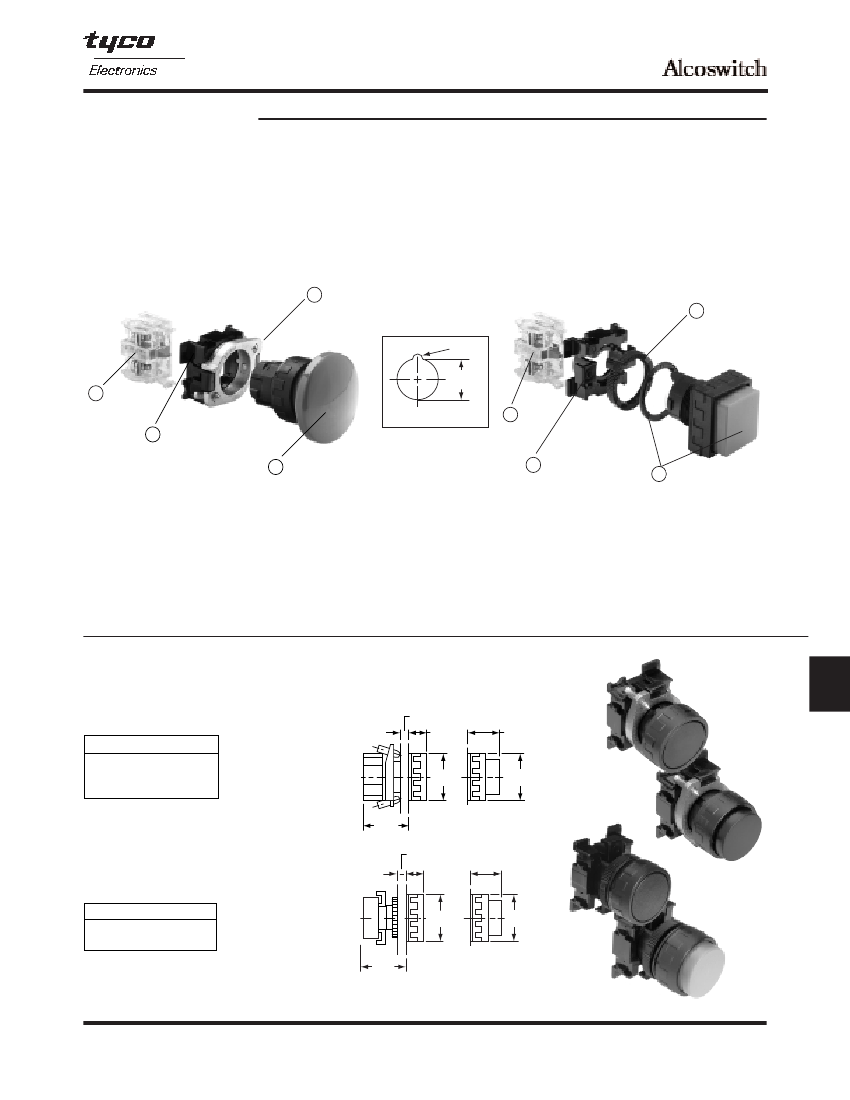

INSTALLATION & ASSEMBLY

A. Engage the operator (1) into the 22.5mm dia. mounting hole.

B. Engage metal ring (2) with operator (bayonet lock). Tighten set

screws against back of panel.

C. Snap the contact blocks (4) on the support(3).

D. Snap the support (3) complete with contact blocks (4) on the

metal ring (2).

A. Engage the operator and seal (1) into the 22.5mm dia. mounting hole.

B. Mount back-up nut (2) on bushing and then tighten against panel.

C. Snap the contact blocks (4) on the support (3).

D. Snap the support (3) complete the contact blocks (4) onto operator (1).

MOMENTARY

Metal Bushings

Contact blocks not supplied, order separately.

(See page I8.)

Model

RM010(*)

RM020(*)

RM015(*)

Type

Flush Button

Extended Button

Extended Guard

I

PANEL

THICKNESS

Reliant'22 Series

.039 - .236

(.99 - 5.99)

.450

(11.5)

.709

(18.0)

1.16

(29.5)

1.16

(29.5)

RM010(*)

(*) Specify color by adding suffix number:

(0) Black, (2) Red, (4) Yellow, (5) Green, (6) Blue, (8) Grey, (9) White.

Note: Front beveled frame is black.

1.04

(26.5)

PANEL

THICKNESS

Thermoplastic Bushings (Threaded)

Contact blocks not supplied, order separately.

(See page I8.)

Model

RT010(*)

RT020(*)

Type

Flush Button

Extended Button

.039 - .394

(.99 - 10.0)

.450

(11.5)

.709

(18.0)

1.16

(29.5)

RM020(*)

1.16

(29.5)

Flush

Button

RT010

1.34

(34.0)

Extended

Button

(*) Specify color by adding suffix number:

(0) Black, (2) Red, (4) Yellow, (5) Green, (6) Blue, (8) Grey, (9) White.

Note: Front beveled frame is black.

RT020

I3

Catalog 1308390

Issued 9-04

www.tycoelectronics.com

Dimensions are in inches

and millimeters unless otherwise

specified. Values in parentheses

or brackets are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

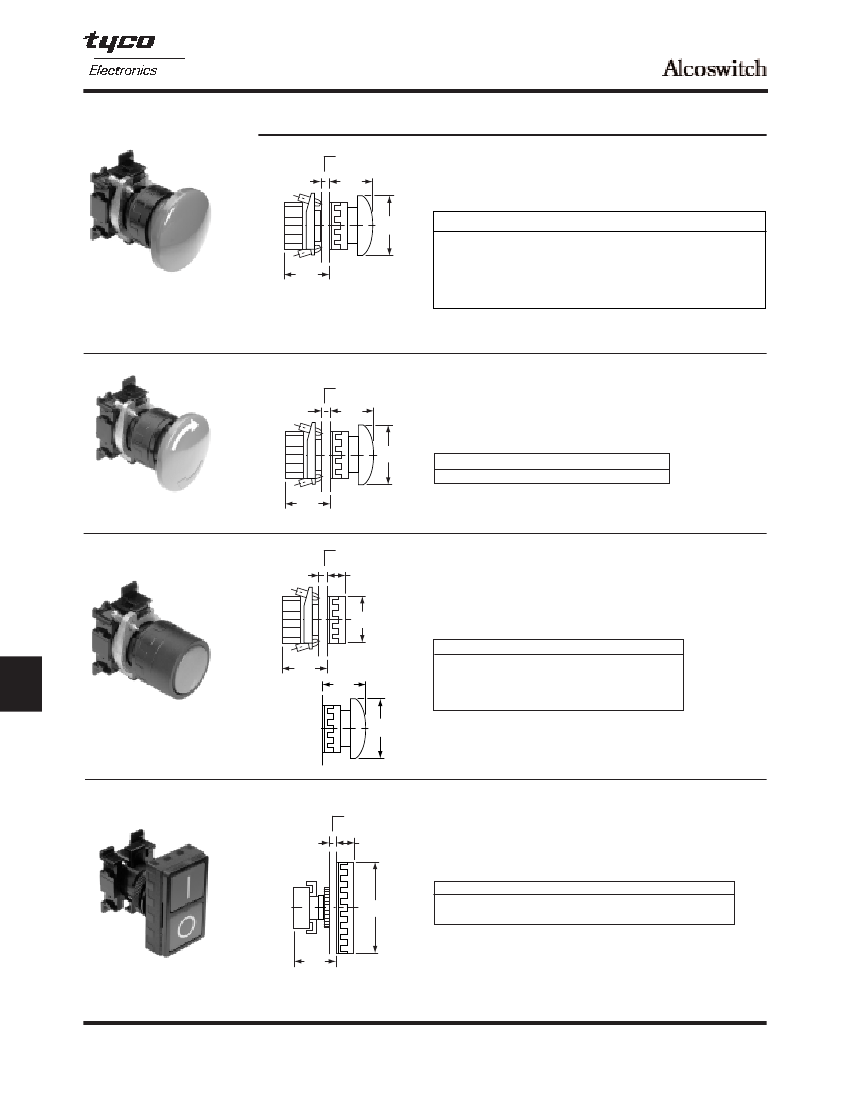

Reliant'22 Series

Pushbutton Switches, 22mm, Oil-Tight, Round or Mushroom or Dual

Button

Panel

Thickness

.039 - .236

(.99 - 5.99)

1.14

(29.0)

MOMENTARY

Mushroom

Contact blocks not supplied, order separately. (See page I8.)

1.58

(40.0)

Tyco Electronics

3-1437614-7

1437615-2

3-1437614-6

1437615-1

3-1437614-9

Alcoswitch

RM0502

RT0502

RM0500

RT0500

RM0552

RT050(*)

Type

Mushroom, Red

Mushroom, Black

Mushroom, Red

Mushroom

Bushing

Metal, Bayonet

Thermoplastic, Threaded Bushing

Metal, Bayonet

Thermoplastic, Threaded Bushing

Metal, Bayonet (Wobble)

1.04

(26.5)

RM0502

(*) Specify color by adding suffix number:

(0) Black, (2) Red, (4) Yellow, (5) Green, (6) Blue.

Note: Front beveled frame is black.

PUSH-TO-LOCK, TWIST-RELEASE

.039 - .236

(.99 - 5.99)

Panel

Thickness

1.14

(29.0)

1.58

(40.0)

Metal Bushings

Contact blocks not supplied, order separately. (See page I8.)

Note: Use F40/V40 for N.C. contacts, and

FAO/VAO for N.O. contacts.

Tyco Electronics Alcoswitch

4-1437614-0

RM0652

Type

Mushroom, Red

Arrow

White

RM0652

1.04

(26.5)

Note: Front beveled frame is black.

Panel

Thickness

.039 - .236

(.99 - 5.99)

.846

(21.5)

MAINTAINED

Contact blocks not supplied, order separately. (See page I8.)

Note: Use F40/V40 for N.C. contacts and

FAO/VAO for N.O. contacts.

Tyco Electronics

—

3-1437614-4

3-1437614-5

3-1437614-8

1.58

**

(40.1)

1.16

(29.5)

I

Reliant'22 Series

RM030(*)

1.04

(26.5)

1.14

(29.0)

Alcoswitch

RM030(*)

RM0450

RM0452

RM0532

Type

Flush Button

Mushroom, Black

Mushroom, Red

Push-Pull, Mushroom, Red

(*) Specify color by adding suffix number:

(0) Black, (2) Red, (4) Yellow, (5) Green, (6) Blue, (8) Grey, (9) White.

Note: Front beveled frame is black.

** Note: RM0532 mushroom 35mm Dia. (1.38)

MOMENTARY DUAL OPERATOR*

Panel

Thickness

.039 - .394

(.99 - 10.0)

.55

(14.0)

Threaded Thermoplastic bushing

Contact blocks not supplied, order separately. (See page I8.)

Black buttons available.

Tyco Electronics

1437614-9

—

Alcoswitch

QT01201

QT012STSTH

Color

Green, Red

Legend

As Shown

Start & Stop Horizontal

1.95

(49.5)

QT01201

1.34

(34.0)

*Not oil tight construction, not sealed; meets NEMA 1 only.

Note: Front beveled frame is black.

I4

Catalog 1308390

Issued 9-04

www.tycoelectronics.com

Dimensions are in inches

and millimeters unless otherwise

specified. Values in parentheses

or brackets are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

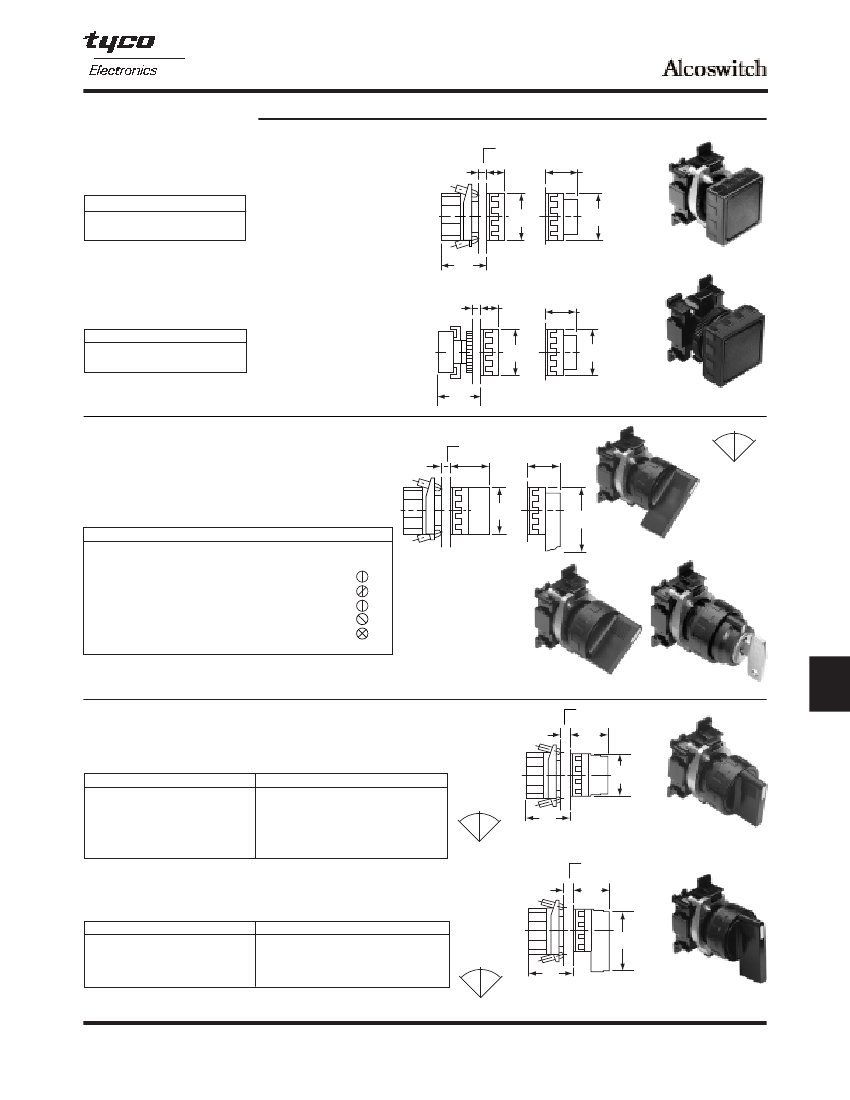

Reliant'22

Pushbutton or Keylock or Selector Switches, 22mm, Oil-Tight

MOMENTARY

Metal Bushings

Contact blocks not supplied, order separately. (See page I8.)

Model

QM010(*)

QM020(*)

Type

Flush Button

Extended Button

(8) Grey, (9) White.

.039 - .236

(.99 - 5.99)

Panel

Thickness

.450

(11.5)

.709

(18.0)

1.16

(29.5)

1.16

(29.5)

(*) Specify color by adding suffix number:

(0) Black, (2) Red, (4) Yellow, (5) Green, (6) Blue,

Note: Front beveled frame is black.

1.04

(26.5)

QM010(*)

Thermoplastic Bushings (Threaded)

Contact blocks not supplied, order separately. (See page I8.)

Model

QT010(*)

QT020(*)

Type

Flush Button

Extended Button

.039 - .236

(.99 - 5.99)

.450

(11.5)

.709

(18.0)

1.16

(29.5)

1.16

(29.5)

(*) Specify color by adding suffix number:

(0) Black, (2) Red, (4) Yellow, (5) Green, (6) Blue, (8) Grey, (9) White.

Note: Front beveled frame is black.

1.34

(34.0)

QT010(*)

60°

2 POSITION SELECTORS/KEYLOCK MAINTAINED

Metal Bushings

Contact blocks not supplied, order separately.

(See page I8.)

Tyco Electronics

7-1437614-7

7-1437614-0

5-1437614-4

5-1437614-5

6-1437614-5

5-1437614-6

5-1437614-7

1437614-1

Alcoswitch

RM4040

RM3040

RM200

RM201

RM250

RM204

RM205

E1

Action

Maintained, Black

Maintained

Momentary, Right

Maintained

Spare Key

.039 - .236

(.99 - 5.99)

Panel

Thickness

1.024

(26.0)

1.16

(29.5)

1.024

(26.0)

RM4040

1.53

(38.9)

Throw CAM Remove Key

120°

1

Long Selector

120°

1

Selector

60°

1

60°

1

60°

1

120°

1

120°

1

Note: Front beveled frame is black.

RM3040

RM200/201 with/2 keys

Panel

Thickness

I

Relaint'22

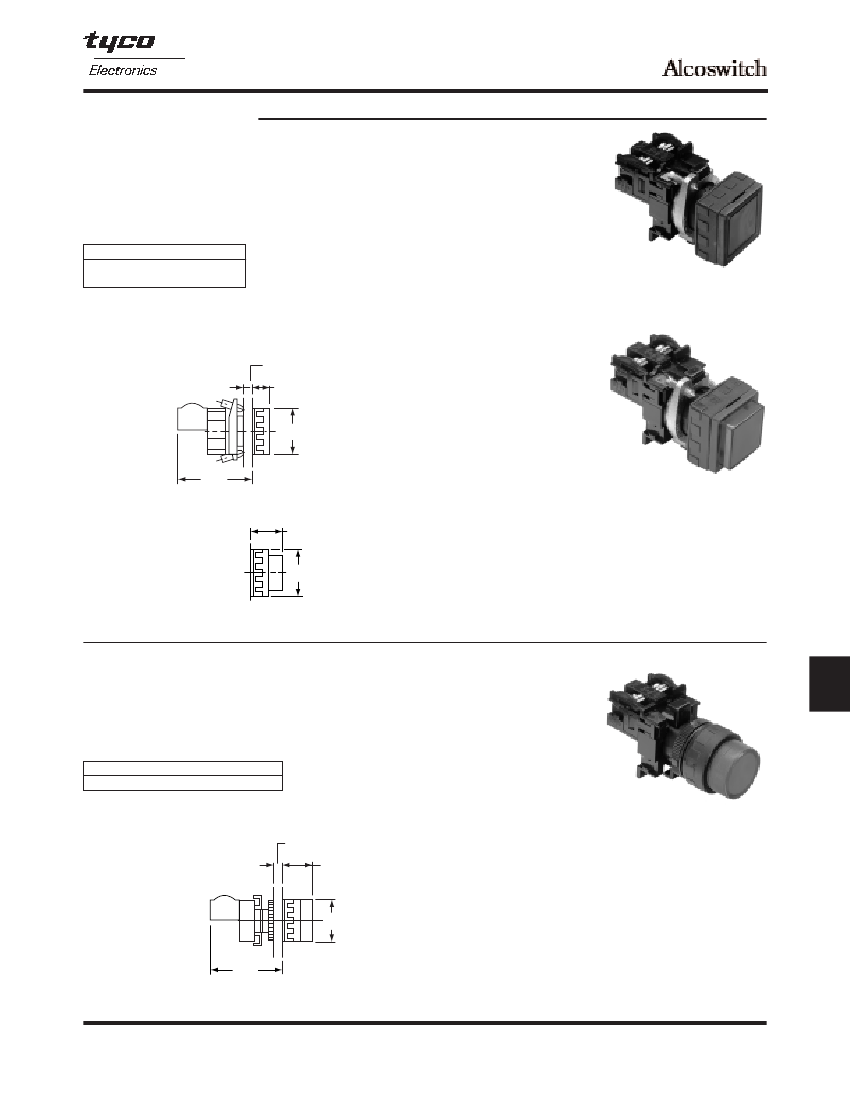

3 POSITION SELECTORS

Short Handle, Metal Bushings

Contact blocks not supplied, order separately. (See page I8.)

CAM

Tyco Electronics Alcoswitch Action

7-1437614-1

RM3100 Maintained, 2

Black

RM3120 Maintained, 3

7-1437614-2

Black

RM3130 Maintained, 4

7-1437614-3

Black

Note: Front beveled frame is black.

Tyco Electronics Alcoswitch Action

CAM

7-1437614-4

RM3700 Momentary,

2

Right Side, Black

60°

7-1437614-5

RM3800 Double Momentary, 2

Black

7-1437614-6

RM3830 Double Momentary, 4

Black

.039-.236

(.99-5.99)

1.024

(26.0)

1.16

(29.5)(

60°

1.04

(26.5)

60° Throw between

positions

Panel

Thickness

.039-.236

(.99-5.99)

1.024

(26.0)

RM3100

Long Handle, Metal Bushings

Contact blocks not supplied, order separately. (See page H8.)

CAM

CAM Tyco Electronics Alcoswitch Action

Tyco Electronics Alcoswitch Action

RM4100 Maintained 2

—

RM4700 Momentary,

2

7-1437614-8

Right Side

7-1437614-9

RM4800 Double Momentary 2

RM4120 Maintained 3

—

60°

RM4130 Maintained 4

—

Note: Front beveled frame is black.

1.54

(39.0)

60°

1.04

(26.5)

60° Throw between

positions

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

RM4100

I5

Catalog 1308390

Issued 9-04

www.tycoelectronics.com

Dimensions are in inches

and millimeters unless otherwise

specified. Values in parentheses

or brackets are metric equivalents.

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

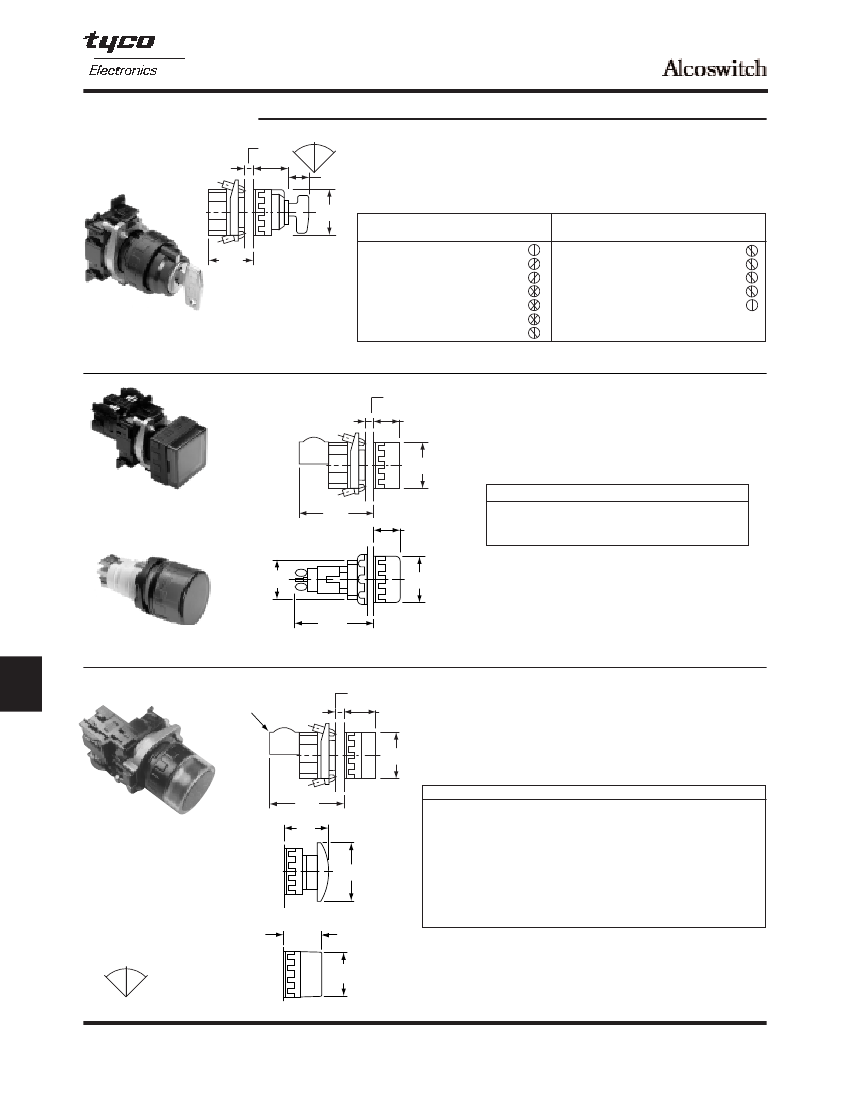

Reliant'22

Keylock or Pushbutton Switches, 22mm, Oil-Tight or Pilot Lights

60°

Panel

Thickness

.886

(22.5)

60°

3 POSITION KEYLOCK SELECTOR

MAINTAINED OR MOMENTARY

Metal Bushings

Contact blocks not supplied, order separately. (See page I8.)

Tyco

Alcoswitch Action

Electronics

5-1437614-8

5-1437614-9

6-1437614-0

6-1437614-1

6-1437614-2

6-1437614-3

—

RM210

RM220

RM222

RM230

RM232

RM233

RM240

Maintained

CAM

2

3

2

3

4

2

Tyco

Remove

Key Electronics

6-1437614-4

6-1437614-6

6-1437614-7

6-1437614-8

6-1437614-9

1437614-1

Alcoswitch Action

RM243

RM270

RM272

RM273

RM280

E1

Maintained

Mom. Right Side

Mom. Both Sides

Spare Key

CAM

4

2

3

4

2

Remove

Key

.039 - .236

(.99 - 5.99)

.512

(13.0)

1.16

(29.5)

1.04

(26.5)

Supplied with 2 keys

Note: Front beveled frame is black.

Panel

Thickness

.039 - .236

(.99 - 5.99)

.689

(17.5)

PILOT LIGHTS (FULL VOLTAGE TYPE)

Lamps: order separately, miniature bayonet base.

(See page I15.)

Lamps: use G3 1/2 on QM600(*), use T3 1/4 on

SR601(*), RM600(*). Custom legends available.

Model

QM600(*)

SR601(*)

RM600(*)

Type

Square pilot light, metal bushing

Round pilot light, plastic bushing screw turn

Round pilot light, metal bushing

1.16

(29.5)

TRANSPARENT

GUARD

.689

(17.5)

QM600

(RM600)

Metal Bushing

.866

(22.0)

1.83

(46.5)

1.16

(29.5)

(*) Specify color by adding suffix number: (2) Red, (3) Orange, (4) Yellow,

(5) Green, (6) Blue, (9) White.

SR601

Threaded

Thermoplastic

Bushing Front lampable

1.968

(50.0)

I

Reliant'22

LAMP

MODULE

INCLUDED .039 - .236

(.99 - 5.99)

Panel

Thickness

ILLUMINATED/ROUND MOMENTARY/MAINTAINED

.847

(21.5)

1.16

(29.5)

Metal Bushing

Contact blocks not supplied, order separately. (See page I8.)

Lamp circuit isolated. Order lamp separately. (See page I15.)

Lamps: Use T-3 1/4 or G3 1/2 incandescent or neon lamps.

Tyco Electronics

—

5-1437614-3

Alcoswitch

RM120(*)

RM122(*)

+RM130(*)

+RM145(*)

RM150(*)

RM1652

Action

Momentary

Maintained

Momentary

Twist Release

Maintained

Type

Cam Type

Extended Button

Guarded Button

Flush Button

Push-On - Push-Off

Mushroom

See Application Note

Mushroom

Mushroom, Red

1.83

(46.5)

1.14

(29.0)

RM120(*)

1.58

(40.0)

}

Application Note:

+V40/F40 used for N.C contact block.

+VA0/FA0 used for N.O.contact block.

MUSHROOM

BUTTON

1.102

(28.0)

Illuminated Selectors

—

RM650(*)

—

RM653(*)

2-Pos. Selector**1

3-Pos. Selector**2

When operating from line voltage use step down transformers 5BO or 570. (See page I15.)

(*) Specify color by adding suffix number: (2) Red, (4) Yellow, (5) Green, (6) Blue, (9) White.

1.060

(26.9)

60°

60° Throw

between

positions

Note: RM145 and RM150 available only in red, yellow, green.

**Use G3 1/2 lamps only.

Note: Front beveled frame is black.

SELECTOR

I6

Catalog 1308390

Issued 9-04

www.tycoelectronics.com

Dimensions are in inches

and millimeters unless otherwise

specified. Values in parentheses

or brackets are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

Reliant'22

Pushbutton Switches, 22mm, Oil-Tight, Round or Square Buttons

SQUARE, MOMENTARY ILLUMINATED

Metal Bushing

Contact blocks not supplied, order separately. (See page I8.)

Lamp circuit isolated. Order lamps separately.

Lamps: Use G3 1/2. (See page I15.)

Custom legends available.

Model

QM122(*)

QM120(*)

Type

Flush Button

Extended Button

When operating from line voltage use step down transformers 5BO or 570. (See page I15.)

(*) Specify color by adding suffix number: (2) Red, (4) Yellow, (5) Green, (6) Blue, (9) White.

Note: Front beveled frame is black.

QM122(*)

.039 - .236

(.99 - 5.99)

Panel

Thickness

.570

(14.5)

1.16

(29.5)

1.83

(46.5)

QM120(*)

.787

(20.0)

1.16

(29.5)

ROUND, MOMENTARY ILLUMINATED

Thermoplastic

Contact blocks not supplied, order separately. (See page I8.)

Lamp circuit isolated. Order lamps separately. (See page I15.)

Lamps: use T-3 1/4 or G3 1/2 incandescent or neon lamps.

Model

RT120(*)

Action

Momentary

Type

Extended Button

I

Reliant'22

When operating from line voltage use step down transformers 5BO or 570. (See page I15.)

(*) Specify color by adding suffix number: (2) Red, (4) Yellow, (5) Green, (6) Blue, (9) White.

Note: Front beveled frame is black.

Panel

Thickness

.039 - .394

(.99 - 10.0 )

.846

(21.5)

RT120(*)

1.16

(29.5)

1.83

(46.5)

I7

Catalog 1308390

Issued 9-04

www.tycoelectronics.com

Dimensions are in inches

and millimeters unless otherwise

specified. Values in parentheses

or brackets are metric equivalents.

Dimensions are shown for

reference purposes only.

Specifications subject

to change.

USA: 1-800-522-6752

Canada: 1-905-470-4425

Mexico: 01-800-733-8926

C. America: 52-55-5-729-0425

South America: 55-11-3611-1514

Hong Kong: 852-2735-1628

Japan: 81-44-844-8013

UK: 44-141-810-8967

2-1437614-3

2-1437614-3 Overview

Preview

Recommended Resources
