SMA Female Connector Crimp/Solder
Attachment For RG316, RG174, RG188
TECHNICAL DATA SHEET
SMA Female Connector Crimp/Solder Attachment For RG316, RG174, RG188
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SMA Female
MIL-STD-348
RG316,RG174,RG188
Crimp/Solder
Straight
PE4414
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Dielectric Withstanding Voltage, Vrms
DC to 18
50
750
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Weight, lbs [g]
Connector
Type
Mating Cycles
Contact Material and Plating
Body Material and Plating
Dielectric Type
-65 to +165
0.81 [20.57]
0.312 [8]
0.008 [3.63]
SMA Female
100
Beryllium Copper, Gold
Brass, Nickel
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/sma-female-standard-rg316-rg174-rg188-connector-pe4414-p.aspx
SMA Female Connector Crimp/Solder Attachment For RG316, RG174, RG188 from Pasternack Enterprises has same day
shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF,
microwave and fiber optic products.
PE4414 REV
1
PE4414

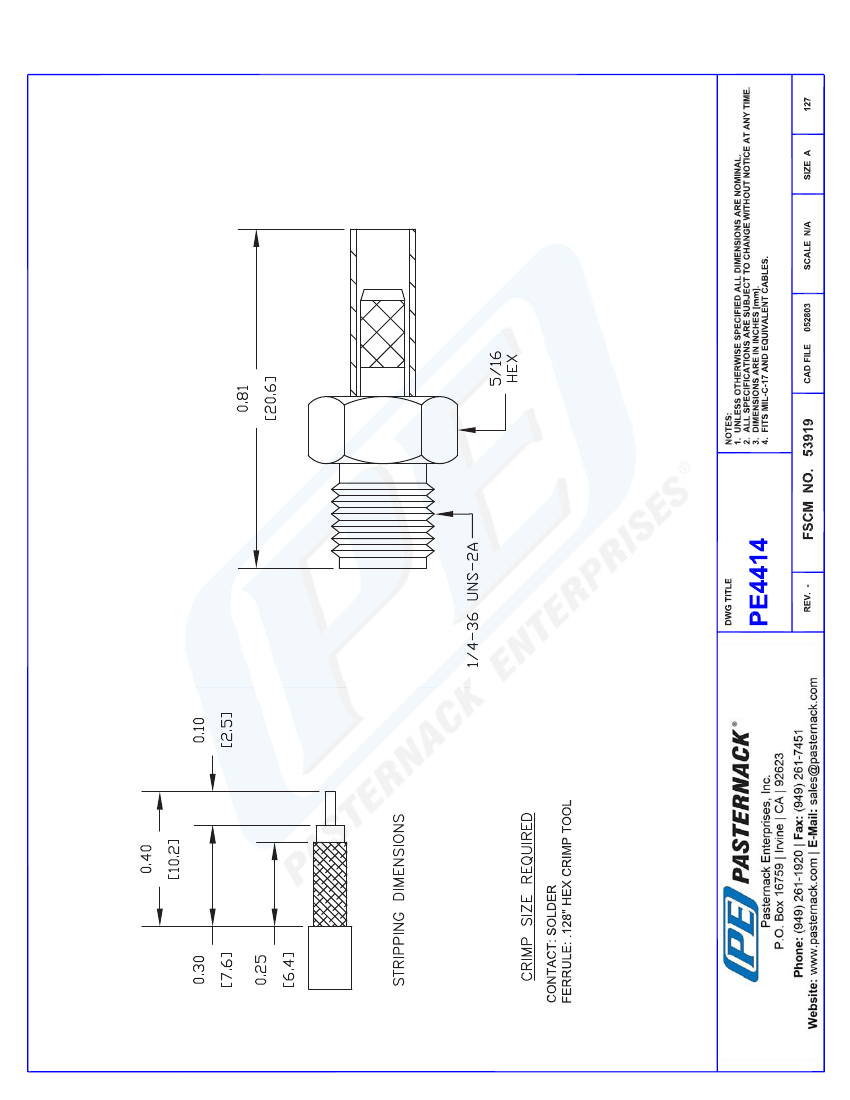

CAD Drawing
SMA Female Connector Crimp/Solder Attachment For RG316, RG174, RG188
© 2012 Pasternack Enterprises All Rights Reserved
PE4414 REV
2
