OM5211SCT datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Discrete semiconductor> diode> OM5211SCT

OM5211SCT: DescriptionRectifier Diode, 1 Phase, 2 Element, 15A, Silicon, MO-078AA,; CategoryDiscrete semiconductor diode; File Size58KB，2 Pages; ManufacturerOmnirel Corp.

Download Datasheet Parametric Compare View All

OM5211SCT Overview

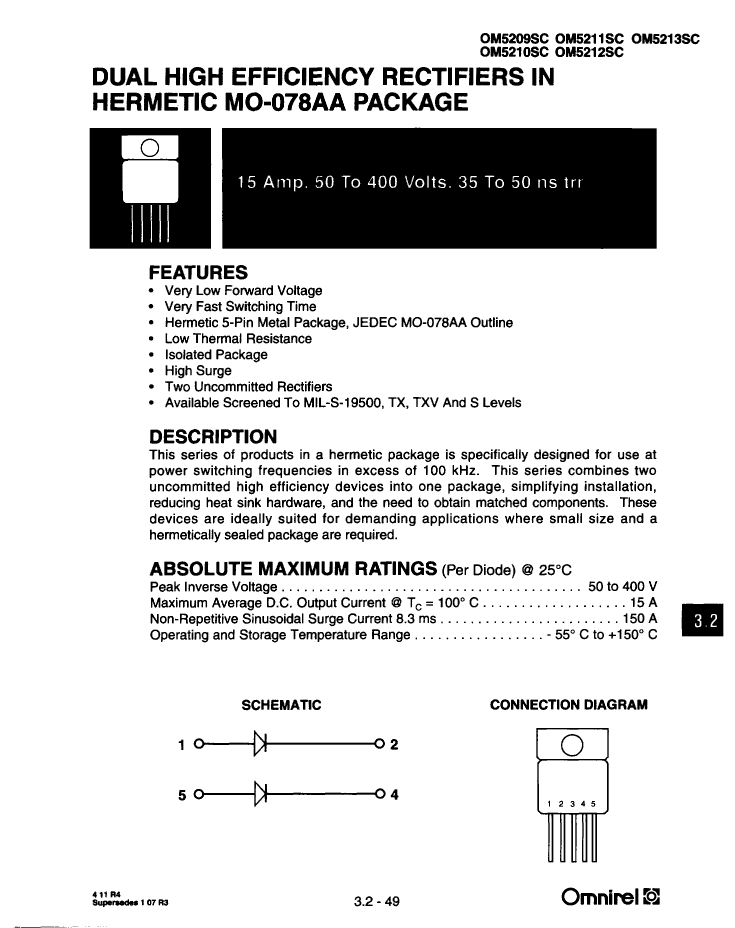

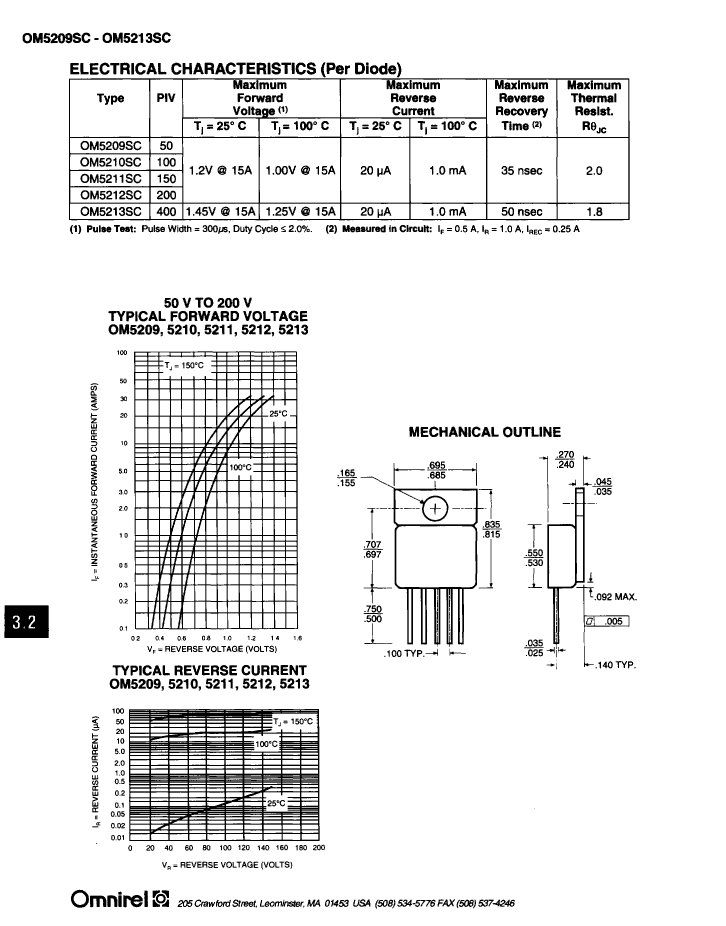

Rectifier Diode, 1 Phase, 2 Element, 15A, Silicon, MO-078AA,

OM5211SCT Parametric

Parameter Name	Attribute value
Maker	Omnirel Corp.
Reach Compliance Code	unknown
application	EFFICIENCY
Shell connection	ISOLATED
Configuration	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON
Diode type	RECTIFIER DIODE
JEDEC-95 code	MO-078AA
JESD-30 code	R-MSFM-P5
Maximum non-repetitive peak forward current	150 A
Number of components	2
Phase	1
Number of terminals	5
Maximum output current	15 A
Package body material	METAL
Package shape	RECTANGULAR
Package form	FLANGE MOUNT
Certification status	Not Qualified
Maximum reverse recovery time	0.035 µs
surface mount	NO
Terminal form	PIN/PEG
Terminal location	SINGLE

OM5211SCT Preview

More (Only the first 5 pages are displayed. Please Download Datasheet to view the full content.) >

OM5211SCT Related Products

	OM5211SCT	OM5212SCT	OM5212SCV	OM5213SCV	OM5211SCV	OM5209SCT	OM5209SCV	OM5213SCT
Description	Rectifier Diode, 1 Phase, 2 Element, 15A, Silicon, MO-078AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, Silicon, MO-078AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, Silicon, MO-078AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, Silicon, MO-078AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, Silicon, MO-078AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, Silicon, MO-078AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, Silicon, MO-078AA,	Rectifier Diode, 1 Phase, 2 Element, 15A, Silicon, MO-078AA,
Maker	Omnirel Corp.	Omnirel Corp.	Omnirel Corp.	Omnirel Corp.	Omnirel Corp.	Omnirel Corp.	Omnirel Corp.	Omnirel Corp.
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknow
application	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY	EFFICIENCY
Shell connection	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED	ISOLATED
Configuration	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS	SEPARATE, 2 ELEMENTS
Diode component materials	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON	SILICON
Diode type	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE	RECTIFIER DIODE
JEDEC-95 code	MO-078AA	MO-078AA	MO-078AA	MO-078AA	MO-078AA	MO-078AA	MO-078AA	MO-078AA
JESD-30 code	R-MSFM-P5	R-MSFM-P5	R-MSFM-P5	R-MSFM-P5	R-MSFM-P5	R-MSFM-P5	R-MSFM-P5	R-MSFM-P5
Maximum non-repetitive peak forward current	150 A	150 A	150 A	150 A	150 A	150 A	150 A	150 A
Number of components	2	2	2	2	2	2	2	2
Phase	1	1	1	1	1	1	1	1
Number of terminals	5	5	5	5	5	5	5	5
Maximum output current	15 A	15 A	15 A	15 A	15 A	15 A	15 A	15 A
Package body material	METAL	METAL	METAL	METAL	METAL	METAL	METAL	METAL
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR
Package form	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT	FLANGE MOUNT
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum reverse recovery time	0.035 µs	0.035 µs	0.035 µs	0.05 µs	0.035 µs	0.035 µs	0.035 µs	0.05 µs
surface mount	NO	NO	NO	NO	NO	NO	NO	NO
Terminal form	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG	PIN/PEG
Terminal location	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE	SINGLE
