ZX5T849GTA

Description
7 A, 30 V, NPN, Si, POWER TRANSISTOR
Categorysemiconductor    Discrete semiconductor
File Size117KB,6 Pages
ManufacturerDiodes
Websitehttp://www.diodes.com/
Download Datasheet Parametric Compare View All

ZX5T849GTA Online Shopping

Suppliers Part Number Price MOQ In stock
ZX5T849GTA - - View Buy Now

ZX5T849GTA Overview

7 A, 30 V, NPN, Si, POWER TRANSISTOR

ZX5T849GTA Parametric

Parameter NameAttribute value
Number of terminals4
Transistor polarityNPN
Maximum collector current7 A
Maximum Collector-Emitter Voltage30 V
Processing package descriptionSOT-223, 4 PIN
Lead-freeYes
EU RoHS regulationsYes
stateTRANSFERRED
packaging shapeRECTANGULAR
Package SizeSMALL OUTLINE
surface mountYes
Terminal formGULL WING
terminal coatingMATTE TIN
Terminal locationDUAL
Packaging MaterialsPLASTIC/EPOXY
structureSINGLE
Shell connectionCOLLECTOR
Number of components1
transistor applicationsSWITCHING
Transistor component materialsSILICON
Transistor typeGENERAL PURPOSE POWER
Minimum DC amplification factor20
Rated crossover frequency140 MHz

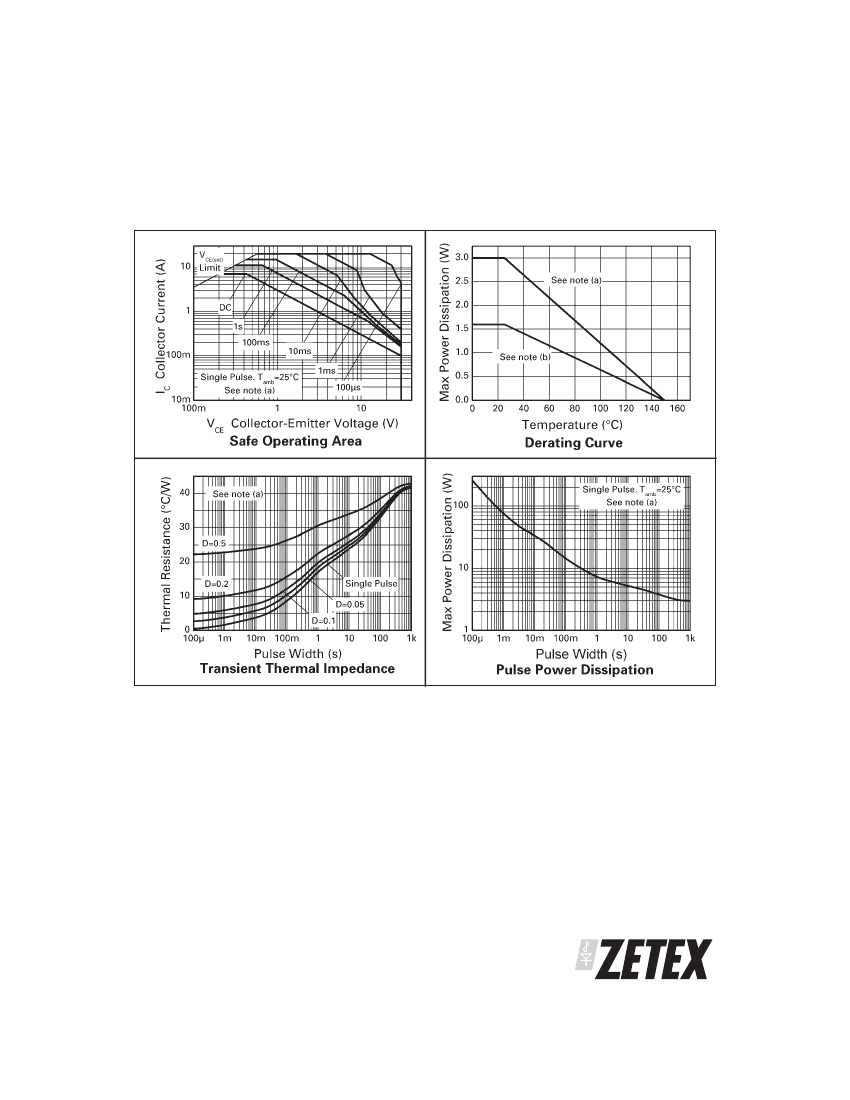

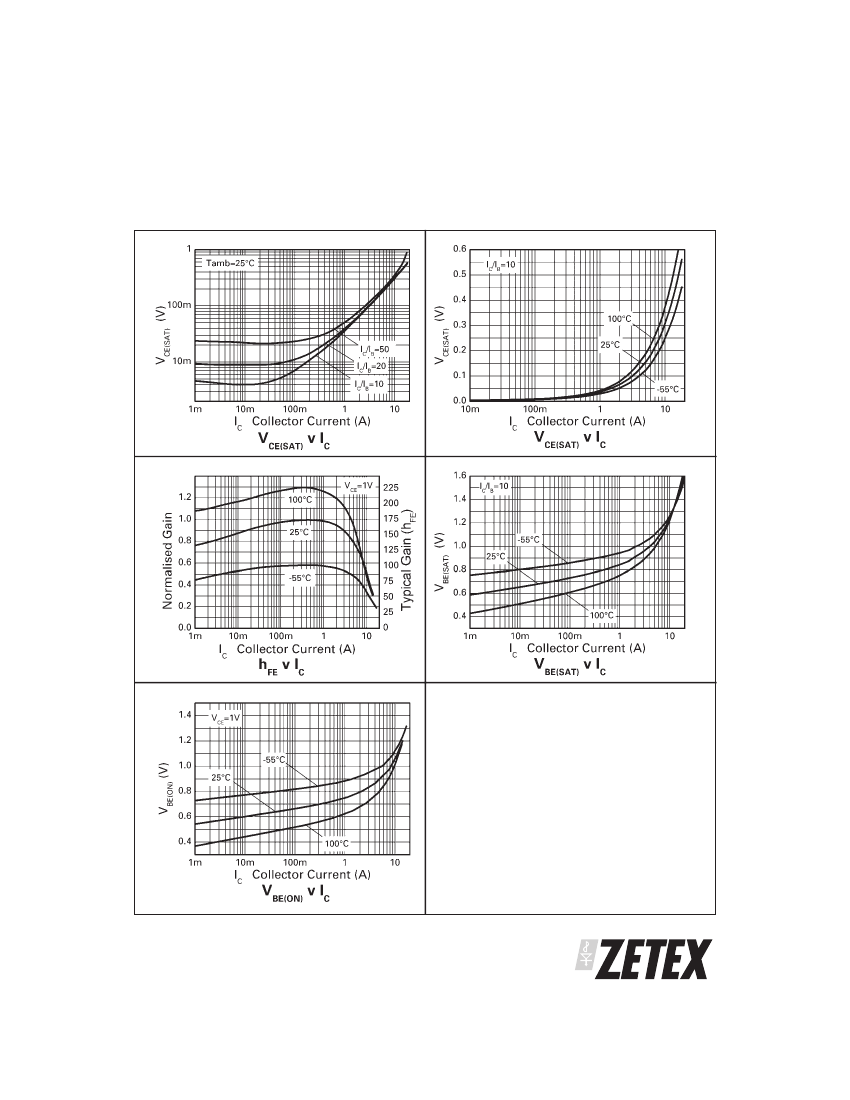

ZX5T849G
30V NPN MEDIUM POWER LOW SATURATION TRANSISTOR IN SOT223
SUMMARY
BV
CEO
= 30V : R
SAT
= 28m ; I
C
= 7A
DESCRIPTION
Packaged in the SOT223 outline this new 5th generation low saturation 30V
NPN transistor offers extremely low on state losses making it ideal for use in
DC-DC circuits and various driving and power management functions.
FEATURES
Extemely low equivalent on-resistance;
R
SAT
= 28m at 6.5A
7 amps continuous current
Up to 20 amps peak current
Very low saturation voltages
Excellent h
FE
characteristics up to 20 amps
SOT223
APPLICATIONS
DC - DC converters
MOSFET gate drivers
Charging circuits
Power switches
Motor control
ORDERING INFORMATION
DEVICE
ZX5T849GTA
ZX5T849GTC
REEL
SIZE
7”
13"
TAPE
WIDTH
12mm
embossed
QUANTITY PER
REEL
1000 units
4000 units
PINOUT
DEVICE MARKING
X5T849
TOP VIEW
ISSUE 1 - NOVEMBER 2003
1
SEMICONDUCTORS
