PE4115: DescriptionSMA Female Connector Solder Attachment For PE-SR402AL, PE-SR402FL, RG402; CategoryThe connector The connector; File Size272KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet Parametric View All

PE4115 Overview

SMA Female Connector Solder Attachment For PE-SR402AL, PE-SR402FL, RG402

PE4115 Parametric

Parameter Name	Attribute value
Maker	Pasternack Enterprises
Reach Compliance Code	unknow
Other features	APPLICABLE CABLE: RG 402
Characteristic impedance	50 Ω
Connector type	RF SMA CONNECTOR
Contact to complete cooperation	GOLD
Contact completed and terminated	GOLD
Contact point gender	FEMALE
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
JESD-609 code	e4
MIL compliance	NO
Manufacturer's serial number	PE4115
Installation method	STRAIGHT
Installation type	CABLE
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	SOLDER
Base Number Matches	1

Preview

Download Datasheet

View All

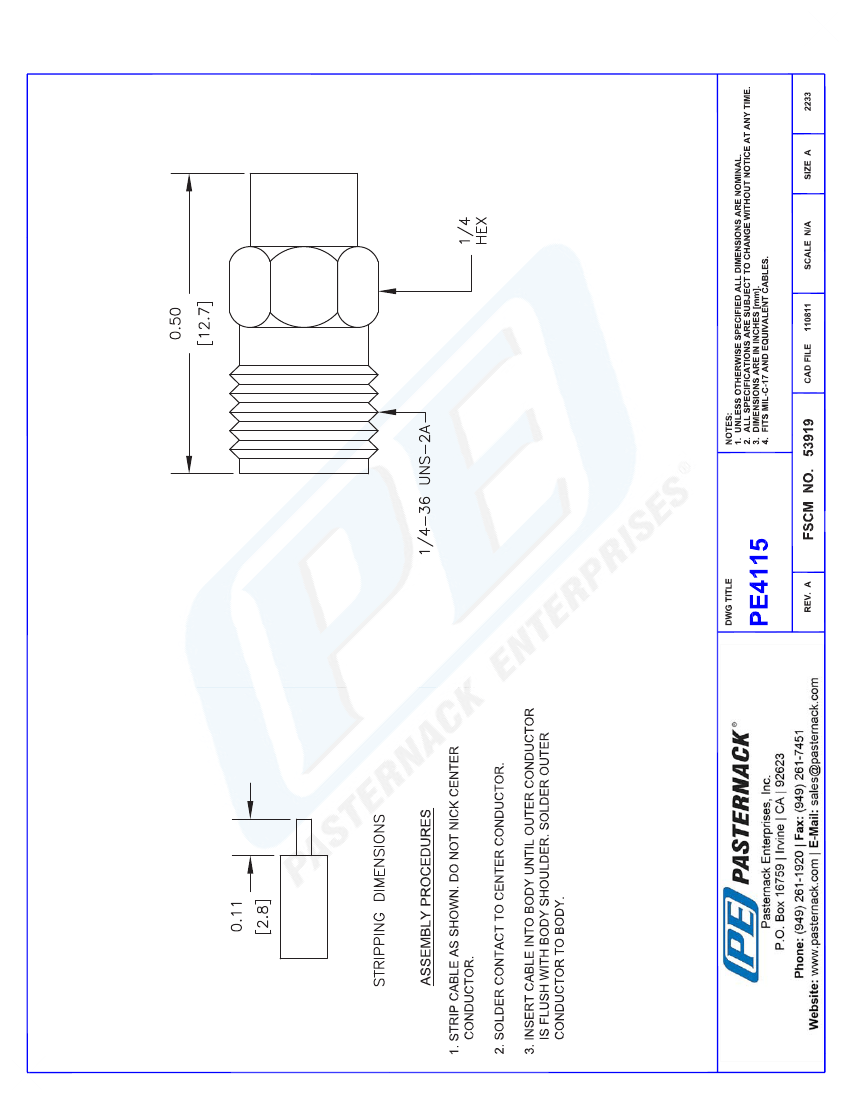

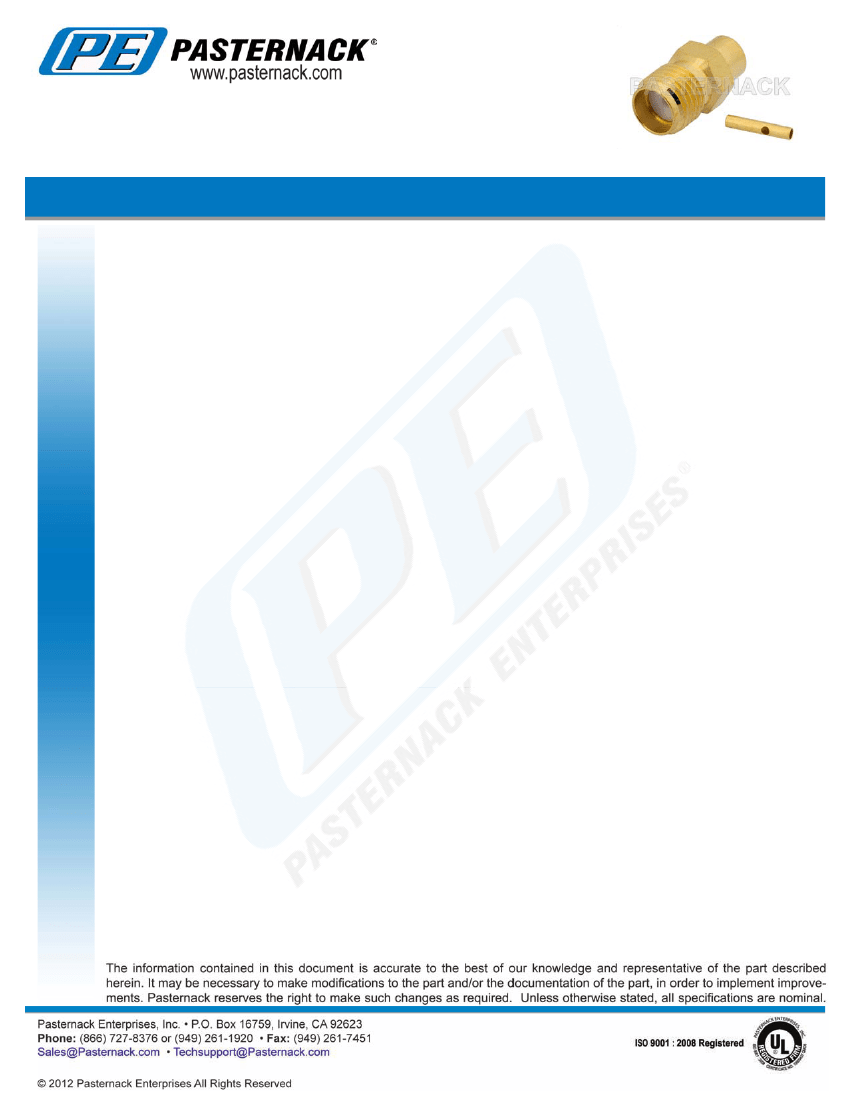

SMA Female Connector Solder Attachment For

PE-SR402AL, PE-SR402FL, RG402

TECHNICAL DATA SHEET

SMA Female Connector Solder Attachment For PE-SR402AL, PE-SR402FL, RG402

Configuration

Connector

Connector Specification

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

SMA Female

MIL-STD-348

PE-SR402AL,PE-SR402FL,RG402

Solder/Solder

Straight

PE4115

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum VSWR

DC to 18

1.25:1

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

0.5 [12.7]

0.25 [6]

0.004 [1.81]

SMA Female

Beryllium Copper, Gold

MIL-G-45204

Stainless Steel, Gold

MIL-G-45204

Teflon

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/sma-female-standard-pe-sr402al-pe-sr402fl-rg402-connector-pe4115-p.aspx

SMA Female Connector Solder Attachment For PE-SR402AL, PE-SR402FL, RG402 from Pasternack Enterprises has same

day shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF,

microwave and fiber optic products.
