75 Ohm SMB Jack Bulkhead Connector Solder
Attachment Solder Cup Terminal, .295 inch D Hole
TECHNICAL DATA SHEET
PE4172
75 Ohm SMB Jack Bulkhead Connector Solder Attachment Solder Cup Terminal, .295 inch D Hole
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
Mount Method
SMB Jack
Solder Cup
Solder
Straight
Bulkhead
Electrical Specifications
Impedance, Ohms
75

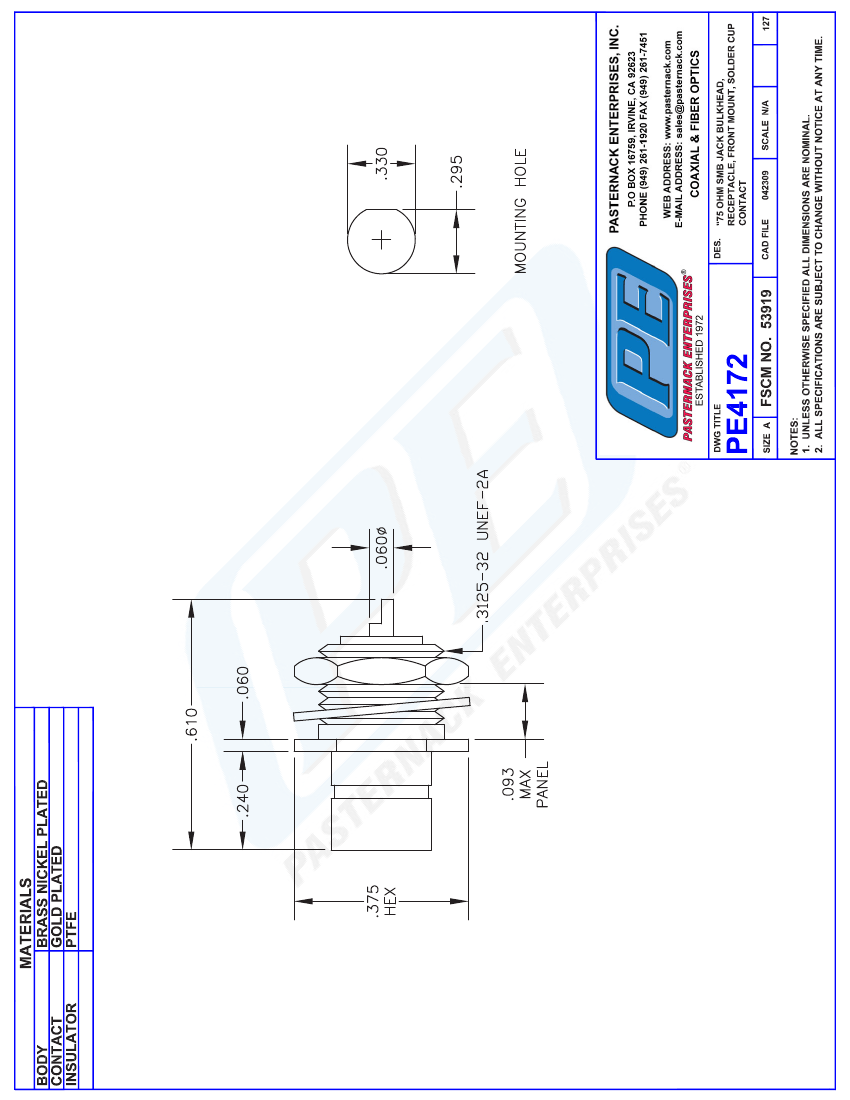

Mechanical Specifications
Size
Length, in [mm]
Width/Dia., in [mm]
.
0.61 [15.49]
0.375 [9.53]
0.006 [2.72]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Body Material and Plating
Dielectric Type
SMB Jack
Gold
Brass, Nickel
PTFE
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
75 Ohm SMB Jack Bulkhead Connector Solder Attachment Solder Cup Terminal, .295 inch D Hole from Pasternack Enterprises
has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm SMB Jack Bulkhead Connector Solder Attachment Solder Cup Terminal, .295 inch D Hole
PE4172
URL:
http://www.pasternack.com/smb-jack-standard-solder-cup-terminal-connector-pe4172-p.aspx
PE4172 REV
