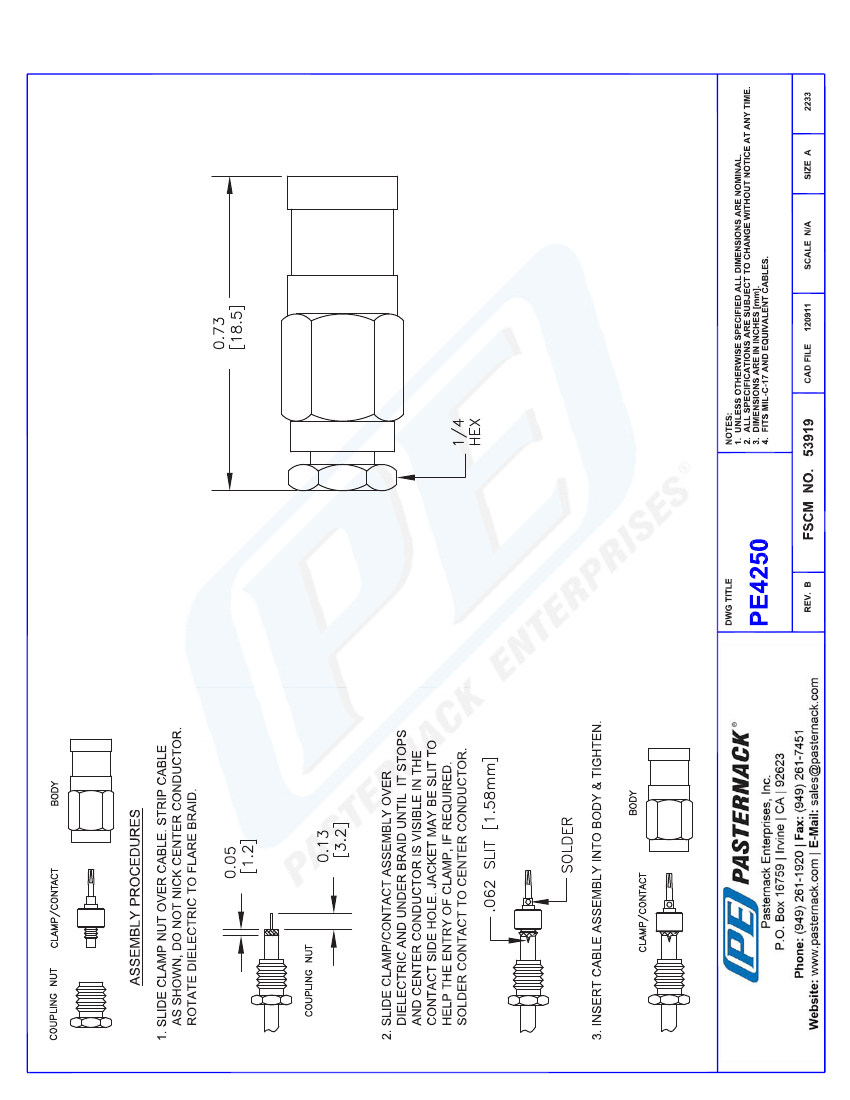

SMB Plug Connector Clamp/Solder

Attachment For RG178, RG196

TECHNICAL DATA SHEET

SMB Plug Connector Clamp/Solder Attachment For RG178, RG196

Configuration

Connector

Connector Specification

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

SMB Plug

MIL-STD-348A

RG178,RG196

Clamp/Solder

Straight

PE4250

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum Operating Voltage, Volts

Dielectric Withstanding Voltage, Vrms

Frequency 1

Frequency, GHz

VSWR

DC to 4

250

750

DC to 3

1.42:1

Mechanical Specifications

Temperature

Operating Range, deg C

Size

Length, in [mm]

Width/Dia., in [mm]

-65 to +165

0.73 [18.54]

0.25 [6]

0.006 [2.72]

SMB Plug

Beryllium Copper, Gold

30µ in. minimum

Brass, Nickel

100µ in. minimum

Teflon

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/smb-plug-standard-rg178-rg196-connector-pe4250-p.aspx

SMB Plug Connector Clamp/Solder Attachment For RG178, RG196 from Pasternack Enterprises has same day shipment for

domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF, microwave and

fiber optic products.

PE4250 REV
