75 Ohm SMB Plug Right Angle Connector Clamp/
Solder Attachment For RG180, RG195
TECHNICAL DATA SHEET
75 Ohm SMB Plug Right Angle Connector Clamp/Solder Attachment For RG180, RG195
Configuration
Connector
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SMB Plug
RG180,RG195
Clamp/Solder
Right Angle
PE4265
Electrical Specifications
Impedance, Ohms
75
Mechanical Specifications

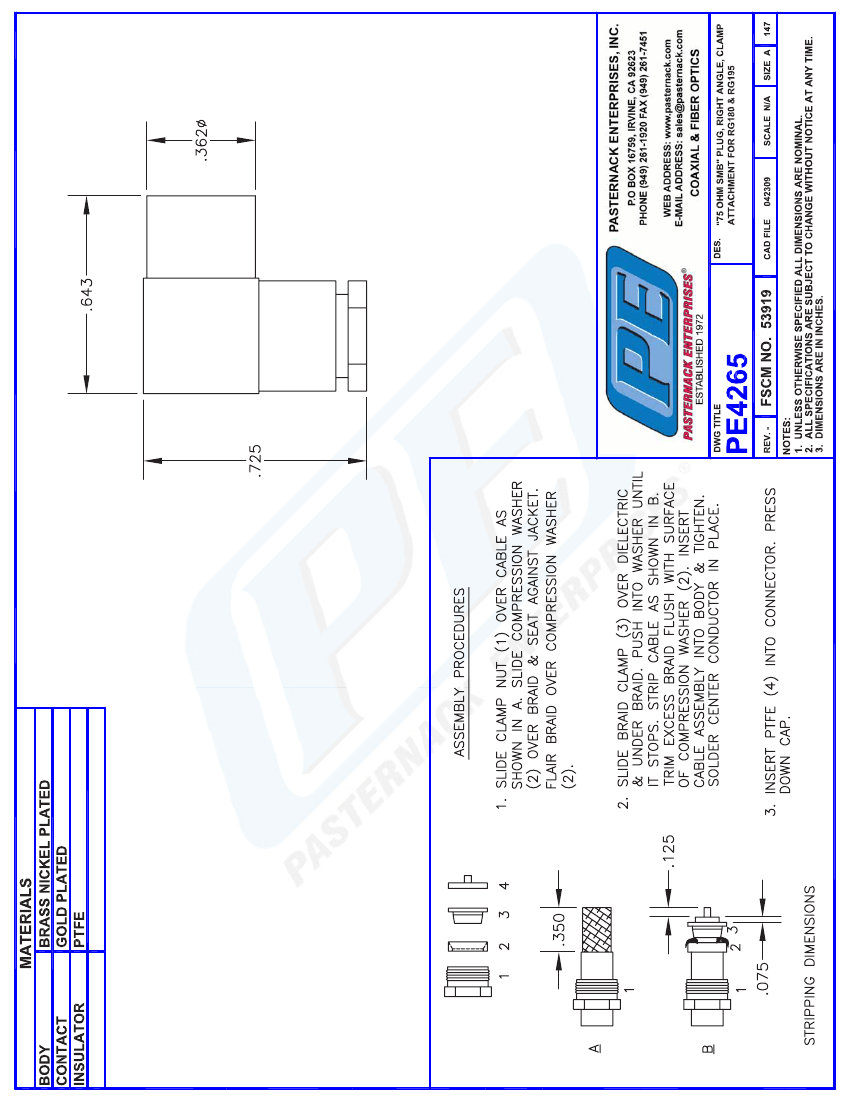

Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
0.725 [18.42]
0.362 [9.19]
0.643 [16.33]
0.027 [12.25]
SMB Plug
Gold
Brass, Nickel
Brass, Nickel
PTFE
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Outer Conductor Material and Plating
Body Material and Plating
Dielectric Type
Compliance Certifications
(visit www.Pasternack.com for current document)
Plotted and Other Data
Notes:
Values at 25 °C, sea level
75 Ohm SMB Plug Right Angle Connector Clamp/Solder Attachment For RG180, RG195 from Pasternack Enterprises has
same day shipment for domestic and International orders. Our RF, microwave and fiber optic products maintain a 99%
availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
75 Ohm SMB Plug Right Angle Connector Clamp/Solder Attachment For RG180, RG195 PE4265
URL:
http://www.pasternack.com/smb-plug-standard-rg180-rg195-connector-pe4265-p.aspx
PE4265 REV
