BNC Male Right Angle Connector Crimp/
Crimp Attachment For RG58
TECHNICAL DATA SHEET
BNC Male Right Angle Connector Crimp/Crimp Attachment For RG58
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
BNC Male
MIL-STD-348A
RG58
Crimp/Crimp
Right Angle
PE4298
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum Operating Voltage, Volts
Frequency 1
Frequency, GHz
VSWR
DC to 4
50
500
DC to 3
1.3:1
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
Weight, lbs [g]
Connector
Type
Contact Material and Plating
Contact Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
-65 to +165
1.345 [34.16]
0.571 [15]
1.145 [29.08]
0.055 [24.95]
BNC Male
Brass, Gold
30µ in. minimum
Brass, Nickel
100µ in. minimum
Teflon
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/bnc-male-standard-rg58-connector-pe4298-p.aspx
BNC Male Right Angle Connector Crimp/Crimp Attachment For RG58 from Pasternack Enterprises has same day shipment
for domestic and International orders. We maintain 99% availability of the industry’s broadest selection of RF, microwave and
PE4298 REV
1
PE4298

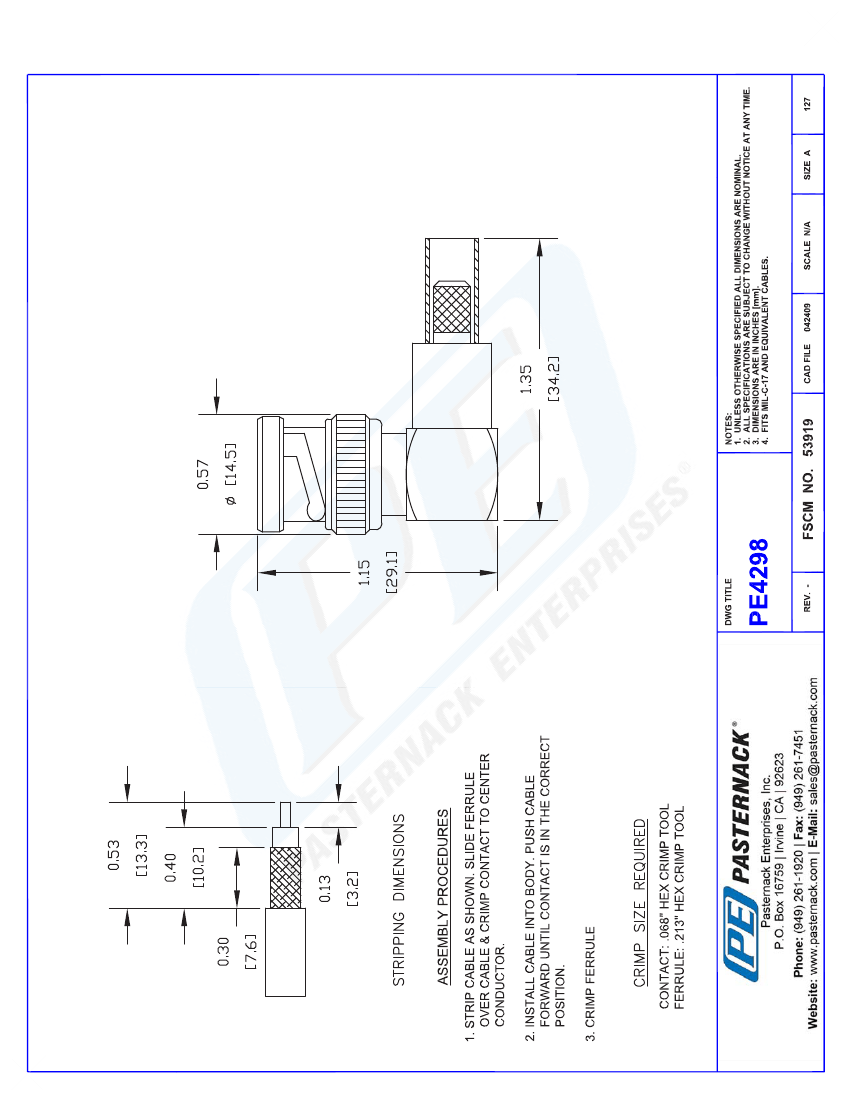

CAD Drawing
BNC Male Right Angle Connector Crimp/Crimp Attachment For RG58
© 2012 Pasternack Enterprises All Rights Reserved
PE4298 REV
2
