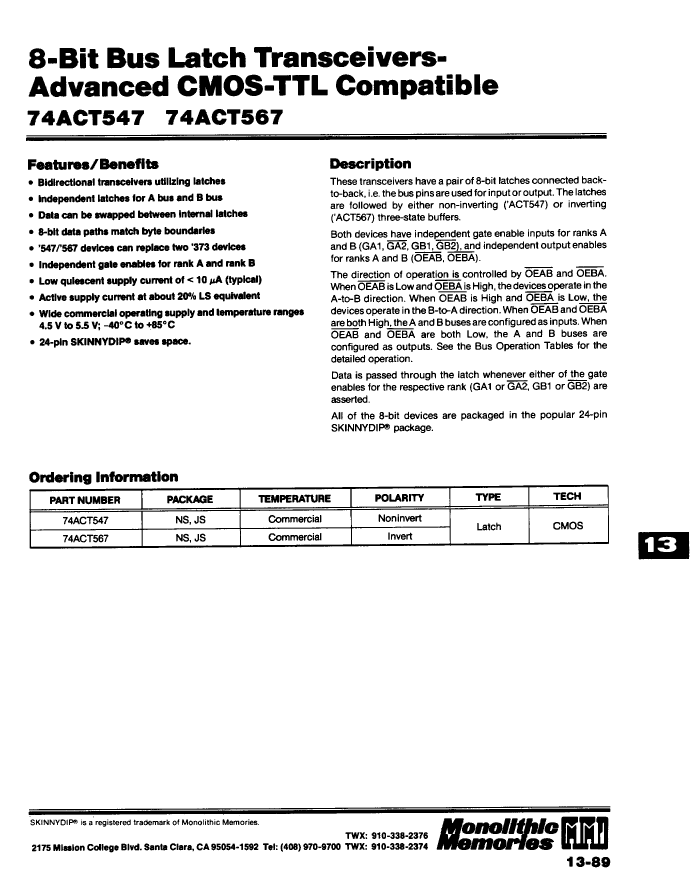

54ACT567L883B

Description
Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, CQCC28,
Categorylogic    logic
File Size428KB,11 Pages
ManufacturerMonolithic Memories
Download Datasheet Parametric Compare View All

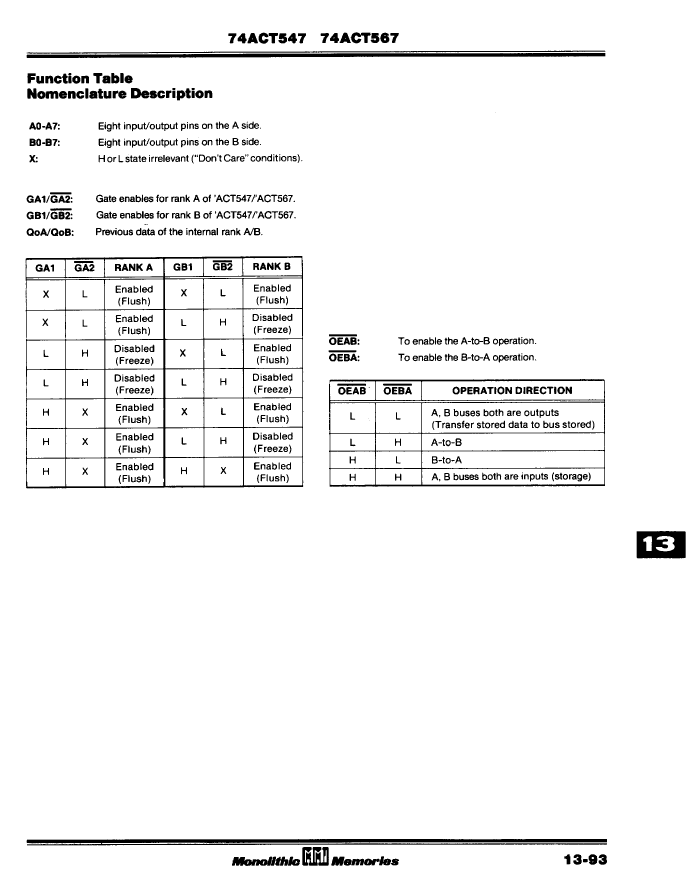

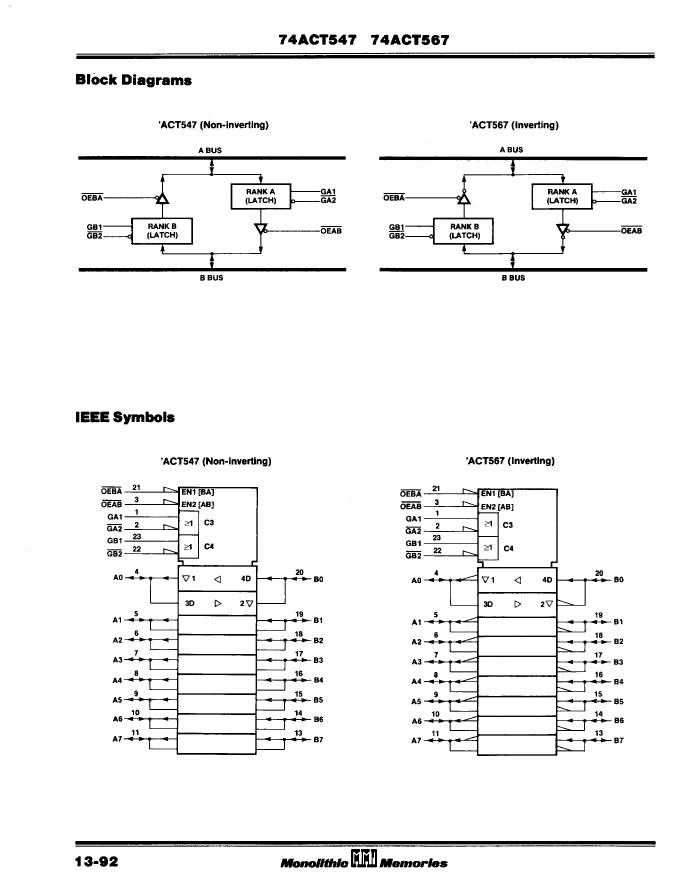

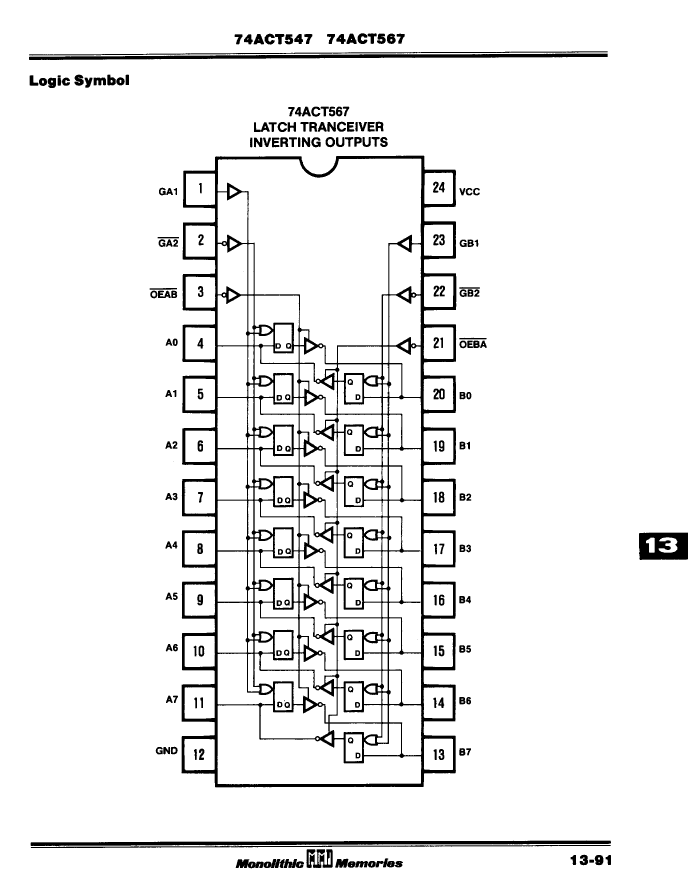

54ACT567L883B Overview

Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, CQCC28,

54ACT567L883B Parametric

Parameter NameAttribute value
Is it Rohs certified?incompatible
MakerMonolithic Memories
Reach Compliance Codeunknown
Control typeINDEPENDENT CONTROL
Counting directionBIDIRECTIONAL
JESD-30 codeS-XQCC-N28
JESD-609 codee0
Logic integrated circuit typeREGISTERED BUS TRANSCEIVER
MaximumI(ol)0.012 A
Number of digits8
Number of functions1
Number of terminals28
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Output characteristics3-STATE
Output polarityINVERTED
Package body materialCERAMIC
encapsulated codeQCCN
Encapsulate equivalent codeLCC28,.45SQ
Package shapeSQUARE
Package formCHIP CARRIER
power supply5 V
Prop。Delay @ Nom-Sup34 ns
Certification statusNot Qualified
Filter level38535Q/M;38534H;883B
Nominal supply voltage (Vsup)5 V
surface mountYES
technologyCMOS
Temperature levelMILITARY
Terminal surfaceTin/Lead (Sn/Pb)
Terminal formNO LEAD
Terminal pitch1.27 mm
Terminal locationQUAD

54ACT567L883B Related Products

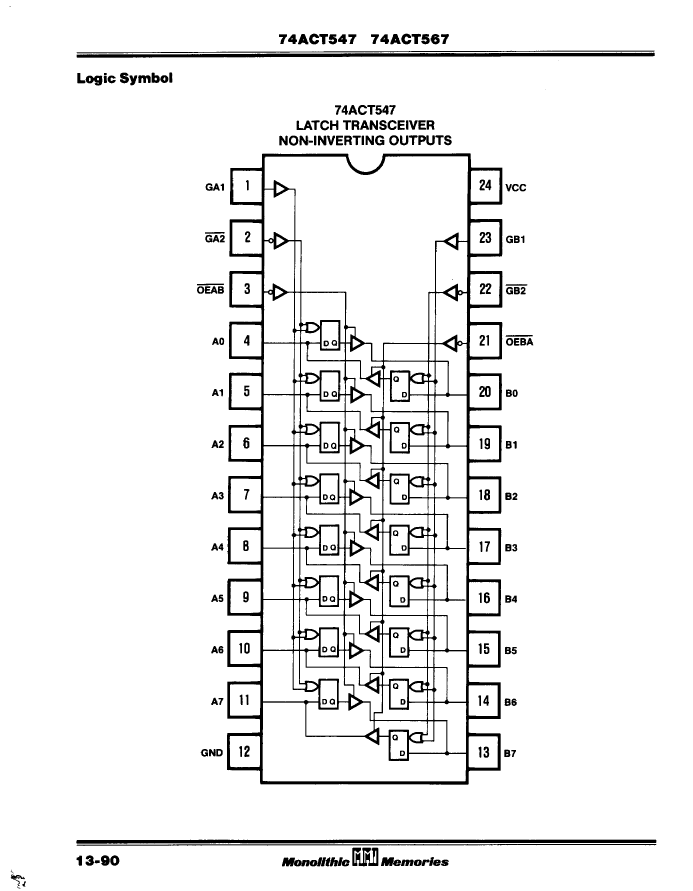

54ACT567L883B 54ACT547L883B
Description Registered Bus Transceiver, 1-Func, 8-Bit, Inverted Output, CMOS, CQCC28, Registered Bus Transceiver, 1-Func, 8-Bit, True Output, CMOS, CQCC28,
Is it Rohs certified? incompatible incompatible
Maker Monolithic Memories Monolithic Memories
Reach Compliance Code unknown unknown
Control type INDEPENDENT CONTROL INDEPENDENT CONTROL
Counting direction BIDIRECTIONAL BIDIRECTIONAL
JESD-30 code S-XQCC-N28 S-XQCC-N28
JESD-609 code e0 e0
Logic integrated circuit type REGISTERED BUS TRANSCEIVER REGISTERED BUS TRANSCEIVER
MaximumI(ol) 0.012 A 0.012 A
Number of digits 8 8
Number of functions 1 1
Number of terminals 28 28
Maximum operating temperature 125 °C 125 °C
Minimum operating temperature -55 °C -55 °C
Output characteristics 3-STATE 3-STATE
Output polarity INVERTED TRUE
Package body material CERAMIC CERAMIC
encapsulated code QCCN QCCN
Encapsulate equivalent code LCC28,.45SQ LCC28,.45SQ
Package shape SQUARE SQUARE
Package form CHIP CARRIER CHIP CARRIER
power supply 5 V 5 V
Prop。Delay @ Nom-Sup 34 ns 34 ns
Certification status Not Qualified Not Qualified
Filter level 38535Q/M;38534H;883B 38535Q/M;38534H;883B
Nominal supply voltage (Vsup) 5 V 5 V
surface mount YES YES
technology CMOS CMOS
Temperature level MILITARY MILITARY
Terminal surface Tin/Lead (Sn/Pb) Tin/Lead (Sn/Pb)
Terminal form NO LEAD NO LEAD
Terminal pitch 1.27 mm 1.27 mm
Terminal location QUAD QUAD
