MIC24053
12V, 9A High-Efficiency Buck Regulator
SuperSwitcher II
General Description
The Micrel MIC24053 is a constant-frequency, synchronous
buck regulator featuring a unique adaptive on-time control
architecture. The MIC24053 operates over an input supply
range of 4.5V to 19V and provides a regulated output of up to
9A of output current. The output voltage is adjustable down to
0.8V with a guaranteed accuracy of ±1%, and the device
operates at a switching frequency of 600kHz.
Micrel’s Hyper Speed Control architecture allows for ultra-
fast transient response while reducing the output capacitance
and also makes (High V
IN
)/(Low V
OUT
) operation possible.
This adaptive t
ON
ripple control architecture combines the
advantages of fixed-frequency operation and fast transient
response in a single device.
The MIC24053 offers a full suite of features to ensure
protection of the IC during fault conditions. These include
undervoltage lockout to ensure proper operation under
power-sag conditions, internal soft-start to reduce inrush
current, foldback current limit, “hiccup mode” short-circuit
protection, and thermal shutdown. An open-drain Power
Good (PG) pin is provided.
®
The 9A Hyper Light Load part, MIC24054, is also available
on Micrel’s web site.
All support documentation is available on Micrel’s web site
at:
www.micrel.com.
Features
•
Hyper Speed Control architecture enables
-
High Delta V operation (V
IN
= 19V and V
OUT
= 0.8V)
-
Small output capacitance
•
4.5V to 19V voltage input
•
9A output current capability, up to 95% efficiency
•
Adjustable output from 0.8V to 5.5V
•
±1% feedback accuracy
•
Any Capacitor stable-zero-to-high ESR
•
600kHz switching frequency
•
No external compensation
•
Power Good (PG) output
•
Foldback current-limit and “hiccup mode” short-circuit
protection
•
Supports safe startup into a pre-biased load
•
–40°C to +125°C junction temperature range
•
Available in 28-pin 5mm
×
6mm QFN package
Applications
•
Servers, workstations
•
Routers, switches, and telecom equipment
•
Base stations
___________________________________________________________________________________________________________

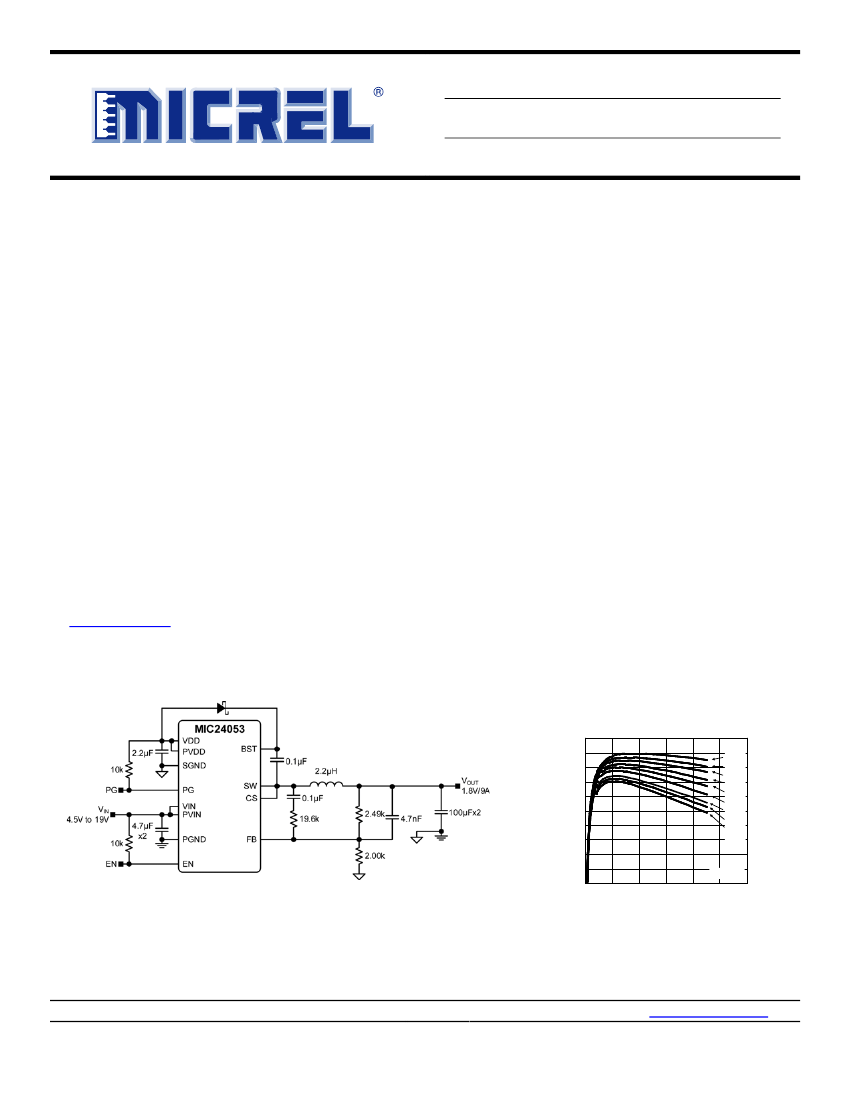

Typical Application
Efficiency (VIN = 12V)
vs. Output Current
100
95
90
5.0V
3.3V
2.5V
1.8V
1.5V
1.2V
1.0V
0.9V
0.8V
EFFICIENCY (%)
85
80
75
70
65
60
55
50
0
2
4
6
8
10
VIN = 12V
12
OUTPUT CURRENT (A)
Hyper Speed Control, SuperSwitcher II, and Any Capacitor are trademarks of Micrel, Inc.
Hyper Light Load is a registered trademark of Micrel, Inc.
Micrel Inc. • 2180 Fortune Drive • San Jose, CA 95131 • USA • tel +1 (
408
) 944-0800 • fax + 1 (408) 474-1000 •
http://www.micrel.com
November 2012
M9999-110712-A
Micrel, Inc.
MIC24053
Ordering Information
Part Number
MIC24053YJL
Switching Frequency
600kHz
Voltage
Adjustable
Package
28-Pin 5mm
×
6mm QFN
Junction Temperature
Range
−40°C
to
+125°C
Lead Finish
Pb-Free

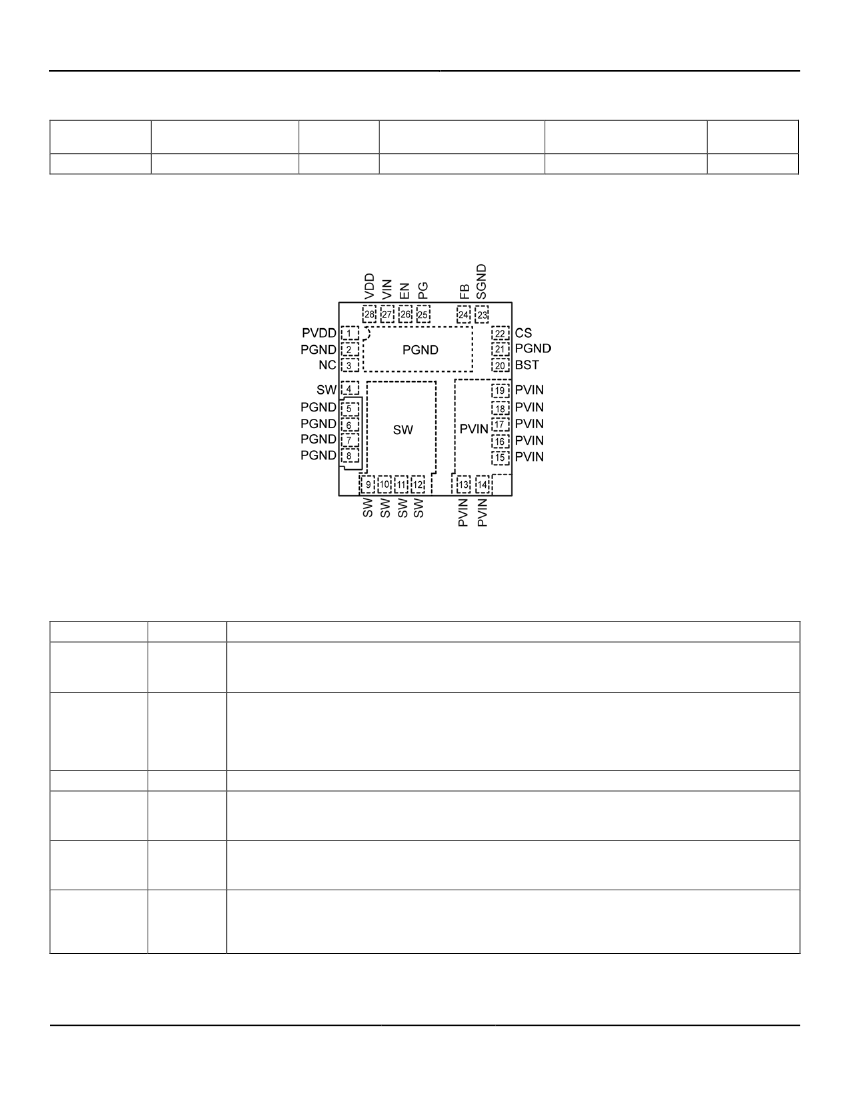

Pin Configuration
28-Pin 5mm
×
6mm QFN (JL)
(Top View)
Pin Description
Pin Number
1
Pin Name
PVDD
Pin Function
5V Internal Linear Regulator output. PVDD supply is the power MOSFET gate drive supply voltage
created by internal LDO from VIN. When VIN
< +5.5V,
PVDD should be tied to PVIN pins. A 2.2µF
ceramic capacitor from the PVDD pin to PGND (pin 2) must be placed next to the IC.
Power Ground. PGND is the ground path for the MIC24053 buck converter power stage. The PGND
pins connect to the low-side N-Channel internal MOSFET gate drive supply ground, the sources of
the MOSFETs, the negative terminals of input capacitors, and the negative terminals of output
capacitors. The loop for the power ground should be as small as possible and separate from the
Signal ground (SGND) loop.
No Connect.
Switch Node output. Internal connection for the high-side MOSFET source and low-side MOSFET
drain. Because of the high-speed switching on this pin, the SW pin should be routed away from
sensitive nodes.
High-Side N-internal MOSFET Drain Connection input. The PVIN operating voltage range is from
4.5V to 19V. Input capacitors between the PVIN pins and the power ground (PGND) are required;
keep the connection short.
Boost output. Bootstrapped voltage to the high-side N-channel MOSFET driver. A Schottky diode is
connected between the PVDD pin and the BST pin. A boost capacitor of 0.1μF is connected between
the BST pin and the SW pin. Adding a small resistor at the BST pin can slow down the turn-on time
of high-side N-Channel MOSFETs.
2, 5, 6, 7, 8,
21
3
4, 9, 10, 11,
12
13, 14, 15, 16,
17, 18, 19
PGND
NC
SW
PVIN
20
BST
November 2012
2
M9999-110712-A
Micrel, Inc.
MIC24053
Pin Description (Continued)
Pin Number
22
Pin Name
CS
Pin Function
Current Sense input. The CS pin senses current by monitoring the voltage across the low-side
MOSFET during the OFF-time. Current sensing is necessary for short circuit protection. To sense the
current accurately, connect the low-side MOSFET drain to SW using a Kelvin connection. The CS pin
is also the high-side MOSFET’s output driver return.
Signal ground. SGND must be connected directly to the ground planes. Do not route the SGND pin to
the PGND Pad on the top layer; see
PCB Layout Recommendations
for details.
Feedback input. Input to the transconductance amplifier of the control loop. The FB pin is regulated to
0.8V. A resistor divider connecting the feedback to the output is used to adjust the desired output
voltage.
Power Good output. Open-drain output. The PG pin is externally tied with a resistor to VDD. A high
output is asserted when V
OUT
>
92% of nominal.
Enable input. A logic level control of the output. The EN pin is CMOS-compatible. Logic high = enable,
logic low = shutdown. In the off state, the device’s supply current is greatly reduced (typically 5µA).
Do not leave the EN pin floating.
Power Supply Voltage input. Requires bypass capacitor to SGND.
5V Internal Linear Regulator output. VDD supply is the power MOSFET gate drive supply voltage and
the supply bus for the IC. VDD is created by internal LDO from V
IN
. When V
IN
< +5.5V,
tie VDD to
PVIN pins. A 1µF ceramic capacitor from the VDD pin to SGND pins must be placed next to the IC.
23
24
25
26
27
28
SGND
FB
PG
EN
VIN
VDD
November 2012
3
M9999-110712-A
Micrel, Inc.
MIC24053
Absolute Maximum Ratings
(1)
PVIN to PGND...............................................
−0.3V
to +29V
VIN to PGND .................................................
−0.3V
to PVIN
PVDD, VDD to PGND .....................................
−0.3V
to +6V
V
SW
, V
CS
to PGND .............................
−0.3V
to (PVIN +0.3V)
V
BST
to V
SW
........................................................
−0.3V
to 6V
V
BST
to PGND ..................................................
−0.3V
to 35V
V
FB
, V
PG
to PGND .............................
−0.3V
to (VDD + 0.3V)
V
EN
to PGND .......................................
−0.3V
to (VIN +0.3V)
PGND to SGND............................................
−0.3V
to +0.3V
Junction Temperature .............................................. +150°C
Storage Temperature (T
S
) .........................
−65°C
to +150°C
Lead Temperature (soldering, 10s) ............................ 260°C
(2).
ESD Rating ................................................ ESD Sensitive
Operating Ratings
(3)
Supply Voltage (PVIN, VIN) .............................. 4.5V to 19V
PVDD, VDD Supply Voltage (PVDD, VDD) ..... 4.5V to 5.5V
Enable Input (V
EN
) .................................................. 0V to V
IN
Junction Temperature (T
J
) ........................
−40°C
to +125°C
Maximum Power Dissipation ...................................... Note 4
(4)
Package Thermal Resistance
5mm x 6mm QFN-28 (θ
JA
) ................................ 28°C/W
Electrical Characteristics
(5)
PVIN = VIN = V
EN
= 12V, V
BST
– V
SW
= 5V; T
A
= 25°C, unless noted.
Bold
values indicate
−40°C ≤
T
J
≤
+125°C.
Parameter
Power Supply Input
Input Voltage Range (VIN, PVIN)
Quiescent Supply Current
Shutdown Supply Current
VDD Supply Voltage
VDD Output Voltage
VDD UVLO Threshold
VDD UVLO Hysteresis
Dropout Voltage (VIN – VDD)
DC-DC Controller
Output-Voltage Adjust Range
(V
OUT
)
Reference
Feedback Reference Voltage
Load Regulation
Line Regulation
FB Bias Current
Enable Control
EN Logic Level High
EN Logic Level Low
EN Bias Current
Oscillator
Switching Frequency
Minimum Duty Cycle
Minimum Off-Time
(6)
(7)
Condition
Min.
4.5
Typ.
Max.
19
Units
V
µA
µA
V
V
mV
mV
V
FB
= 1.5V (non-switching)
V
EN
= 0V
VIN = 7V to 19V, I
DD
= 40mA
VDD Rising
I
DD
= 25mA
4.8
3.7
730
5
5
4.2
400
380
1500
10
5.4
4.5
600
0.8
5.5
V
0°C
≤
T
J
≤
85°C (±1.0%)
−40°C ≤
T
J
≤
125°C (±1.5%)
I
OUT
= 0A to 9A (Continuous Mode)
VIN = 4.5V to 19V
V
FB
= 0.8V
0.792
0.788
0.8
0.8
0.25
0.25
50
0.808
0.812
V
%
%
nA
V
1.8
0.6
V
EN
= 12V
V
OUT
= 2.5V
V
FB
= 0V
V
FB
= 1.0V
450
6
600
82
0
300
30
750
V
µA
kHz
%
%
ns
Maximum Duty Cycle
November 2012
4
M9999-110712-A
Micrel, Inc.
MIC24053
Electrical Characteristics
(5)
(Continued)
PVIN = VIN = V
EN
= 12V, V
BST
– V
SW
= 5V; T
A
= 25°C, unless noted.
Bold
values indicate -40°C ≤ T
J
≤ +125°C.
Parameter
Soft-Start
Soft-Start Time
Short-Circuit Protection
Peak Inductor Current-Limit Threshold
Short-Circuit Current
Internal FETs
Top-MOSFET R
DS (ON)
Bottom-MOSFET R
DS (ON)
SW Leakage Current
V
IN
Leakage Current
Power Good (PG)
PG Threshold Voltage
PG Hysteresis
PG Delay Time
PG Low Voltage
Thermal Protection
Overtemperature Shutdown
Overtemperature Shutdown
Hysteresis
Notes:
1. Exceeding the absolute maximum rating can damage the device.
2. Devices are ESD sensitive. Handling precautions are recommended. Human body model, 1.5kΩ in series with 100pF.
3. The device is not guaranteed to function outside its operating range.
4. PD
(MAX)
= (T
J(MAX)
– T
A
)/θ
JA
, where
θ
JA
depends on the printed circuit layout. A 5in
2
, 4-layer, 0.62”, FR-4 PCB with 2oz finish copper weight per layer is
used for the
θ
JA
.
5. Specification for packaged product only.
6. Measured in test mode.
7. The maximum duty-cycle is limited by the fixed mandatory off-time (t
OFF
) of typically 300ns.
Condition
Min.
Typ.
3
Max.
Units
ms
V
FB
= 0.8V, T
J
= 25°C
V
FB
= 0.8V, T
J
= 125°C
V
FB
= 0V
I
SW
= 3A
I
SW
= 3A
V
EN
= 0V
V
EN
= 0V
Sweep V
FB
from Low to High
Sweep V
FB
from High to Low
Sweep V
FB
from Low to High
Sweep V
FB
<
0.9
×
V
NOM
, I
PG
= 1mA
T
J
Rising
12.5
11.25
14
14
8
27
10.5
20
20
A
A
A
mΩ
mΩ
60
25
85
92
5.5
100
70
160
15
200
95
µA
µA
%V
OUT
%V
OUT
µs
mV
°C
°C
November 2012
5
M9999-110712-A
