CX9V-SM4-100.0K,A/C datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> CX9V-SM4-100.0K,A/C

CX9V-SM4-100.0K,A/C: DescriptionQuartz Crystal, QUARTZ CRYSTAL RESONATOR, 0.1 MHz, LEAD FREE, CERAMIC, ULTRA MINIATURE, SMD, 2 PIN; CategoryPassive components Crystal/resonator; File Size130KB，1 Pages; ManufacturerEuroquartz; Websitehttp://www.euroquartz.co.uk/

Download Datasheet Parametric View All

CX9V-SM4-100.0K,A/C Overview

Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 0.1 MHz, LEAD FREE, CERAMIC, ULTRA MINIATURE, SMD, 2 PIN

CX9V-SM4-100.0K,A/C Parametric

Parameter Name	Attribute value
Maker	Euroquartz
Reach Compliance Code	unknown
Other features	GLASS LID; TAPE AND REEL
Ageing	5 PPM/ FIRST YEAR
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	0.5 µW
frequency stability	0.0071%
frequency tolerance	50 ppm
load capacitance	5 pF
Manufacturer's serial number	CX9VSM
Installation features	SURFACE MOUNT
Nominal operating frequency	0.1 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L4.1XB1.5XH0.87 (mm)/L0.161XB0.059XH0.034 (inch)
Series resistance	19000 Ω
surface mount	YES

Preview

Download Datasheet

View All

EURO

QUARTZ

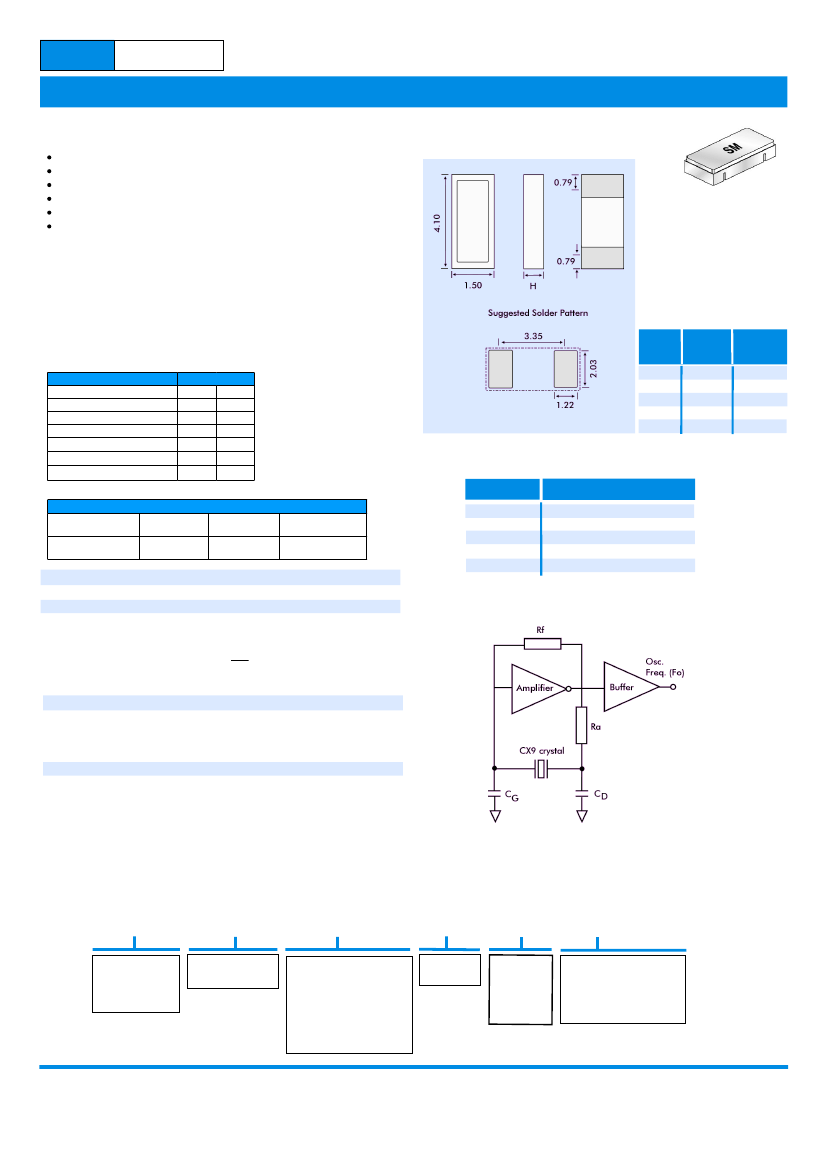

Ultra-Miniature Low-Profile SMD Crystal

FEATURES

Frequency Range 32kHz to 160kHz

High shock resistance

Ultra-small ceramic package

Low ageing

Designed for low power applications

Full MIL testing available

CX9VSM CRYSTAL

32kHz to 160kHz

OUTLINE & DIMENSIONS

DESCRIPTION

CX9VSM crystals are leadless devices designed for surface mounting

on PCBs or hybrid substrates. The crystals have a very low-profile

(<0.94mm) and are suited for all low frequency applications.

SPECIFICATION

Specifications stated are typical at 25°C unless otherwise indicated.

Specifications may change without notice.

Parameters

Frequency (kHz):

Motional Resistance R1 (kΩ):

Motional Capacitance C1 (fF):

QualityFactor Q (k):

Shunt Capacitance C0 (pF):

Load Capacitance (pF)

Turning Point (°C) :

Dim. H

SM1

SM2

SM3

SM4

SM5

Glass

Lid

0.87

0.91

0.87

0.91

Ceramic

Lid

Fundamental

32.768

2.2

1.1

100.0

1.0

0.84

0.90

0.94

0.90

0.94

TERMINATIONS - PLATING

Designation

Termination

Standard Calibration Tolerance for 32.768kHz (3)

Glass Lid:

Ceramic Lid:

A = ±50ppm

(0.003%)

A = ±100ppm

(0.01%)

B = ±100ppm

(0.01%)

B = ±1000ppm

(0.1%)

C = ±1000ppm

(0.1%)

C = ±10000ppm

(1.0%)

SM1

SM2

SM3

SM4

SM5

Gold Plated (Lead Free)

Solder Plated

Solder Dipped

Solder Plated (Lead Free)

Solder Dipped (Lead Free)

Drive Level:

Temperature Coefficient (k):

Ageing, first year:

0.5µW max.

-0.035ppm/°C

5ppm max.

Conventional CMOS Pierce Oscillator Circuit

Note: Frequency f at temperature T is related to frequency Fo at

turning point temperature To by:

f-fo

=k(T-To)

Shock, survival:

Vibration, survival:

Operating Temperature Range

Commercial:

Industrial:

Military:

Storage Temperature Range:

Maximum Process Temperature:

5000g, 0.3ms, ½ sine

20g rms, 10~2000Hz random

-10° to +70°C

-40° to +85°C

-55 to +125°C

-55° to +125°C

+260°C for 20 seconds

Other load capacitance values are available.

Other temperature available.

Tighter tolerances available.

PACKAGING OPTIONS

CX9VSM crystals are available either tray packed (<250pcs) or tape

and reel (>250 pieces).

16mm tape, 178mm or 330mm reels (EIA 418).

HOW TO ORDER CX9VSM CRYSTALS

CX9V - S

'S' if special,

custom design.

Otherwise leave

blank

Blank = glass lid

C = ceramic lid

SM1

100.0K,

Frequency

K = kHz

100 /

Calibration

Tolerance*

Temp. Range

C = -10° ~ +70°C

I = -40° ~ +85°C

M = -55° ~ +125°C

S = Customer specified

Terminations

SM1 = Gold plated *

SM2 = Solder plated

SM3 = Solder dipped

SM4 = Solder plated *

SM5 = Solder dipped *

* = Lead free

EUROQUARTZ LIMITED Blacknell Lane CREWKERNE Somerset UK TA18 7HE

Tel: +44 (0)1460 230000 Fax: +44 (0)1460 230001 info@euroquartz.co.uk www.euroquartz.co.uk
