CX-53F-FREQ3-STBY3-TOL2-CL datasheet, PDF

Datasheet> All Categories > Passive components> Crystal/resonator> CX-53F-FREQ3-STBY3-TOL2-CL

CX-53F-FREQ3-STBY3-TOL2-CL: DescriptionQuartz Crystal, QUARTZ CRYSTAL RESONATOR, 24 MHz - 54 MHz; CategoryPassive components Crystal/resonator; File Size173KB，1 Pages; ManufacturerKyocera; Environmental Compliance

Download Datasheet Parametric View All

CX-53F-FREQ3-STBY3-TOL2-CL Overview

Quartz Crystal, QUARTZ CRYSTAL RESONATOR, 24 MHz - 54 MHz

CX-53F-FREQ3-STBY3-TOL2-CL Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Reach Compliance Code	unknown
Crystal/Resonator Type	PARALLEL - FUNDAMENTAL
Drive level	100 µW
frequency stability	0.005%
frequency tolerance	30 ppm
load capacitance	12 pF
Manufacturer's serial number	CX-53F
Installation features	SURFACE MOUNT
Maximum operating frequency	54 MHz
Minimum operating frequency	24 MHz
Maximum operating temperature	70 °C
Minimum operating temperature	-10 °C
physical size	L5XB3.2XH1 (mm)
surface mount	YES
Base Number Matches	1

Preview

Download Datasheet

View All

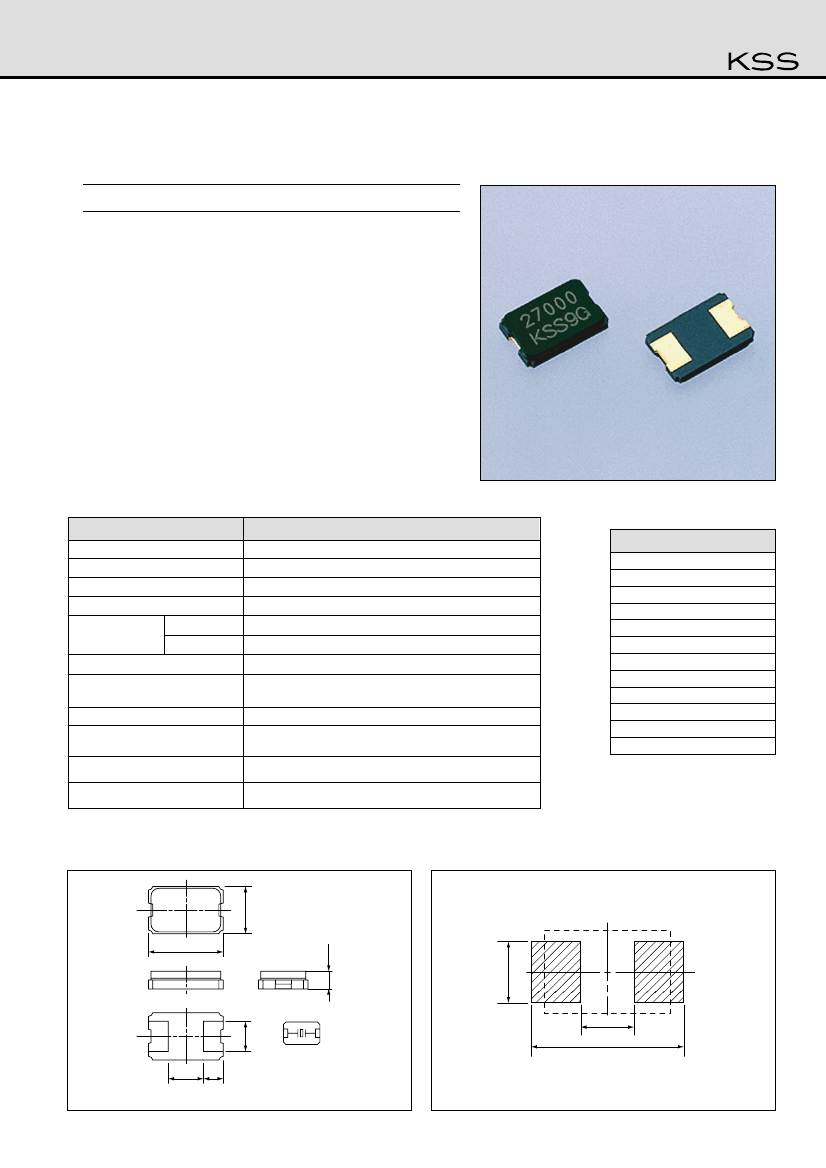

CX-53F

SMD

Features

¡Ultra-thin,

thickness 1.1mm or less.

¡Because

it is the leadless type, automatic mounting is possilbe.

¡Excels

even in an environment that requires reliability.

¡Reflow

is possible.

¡Low

cost.

Specifications

Type

Frequency Range

Standard Frequency

Operating Temp. Range

Storage Temp. Range

Frequency

Tolerance

Load Capacitance

Equivalent Series Resistance

Shunt Capacitance

Drive Level

Shock

Vibration

at 25:

Over The Oper.

Temp. Range

CX-53F

12~54MHz

Table 1

-10~+70:

-30~+80:

±15, ±30, ±50×10

–6

Table 1

Standard Frequencies

Standard Frequency (MHz)

12.0000

14.31818

14.7456

16.9344

18.432

22.5792

24.000

24.54545

24.576

27.000

36.000

48.000

±15, ±30, ±50×10

–6

(referred to 25:)

12pF

12~14MHz 150Ω

14~30MHz 100Ω

30~54MHz 50Ω

7pF MAX.

12~16MHz : 0.5mW MAX.

16~24MHz : 0.3mW MAX.

24~54MHz : 0.1mW MAX.

Three drops onto a hard wood board from the height of 50cm

10~55Hz, amplitude 1.5mm, each to 3 directions, 2 hours each

* Taping item packaging : one unit 1,000 pcs or 3,000 pcs

Outline

CX-53F

3.2±0.2

Land Pattern(reference)

1.0

+0.1

–0.2

5.0±0.2

2.4

2.2

2.0

6.0

CONNECTION

2.4

1.3

Dimensions(mm)

Recommended Resources

The basic definition of arithmetic circuits and the classic basic circuit diagram of arithmetic circuits

Multimeter DC current measurement circuit

One of the bimetal thermostatic control circuits

Using LEDs connected in series

Electrical schematic diagram of B2012A gantry planer (2)

MC9482 (electronic toy) remote control receiving and decoding circuit

TI Power's low-power application processor OMAP-L137 uses discrete DC/DC converters and LDOs: Low-power application processor OMAP-L137 with discrete DC/DC converter and LDO...; fxw451 Analogue and Mixed Signal

How to debug a program running on DSP?: I use TI DSP 54xx chip. After power on, when the program is loaded from the Flash chip outside the chip into the program storage space inside the DSP and starts running, I want to connect the DSP simu...; wanggq DSP and ARM Processors

How to get the CPU temperature: How to get the CPU temperature?...; bingyannan Embedded System

Does the FTP server under VxWorks support breakpoint resumption?: RT, I've seen that regarding breakpoint resume, it says that the server must support REST commands, but when I look at the source code of the FTP server under VxWorks, it seems that there is no REST c...; aphonline Real-time operating system RTOS

Generate PWM based on msp430g2553 timer: ////*****Chongqing Three Gorges University School of Electronic and Information Engineering Innovation Laboratory Donald Duck*****//// #include "msp430g2553.h" //p1.2 outputs 50% square wave, p2.1 and...; tcvsdonnnie Microcontroller MCU

Why does an abnormality occur when the second function of the C51 microcontroller pin is not enabled for output?: The microcontroller used is AT89S52. I use the P3.0 and P3.1 pins of S52 as the data receiving and sending pins, and use the P3.3 pin (external interrupt 1) as the chip select signal of an external ch...; linliuh Embedded System
