LDEEG4390JB0N: DescriptionCAPACITOR, METALLIZED FILM, POLYESTER, 100V, 4.7uF, SURFACE MOUNT, 6054, CHIP; CategoryPassive components capacitor; File Size40KB，1 Pages; ManufacturerNissei Electric Co.,Ltd.; Environmental Compliance

Download Datasheet Parametric Compare View All

LDEEG4390JB0N Overview

CAPACITOR, METALLIZED FILM, POLYESTER, 100V, 4.7uF, SURFACE MOUNT, 6054, CHIP

LDEEG4390JB0N Parametric

Parameter Name	Attribute value
Is it Rohs certified?	conform to
Maker	Nissei Electric Co.,Ltd.
package instruction	, 6054
Reach Compliance Code	unknown
ECCN code	EAR99
capacitance	4.7 µF
Capacitor type	FILM CAPACITOR
dielectric materials	POLYESTER
Installation features	SURFACE MOUNT
negative tolerance	5%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
method of packing	TAPE
positive tolerance	5%
Rated (AC) voltage (URac)	63 V
Rated (DC) voltage (URdc)	100 V
size code	6054
surface mount	YES

Preview

Download Datasheet

View All

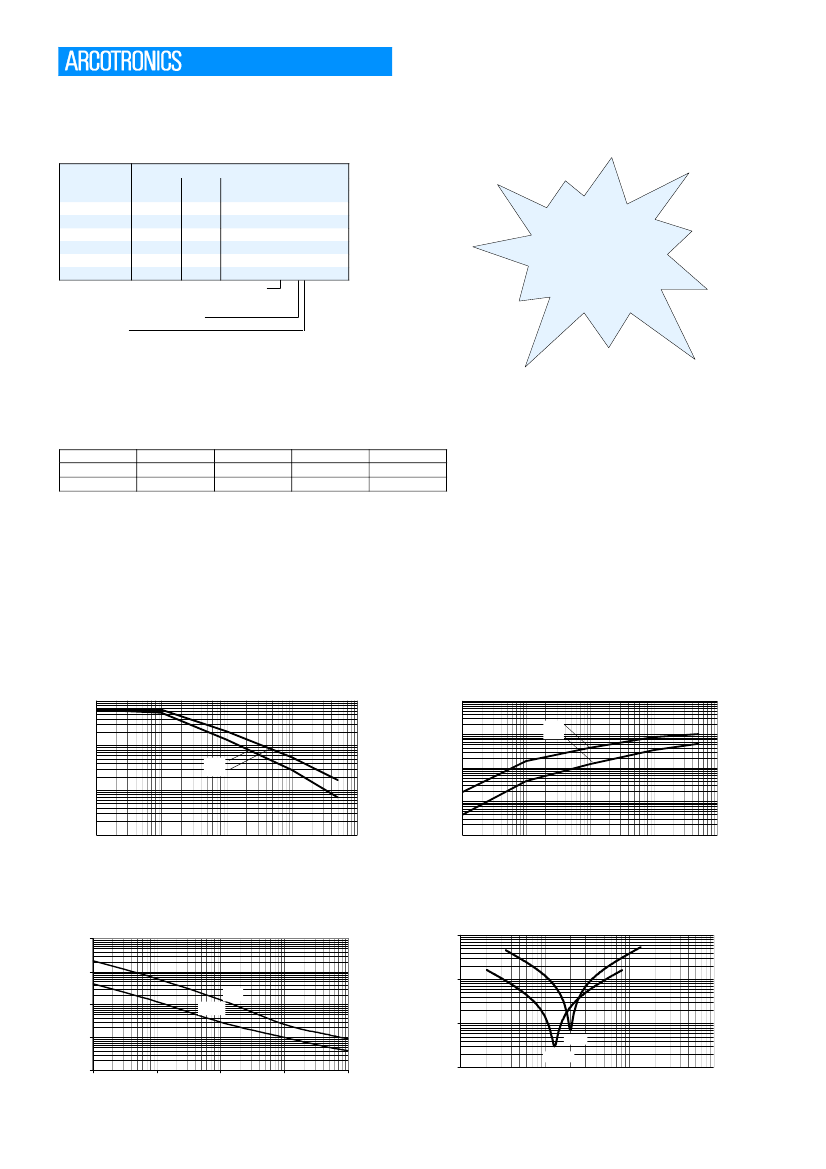

SMD - Film Capacitors

PET H.T. dielectric - LDE Series

S

Capacitance values & Voltage range

100Vdc/63Vac

Rated Cap.

1.0

mF

1.5

mF

2.2

mF

3.3

mF

4.7

mF

6.8

mF

size

code

28.24

40.30

50.40

60.54

H max

[mm]

4.1

3.4

4.8

4.3

3.7

5.3

Part Number

LDEEE4100 - B0- -

LDEEF4150 - B0- -

LDEEF4220 - B0- -

LDEEG4330- B0- -

LDEEG4390- B0- -

LDEEG4680- B0- -

Tolerance: J (5%); K (10%); M (20%)

Packing: N (Tape); M (Loose)

Internal use

Special for

DC/DC

Converter

Size conversion and tolerances

Size code

L (mm)

W (mm)

28.24

7.1

0.5

6.1

0.5

40.30

10.2

0.6

7.6

0.8

50.40

12.7

0.6

10.2

0.8

60.54

15.2

0.6

13.7

0.8

MAX. VOLTAGE (Vr.m.s.) AND CURRENT (Ir.m.s.) VERSUS FREQUENCY

(sinusoidal wave-form / *T

h

≤

85°C)

V

rms

[V]

100

100 Vdc / 63 Vac

I

rms

[A]

100

100 Vdc / 63 Vac

10

4.7µF

1 µF

4.7µF

1 µF

1

0.1

0

0.1

1

10

100

1000

f [kHz]

0.01

0.1

1

10

100

1000

f [kHz]

ESR [

Ω

]

1E+1

ESR vs. frequency (room temperature)

Z [

Ω

]

1

Impedance vs. frequency

1E+0

1µF

1E-1

4.7µF

0.1

0.01

1E-2

4.7µF

1µF

1E-3

0.1

1

10

100

0.001

f [kHz]

1000

0.1

1

10

f [MHz]

100

14
