EH13-540-FREQ-OUT9 datasheet, PDF

Datasheet> All Categories > Passive components> oscillator> EH13-540-FREQ-OUT9

EH13-540-FREQ-OUT9: DescriptionPECL 10K Output Clock Oscillator, 10MHz Min, 400MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4; CategoryPassive components oscillator; File Size80KB，2 Pages; ManufacturerConnor-Winfield; Websitehttp://www.conwin.com/

Download Datasheet Parametric Compare View All

EH13-540-FREQ-OUT9 Overview

PECL 10K Output Clock Oscillator, 10MHz Min, 400MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4

EH13-540-FREQ-OUT9 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	Connor-Winfield
Reach Compliance Code	unknown
maximum descent time	2.3 ns
Frequency Adjustment - Mechanical	NO
frequency stability	20%
Manufacturer's serial number	EH13-54
Installation features	THROUGH HOLE MOUNT
Maximum operating frequency	400 MHz
Minimum operating frequency	10 MHz
Maximum operating temperature	70 °C
Minimum operating temperature
Oscillator type	PECL 10K
Output load	50 OHM
physical size	20.27mm x 12.62mm x 6.6mm
longest rise time	2.3 ns
Nominal supply voltage	5 V
surface mount	NO
maximum symmetry	45/55 %

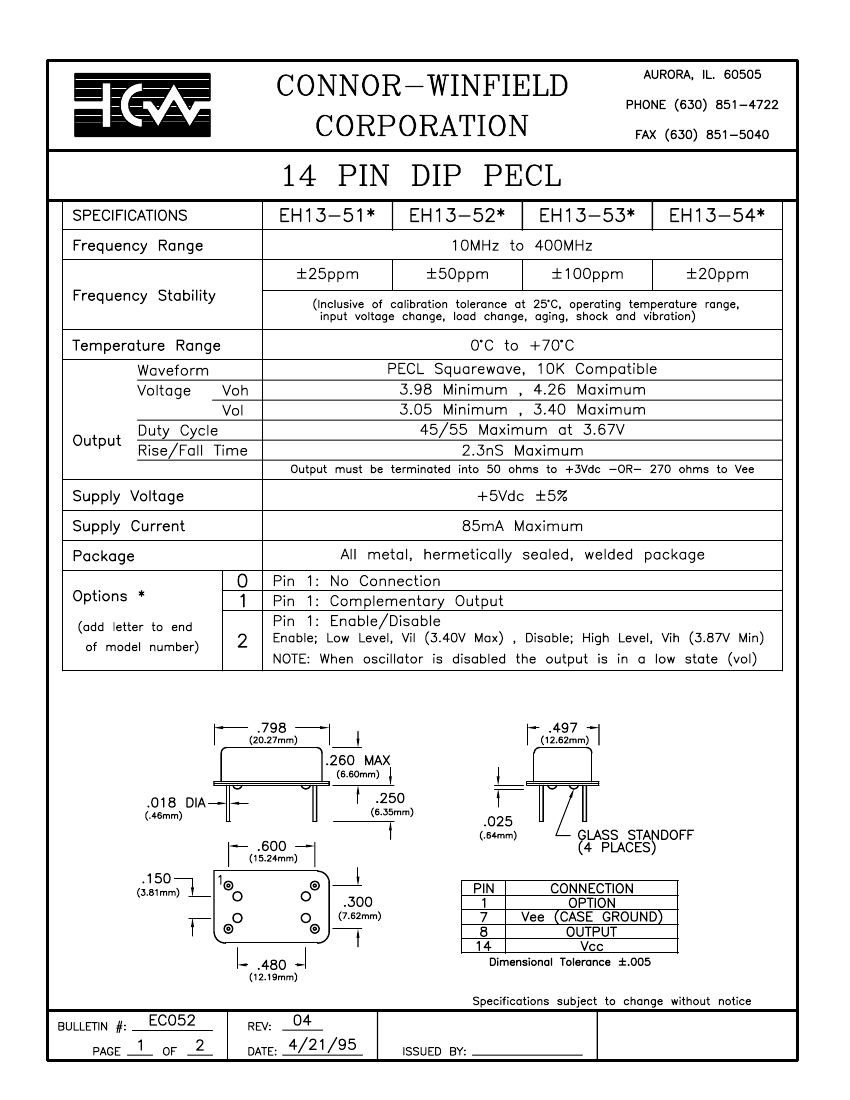

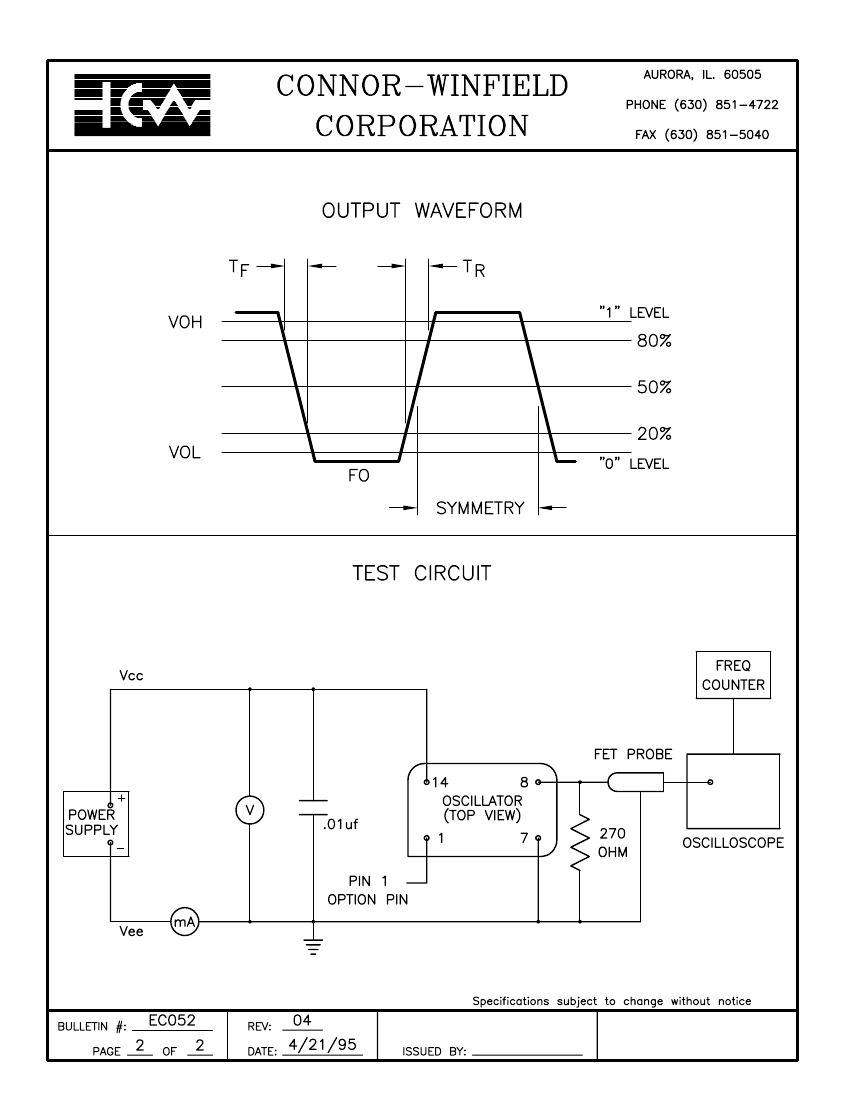

Preview

Download Datasheet

View All

EH13-540-FREQ-OUT9 Related Products

	EH13-540-FREQ-OUT9	EH13-532-FREQ-OUT9	EH13-510-FREQ-OUT9	EH13-521-FREQ-OUT9	EH13-541-FREQ-OUT9	EH13-542-FREQ-OUT9	EH13-530-FREQ-OUT9	EH13-511-FREQ-OUT9	EH13-531-FREQ-OUT9	EH13-522-FREQ-OUT9
Description	PECL 10K Output Clock Oscillator, 10MHz Min, 400MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 10MHz Min, 400MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 10MHz Min, 400MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 10MHz Min, 400MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 10MHz Min, 400MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 10MHz Min, 400MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 10MHz Min, 400MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 10MHz Min, 400MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 10MHz Min, 400MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4	PECL 10K Output Clock Oscillator, 10MHz Min, 400MHz Max, HERMETICALLY SEALED WELDED, METAL, DIP-4
Is it lead-free?	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead	Contains lead
Is it Rohs certified?	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible	incompatible
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
maximum descent time	2.3 ns	2.3 ns	2.3 ns	2.3 ns	2.3 ns	2.3 ns	2.3 ns	2.3 ns	2.3 ns	2.3 ns
Frequency Adjustment - Mechanical	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
frequency stability	20%	100%	25%	50%	20%	20%	100%	25%	100%	50%
Manufacturer's serial number	EH13-54	EH13-53	EH13-51	EH13-52	EH13-54	EH13-54	EH13-53	EH13-51	EH13-53	EH13-52
Installation features	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT	THROUGH HOLE MOUNT
Maximum operating frequency	400 MHz	400 MHz	400 MHz	400 MHz	400 MHz	400 MHz	400 MHz	400 MHz	400 MHz	400 MHz
Minimum operating frequency	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz	10 MHz
Maximum operating temperature	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C	70 °C
Oscillator type	PECL 10K	PECL 10K	PECL 10K	PECL 10K	PECL 10K	PECL 10K	PECL 10K	PECL 10K	PECL 10K	PECL 10K
Output load	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM	50 OHM
physical size	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm	20.27mm x 12.62mm x 6.6mm
longest rise time	2.3 ns	2.3 ns	2.3 ns	2.3 ns	2.3 ns	2.3 ns	2.3 ns	2.3 ns	2.3 ns	2.3 ns
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	NO	NO	NO	NO	NO	NO	NO	NO	NO	NO
maximum symmetry	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %	45/55 %
Base Number Matches	-	1	1	1	1	1	1	-	-	-
