PC156BS: Description.156cl Single Row-Straight, Elevated Thru Hole Terminal Strip-Header-Custom; File Size67KB，1 Pages; ManufacturerMajor League Electronics; Websitehttp://www.mlelectronics.com/

Download Datasheet View All

PC156BS Overview

.156cl Single Row-Straight, Elevated Thru Hole Terminal Strip-Header-Custom

Preview

Download Datasheet

View All

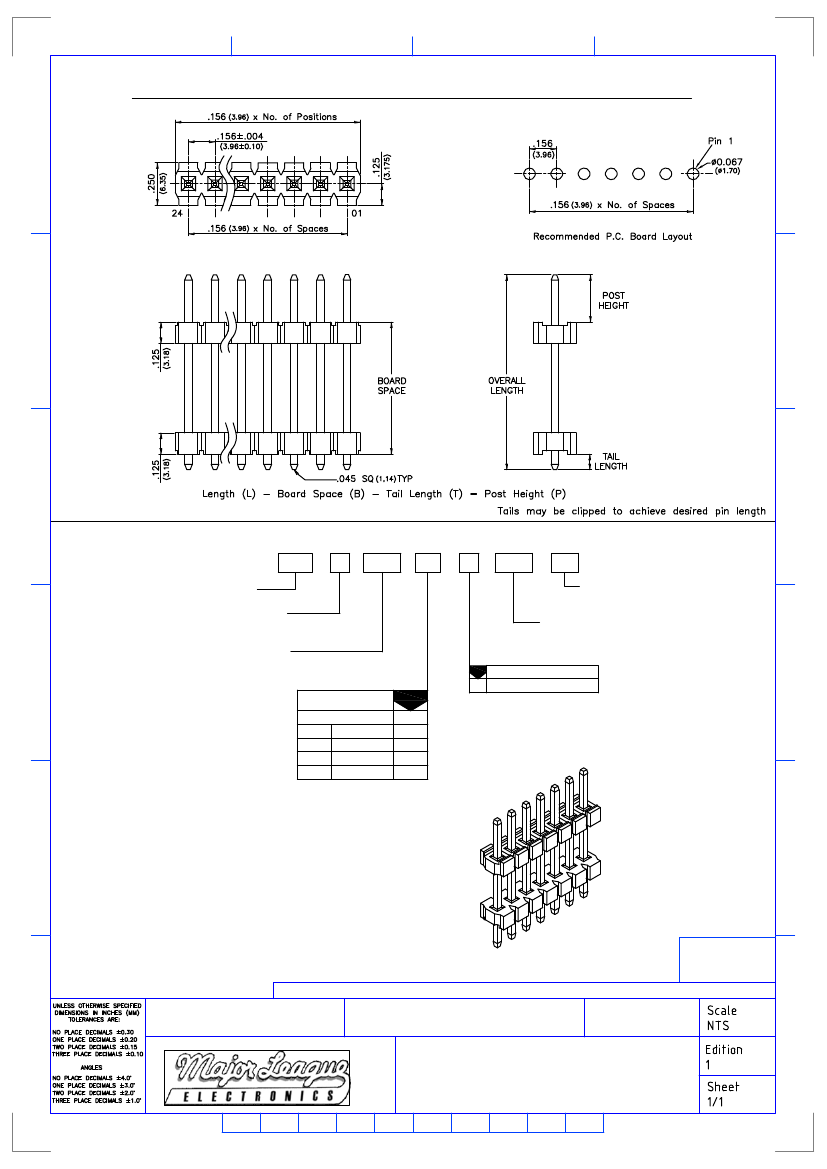

Major League Electronics .156 cl Terminal Strip Elevated Header - Straight

Ordering Information

PC156BS

- S -

XXX

- T -

XXX

- LF

02 - 24

Pins Per Row

Lead Free

Desired Board Space

Row Specification

S = Single Row

Desired Tail Length

Please specify

e.g. .100 (2.54) = 100

Please specify

e.g. .100 (2.54) = 100

Plating Options

Matte Tin All Over

Pin Options

Overall Length

14.76mm

.580

17.15mm

.674

20.55mm

.808

1.148 29.20mm

Specifications

Current Rating: 7.9 Ampere

Insulation Resistance: 5000MΩ Min.

Dielectric Withstanding: 1500V AC/DC

Contact Resistance: 20 mΩ Max.

Operating Temperature: -55°C to + 105°C

Max. Process Temperature:

IR Reflow: 280°C up to 10 secs.

Wave: 250°C up to 10 secs.

Manual Solder: 380°C up to 5 secs.

Materials

Contact Material: Phosphor Bronze

Insulator Material: LCP, UL94V-0

Plating: Matte Tin over 50µ" (1,27) Ni

Mates with:

PC156S-XX-S-02

PC156S-XX-S-04

Products cut to specific sizes are uncancellable/nonreturnable

Parts are subject to change without notice

PC156BS SERIES

.156cl Single Row - Straight, Elevated

Thru Hole Terminal Strip Header - Custom
