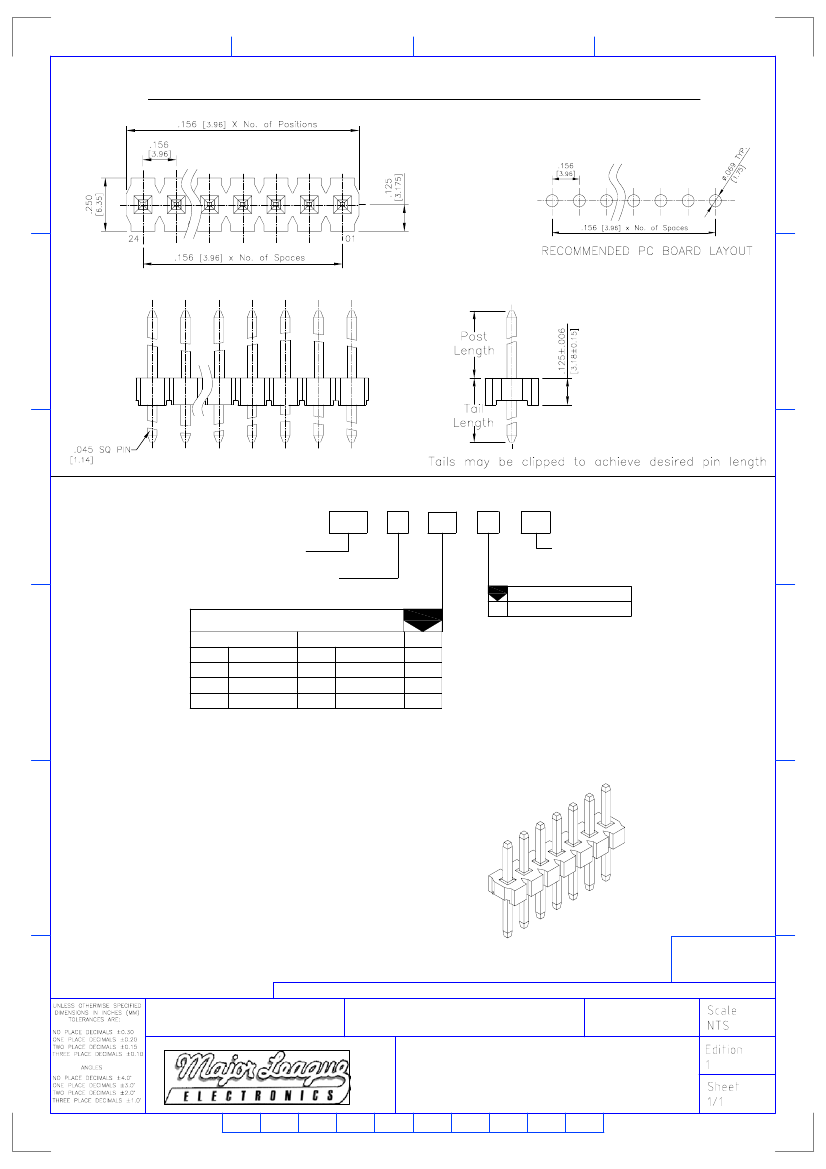

Major League Electronics .156 cl Terminal Strip Header - Straight
Ordering Information
PC156H
XX
- S -
XX
- T - LF
01 - 24
Pins Per Row
Lead Free
Plating Options
T
Matte Tin All Over
Row Specification
S = Single Row
Pin Options
Post Length
3.81mm
.150
11.43mm
.450
12.70mm
.500
20.55mm
.809
Tail Length
12.07mm
.475
4.45mm
.175
4.45mm
.175
3.96mm
.156
01
02
04
14
Specifications
Current Rating: 7.9 Ampere
Insulation Resistance: 5000MΩ Min.
Dielectric Withstanding: 1500V AC/DC
Contact Resistance: 20 mΩ Max.
Operating Temperature: -55°C to + 105°C
Max. Process Temperature:
IR Reflow: 280°C up to 10 secs.
Wave: 250°C up to 10 secs.
Manual Solder: 380°C up to 5 secs.
Materials
Contact Material: Brass
Insulator Material: LCP, UL94V-0
Plating: 120µ" Matte Tin over 50µ" (1,27) Ni
Products cut to specific sizes are uncancellable/nonreturnable
Mates with:
PC156S-XX-S-02
PC156S-XX-S-04
Parts are subject to change without notice
PC156H SERIES
.156cl Single Row - Straight
Thru Hole Terminal Strip Header
20 JUN 08
4235 Earnings Way, New Albany, Indiana, 47150, USA
1-800-782-3486 (USA/Canada/Mexico)
Tel: 812-944-7244
Fax: 812-944-7268
E-mail: mle@mlelectronics.com
Web: www.mlelectronics.com
