PE4104 Overview

3/4 inch-20 Twinax Male Connector Clamp/Solder Attachment For PE-S330

PE4104 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Maker	Pasternack Enterprises
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	RF TWINAXIAL CONNECTOR
Base Number Matches	1

Preview

Download Datasheet

View All

3/4 inch-20 Twinax Male Connector Clamp/

Solder Attachment For PE-S330

TECHNICAL DATA SHEET

3/4 inch-20 Twinax Male Connector Clamp/Solder Attachment For PE-S330

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

3/4”-20 Twinax Male

PE-S330

Clamp/Solder

Straight

PE4104

Electrical Specifications

Frequency Range, MHz

Impedance, Ohms

DC to 500

95

Mechanical Specifications

Temperature

Operating Range, deg C

Size

Length, in [mm]

Width/Dia., in [mm]

.

-40 to +60

1.9 [48.26]

0.866 [22.00]

0.151 [68.49]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

3/4”-20 Twinax Male

Brass, Gold

30µ in. minimum

Brass, Nickel

100µ in. minimum

PBT

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

3/4 inch-20 Twinax Male Connector Clamp/Solder Attachment For PE-S330 PE4104

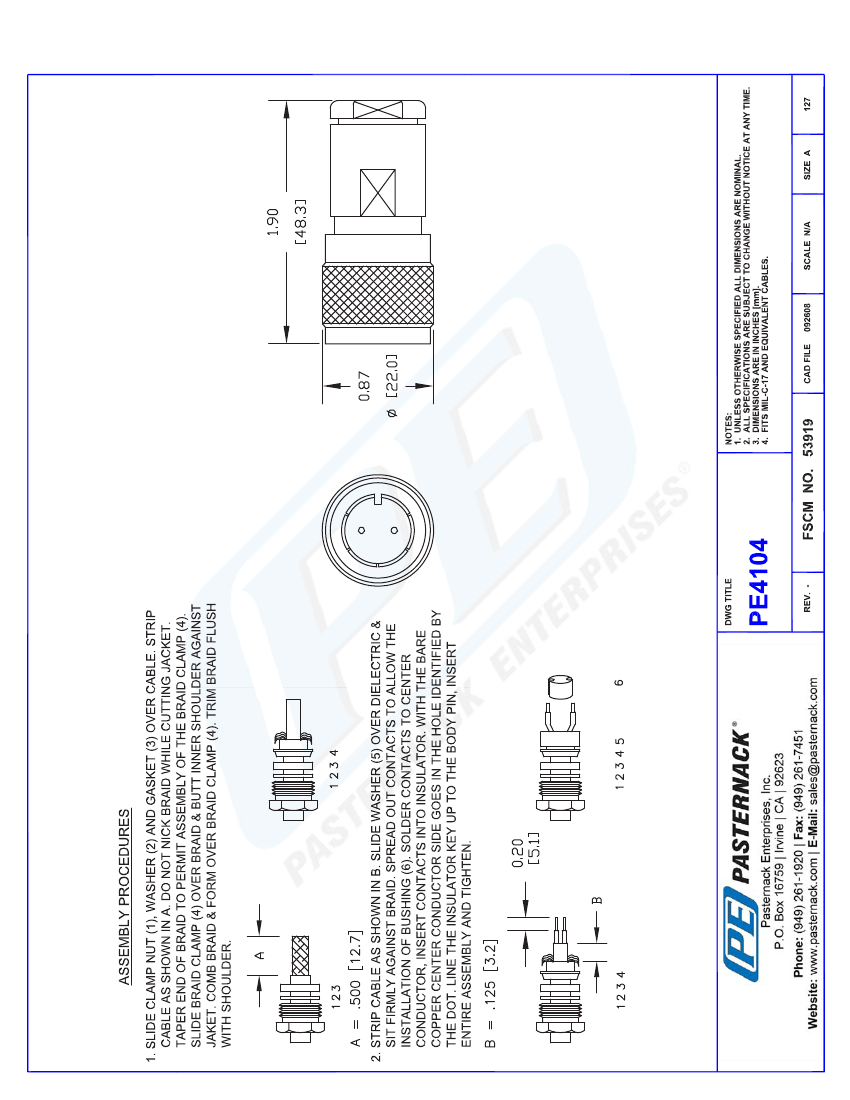

PE4104 REV

1
