PE4147: DescriptionTNC Female Bulkhead Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405, PE-SR405FLJ, .480 inch D Hole; CategoryThe connector The connector; File Size496KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet Parametric View All

PE4147 Overview

TNC Female Bulkhead Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405, PE-SR405FLJ, .480 inch D Hole

PE4147 Parametric

Parameter Name	Attribute value
Maker	Pasternack Enterprises
Reach Compliance Code	unknow
ECCN code	EAR99
Connector type	RF TNC CONNECTOR
Manufacturer's serial number	PE4147

Preview

Download Datasheet

View All

TNC Female Bulkhead Connector Solder

Attachment For PE-SR405AL, PE-SR405FL,

RG405, PE-SR405FLJ, .480 inch D Hole

TECHNICAL DATA SHEET

TNC Female Bulkhead Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405,

PE-SR405FLJ, .480 inch D Hole

Configuration

Connector

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

Mount Method

TNC Female

PE-SR405AL,PE-SR405FL,RG405,PE-SR405FLJ

Solder/Solder

Straight

Bulkhead

PE4147

Electrical Specifications

Impedance, Ohms

50

Mechanical Specifications

Size

Length, in [mm]

Width/Dia., in [mm]

.

1.18 [29.97]

0.75 [19]

0.055 [24.95]

TNC Female

Gold

Passivated Stainless Steel

PTFE

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Body Material and Plating

Dielectric Type

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/tnc-female-standard-pe-sr405al-pe-sr405fl-rg405-connector-pe4147-p.aspx

TNC Female Bulkhead Connector Solder Attachment For PE-SR405AL, PE-SR405FL, RG405, PE-SR405FLJ, .480 inch D

Hole from Pasternack Enterprises has same day shipment for domestic and International orders. We maintain 99% availability

of the industry’s broadest selection of RF, microwave and fiber optic products.

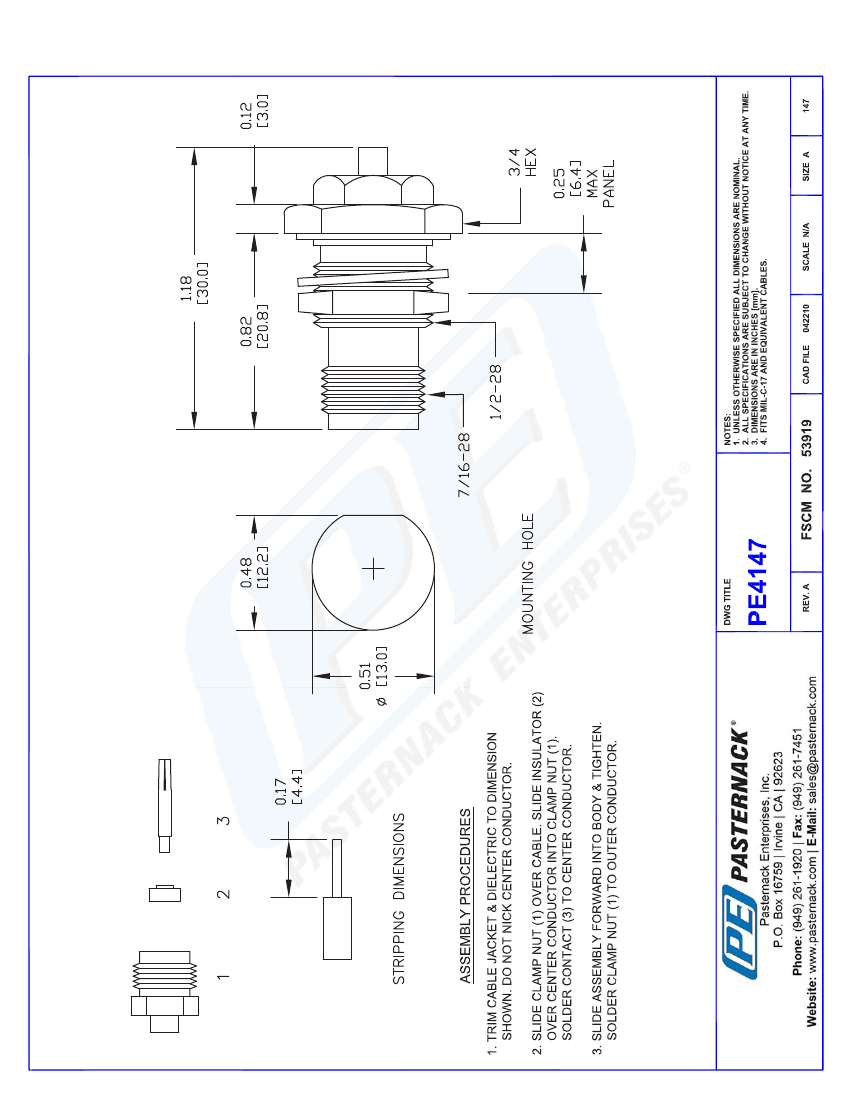

PE4147 REV

1
