PE4182: DescriptionHN Male Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393; CategoryThe connector The connector; File Size309KB，2 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/; Environmental Compliance

Download Datasheet Parametric View All

PE4182 Overview

HN Male Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393

PE4182 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Pasternack Enterprises
package instruction	ROHS COMPLIANT
Reach Compliance Code	unknow
ECCN code	EAR99
Other features	APPLICABLE CABLES: RG 213, RG 214, RG 8, RG 9, RG 225, RG 393
Characteristic impedance	50 Ω
Connector type	RF HN CONNECTOR
Contact to complete cooperation	NOT SPECIFIED
Contact point gender	MALE
Contact material	NOT SPECIFIED
Coupling type	THREADED
DIN compliance	NO
Filter function	NO
IEC compliance	NO
insulator material	POLYTETRAFLUORO ETHYLENE
MIL compliance	NO
Manufacturer's serial number	PE4182
Installation method	STRAIGHT
Installation type	CABLE
Maximum operating frequency	10 GHz
Options	GENERAL PURPOSE
Panel mounting	NO
Termination type	CLAMP/SOLDER

Preview

Download Datasheet

View All

HN Male Connector Clamp/Solder Attachment For

RG213, RG214, RG8, RG9, RG225, RG393

TECHNICAL DATA SHEET

HN Male Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393

Configuration

Connector

Connector Specification

Connector Interface Type

Cable Attachment Method (Shield/Contact)

Body Style

HN Male

MIL-STD-348A

RG213,RG214,RG8,RG9,RG225,RG393

Clamp/Solder

Straight

PE4182

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Maximum Operating Voltage, Volts

DC to 10

50

1,500

Mechanical Specifications

Temperature

Operating Range, deg C

Size

Length, in [mm]

Width/Dia., in [mm]

Weight, lbs [g]

Connector

Type

Contact Material and Plating

Contact Plating Specification

Body Material and Plating

Body Plating Specification

Dielectric Type

-65 to +165

2.23 [56.64]

0.866 [22]

0.178 [80.74]

HN Male

Brass, Gold

30µ in. minimum

Brass, Nickel

100µ in. minimum

Teflon

Compliance Certifications

(visit www.Pasternack.com for current document)

RoHS Compliant

Yes

Plotted and Other Data

Notes:

Values at 25 °C, sea level

URL:

http://www.pasternack.com/hn-male-standard-rg213-rg214-rg8-rg9-rg225-rg393-connector-pe4182-p.aspx

HN Male Connector Clamp/Solder Attachment For RG213, RG214, RG8, RG9, RG225, RG393 from Pasternack Enterprises

has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s broadest selection

of RF, microwave and fiber optic products.

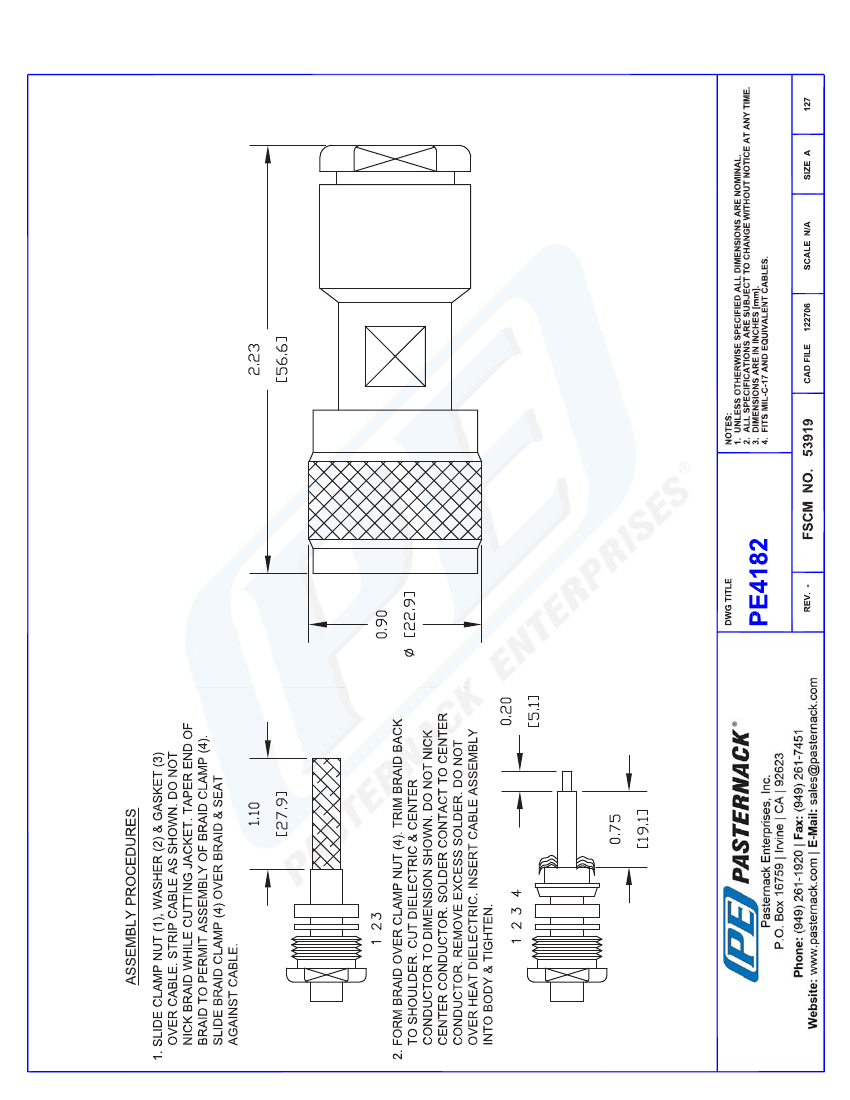

PE4182 REV

1
