10 dB Fixed Attenuator, 75 F Male To 75 F Female
Brass Nickel Body Rated To 2 Watts Up To 1 GHz
TECHNICAL DATA SHEET
PE7057-10
10 dB Fixed Attenuator, 75 F Male To 75 F Female Brass Nickel Body Rated To 2 Watts Up To 1 GHz
Configuration
Design
Connector 1
Connector 2
Body Material and Plating
Fixed, Bidirectional Attenuator
F Male
F Female
Brass, Nickel
Electrical Specifications
Frequency Range, MHz
Impedance, Ohms
Attenuation Value, dB
Maximum Input Power, Watts
Maximum VSWR
Frequency 1
Range, MHz
VSWR
Attenuation Accuracy, dB
DC to 1,000
75
10
2
1.3:1
DC to 1,000
1.3:1
± 0.5
Mechanical Specifications
Size
Length, in [mm]
Width, in [mm]
.
1.647 [41.83]
0.438 [11.13]
Connector 1
Type
Hex Size, in.
Torque, in-lbs [Nm]
F Male
7/16
15 [1.7]
Connector 2
Type
F Female
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
10 dB Fixed Attenuator, 75 F Male To 75 F Female Brass Nickel Body Rated To 2 Watts Up To
1 GHz PE7057-10
PE7057-10 REV
1
10 dB Fixed Attenuator, 75 F Male To 75 F Female
Brass Nickel Body Rated To 2 Watts Up To 1 GHz
TECHNICAL DATA SHEET
Plotted and Other Data
Notes:
Values at 25 °C, sea level
PE7057-10
10 dB Fixed Attenuator, 75 F Male To 75 F Female Brass Nickel Body Rated To 2 Watts Up To 1 GHz from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
10 dB Fixed Attenuator, 75 F Male To 75 F Female Brass Nickel Body Rated To 2 Watts Up To 1
GHz PE7057-10
URL:
http://www.pasternack.com/10db-fixed-f-male-f-female-2-watts-attenuator-pe7057-10-p.aspx
PE7057-10 REV
2
© 2013 Pasternack Enterprises All Rights Reserved
P/N
ATTEN.
FIGURE
FIGURE 1
PE7057-10

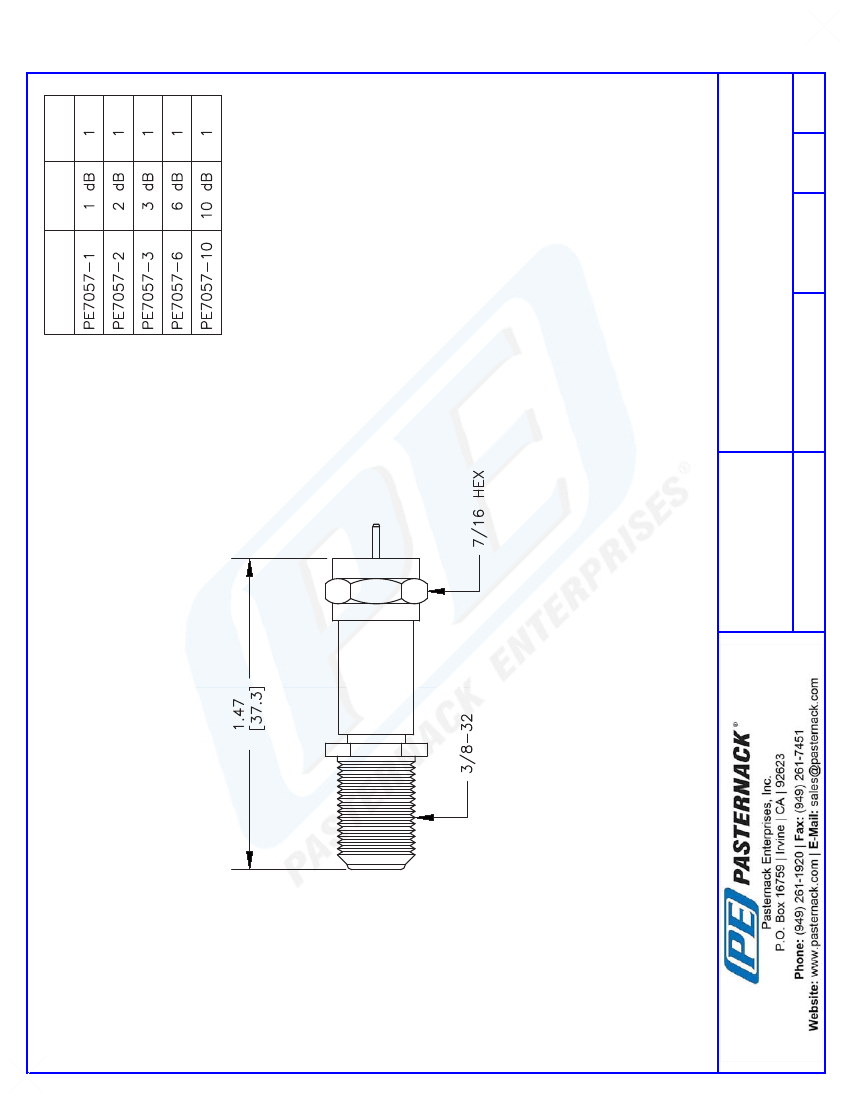

CAD Drawing
10 dB Fixed Attenuator, 75 F Male To 75 F Female Brass
Nickel Body Rated To 2 Watts Up To 1 GHz
PE7057-10 REV
DWG TITLE
PE7057
FSCM NO. 53919
NOTES:
1. UNLESS OTHERWISE SPECIFIED ALL DIMENSIONS ARE NOMINAL.
2. ALL SPECIFICATIONS ARE SUBJECT TO CHANGE WITHOUT NOTICE AT ANY TIME.
3. DIMENSIONS ARE IN INCHES [mm].
CAD FILE
083002
SCALE N/A
SIZE A
XXXX
3
