500 WATTS
POWER FACTOR CORRECTED
MULTIPLE OUTPUT, FORCED CURRENT SHARING
NMX-500
Option V
MODEL
PWR
500
500
500
500
500
500
STANDARD NMX SERIES
OUTPUT #1
+5V
+5V
+5V
+5V
+5V
+5V
@
@
@
@
@
@
75A
75A
75A
75A
75A
75A
OUTPUT #2
+12V @ 8/12A pk
+12V @ 8/12A pk
+12V @ 8/12A pk
+12V @ 8/12A pk
+15V @ 4A
+15V @ 4A
OUTPUT #3
-12V @ 4A
-12V @ 4A
-12V @ 4A
-12V @ 4A
-15V @ 4A
-15V @ 4A
OUTPUT #4
5.2V @ 5A
12V @ 5A
24V @ 3A
12V @ 5A
24V @ 3A
NMX-503-0512
NMX-504-1205
NMX-504-1212
NMX-504-1224
NMX-504-1512
NMX-504-1524
Featuring:
•
Forced current sharing for N +1
redundancy
•
Remote sense on outputs #1 and 2
•
Universal AC input
•
0.99 typical power factor
•
Dual converter design eliminates
interaction between logic and
auxiliary outputs
•
Low ripple and noise on all outputs
•
DC power good and AC power fail
signals
•
True remote inhibit
•
Monotonic turn-on and turn-off
MASS STORAGE NMX-502 SERIES*
MODEL
NMX-502-0512V
PWR
500
OUTPUT #1
+5V @ 30A
OUTPUT #2
+12V @ 30/40Apk
*Contact factory for detailed mechanical and electrical specifications. The drawings on opposite page do not
represent this NMX product. The NMX-502 features dual bus-bar outputs and integrated ”V” option.
0
50
UT
P
DMX
C INENT
D
R
FO UIVAL
EQ
SEE

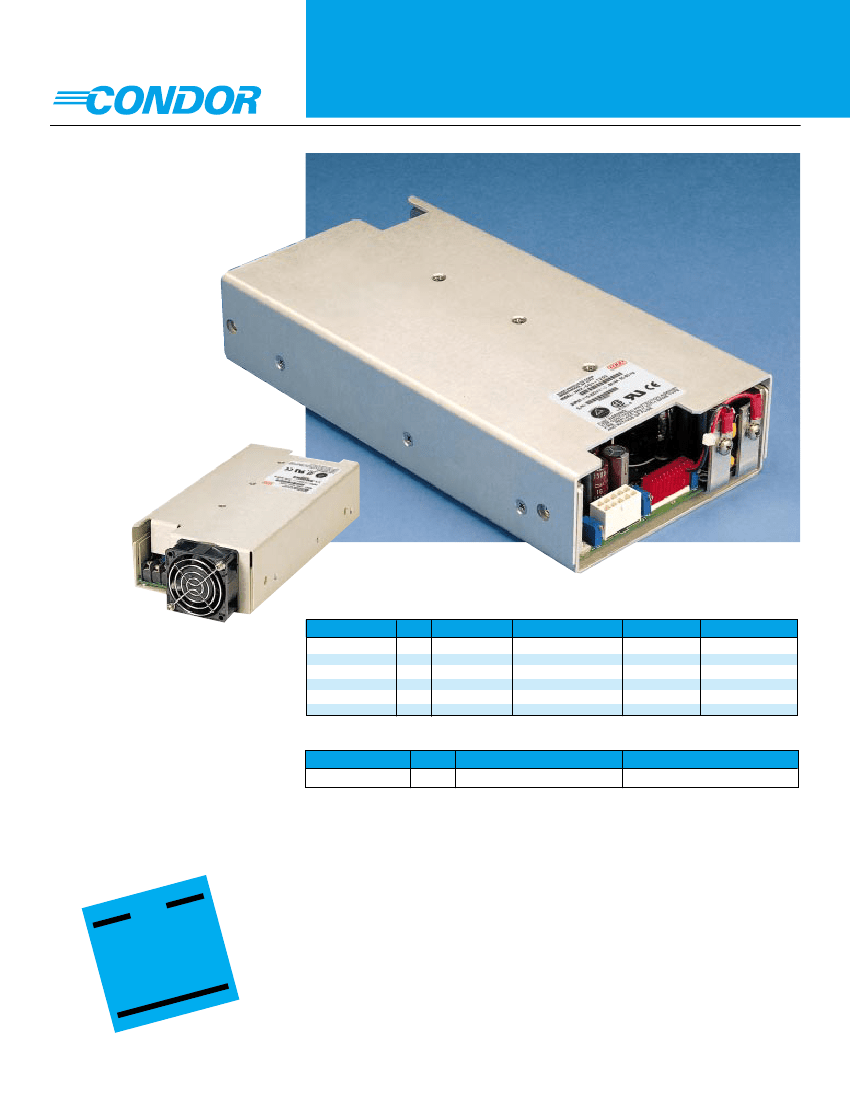

The smallest, most capable 500 W
power supply of its kind.
Overload-, overvoltage-, thermal-pro-
tection and integral covers are standard.
All NMX power supplies can be ordered
self-cooled with internal ball-bearing fans.
The NMX 350 and NMX 500 are available
without fans for use with system air
cooling.
All outputs are OEM-adjustable
and 3 V main outputs are available.
Integral RFI filters allow every NMX power
supply to meet conducted emissions of
EN55022 class B and FCC Class A.
Compliance is also provided for interna-
tional safety requirements including IEC
950 and the requirements of IEC 555-2
for harmonic line distortion.
Condor D.C. Power Supplies, Inc., A subsidiary of SL Industries, Inc. 805-486-4565 • (800) 235-5929 Fax: (805) 487-8911 http://www.condorpower.com
500 WATTS
9.65”x 5”x 2.05”
NMX-500
NMX-500
3.7 lbs - 1.7 kgs
NMX-500 with Option F
3.9 lbs - 1.8 kgs
SPECIFICATIONS: ALL MODELS
INPUT
AC Input:
90-264 Vac continuous range, 47 to 63 Hz. Internally fused for 10 A.
Power Factor:
0.99 typical at full load. Meets EN61000-3-2.
Inrush:
Cold start AC current is less than 30 A at 115 Vac and 60 A at 230 Vac. Limited by
thermistor.
Brownout Protection:
Holds regulation to 85 Vac.
Holdup Time:
20 ms minimum after removal of power at full load.
Efficiency:
75% typical.
AC Power Fail:
Provides TTL “0” 5 ms before output voltage goes out of regulation band
upon loss of ac power.
OUTPUT
Adjustability:
Outputs #1 and 2 user adjustable ±5% minimum. Output #3 tracks #2; initial
accuracy ±4%. Output #4 user adjustable ±5% minimum, or +5% only if voltage is 5.2 V
Line & Load Reg:
Outputs #1, 2, and 4 hold ±1% over AC input range and 0 to 100% load
change. Output #3 requires 20% minimum load on outputs #2 and 3 to hold ±4%.
Ripple & Noise:
Less than 1% p-p or 100 mV, whichever is greater.
Remote Sense
(Outputs #1 and 2): Compensates for 250 mV total line drop. Open sense lead
protection. (See Redundancy, below.)
Temperature Coefficient
(Outputs #1, 2, and 4): 0.02% per degree C.
Stability:
0.1% over 8 hours after 30 minutes warm-up.
Transient Response
(Outputs #1, 2, and 4): Output voltage returns to within 1% in less than
500 µs for a 50% load change. Peak transient does not exceed 5%.
Overload Protection:
All outputs are protected against overload and short circuit. Automatic
recovery upon removal of fault.
Overvoltage Protection
(Outputs #1 and 2): Protects load against power supply induced
overvoltage. Trip point is factory set so that output voltage cannot exceed 136% of nominal.
Peak Output Current:
Dual current ratings define continuous and peak currents. The peak
current shown can be delivered for a maximum period of 30 seconds.
Remote Inhibit:
Contact closure to the negative sense line or a TTL level “0” turns off DC
outputs.
DC Power Good:
Provides a TTL “1” open collector when output #1 is above 4.6 V nominal.
Redundancy:
External OR-ing diodes and forced current sharing on output #1 provide “N+1”
capability. Remote sense (+S) compensates for additional 0.6 V diode voltage drop. When
the current sharing terminal is connected between units, current sharing remains within
10% of the unit’s full output current rating. For hot swap applications see TMX 350.
Reverse Voltage:
Protected against reverse voltage up to supply current rating.
ENVIRONMENTAL
Thermal Protection:
Shuts down power supply if overheated. Automatic recovery.
Temperature Range:
0° to 50°C at full ratings.
Safety Agencies:
Most models are approved to UL1950; CSA 22.2 #234; IEC 950 and TÜV
EN60950, Class 1 SELV., CE 72/23/EEC/93/68EEC (low voltage directive).
Conducted RFI:
Meets FCC Part 15, Subpart J, Class A; EN55022 Class B; CISPR 22 Class B.
Output Isolation:
Isolated from ground 50 Vdc.
Cooling:
30 CFM required to achieve full ratings.

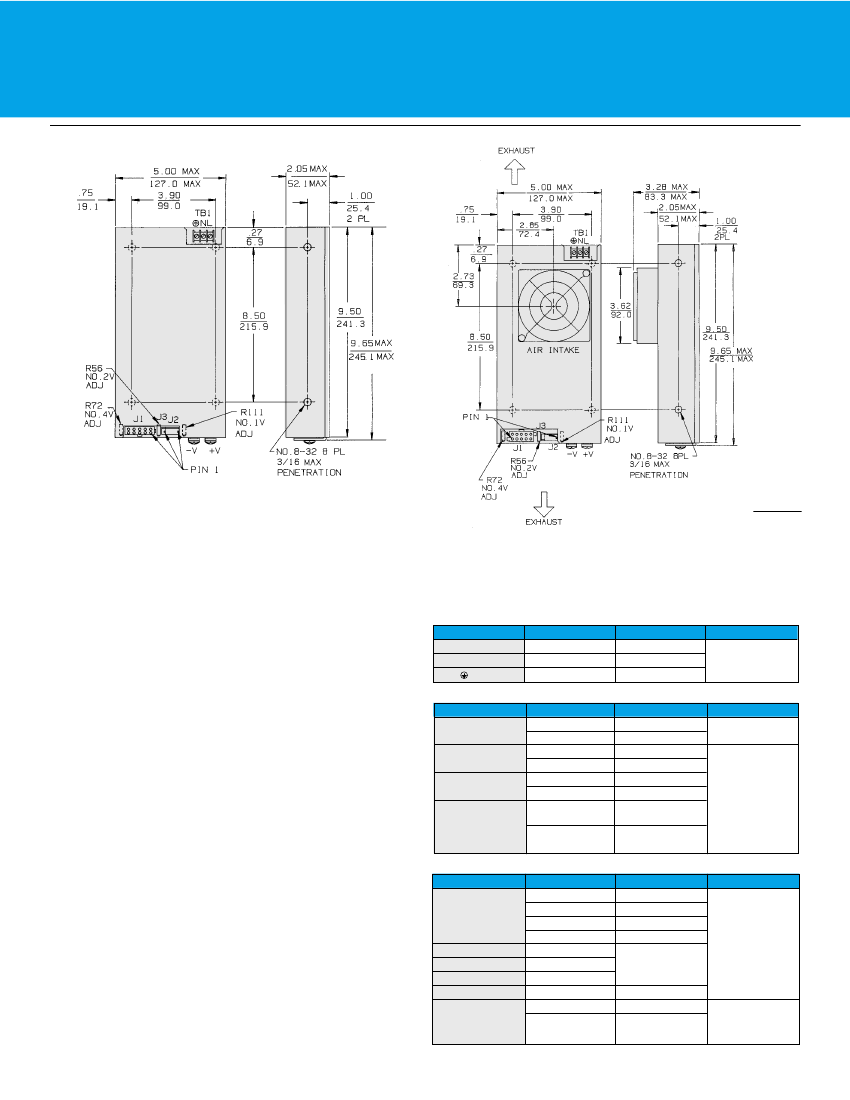

Dimensions:
OPTIONS:
Inches
Millimeters
Option “F”, Fan/Cover Assembly:
Cover with integral ball-bearing fan provides proper cooling
to achieve full ratings at 50°C ambient temperature. 2.05” dimension increases to 3.28”.
Option “V”, Fan/Cover Assembly:
Low profile, end venting cover with integral ball-bearing fan.
2.05” dimension increases to 2.50”, and 9.65” dimension increases to 11”.
Consult factory for other available options.
AC INPUT (90-264 VAC Continuous Range)
FUNCTION
TB1- (L )
TB1- (N)
TB1- ( )
115 VAC
Line
Neutral
Safety Ground
230 VAC
Line 1
Line 2
Safety Ground
CONNECTOR
Barrier strip
#6-32 screws
3/8” centers
DC OUTPUT
FUNCTION
Output #1
Output #2
Output #3
Output #4
LOCATION
Terminal marked +V
Terminal marked -V
J1-5, 10
J1-4, 9
J1-3, 8
J1-4, 9
J1-2, 7
J1-1, 6
NOTES
Main Output
Rtn (Common)
Rtn (Common)
Rtn (Common)
(+) Floating
Output
(–) Floating
Output
AMP #770743-1
mates with connector
#770580-1 with
sockets #171639-1
(AWG #20 to #16)
CONNECTOR
Bus bars
#8-32 screws
STATUS AND CONTROL
FUNCTION
Remote Sense
LOCATION
J2-2
J2-1
J2-8
J2-7
J2-3
J2-4
J2-5
J2-6
J3-1
J3-2
NOTES
Output #1 Sense
Output #1 Sense Rtn
Output #2 Sense
Output #2 Sense Rtn
Reference to
Common
CONNECTOR
AMP MTA type
#640456-8 pin
header (locking)
DC Power Good
AC Power Fail
Inhibit
Current Share
Aux. Fan Voltage
(Not available with
“V” or “F” options)
+12V @ 0.5A Output
Rtn (Common)
AMP MTA type
#640456-2 pin
header (locking)
