SMA Male Connector Solder (Without Contact)
Attachment For PE-SR402AL, PE-SR402FL, RG402
TECHNICAL DATA SHEET
Configuration
Connector
Connector Specification
Connector Interface Type
Cable Attachment Method (Shield/Contact)
Body Style
SMA Male
MIL-STD-348A
PE-SR402AL,PE-SR402FL,RG402
Solder (Without Contact)
Straight
PE4007
SMA Male Connector Solder (Without Contact) Attachment For PE-SR402AL, PE-SR402FL, RG402
Electrical Specifications
Frequency Range, GHz
Impedance, Ohms
Maximum VSWR
Maximum Operating Voltage, Volts
DC to 18
50
1.23:1
500
Mechanical Specifications
Temperature
Operating Range, deg C
Size
Length, in [mm]
Width/Dia., in [mm]
.
-65 to +165
0.44 [11.18]
0.312 [8]
0.006 [2.72]
SMA Male
Stainless Steel, Nickel
5/16
8 [0.9]
Stainless Steel, Gold
Weight, lbs [g]
Connector
Type
Coupling Nut Material and Plating
Hex Size, in.
Torque, in-lbs [Nm]
Body Material and Plating
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/sma-male-standard-pe-sr402al-pe-sr402fl-rg402-connector-pe4007-p.aspx
SMA Male Connector Solder (Without Contact) Attachment For PE-SR402AL, PE-SR402FL, RG402 from Pasternack
Enterprises has same day shipment for domestic and International orders. We maintain 99% availability of the industry’s
broadest selection of RF, microwave and fiber optic products.
PE4007 REV
1
PE4007

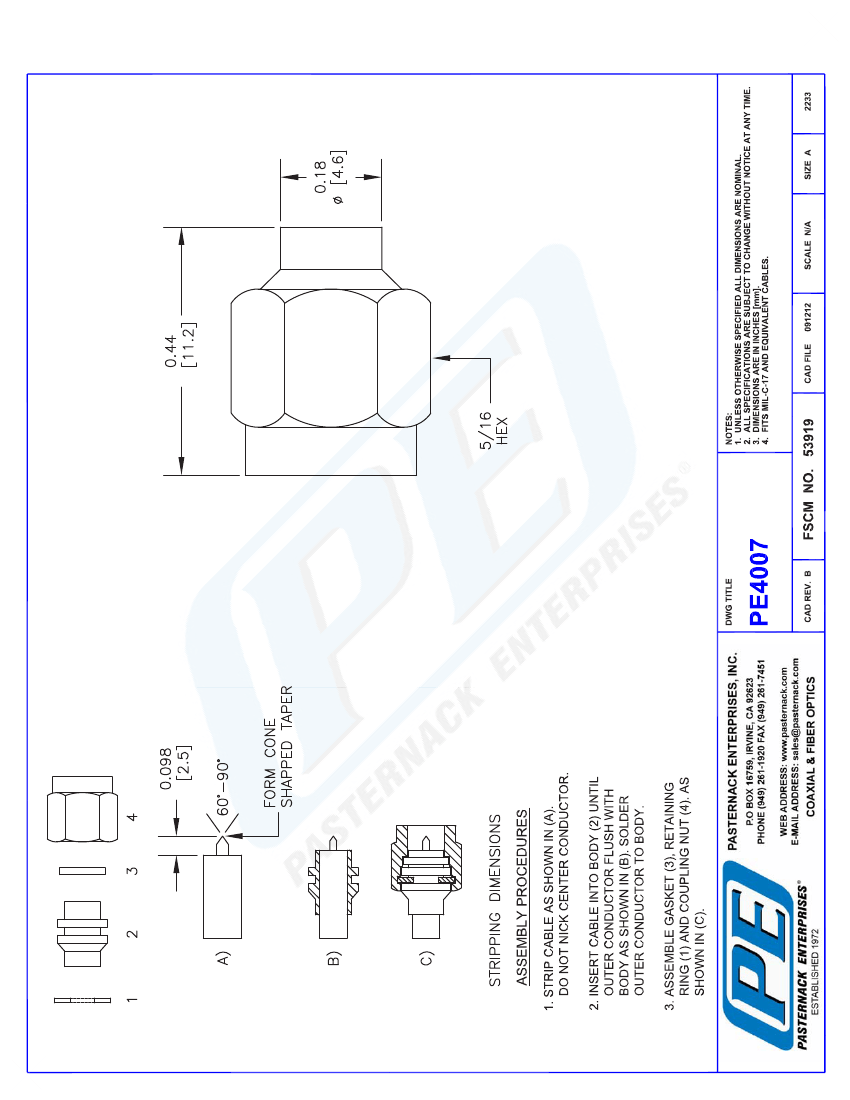

CAD Drawing
SMA Male Connector Solder (Without Contact) Attachment
For PE-SR402AL, PE-SR402FL, RG402
© 2012 Pasternack Enterprises All Rights Reserved
PE4007 REV
2
