PLUS16L8/BSA-T datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Programmable logic devices> Programmable logic> PLUS16L8/BSA-T

PLUS16L8/BSA-T: DescriptionOT PLD, 12ns, TTL, CDFP20; CategoryProgrammable logic devices Programmable logic; File Size348KB，10 Pages; ManufacturerYAGEO; Websitehttp://www.yageo.com/

Download Datasheet Parametric Compare View All

PLUS16L8/BSA-T Overview

OT PLD, 12ns, TTL, CDFP20

PLUS16L8/BSA-T Parametric

Parameter Name	Attribute value
Maker	YAGEO
package instruction	,
Reach Compliance Code	unknown
ECCN code	3A001.A.2.C
Other features	SECURITY FUSE
JESD-30 code	R-CDFP-F20
Dedicated input times	10
Number of I/O lines	6
Number of terminals	20
Maximum operating temperature	125 °C
Minimum operating temperature	-55 °C
organize	10 DEDICATED INPUTS, 6 I/O
Output function	COMBINATORIAL
Package body material	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR
Package form	FLATPACK
Programmable logic type	OT PLD
propagation delay	12 ns
Certification status	Not Qualified
Maximum supply voltage	5.5 V
Minimum supply voltage	4.5 V
Nominal supply voltage	5 V
surface mount	YES
technology	TTL
Temperature level	MILITARY
Terminal form	FLAT
Terminal location	DUAL

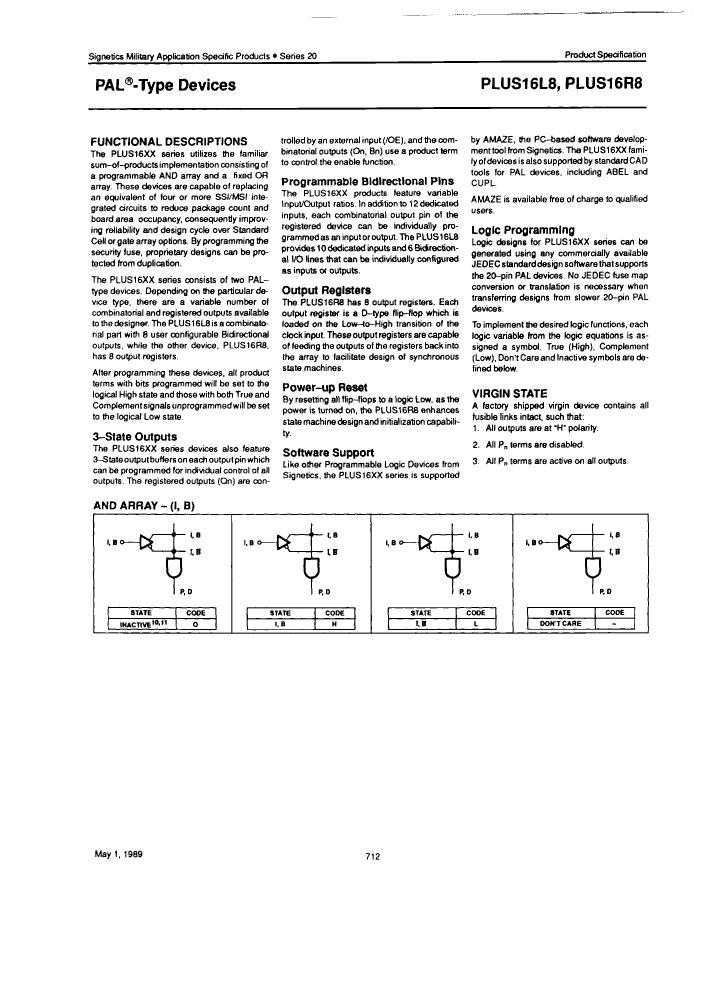

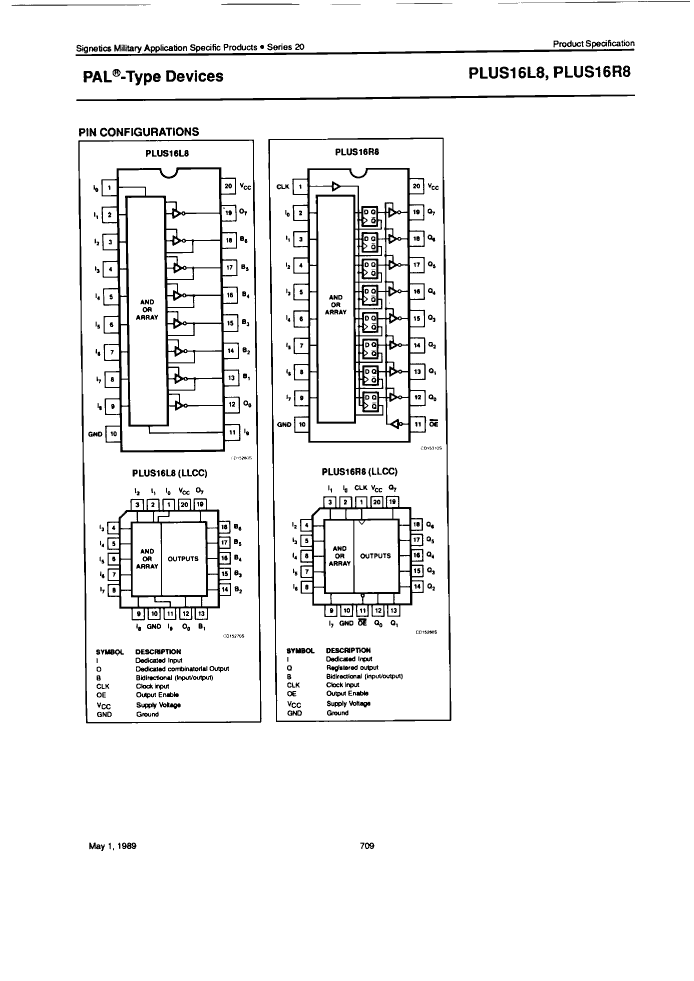

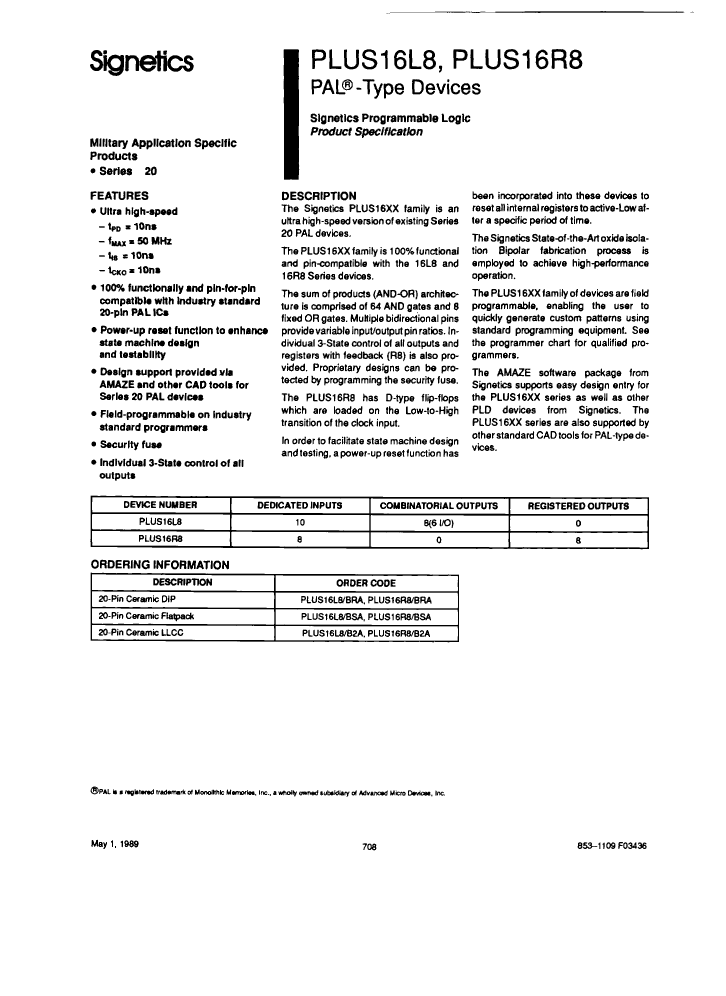

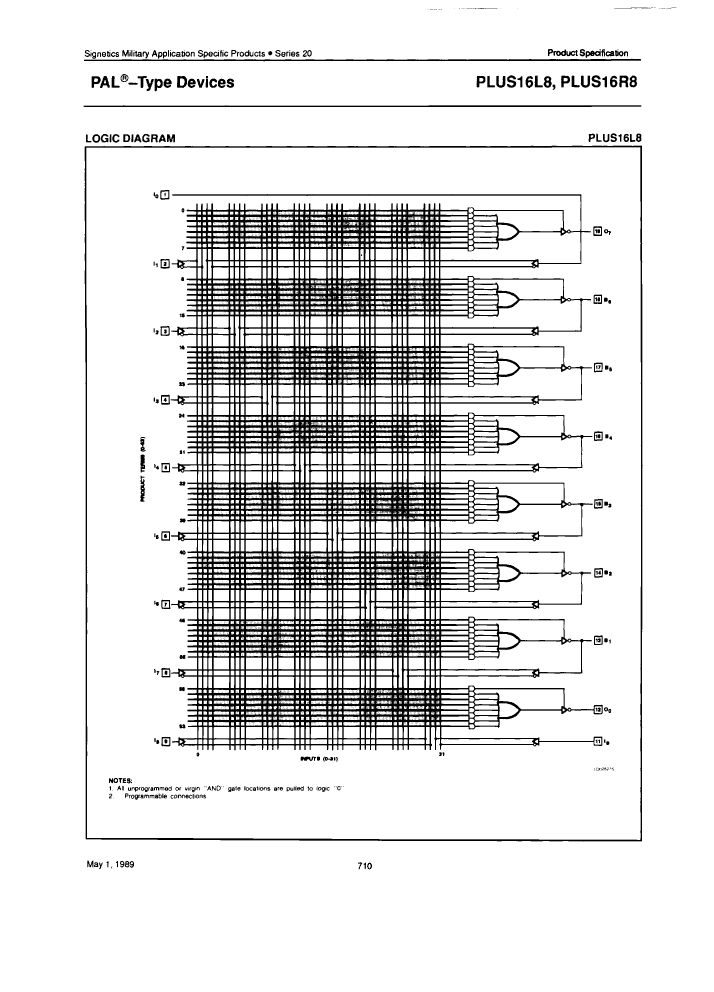

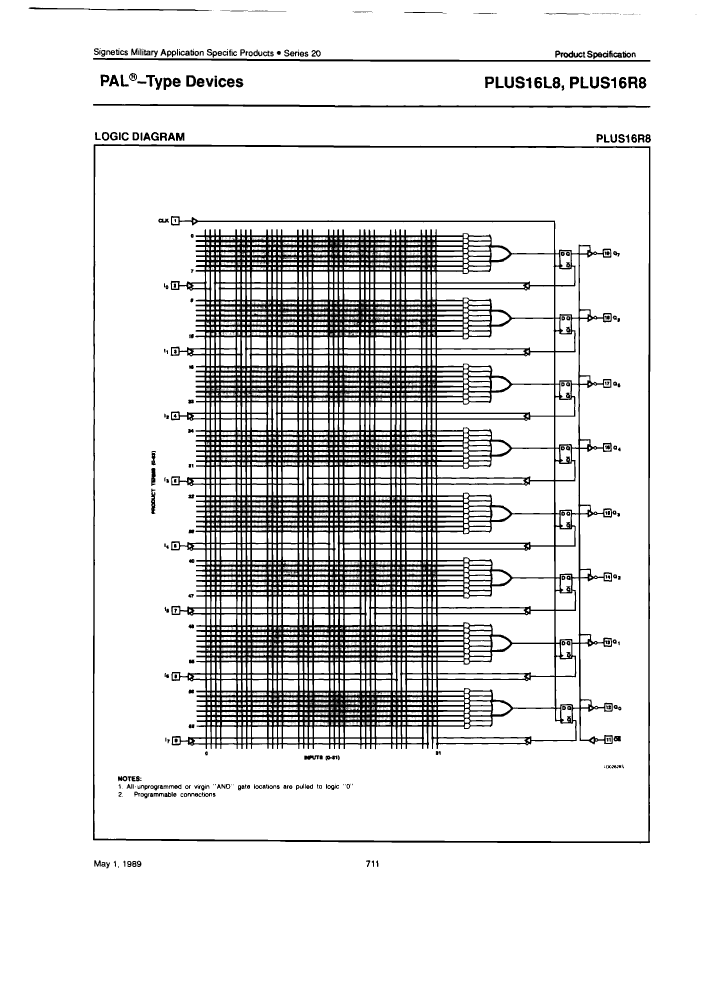

Preview

Download Datasheet

View All

PLUS16L8/BSA-T Related Products

	PLUS16L8/BSA-T	PLUS16L8/BRA	PLUS16R8/BRA	PLUS16R8/BSA-T	PLUS16R8/BSA	PLUS16R8/B2A-T	PLUS16R8/B2A	PLUS16L8/B2A	PLUS16L8/B2A-T	PLUS16L8/BSA
Description	OT PLD, 12ns, TTL, CDFP20	OT PLD, 12ns, TTL, CDIP20	OT PLD, 12ns, TTL, CDIP20	OT PLD, 12ns, TTL, CDFP20	OT PLD, 12ns, TTL, CDFP20,	OT PLD, 12ns, TTL, CQCC20	OT PLD, 12ns, TTL, CQCC20	OT PLD, 12ns, TTL, CQCC20	OT PLD, 12ns, TTL, CQCC20	OT PLD, 12ns, TTL, CDFP20
Maker	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO	YAGEO
Reach Compliance Code	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown	unknown
ECCN code	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C	3A001.A.2.C
Other features	SECURITY FUSE	SECURITY FUSE	SECURITY FUSE	SECURITY FUSE	SECURITY FUSE	SECURITY FUSE	SECURITY FUSE	SECURITY FUSE	SECURITY FUSE	SECURITY FUSE
JESD-30 code	R-CDFP-F20	R-CDIP-T20	R-CDIP-T20	R-CDFP-F20	R-CDFP-F20	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20	S-CQCC-N20	R-CDFP-F20
Dedicated input times	10	10	8	8	8	8	8	10	10	10
Number of terminals	20	20	20	20	20	20	20	20	20	20
Maximum operating temperature	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C	125 °C
Minimum operating temperature	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C	-55 °C
organize	10 DEDICATED INPUTS, 6 I/O	10 DEDICATED INPUTS, 6 I/O	8 DEDICATED INPUTS, 0 I/O	8 DEDICATED INPUTS, 0 I/O	8 DEDICATED INPUTS, 0 I/O	8 DEDICATED INPUTS, 0 I/O	8 DEDICATED INPUTS, 0 I/O	10 DEDICATED INPUTS, 6 I/O	10 DEDICATED INPUTS, 6 I/O	10 DEDICATED INPUTS, 6 I/O
Output function	COMBINATORIAL	COMBINATORIAL	REGISTERED	REGISTERED	REGISTERED	REGISTERED	REGISTERED	COMBINATORIAL	COMBINATORIAL	COMBINATORIAL
Package body material	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED	CERAMIC, METAL-SEALED COFIRED
Package shape	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	RECTANGULAR	SQUARE	SQUARE	SQUARE	SQUARE	RECTANGULAR
Package form	FLATPACK	IN-LINE	IN-LINE	FLATPACK	FLATPACK	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	CHIP CARRIER	FLATPACK
Programmable logic type	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD	OT PLD
propagation delay	12 ns	12 ns	12 ns	12 ns	12 ns	12 ns	12 ns	12 ns	12 ns	12 ns
Certification status	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified	Not Qualified
Maximum supply voltage	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V	5.5 V
Minimum supply voltage	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V	4.5 V
Nominal supply voltage	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V	5 V
surface mount	YES	NO	NO	YES	YES	YES	YES	YES	YES	YES
technology	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL	TTL
Temperature level	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY	MILITARY
Terminal form	FLAT	THROUGH-HOLE	THROUGH-HOLE	FLAT	FLAT	NO LEAD	NO LEAD	NO LEAD	NO LEAD	FLAT
Terminal location	DUAL	DUAL	DUAL	DUAL	DUAL	QUAD	QUAD	QUAD	QUAD	DUAL
