Product Family:
Part Number Series:
Single Ended Bessel Loss Equalizer Series
EF2A51A###B
Construction:
•
High Purity Polished Alumina
•
Nickel alloy thin-film resistive
element
•
Epoxy-resin overcoat
Features:
•
0603 package size
•
RoHS compliant/Pb-free
•
High volume production, suitable
for commercial and special
applications
Description:
This specification applies to a generalized family of passive element networks performing equalization. These networks
compensate the loss in high speed data transmission media. This component is a 0603 package with an 0402 footprint
intended for SMT assembly. This series covers application data rates of 2.5, 3.125, 5.0, 6.25, 10.0, 12.5 Gb/s, for Bessel
function losses of 3, 6, 9, 12 dB.
Applications include high speed cables, backplanes, test equipment, and optical
modules. Custom precision equalization for other loss functions are available.
This product is currently only available with an electrode finish of gold (Au) over Nickel (Ni). This product is fully RoHS
compliant.

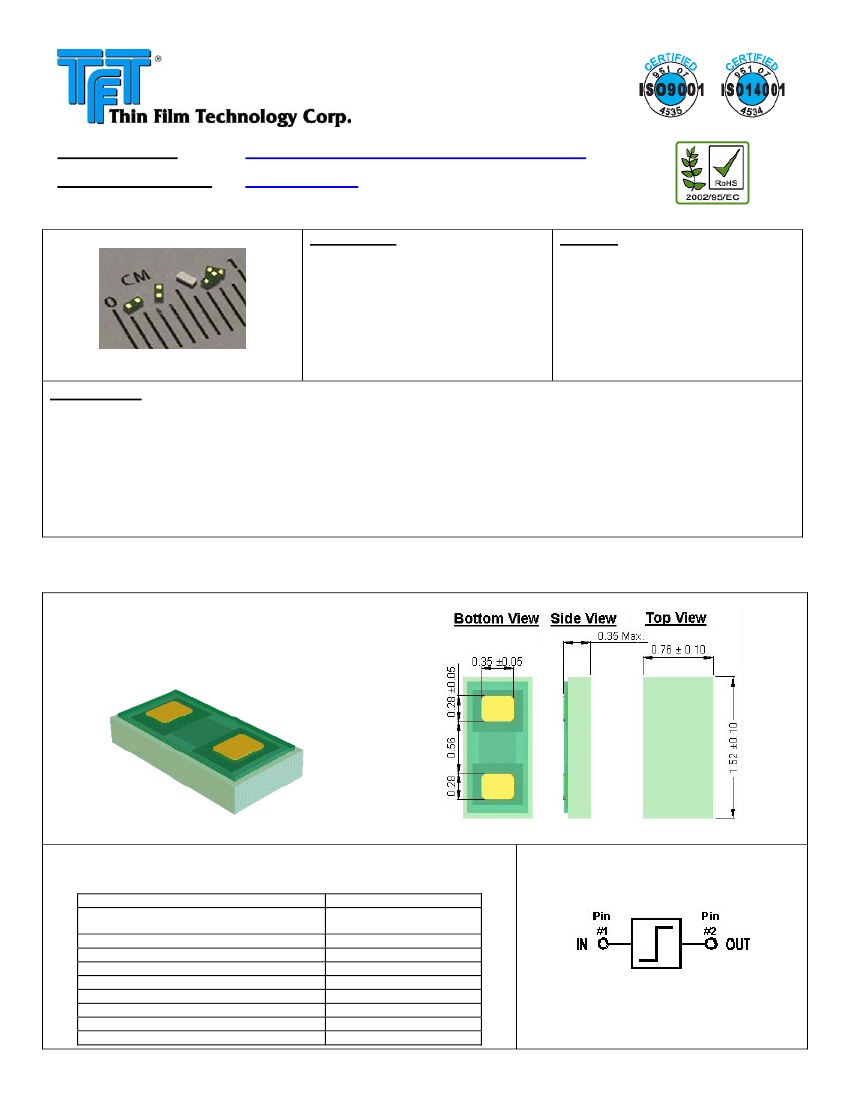

Product Dimensions, Electrical Specifications & Schematic:
Electrical Specifications:
Type
Attenuation at 50 MHz (Low Frequency
Attenuation)
Attenuation at (bit rate)
Bandwidth
Resultant Max Ripple thru 1/4 Bit Rate
Reference Impedance
Rated Power
Insulation Resistance
Operating Temperature
Storage Temperature
Absorptive Low Pass
-3, -6, -9, -12 dB
(tolerance: +/- 1.0 dB)
-1.0 dB max
20 GHz (-1.0 dB Max)
1.0 dB
50
Ω
0.10 Watt
> 100 MΩ @ 50 Vdc
0
-40 to +85 C
0
-55 to +125 C
Schematic:

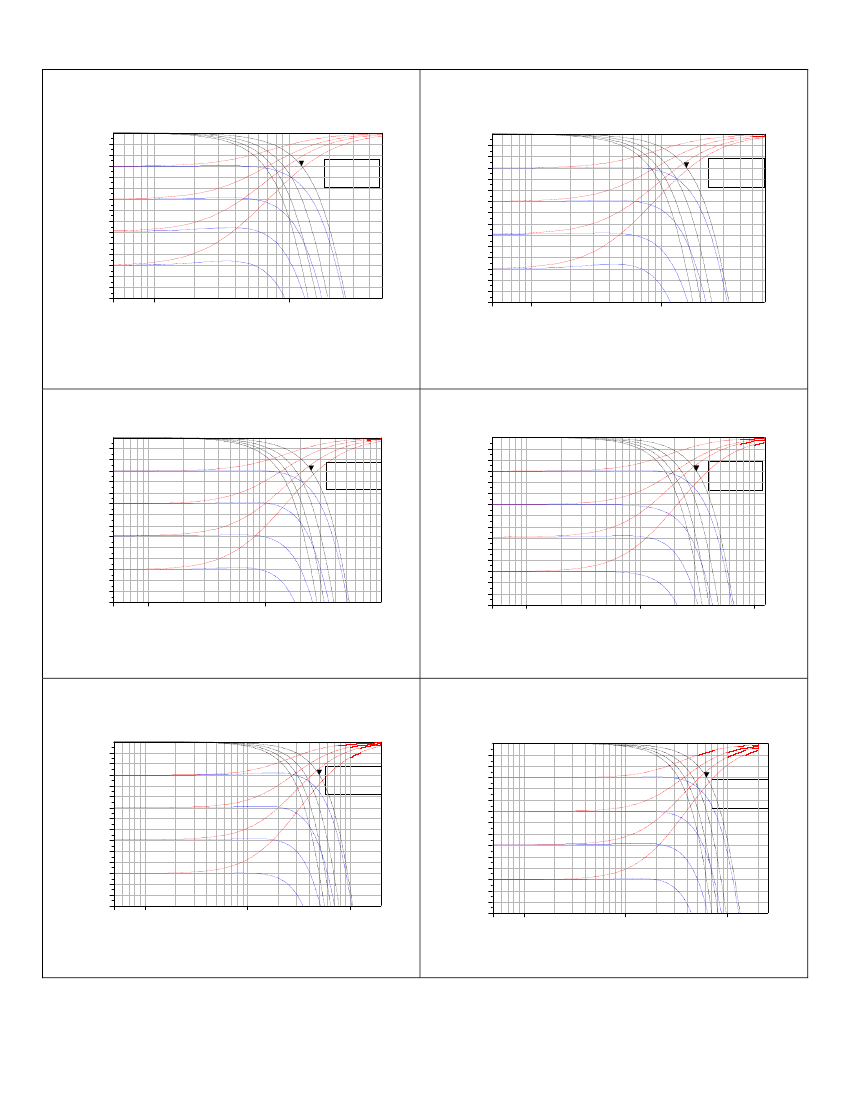

Typical Performance Data:
3,6,9,12dB Equalizers for 2.5Gb/s Applications
0
-1
-2
-3
-4
-5
-6
3,6,9,12dB Equalizers for 3.125Gb/s Applications
0
-1
m1
m1
freq= 1.250GHz
dB(S(4,3))=-3.000
dindex=1.000000
-2
-3
-4
-5
-6
m1
m1
freq=1.563GHz
dB(S(4,3))=-3.000
dindex=5.000000
dB(S(6,5))
dB(S(4,3))
dB(S(2,1))
-7
-8
-9
-10
-11
-12
-13
-14
-15
1E8
1E9
5E9
dB(S(6,5))
dB(S(4,3))
dB(S(2,1))
-7
-8
-9
-10
-11
-12
-13
-14
-15
1E8
1E9
6E9
freq, Hz
freq, Hz
3,6,9,12dB Equalizers for 5.0Gb/s Applications
0
-1
-2
-3
-4
-5
-6
3,6,9,12dB Equalizers for 6.25Gb/s Applications
0
-1
m1
m1
freq= 2.500GHz
dB(S(4,3))=-3.000
dindex=9.000000
-2
-3
-4
-5
-6
m1
m1
freq=3.125GHz
dB(S(4,3))=-3.000
dindex=13.000000
dB(S(6,5))
dB(S(4,3))
dB(S(2,1))
-7
-8
-9
-10
-11
-12
-13
-14
-15
1E8
1E9
1E10
dB(S(6,5))
dB(S(4,3))
dB(S(2,1))
-7
-8
-9
-10
-11
-12
-13
-14
-15
1.0E8
1.0E9
1.0E10
1.3E10
freq, Hz
freq, Hz
3,6,9,12dB Equalizers for 10.0Gb/s Applications
0
-1
-2
-3
-4
-5
-6
3,6,9,12dB Equalizers for 12.5Gb/s Applications
0
-1
m1 m1
freq=5.000GHz
dB(S(4,3))=-3.000
dindex=17.000000
-2
-3
-4
-5
-6
m1
m1
freq= 6.250GHz
dB(S(4,3))=-3.000
dindex=21.000000
dB(S(6,5))
dB(S(4,3))
dB(S(2,1))
-7
-8
-9
-10
dB(S(6,5))
dB(S(4,3))
dB(S(2,1))
1E8
1E9
1E10
2E10
-7
-8
-9
-10
-11
-12
-13
-14
-15
-11
-12
-13
-14
-15
1E8
1E9
1E10
3E10
freq, Hz
freq, Hz

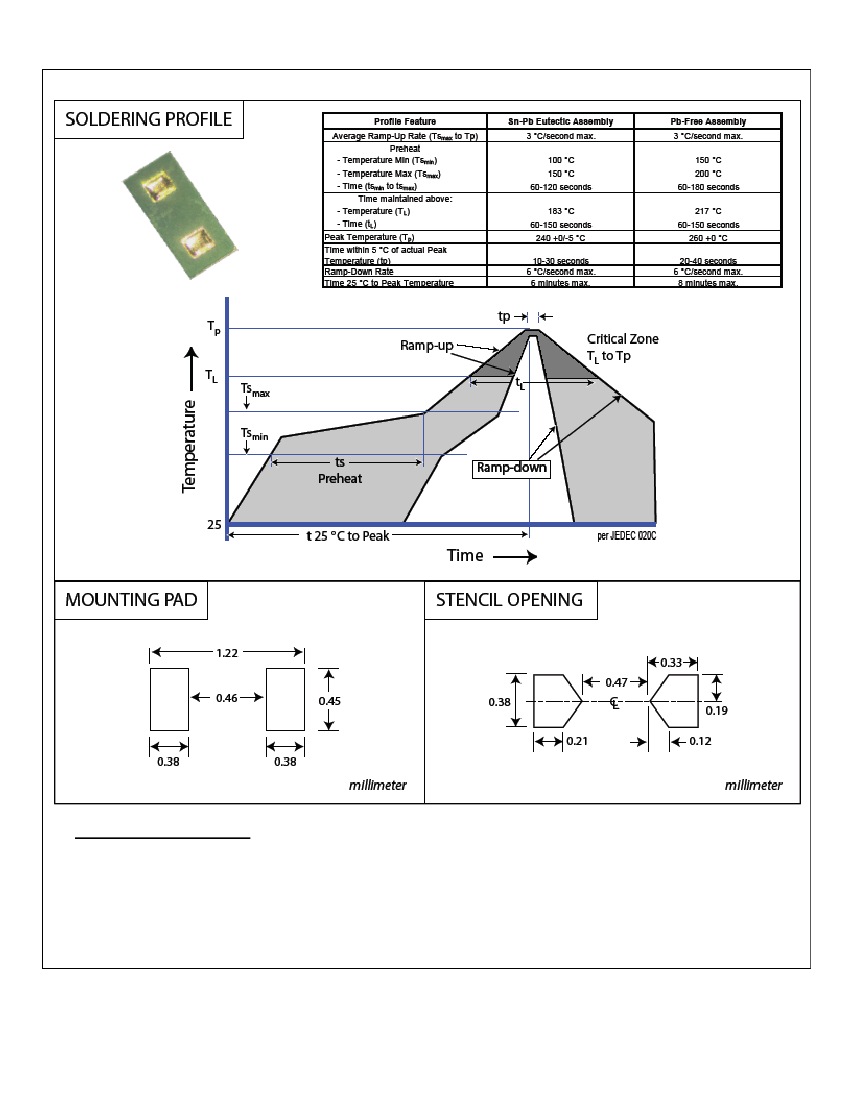

Mounting Recommendation:
Assembly Considerations:
Type 3 solder paste, use 0.005 inch stencil thickness.
Nitrogen purge is recommended during solder reflow.
This is a Pb-free part. Both Sn-Pb eutectic and Pb-free profiles are shown.
This is a recommendation based on third party testing. Each end user should test and determine their own optimum
conditions.

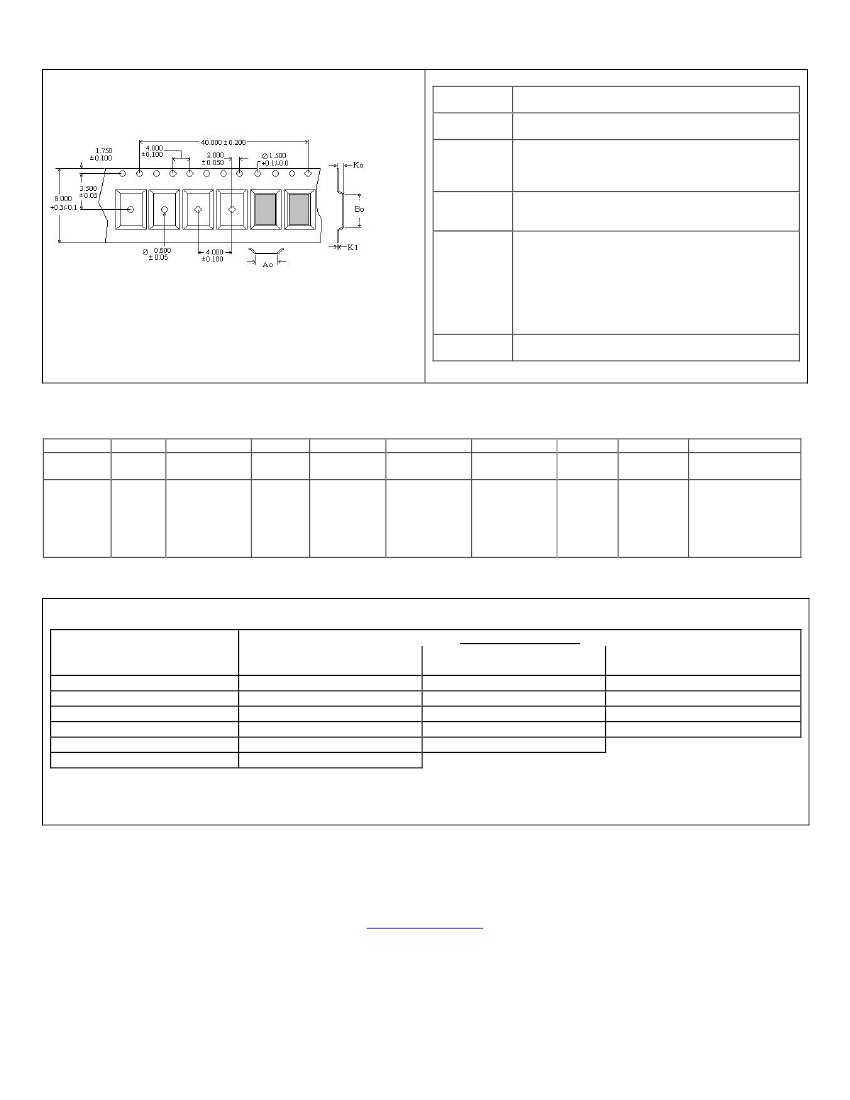

Packaging:
Packaging
Specification
General
Notes
Drawing
Dimensional
Call-outs
Packaging
Materials
Packaging
Requirements
General Guidelines & Recommendations
All dimensions are in mm.
Not drawn to scale.
Ao = 0.970 ± 0.100 mm
Bo =1.650 ± 0.100 mm
Ko = 0.410 ± 0.100 mm
K1 = 0.229 ± 0.100 mm
Carrier tape part #: 3MUS017931.
Cover tape part #: Vendor determined.
Reel size: Quantity dependent
All taping done in accordance with EIA 481 standards.
Pieces taped with the marking up and showing through
the cover tape (as shown in the above drawing).
All orders under 100pcs, will be put on cut tape only
with no leader or trailer.
Orders 100 pcs or larger are packaged on tape and
reel in either 1,000 or 5,000 pc reels. See part number
break down for ordering information.
Labels will contain the TFT part number and quantity of
pieces taped.
Labeling
Requirements
.
Part Numbering:
(Ex. EF2A51A025E10B-T50)
EF
Product
designator
EF
2
Element
qualifier
2 = two
element
025
E
10
Data Rate
50 MHz Loss
Maximum
Circuit Type
(Gb/Sec)
Designator (dB) Ripple (dB)
025 = 2.5 Gb/s
1A=0603
031=3.125 Gb/s
E = -3dB
10 = 1.0dB
A = RC Schunt 5=50 Ohm package with 050 = 5.0 Gb/s
K = -6dB
0402 footprint 063=6.25 Gb/s
Q = -9dB
100=10.0 Gb/s
125=12.5 Gb/s
A
1A
Package Size
Impedance
Code
5
B
Media
Function
B = Bessel
-T50
Packaging
Tape & Reel
-T10 = 1,000 pcs/reel
-T50 = 5,000 pcs/reel
Product Offering Matrix:
50 MHz Loss (in dB)
K=6
EF2A51A025K10B
EF2A51A031K10B
EF2A51A050K10B
EF2A51A063K10B
EF2A51A100K10B
Data Rate
025 = 2.5 Gb/s
031 = 3.125 Gb/s
050 = 5.0 Gb/s
063 = 6.25 Gb/s
100 = 10.0 Gb/s
125 = 12.5 Gb/s
E=3
EF2A51A025E10B
EF2A51A031E10B
EF2A51A050E10B
EF2A51A063E10B
EF2A51A100E10B
EF2A51A125E10B
Q=9
EF2A51A025Q10B
EF2A51A031Q10B
EF2A51A050Q10B
EF2A51A063Q10B
Note:
For data rates and attenuation values not listed, please consult factory.
Thin Film Technology Corp., 1980 Commerce Drive, North Mankato, MN 56003, (507) 625-8445
www.thin-film.com
