PE7013-2: Description2 dB Fixed Attenuator, SMA Male To SMA Female Black Anodized Aluminum Heatsink Body Rated To 5 Watts Up To 18 GHz; CategoryThe connector; File Size210KB，3 Pages; ManufacturerPasternack Enterprises; Websitehttps://www.pasternack.com/

Download Datasheet Compare View All

PE7013-2 Overview

2 dB Fixed Attenuator, SMA Male To SMA Female Black Anodized Aluminum Heatsink Body Rated To 5 Watts Up To 18 GHz

Preview

Download Datasheet

View All

3 dB Fixed Attenuator, SMA Male To SMA Female Aluminum

Heatsink Black Anodized Body Rated To 5 Watts Up To 18 GHz

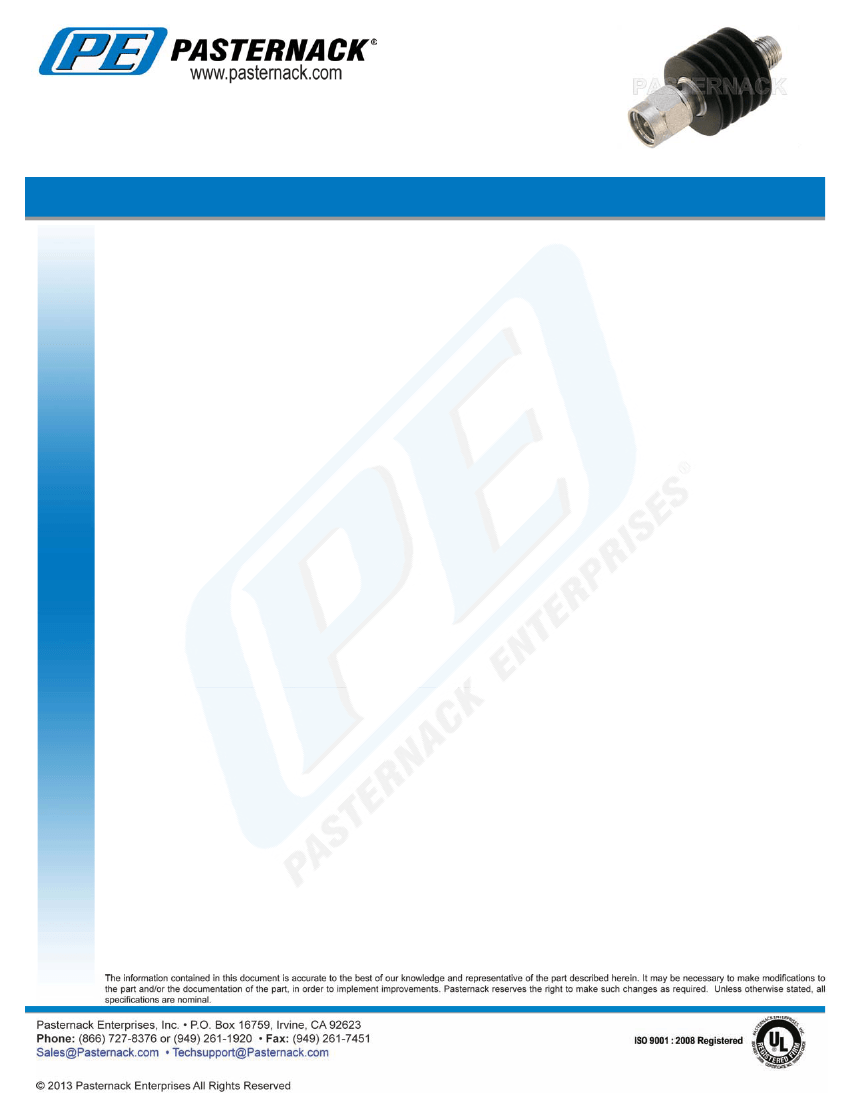

TECHNICAL DATA SHEET

PE7013-3

3 dB Fixed Attenuator, SMA Male To SMA Female Aluminum Heatsink Black Anodized Body Rated To

5 Watts Up To 18 GHz

Configuration

Design

Connector 1

Connector 2

Body Material and Plating

Fixed, Bidirectional Attenuator

SMA Male

SMA Female

Aluminum Heatsink, Black Anodized

Electrical Specifications

Frequency Range, GHz

Impedance, Ohms

Attenuation Value, dB

Maximum Input Power, Watts

Maximum VSWR

Frequency 1

Range, GHz

VSWR

Attenuation Accuracy, dB

DC to 18

1.35:1

DC to 18

1.35:1

± 0.3

Mechanical Specifications

Temperature

Operating Range, deg C

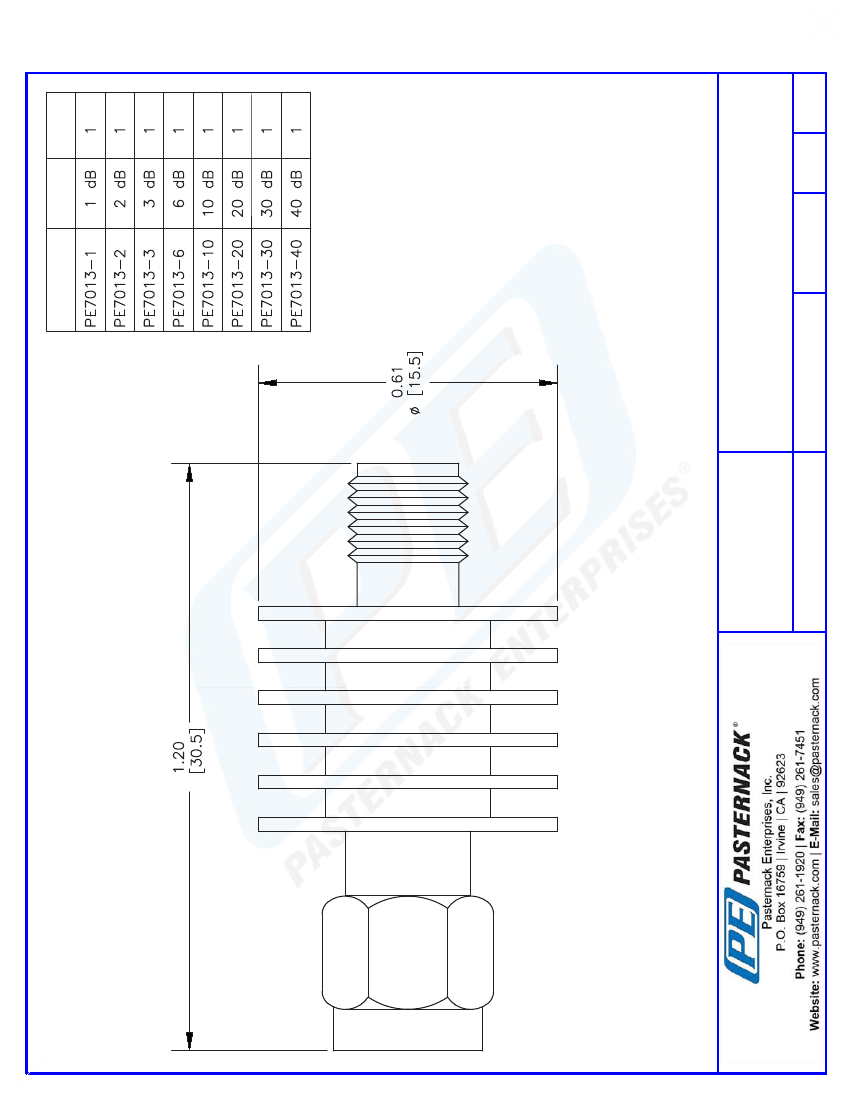

Size

Length, in [mm]

Width, in [mm]

-65 to +125

1.2 [30.48]

0.61 [15.49]

Connector 1

Type

Connector Specification

Contact Material and Plating

Coupling Nut Material and Plating

Hex Size, in.

Torque, in-lbs [Nm]

Body Material and Plating

SMA Male

MIL-STD-348

Gold

Passivated Stainless Steel

5/16

8 [0.9]

Passivated Stainless Steel

Connector 2

Type

Connector Specification

Contact Material and Plating

Body Material and Plating

SMA Female

MIL-STD-348

Gold

Passivated Stainless Steel

Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,

inventory and certifications:

3 dB Fixed Attenuator, SMA Male To SMA Female Aluminum Heatsink Black Anodized Body

Rated To 5 Watts Up To 18 GHz PE7013-3

PE7013-3 REV

PE7013-2 Related Products

	PE7013-2	PE7013-3	PE7013-20	PE7013-40	PE7013-30	PE7013-6
Description	2 dB Fixed Attenuator, SMA Male To SMA Female Black Anodized Aluminum Heatsink Body Rated To 5 Watts Up To 18 GHz	3 dB Fixed Attenuator, SMA Male To SMA Female Black Anodized Aluminum Heatsink Body Rated To 5 Watts Up To 18 GHz	20 dB Fixed Attenuator, SMA Male To SMA Female Black Anodized Aluminum Heatsink Body Rated To 5 Watts Up To 18 GHz	40 dB Fixed Attenuator, SMA Male To SMA Female Black Anodized Aluminum Heatsink Body Rated To 5 Watts Up To 18 GHz	30 dB Fixed Attenuator, SMA Male To SMA Female Black Anodized Aluminum Heatsink Body Rated To 5 Watts Up To 18 GHz	6 dB Fixed Attenuator, SMA Male To SMA Female Black Anodized Aluminum Heatsink Body Rated To 5 Watts Up To 18 GHz
