ZAD-11+: DescriptionDouble Balanced Mixer, 5MHz Min, 2000MHz Max, 9dB Conversion Loss-Max, ROHS COMPLIANT, CASE M22; CategoryWireless rf/communication Radio frequency and microwave; File Size177KB，2 Pages; ManufacturerMini-Circuits; Websitehttps://www.minicircuits.com; Environmental Compliance

Download Datasheet Parametric Compare View All

ZAD-11+ Overview

Double Balanced Mixer, 5MHz Min, 2000MHz Max, 9dB Conversion Loss-Max, ROHS COMPLIANT, CASE M22

ZAD-11+ Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mini-Circuits
Reach Compliance Code	unknown
ECCN code	EAR99
Other features	BNC
structure	COAXIAL
Maximum frequency conversion loss	9 dB
Maximum input power (CW)	17 dBm
Maximum operating frequency	2000 MHz
Minimum operating frequency	5 MHz
Maximum operating temperature	100 °C
Minimum operating temperature	-55 °C
RF/Microwave Device Types	DOUBLE BALANCED
Maximum voltage standing wave ratio	3.42

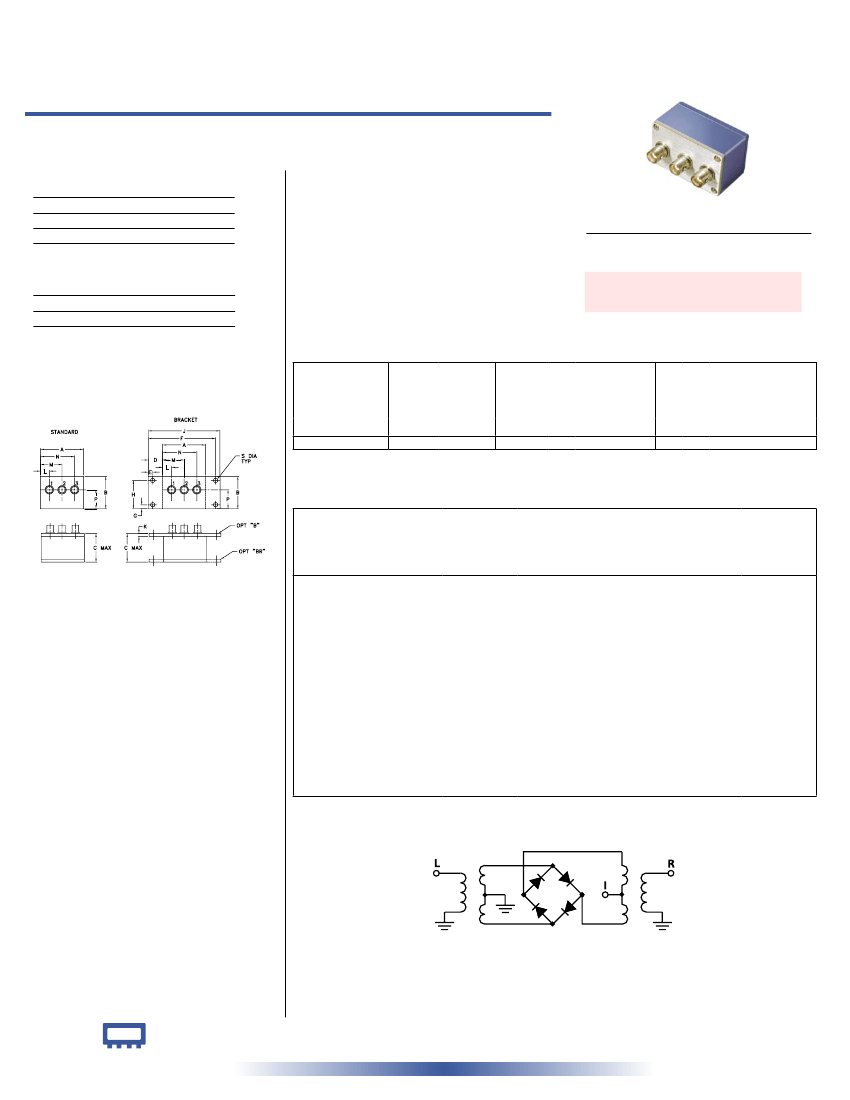

Preview

Download Datasheet

View All

Coaxial

Frequency Mixer

Level 7 (LO Power +7 dBm)

Maximum Ratings

Operating Temperature

Storage Temperature

RF Power

IF Current

-55°C to 100°C

50mW

40mA

ZAD-11+

ZAD-11

5 to 2000 MHz

Features

• low conversion loss, 7.12 dB typ.

• wideband, 5 to 2000 MHz

• rugged shielded case

CASE STYLE: M22

Connectors Model

BNC

ZAD-11(+)

BRACKET (OPTION “B”)

BRACKET (OPTION “BR”)

Price

$61.95 ea.

$5.00

$1.50

Qty.

(1-9)

(1+)

Applications

• VHF/UHF

• cellular

• satellite distribution

• GPS

• instrumentation

Coaxial Connections

LO

RF

IF

1

3

2

+ RoHS compliant in accordance

with EU Directive (2002/95/EC)

The +Sufﬁx identiﬁes RoHS Compliance. See our web site

for RoHS Compliance methodologies and qualiﬁcations.

Electrical Speciﬁcations

Outline Drawing

FREQUENCY

(MHz)

LO/RF

f

L

-f

U

5-2000

10-600

1 dB COMP.: +1 dBm typ.

IF

—

X

7.12

CONVERSION LOSS

(dB)

Mid-Band

m

σ

0.12

Total

Range

Max. Max.

8.5

9.0

L

Typ.

50

LO-RF ISOLATION

(dB)

M

Min.

45

Typ.

35

Min.

25

Typ.

30

U

Min.

20

Typ.

45

L

LO-IF ISOLATION

(dB)

M

Min.

40

Typ.

30

Min.

20

Typ.

25

U

Min.

15

L = low range [f

L

to 10 f

L

]

m= mid band [2f

L

to f

U

/2]

M = mid range [10 f

L

to f

U

/2]

U = upper range [f

U

/2 to f

U

]

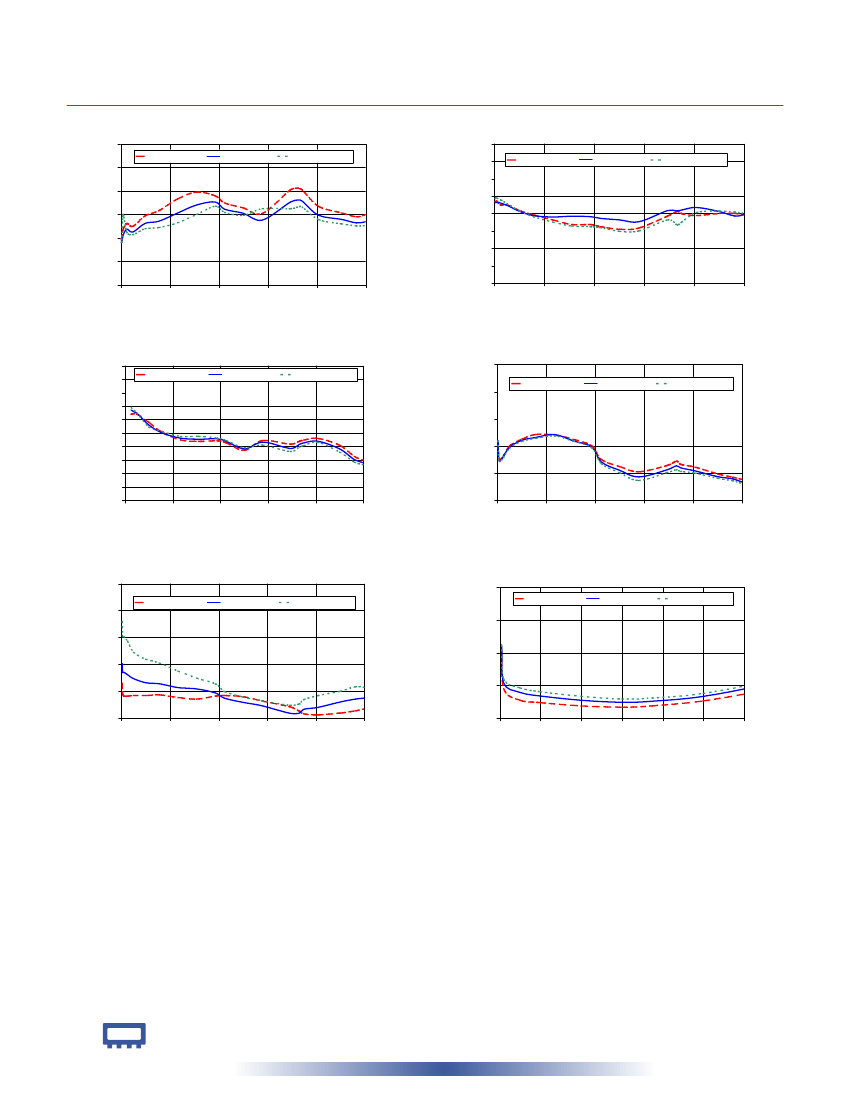

Typical Performance Data

Frequency

(MHz)

Conversion

Loss

(dB)

LO

35.00

40.00

50.00

80.00

70.00

170.00

281.92

435.39

588.85

742.31

819.04

970.00

1126.00

1356.20

1432.90

1470.00

1586.40

1770.00

1893.30

1970.00

LO

+7dBm

5.85

5.88

6.11

6.37

6.25

6.62

6.71

7.06

7.40

7.53

7.22

7.05

6.76

7.53

7.62

7.48

6.96

6.79

6.64

6.69

Isolation

L-R

(dB)

LO

+7dBm

46.19

46.23

46.26

45.89

44.70

41.17

38.72

37.94

38.38

38.07

37.13

36.28

35.18

41.65

41.43

41.94

43.41

41.03

38.49

39.35

Isolation

L-I

(dB)

LO

+7dBm

>67.00

64.66

55.90

50.11

46.15

45.38

45.67

43.78

38.27

43.23

38.52

41.57

42.71

43.97

38.23

30.27

27.98

VSWR RF

Port

(:1)

LO

+7dBm

3.19

2.54

2.45

2.62

2.96

3.21

3.31

3.42

3.19

2.96

2.41

2.10

1.86

2.12

2.27

2.19

2.08

1.87

1.79

1.67

VSWR LO

Port

(:1)

LO

+7dBm

3.03

2.69

2.70

2.61

2.46

2.31

2.27

2.13

2.08

1.93

1.73

1.58

1.45

1.17

1.32

1.39

1.59

1.70

1.74

RF

5.00

10.00

20.00

50.00

100.00

Outline Dimensions (

inch

)

mm

A

2.25

57.15

J

3.25

82.55

B

1.38

35.05

K

.10

2.54

C

1.24

31.50

L

.40

10.16

D

.50

12.70

M

1.15

29.21

E

.150

3.81

N

1.86

47.24

F

3.100

78.74

P

.64

16.26

G

.138

3.51

H

1.238

31.45

200.00

311.92

465.39

618.85

772.31

849.04

1000.00

1156.00

1386.20

1462.90

1500.00

1616.40

1800.20

1923.30

2000.00

S

wt

.150 grams

3.81

74.0

Electrical Schematic

Distribution Centers

NORTH AMERICA 800-654-7949 • 417-335-5935 • Fax 417-335-5945 • EUROPE 44-1252-832600 • Fax 44-1252-837010

Mini-Circuits

®

INTERNET

http://www.minicircuits.com

P.O. Box 350166, Brooklyn, New York 11235-0003 (718) 934-4500 Fax (718) 332-4661

Mini-Circuits

ISO 9001 & ISO 14001

Certified

REV. A

M98898

ZAD-11+

DJ/TD/CP

060626

Page 1 of 2
