Precision SMA Female to SMP Male 2 Hole Flange
Adapter Smooth Bore .450 Mounting Hole Spacing
TECHNICAL DATA SHEET
Configuration
PE91057
Precision SMA Female to SMP Male 2 Hole Flange Adapter Smooth Bore .450 Mounting Hole Spacing
Connector 1
Impedance 1
Connector Specification 1
Connector 2
Impedance 2
Connector Specification 2
Adapter Design
Body Style
Mount Method
SMA Female
50 Ohms
MIL-STD-348
SMP Male
50 Ohms
DESC94007
Precision
Straight
2 Hole Flange
Electrical Specifications
Frequency Range, GHz
Maximum VSWR
DC to 26.5
1.2:1
Mechanical Specifications
Temperature
Operating Range,deg C
Size
Length, in [mm]
Width/Dia., in [mm]
Height, in [mm]
.
-55 to +125
0.78 [19.81]
0.625 [15.88]
0.281 [7.14]
Connector 1
Type
Mating Cycles
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
Connector 2
Type
Mating Cycles
Inner Conductor Material and Plating
Inner Conductor Plating Specification
Body Material and Plating
Body Plating Specification
Dielectric Type
SMA Female
1,000
Beryllium Copper, Gold
MIL-G-45204, Type I, Grade 1, Class A
Passivated Stainless Steel
AMS-QQ-P-35
PTFE
SMP Male
1,000
Beryllium Copper, Gold
MIL-G-45204, Type I, Grade 1, Class A
Passivated Stainless Steel
AMS-QQ-P-35
PTFE
Click the following link (or enter part number in “SEARCH” on website) to obtain additional part information including price,
inventory and certifications:
Precision SMA Female to SMP Male 2 Hole Flange Adapter Smooth Bore .450 Mounting Hole
Spacing PE91057
PE91057 REV
1
Precision SMA Female to SMP Male 2 Hole Flange
Adapter Smooth Bore .450 Mounting Hole Spacing
TECHNICAL DATA SHEET
Compliance Certifications
(visit www.Pasternack.com for current document)
RoHS Compliant
Yes
PE91057

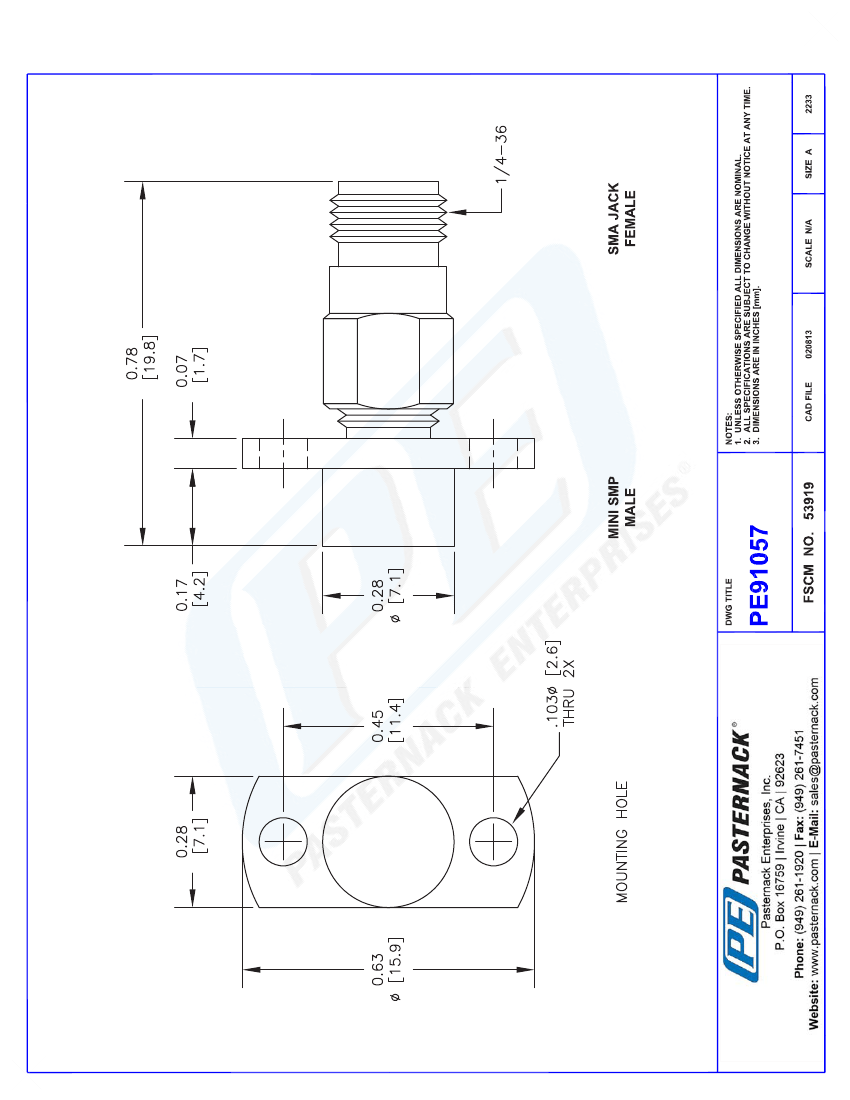

Plotted and Other Data
Notes:
Values at 25 °C, sea level
URL:
http://www.pasternack.com/sma-female-smp-male-straight-adapter-pe91057-p.aspx
Precision SMA Female to SMP Male 2 Hole Flange Adapter Smooth Bore .450 Mounting Hole Spacing from Pasternack
Enterprises has same day shipment for domestic and International orders. Our RF, microwave and fiber optic products
maintain a 99% availability and are part of the broadest selection in the industry.
PE91057 REV
2
