MC74F85DR2 datasheet, PDF - EEWORLD Datasheet

MC74F85DR2: DescriptionMagnitude Comparator, F/FAST Series, 4-Bit, True Output, TTL, PDSO16, PLASTIC, SOIC-16; Categorylogic logic; File Size112KB，4 Pages; ManufacturerMotorola ( NXP ); Websitehttps://www.nxp.com

Download Datasheet Parametric View All

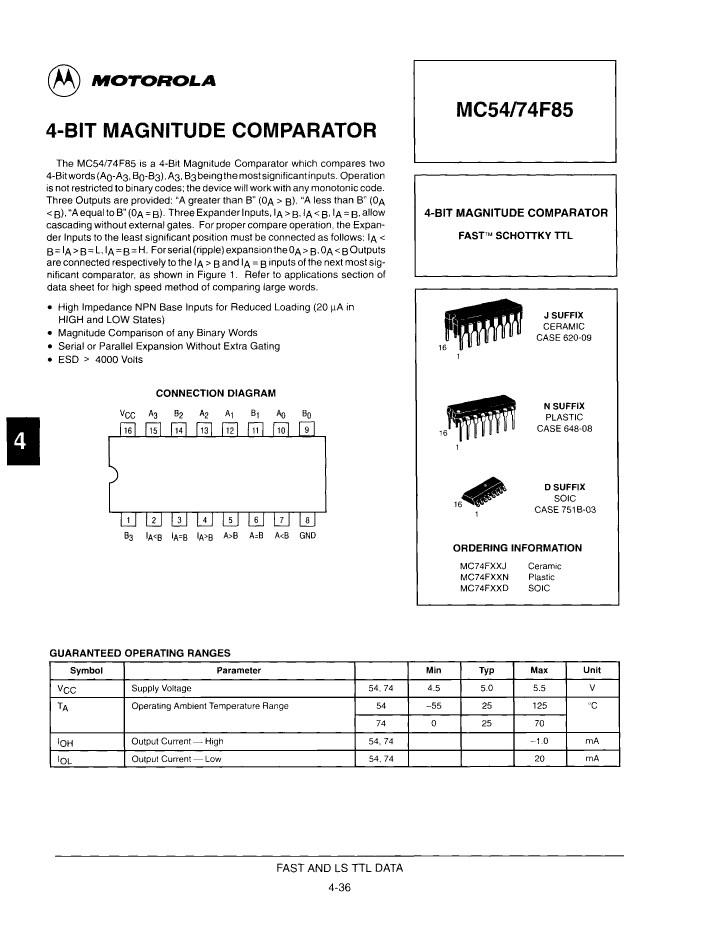

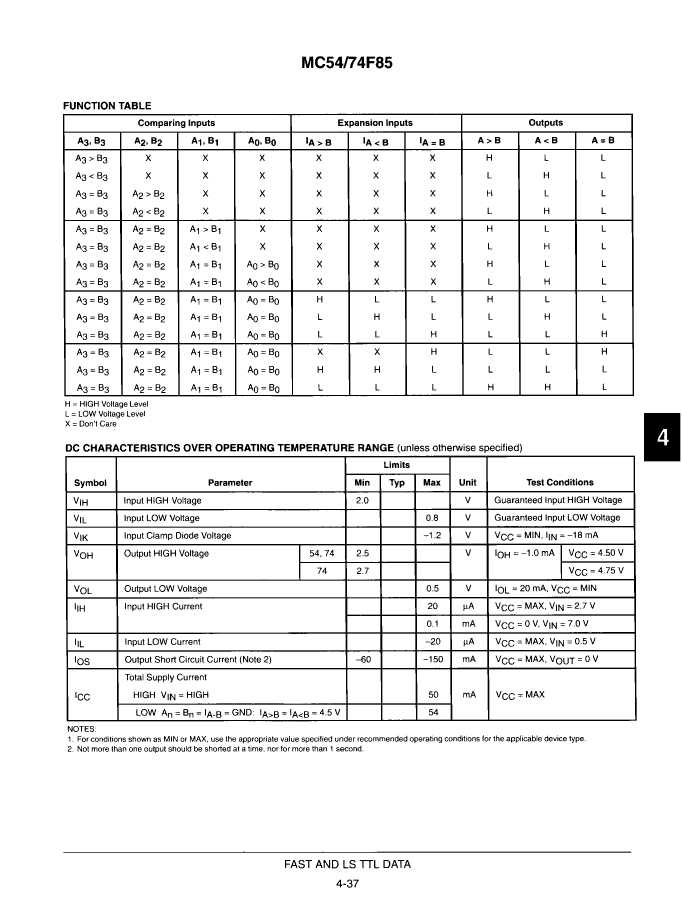

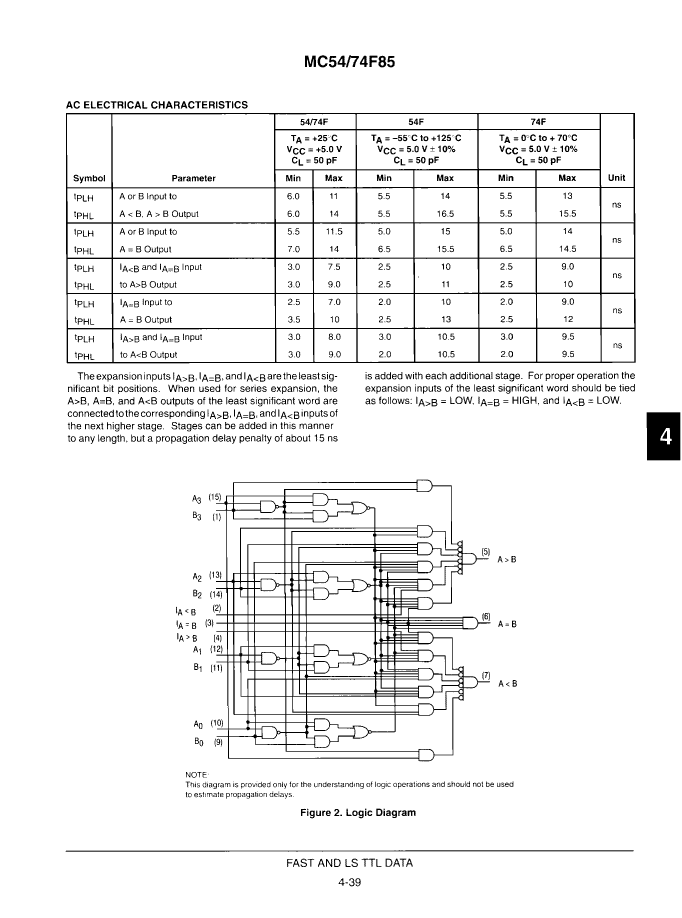

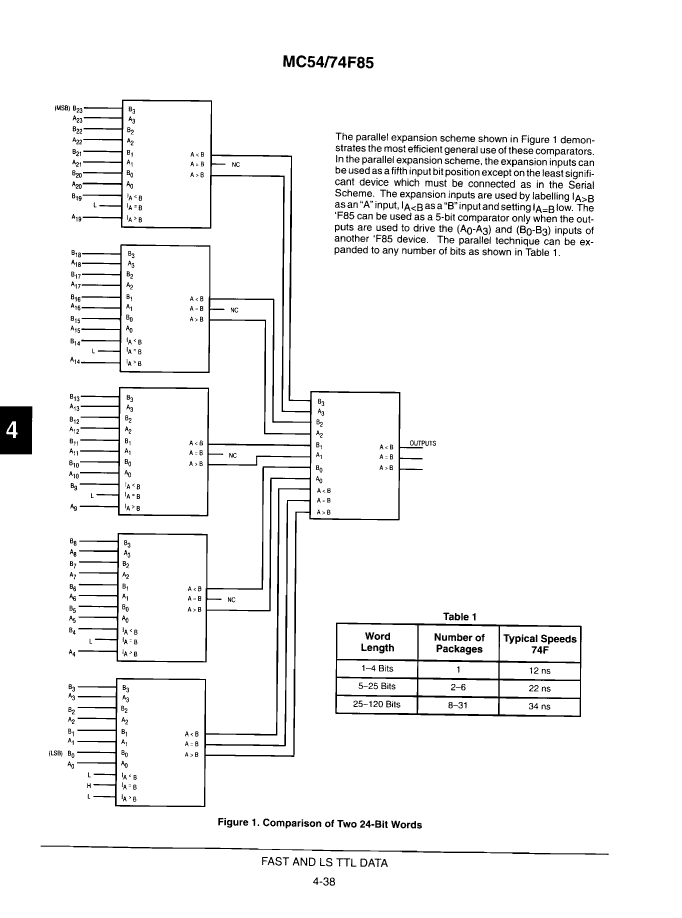

MC74F85DR2 Overview

Magnitude Comparator, F/FAST Series, 4-Bit, True Output, TTL, PDSO16, PLASTIC, SOIC-16

Parameter Name	Attribute value
Is it Rohs certified?	incompatible
Maker	Motorola ( NXP )
package instruction	SOP, SOP16,.25
Reach Compliance Code	unknown
Other features	CASCADABLE
series	F/FAST
JESD-30 code	R-PDSO-G16
JESD-609 code	e0
length	9.9 mm
Load capacitance (CL)	50 pF
Logic integrated circuit type	MAGNITUDE COMPARATOR
Number of digits	4
Number of functions	1
Number of terminals	16
Maximum operating temperature	70 °C
Minimum operating temperature
Output polarity	TRUE
Package body material	PLASTIC/EPOXY
encapsulated code	SOP
Encapsulate equivalent code	SOP16,.25
Package shape	RECTANGULAR
Package form	SMALL OUTLINE
Peak Reflow Temperature (Celsius)	NOT SPECIFIED
power supply	5 V
Maximum supply current (ICC)	54 mA
propagation delay (tpd)	15.5 ns
Certification status	Not Qualified
Maximum seat height	1.75 mm
Maximum supply voltage (Vsup)	5.5 V
Minimum supply voltage (Vsup)	4.5 V
Nominal supply voltage (Vsup)	5 V
surface mount	YES
technology	TTL
Temperature level	COMMERCIAL
Terminal surface	Tin/Lead (Sn/Pb)
Terminal form	GULL WING
Terminal pitch	1.27 mm
Terminal location	DUAL
Maximum time at peak reflow temperature	NOT SPECIFIED
width	3.9 mm
