DA221-P-W-W datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DA221-P-W-W

DA221-P-W-W: DescriptionToggle Switch, SPST, On-off, Latched, Quick Connect Terminal, Paddle Type Actuator, Panel Mount-threaded; CategoryMechanical and electronic products switch; File Size105KB，1 Pages; ManufacturerCarling Technologies; Environmental Compliance

Download Datasheet Parametric View All

DA221-P-W-W Overview

Toggle Switch, SPST, On-off, Latched, Quick Connect Terminal, Paddle Type Actuator, Panel Mount-threaded

DA221-P-W-W Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Carling Technologies
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator color	WHITE
Actuator length	0.687 inch
Actuator type	PADDLE TYPE
body width	14.93 mm
body height	17.44 mm
Body length or diameter	25.4 mm
Nozzle length	0.28 inch
Contact (AC) maximum rated power R load	1.5HP@250VAC
Contact (AC) maximum rated R load	20A@125VAC
Maximum contact current (AC)	20 A
Contact function	ON-OFF
Maximum contact voltage (AC)	125 V
Dielectric withstand voltage	1000V V
Electrical life	50000 Cycle(s)
Insulation resistance	100000000 Ω
insulator material	NYLON
Installation features	PANEL MOUNT-THREADED
Maximum operating temperature	85 °C
Minimum operating temperature
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	TOGGLE SWITCH
Termination type	QUICK CONNECT

Preview

Download Datasheet

View All

Carling

Technologies

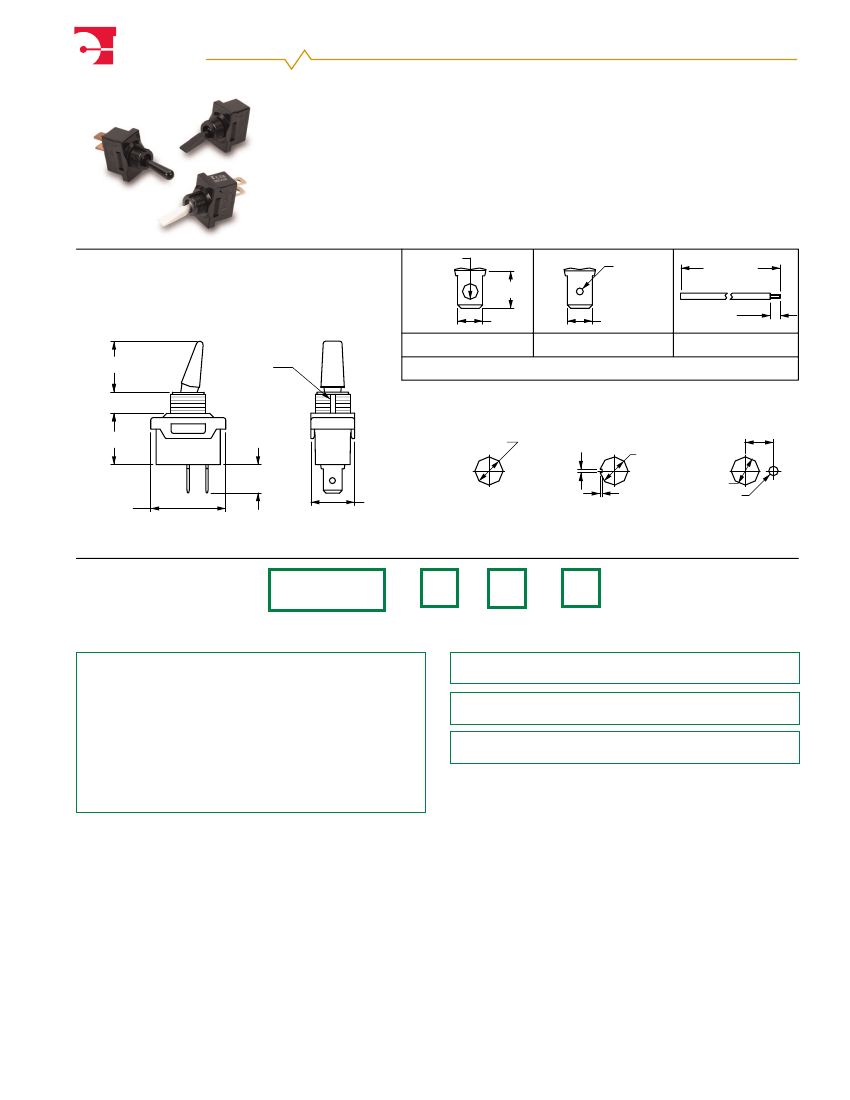

D-Series Single Pole Toggle Switches

™

D-Series Single Pole Toggle Switches

The D-Series single pole compact high current toggle

switches are ideal for applications with back panel size

constraints. These switches feature self-cleaning contacts

and ratings up to 20A 125VAC, 10A 250VAC, 1 1/2 HP

125-250VAC. With an economical double insulated all-

nylon construction, these switches figure prominently in

the Environmental Controls, Marine, Food Service,

Vacuum Cleaner and various other general purpose mar-

kets with stringent current carrying requirements.

.156[3.96] DIA

Dielectric Strength

UL/CSA:

1000V - live to dead

metal parts & opposite polarity

TUV: 4000V - live to dead metal

parts; 750V - across open

contacts

Electrical Life

50,000 cycles

Mechanical Life

100,000 cycles

Operating Temperature

32°F to 185°F (0°C to 85°C)

.069[1.75] DIA

6.000[152.4]

.375[9.52]

.500[12.70]

INTEGRATED WIRE LEAD

(no exposed conductors)

.250[6.35]

SOLDER LUG

.687[17.44]

KEYWAY

.072[1.82]

.038[.965] DP

.250[6.35]

.250 TAB (Q.C.)

TERMINAL TYPE

.280[7.11]

.687[17.44]

.500[12.70] DIA

.062[1.57]

.500[12.70] DIA

.376[9.55]

.375[9.52]

.038[9.65]

1.000[25.40]

.588[14.93]

MOUNTING HOLE

WITH KEYWAY

.500[12.70] DIA

.125[3.17] DIA

WITH LOCKING RING

DA221

Base Part Number

Actuator

Style

Actuator

Color

Bushing

Color

1 BASE PART NUMBER: SERIES/CIRCUITRY/RATING/TERMINATION

10A 250VAC, 20A 125VAC, 1 1/2 HP 125-250VAC

solder

.250

wire

lug

tab

leads

OFF-NONE-ON

DA220

DA221

DA225

ON-NONE-ON

DB220

DB221

DB225

ON-OFF-ON

DC220

DC221

DC225

5A 250VAC, 10A 125VAC, 1/2 HP 125-250VAC,

4(4) 250VACµ TUV approved

wire

leads

DA945

2 ACTUATOR STYLE

bat

3 ACTUATOR COLOR

black

4 BUSHING COLOR

black

paddle

white

ON-NONE-OFF

NOTES

Available with wire leads and ON-OFF circuit only.

Additional colors available. Please consult factory.

www.carlingtech.com
